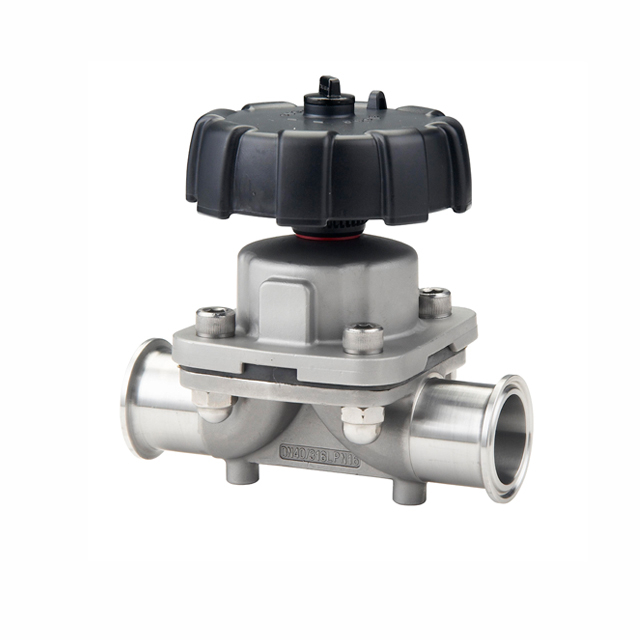

Stainless Steel Sanitary Semi Lift Multi Block Piston Diaphragm Valve

The sanitary diaphragm valve is remotely controlled by the driving actuator or manually operated by a handle.It has the advantages of simple structure, beautiful appearance, quick disassembly , flexible operation, less fluid resistance, and reliable application, etc.
Availability:
Quantity:
  • DIN JN-DPHV 1001-BJ

  • JONENG

  • 8481804090

Stainless Steel Sanitary Semi Lift Multi Block Piston Diaphragm Valve

The sanitary diaphragm valve is remotely controlled by the driving actuator or manually operated by a handle.It has the advantages of simple structure, beautiful appearance, quick disassembly , flexible operation, less fluid resistance, and reliable application, etc.


Working Principles

未标题-1

The sanitary diaphragm valve separates the inner wall of the upper and lower valve body of the diaphragm, so that the valve stem, valve disc and other parts above the diaphragm are not corroded by the medium, the structure of packing seat assures there is no-medium leakage. It not only ensures the purity of the working medium in the pipeline, but also prevents the medium from the working parts in the pipeline. In a diaphragm valve, since the working medium is only in contact with the diaphragm and the valve body, both of which are the food grade FDA approved. The valve can ideally control a variety of working mediums, especially those with chemical corrosion working medium.The diaphragm valve body and gasket with the tight fit to provide the valve body seal and seat seal to ensure the pipeline inside and outside environment completely isolated.


Stainless Steel Diaphragm Valve Specification Chart

未标题-1

Max. working pressure

10 Bar

Temperature range

-10° ~ +120°C or higher upon request

Sizes available

1" to 6"

End connection

Clamp, Weld, Flange, Thread

Body material

AISI 316L

Body structure

2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves

Seal material

Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane

Operation

plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator

Surface treatment

Ra 0.4 ~ 0.8µm

Standards

3A, SMS, DIN, ISO


Features

未标题-1

● Unique seal design, no dead angles

● Absolutely sterile, no blind corner.

 Stainless steel bonnet with sanitary internals

 100% hydraulic tested / 100% inspected

 Gentle material handling

● Diaphragm 300000 times test

● Diaphragm perfect match the valve body design

● Valve operation more safe and efficient

 The inner surface is RA0.4, which fully conforms to the pharmaceutical grade

 Excellent for flow control,Straight through flow path

● Easy disassembly, easy maintainenance, easy to clean, CIP

● Low turbulence, Minimal back pressure

Unique sealing structure, eliminate the sanitary blind corner. Easy to clean the sterilization process and Contamination free.


Application

未标题-1

Diaphragm valves, manually or pneumatically operated, are specifically designed for use in sanitary and aseptic processes in the medical and pharmaceutical industries. Very good performance in controlling the flow rate of the small flow piping line. The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.





Working Principles

未标题-1

The sanitary diaphragm valve separates the inner wall of the upper and lower valve body of the diaphragm, so that the valve stem, valve disc and other parts above the diaphragm are not corroded by the medium, the structure of packing seat assures there is no-medium leakage. It not only ensures the purity of the working medium in the pipeline, but also prevents the medium from the working parts in the pipeline. In a diaphragm valve, since the working medium is only in contact with the diaphragm and the valve body, both of which are the food grade FDA approved. The valve can ideally control a variety of working mediums, especially those with chemical corrosion working medium.The diaphragm valve body and gasket with the tight fit to provide the valve body seal and seat seal to ensure the pipeline inside and outside environment completely isolated.




Feature and Specification

未标题-1

DIN BJ 快装直通隔膜阀

Stainless Steel Diaphragm Valve Specification Chart

未标题-1

Max. working pressure

10 Bar

Temperature range

-10° ~ +120°C or higher upon request

Sizes available

1" to 6"

End connection

Clamp, Weld, Flange, Thread

Body material

AISI 316L

Body structure

2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves

Seal material

Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane

Operation

plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator

Surface treatment

Ra 0.4 ~ 0.8µm

Standards

3A, SMS, DIN, ISO



Features

未标题-1

● Unique seal design, no dead angles

● Absolutely sterile, no blind corner.

 Stainless steel bonnet with sanitary internals

 100% hydraulic tested / 100% inspected

 Gentle material handling

● Diaphragm 300000 times test

● Diaphragm perfect match the valve body design

● Valve operation more safe and efficient

 The inner surface is RA0.4, which fully conforms to the pharmaceutical grade

 Excellent for flow control,Straight through flow path

● Easy disassembly, easy maintainenance, easy to clean, CIP

● Low turbulence, Minimal back pressure

Unique sealing structure, eliminate the sanitary blind corner. Easy to clean the sterilization process and Contamination free.



Application

未标题-1

Diaphragm valves, manually or pneumatically operated, are specifically designed for use in sanitary and aseptic processes in the medical and pharmaceutical industries. Very good performance in controlling the flow rate of the small flow piping line. The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.
