JONENG

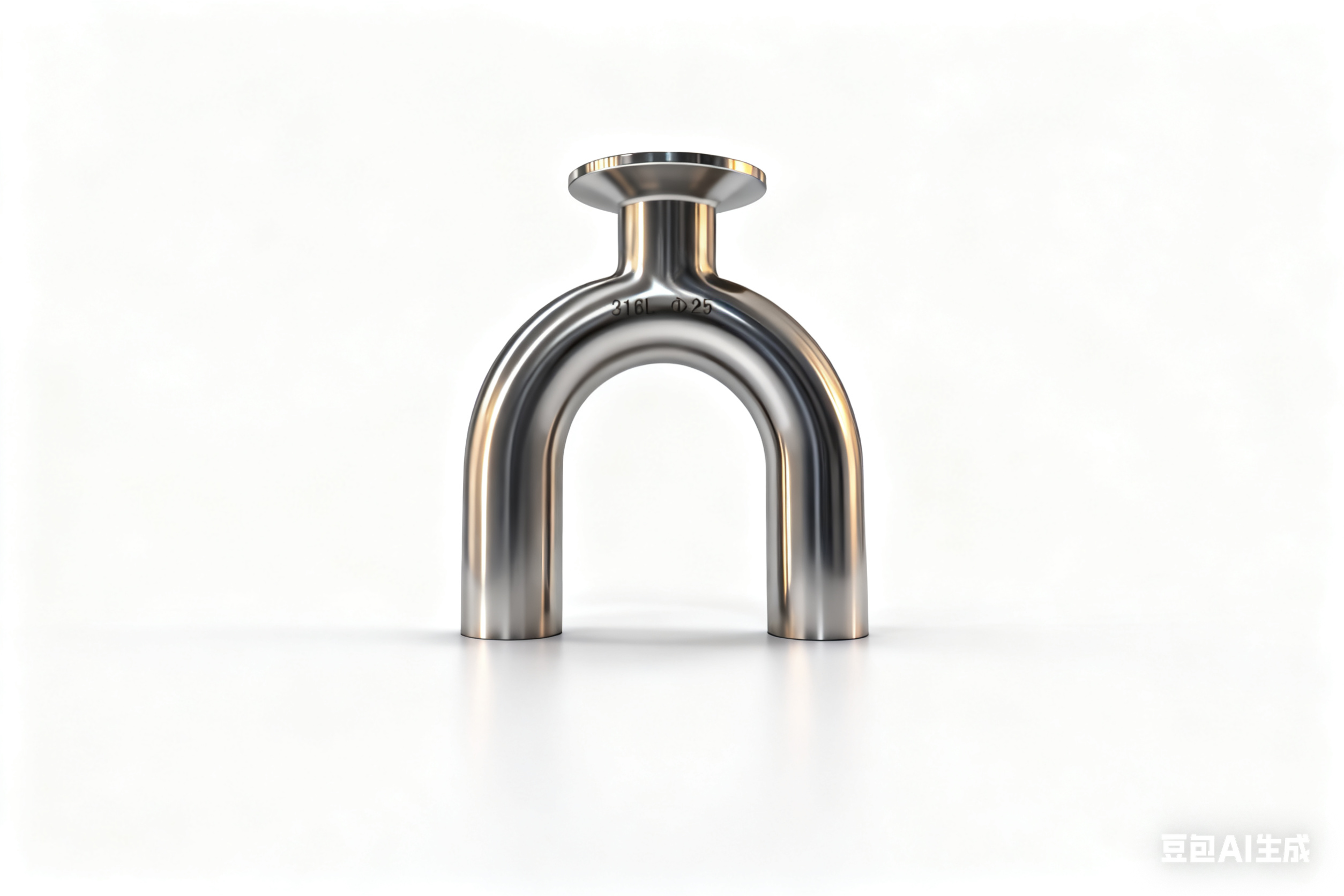

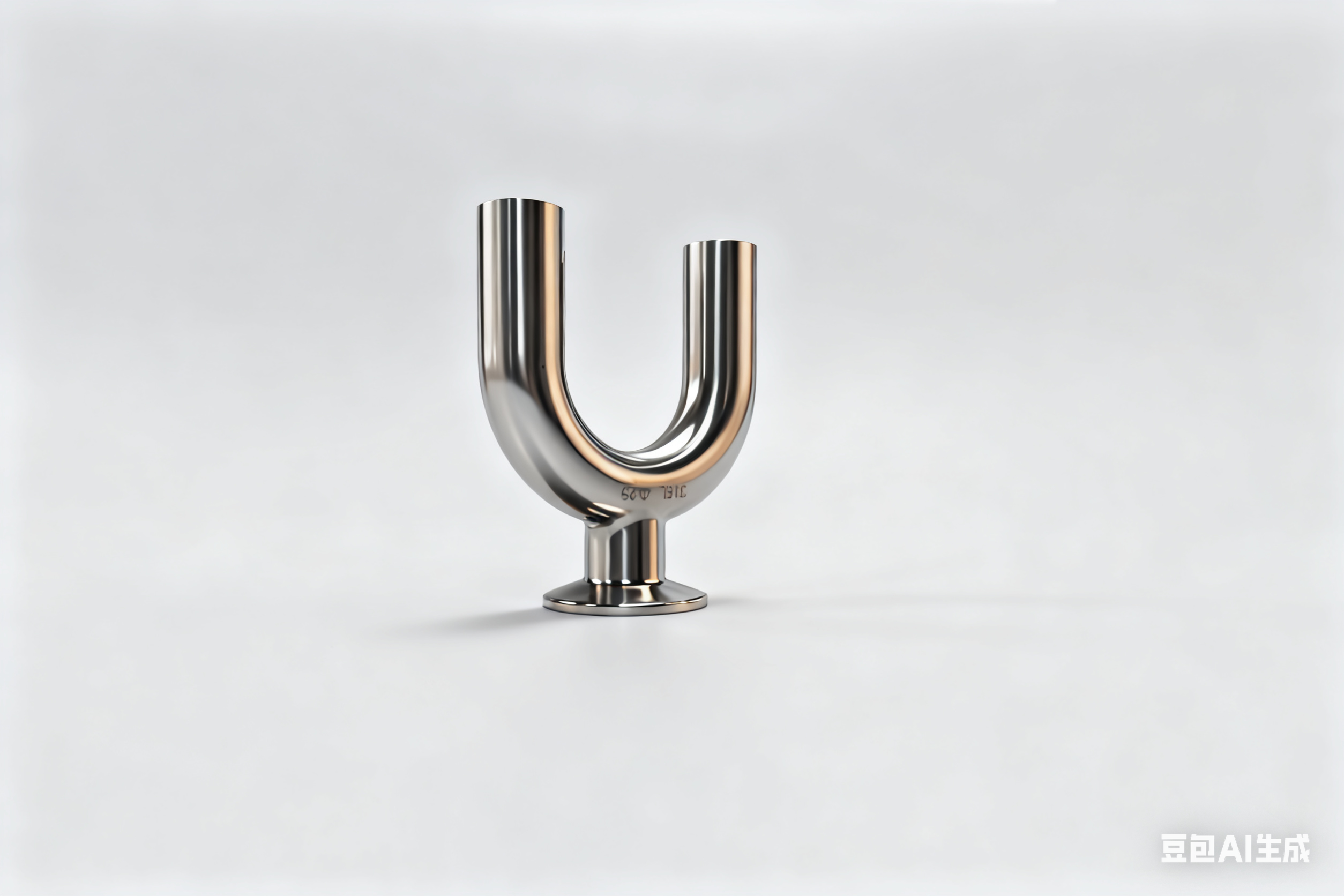

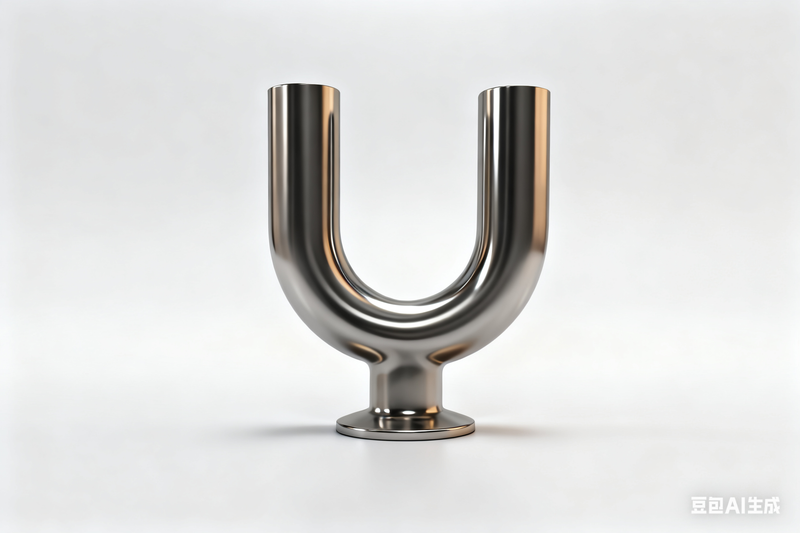

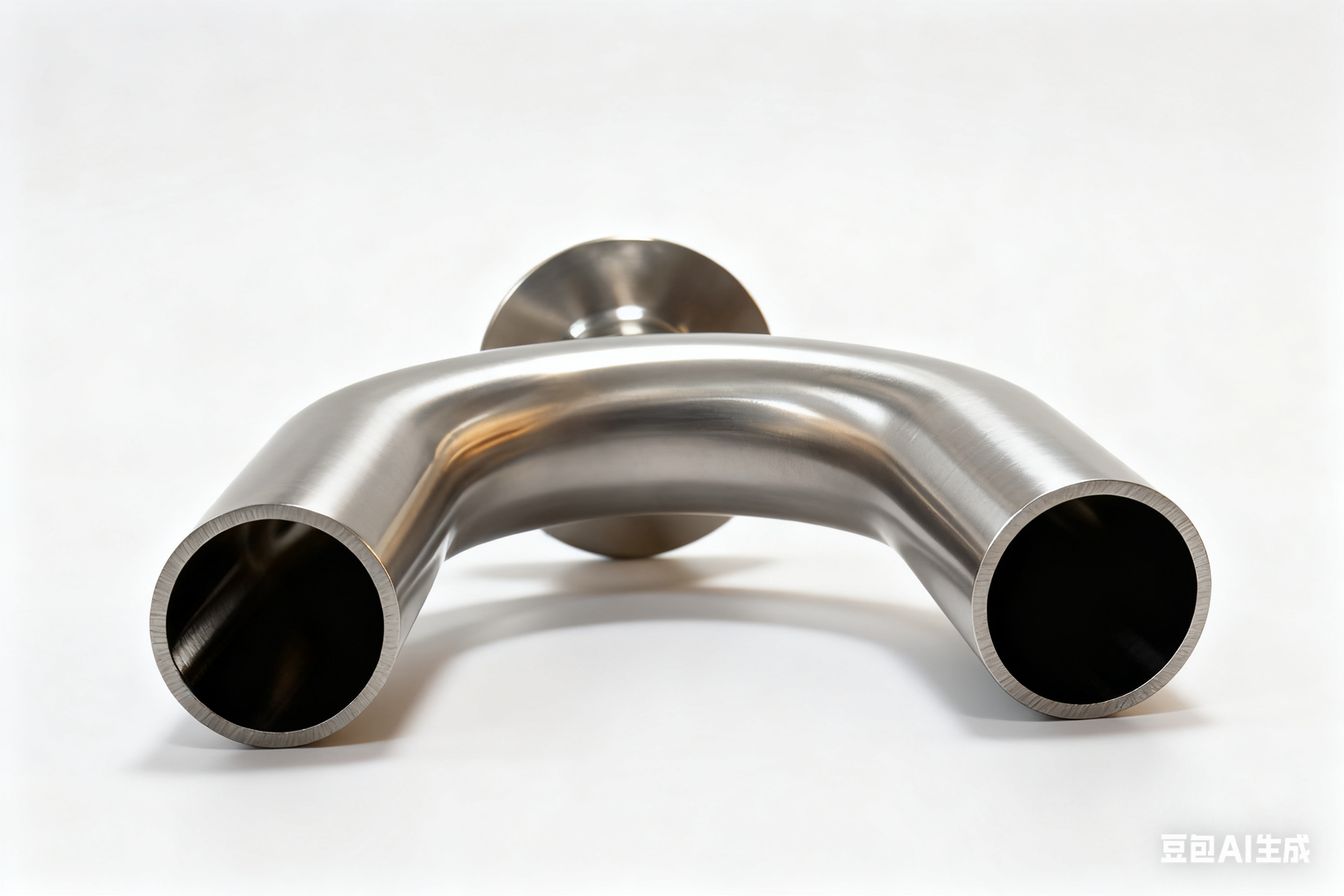

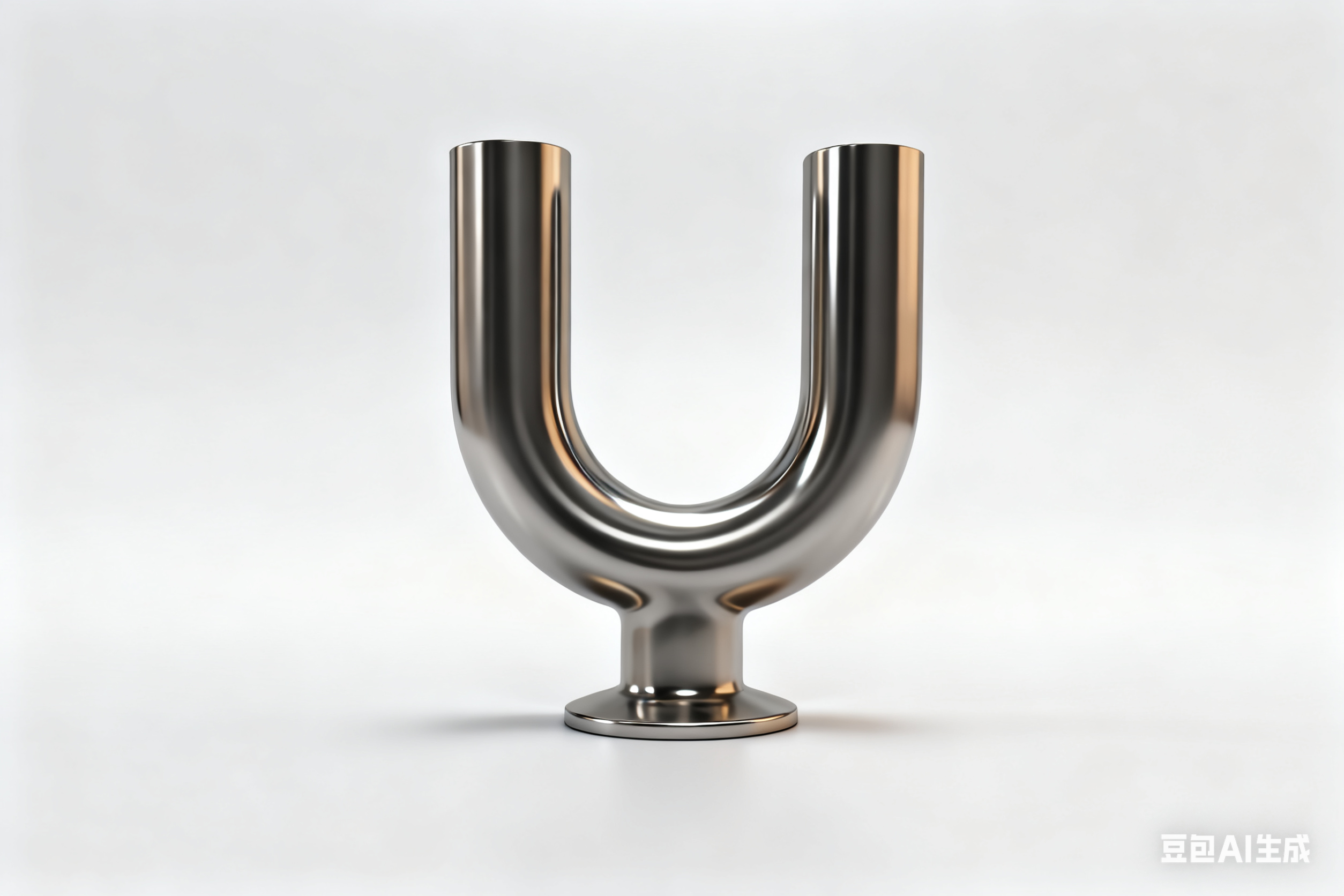

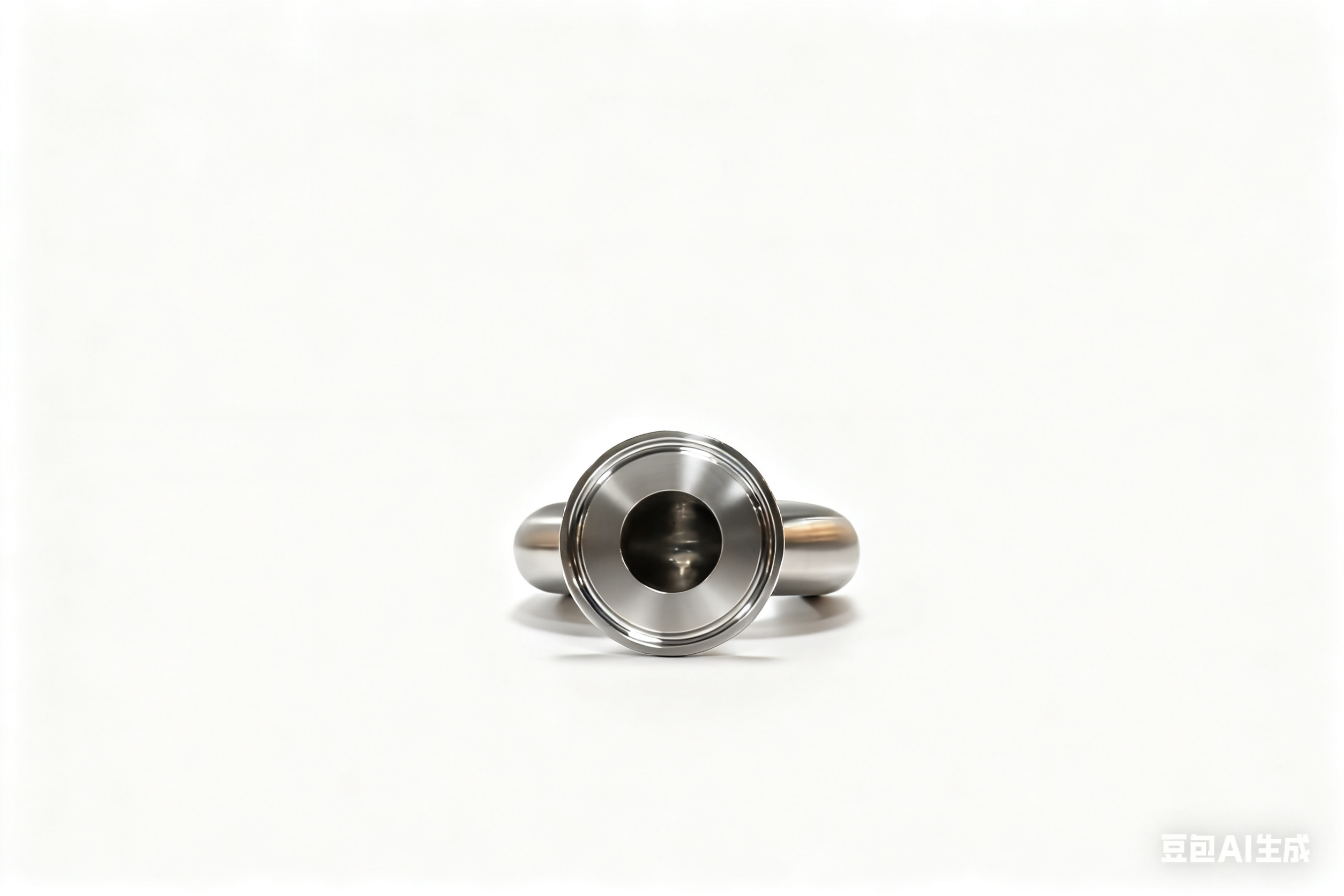

Stainless steel U-shaped tee welding quick-installation pipe fitting
The stainless steel U-shaped three-way welded quick-install fitting is made of 304/316L stainless steel, with a U-shaped flow channel for smooth fluid flow with low resistance. It features dual connections of welding and quick installation, ensuring both sealing stability and easy disassembly. With high cleanliness and easy cleaning, it meets the requirements of fluid direction switching and diversion in industries such as food and pharmaceutical.
Stainless Steel Elbow Specification Chart
| Material | SS304, SS316L | |
| Size | 1/4''-12'' | |
| Raw material standard | ASTM A-269, A-270 | |
| Connection | Welded end, Triclover end, Male, Female, Flange | |
| Surface | Satin finish, Mirror polish, Vibrating surface, Pickled,EP, Sand Blasting | |
| Standard | 3A/SMS/DIN/ISO2037/ISO1127/AS1528/BS/BPE/IDF | |
| Certificate | ISO, PED,FDA | |
| Products Range | Elbow | 90degree elbow, 45degree elbow, 180degree elbow |
| Tee | equal tee, reducing tee | |
| Reducer | concentric reducer, eccentric reducer | |
| Application | Food, Beverage,Phamacy, Dairy | |
Features
● The sizes fit for stainless steel sanitary tubing and piping dimensions
● Max. operating pressure rating of 10bar for small sizes
● Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
● The elbow with straight end is designed for capacity of orbital welding
● Easy for welding
● free from rust and corrosion
● Working for high pressure 0-10bar
Feature and Specification
Stainless Steel Elbow Specification Chart
| Material | SS304, SS316L | |
| Size | 1/4''-12'' | |
| Raw material standard | ASTM A-269, A-270 | |
| Connection | Welded end, Triclover end, Male, Female, Flange | |
| Surface | Satin finish, Mirror polish, Vibrating surface, Pickled,EP, Sand Blasting | |
| Standard | 3A/SMS/DIN/ISO2037/ISO1127/AS1528/BS/BPE/IDF | |
| Certificate | ISO, PED,FDA | |
| Products Range | Elbow | 90degree elbow, 45degree elbow, 180degree elbow |
| Tee | equal tee, reducing tee | |
| Reducer | concentric reducer, eccentric reducer | |
| Application | Food, Beverage,Phamacy, Dairy | |
Features
● The sizes fit for stainless steel sanitary tubing and piping dimensions
● Max. operating pressure rating of 10bar for small sizes
● Chemical components carrying in the materials meet the requirement from hygienic and sanitary industry
● The tees with straight end is designed for capacity of orbital welding
● Easy for welding
● Free from rust and corrosion
● Working for high pressure 0-10bar
