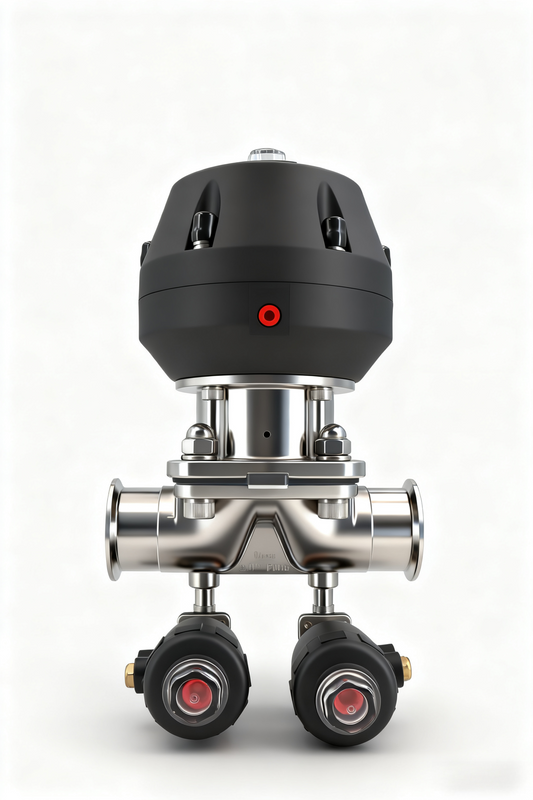

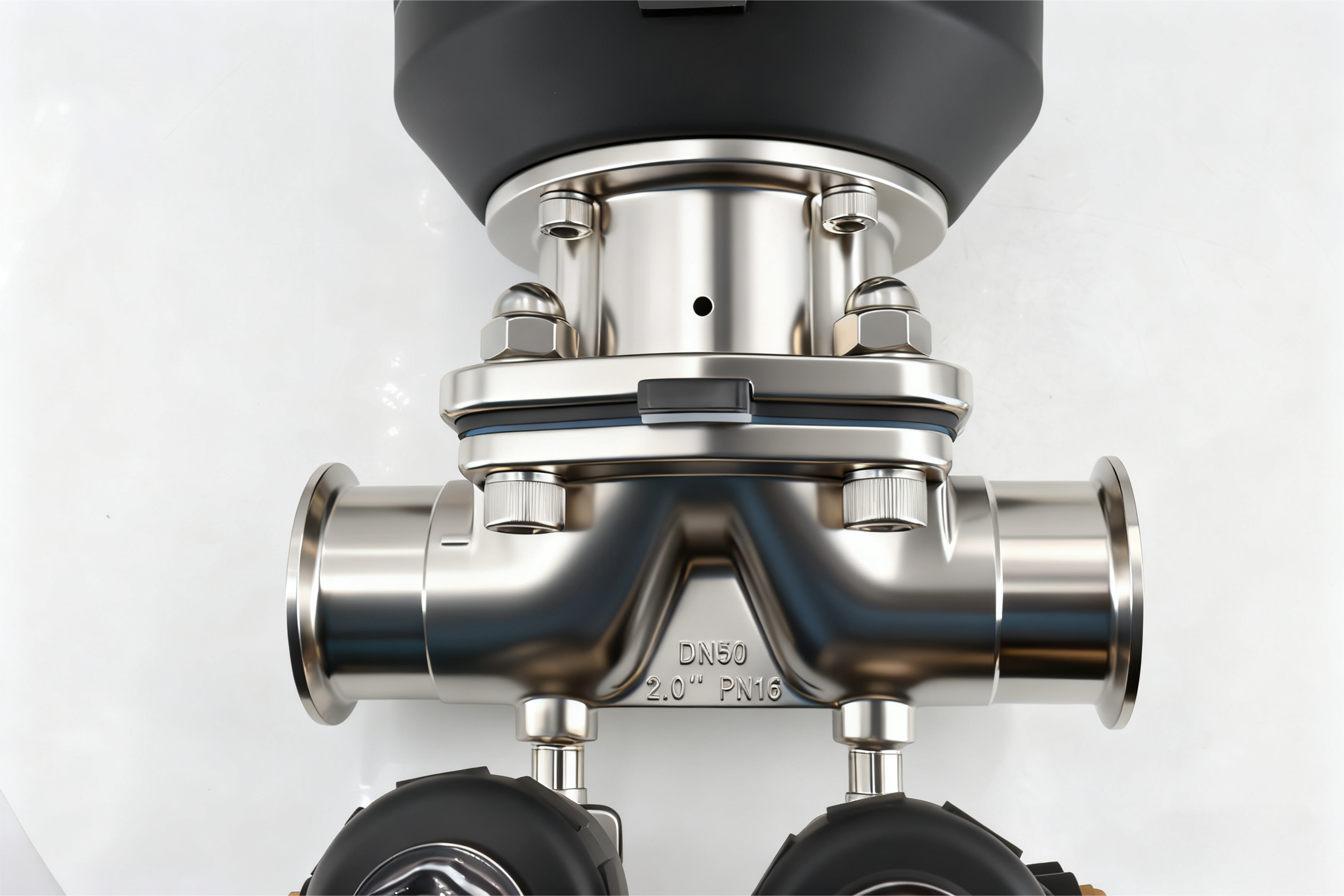

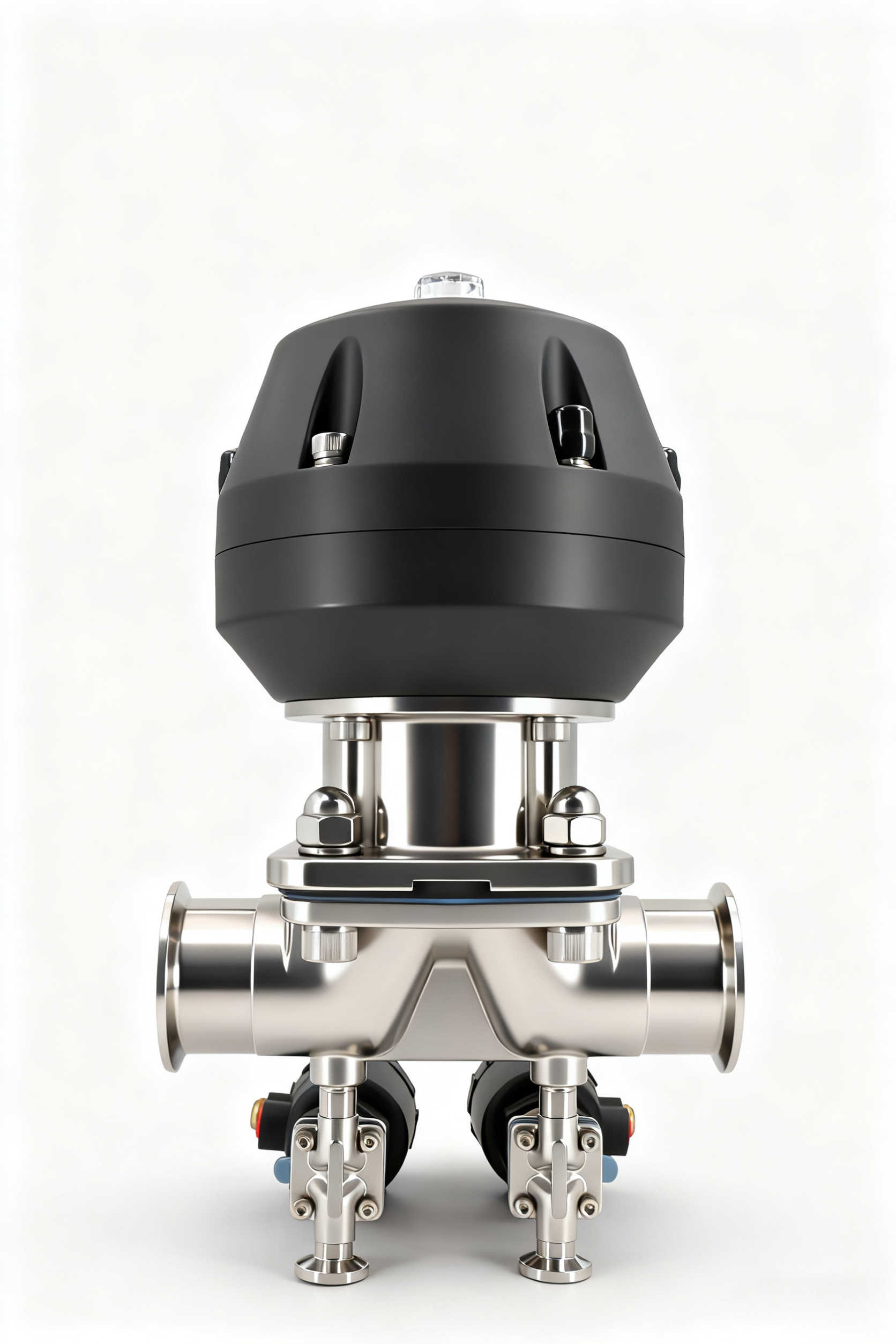

Stainless steel sanitary plastic head pneumatic quick-install diaphragm valve
The Stainless Steel Sanitary Plastic Head Pneumatic Quick-Install Diaphragm Valve is a hygienic valve that uses a pneumatic actuator with a durable plastic head to control flow automatically. Its quick-install design ensures fast assembly, while the diaphragm provides reliable, leak-free operation in sanitary fluid systems
Working Principles

The Stainless Steel Sanitary Plastic Head Pneumatic Quick-Install Diaphragm Valve operates by using compressed air to drive the pneumatic actuator, which features a lightweight, corrosion-resistant plastic head. When air pressure is applied, the actuator pushes or lifts the diaphragm to open or close the flow path. The diaphragm seals directly against the valve body, preventing contamination and ensuring hygienic operation. Its quick-install connection design allows fast mounting or removal in sanitary pipelines, reducing downtime. This mechanism provides reliable shutoff, smooth flow control, and rapid response, making it suitable for clean fluid processing environments
Stainless Steel Diaphragm Valve Specification Chart

Max. working pressure | 10 Bar |
Temperature range | -10° ~ +120°C or higher upon request |
Sizes available | 1" to 6" |
End connection | Clamp, Weld, Flange, Thread |
Body material | AISI 316L |
Body structure | 2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves |
Seal material | Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane |
Operation | plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator |
Surface treatment | Ra 0.4 ~ 0.8µm |
Standards | 3A, SMS, DIN, ISO |
Features

Lightweight Plastic Actuator Head – The durable plastic head resists corrosion, reduces overall weight, and provides smooth pneumatic operation, making it suitable for sanitary and moisture-rich environments.
Quick-Install Design – Allows fast, tool-free installation and removal, improving maintenance efficiency and reducing downtime in hygienic processing systems.
Hygienic Diaphragm Seal – The diaphragm isolates the fluid from mechanical components, ensuring a clean, leak-free flow path ideal for food, pharmaceutical, and high-purity applications.
Stainless Steel Valve Body – Provides strong corrosion resistance, structural durability, and sanitary performance, ensuring long-term reliability in demanding environments.
Responsive Pneumatic Control – Uses compressed air for rapid and stable actuation, offering reliable opening and closing for precise flow regulation
Application

The Stainless Steel Sanitary Plastic Head Pneumatic Quick-Install Diaphragm Valve is widely used in industries that require hygienic, automated flow control. Common applications include food and beverage processing, dairy production, pharmaceutical manufacturing, biotechnology, and purified water systems, where fast installation, reliable sealing, and sanitary performance are essential for maintaining clean and efficient operations

Working Principles

The Stainless Steel Sanitary Plastic Head Pneumatic Quick-Install Diaphragm Valve operates by using compressed air to drive the pneumatic actuator, which features a lightweight, corrosion-resistant plastic head. When air pressure is applied, the actuator pushes or lifts the diaphragm to open or close the flow path. The diaphragm seals directly against the valve body, preventing contamination and ensuring hygienic operation. Its quick-install connection design allows fast mounting or removal in sanitary pipelines, reducing downtime. This mechanism provides reliable shutoff, smooth flow control, and rapid response, making it suitable for clean fluid processing environments
Feature and Specification


Stainless Steel Diaphragm Valve Specification Chart

Max. working pressure | 10 Bar |
Temperature range | -10° ~ +120°C or higher upon request |
Sizes available | 1" to 6" |
End connection | Clamp, Weld, Flange, Thread |
Body material | AISI 316L |
Body structure | 2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves |
Seal material | Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane |
Operation | plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator |
Surface treatment | Ra 0.4 ~ 0.8µm |
Standards | 3A, SMS, DIN, ISO |
Features

Lightweight Plastic Actuator Head – The durable plastic head resists corrosion, reduces overall weight, and provides smooth pneumatic operation, making it suitable for sanitary and moisture-rich environments.
Quick-Install Design – Allows fast, tool-free installation and removal, improving maintenance efficiency and reducing downtime in hygienic processing systems.
Hygienic Diaphragm Seal – The diaphragm isolates the fluid from mechanical components, ensuring a clean, leak-free flow path ideal for food, pharmaceutical, and high-purity applications.
Stainless Steel Valve Body – Provides strong corrosion resistance, structural durability, and sanitary performance, ensuring long-term reliability in demanding environments.
Responsive Pneumatic Control – Uses compressed air for rapid and stable actuation, offering reliable opening and closing for precise flow regulation
Application

The Stainless Steel Sanitary Plastic Head Pneumatic Quick-Install Diaphragm Valve is widely used in industries that require hygienic, automated flow control. Common applications include food and beverage processing, dairy production, pharmaceutical manufacturing, biotechnology, and purified water systems, where fast installation, reliable sealing, and sanitary performance are essential for maintaining clean and efficient operations.
