JONENG

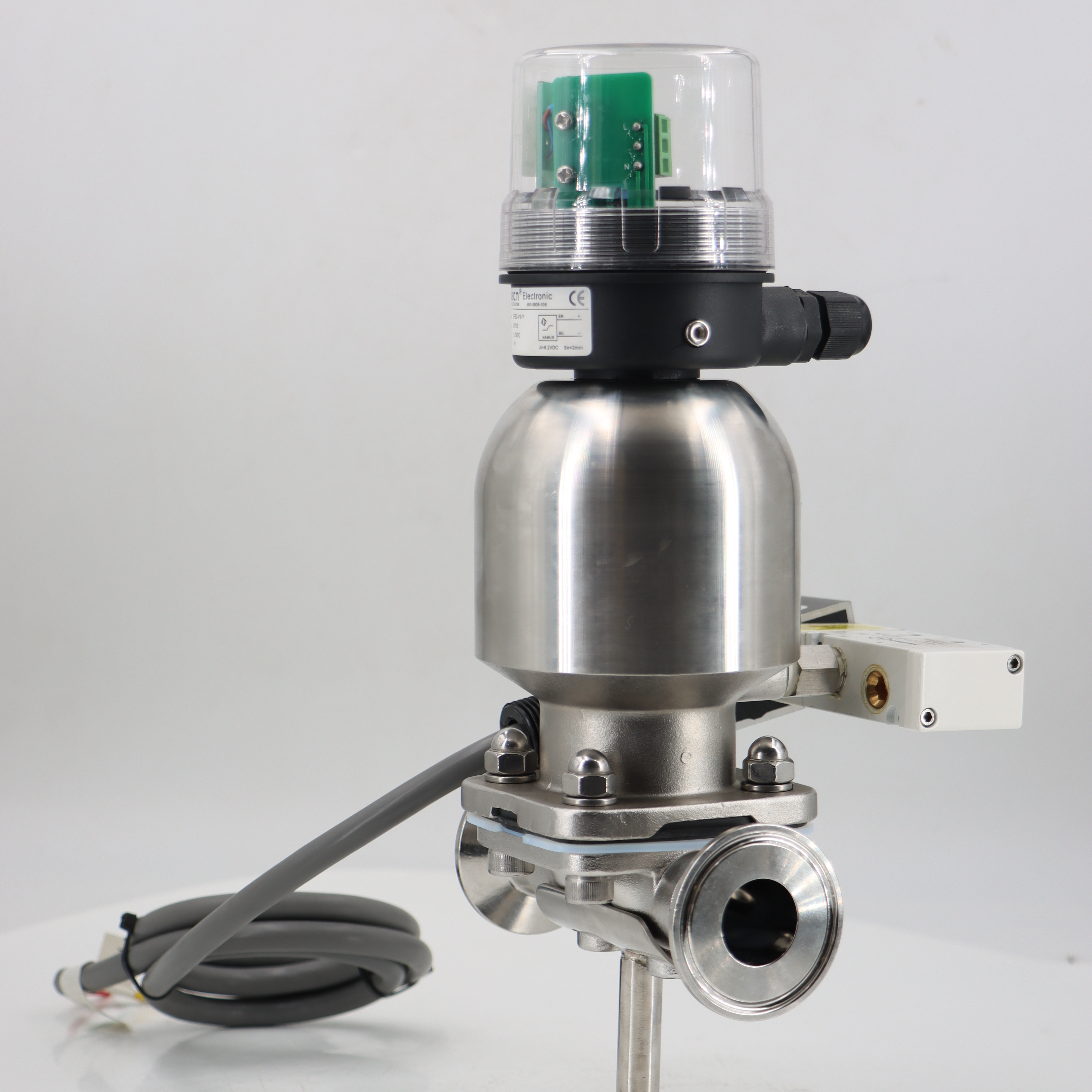

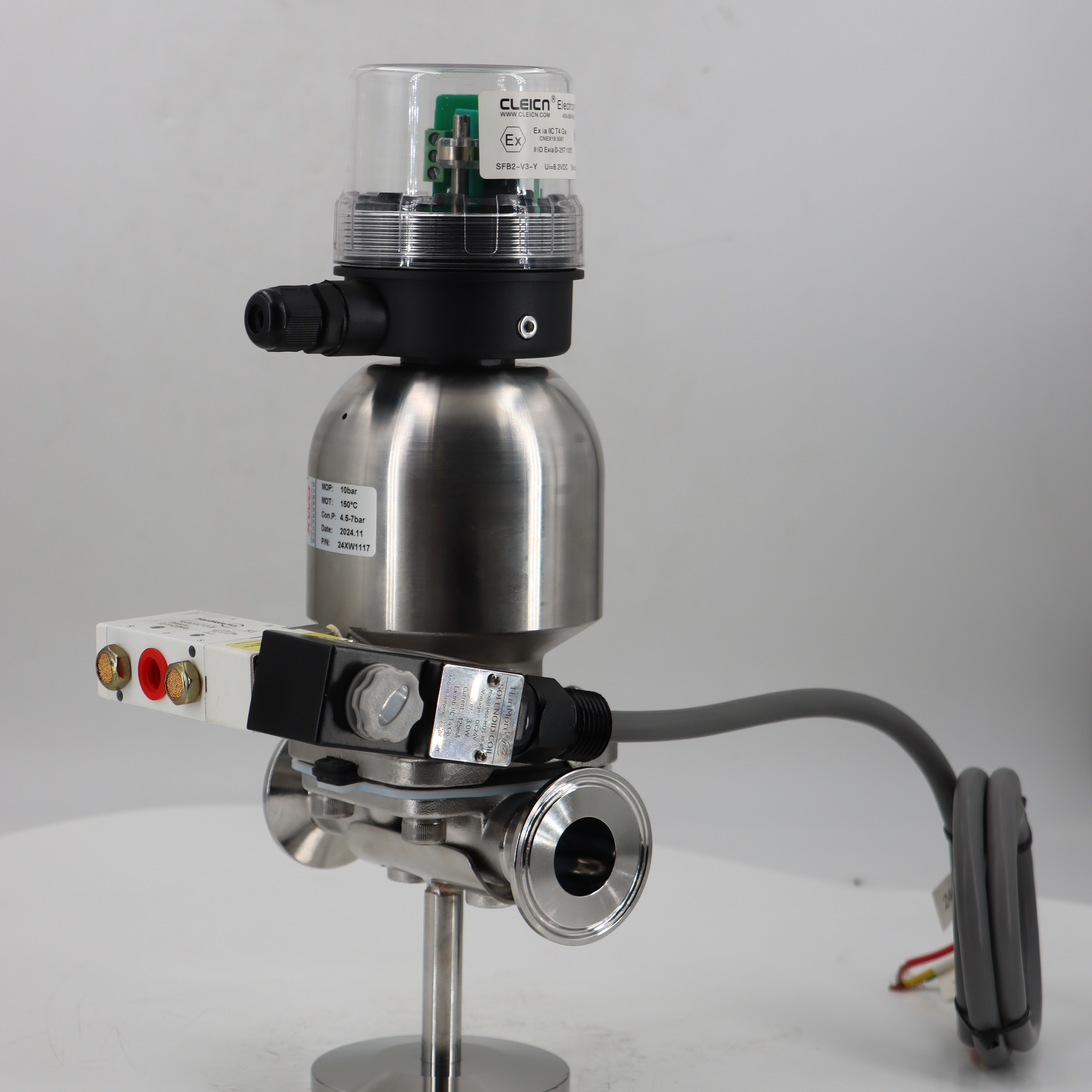

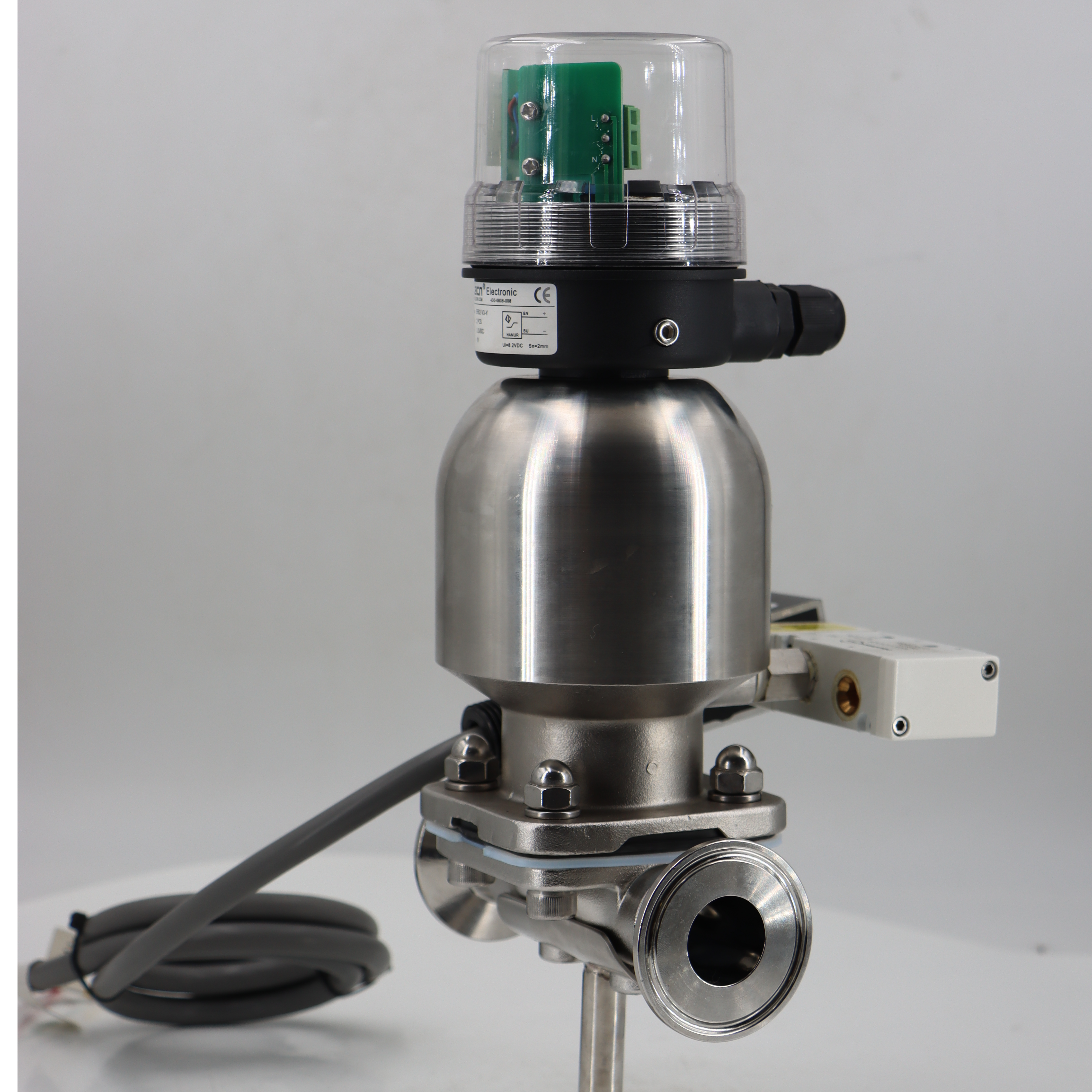

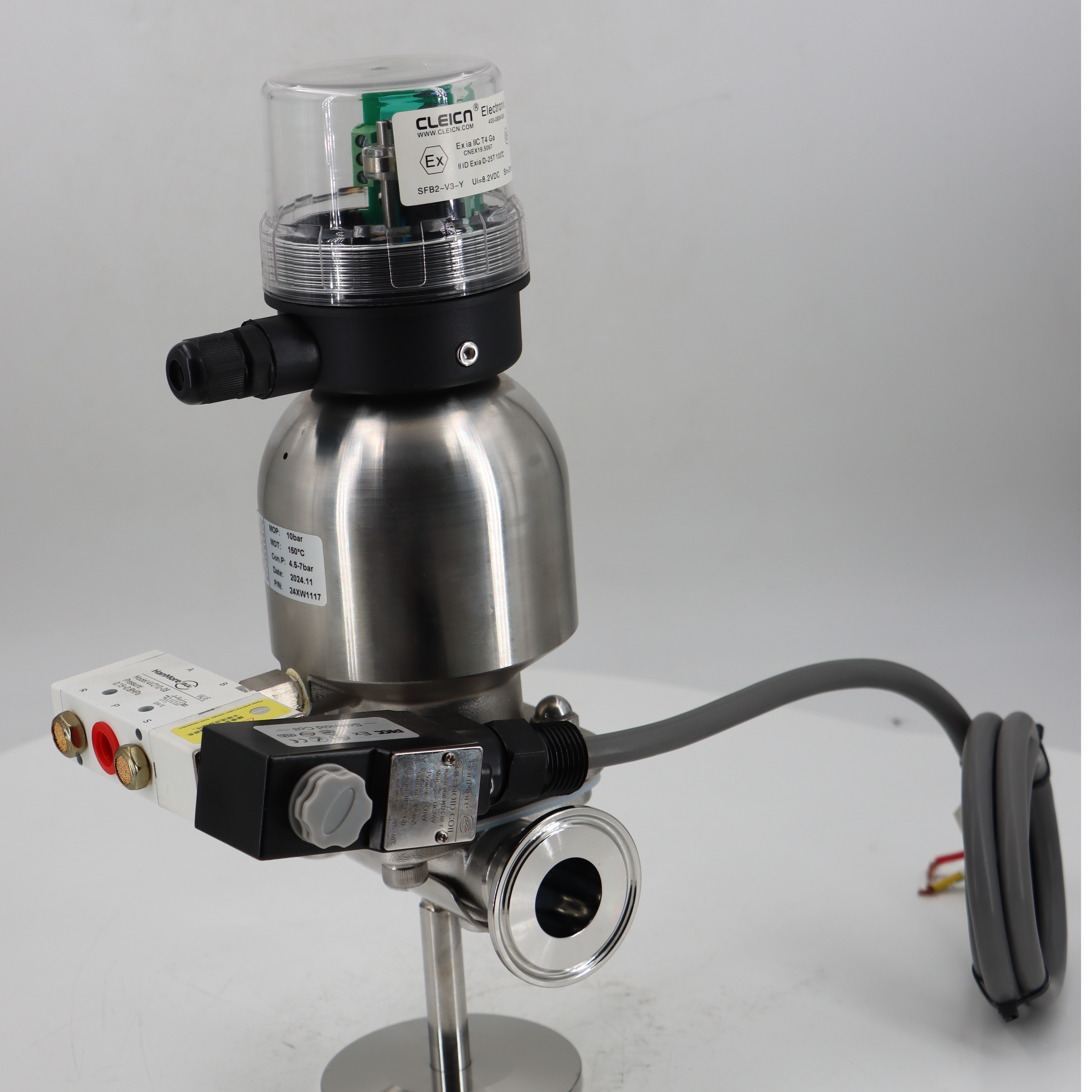

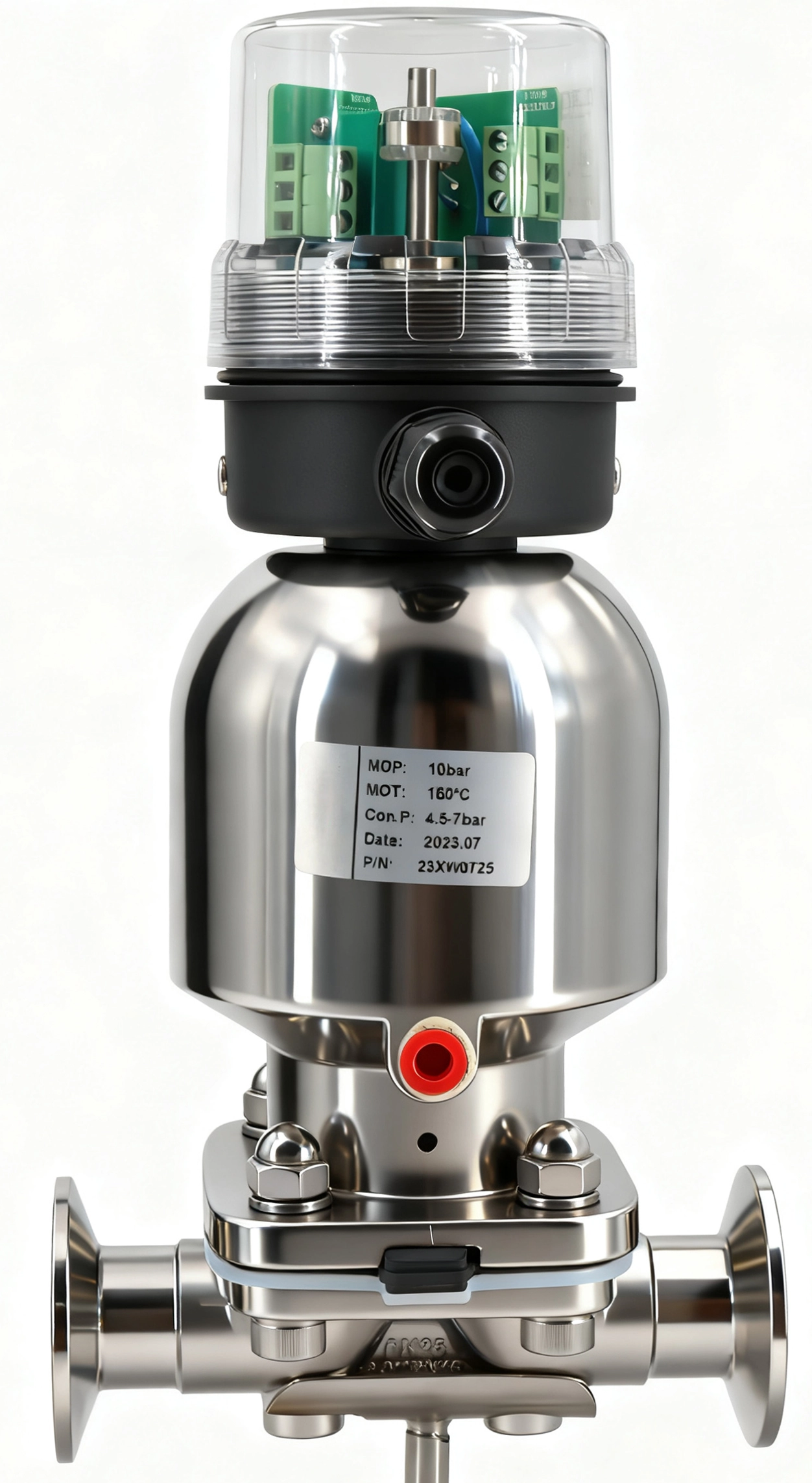

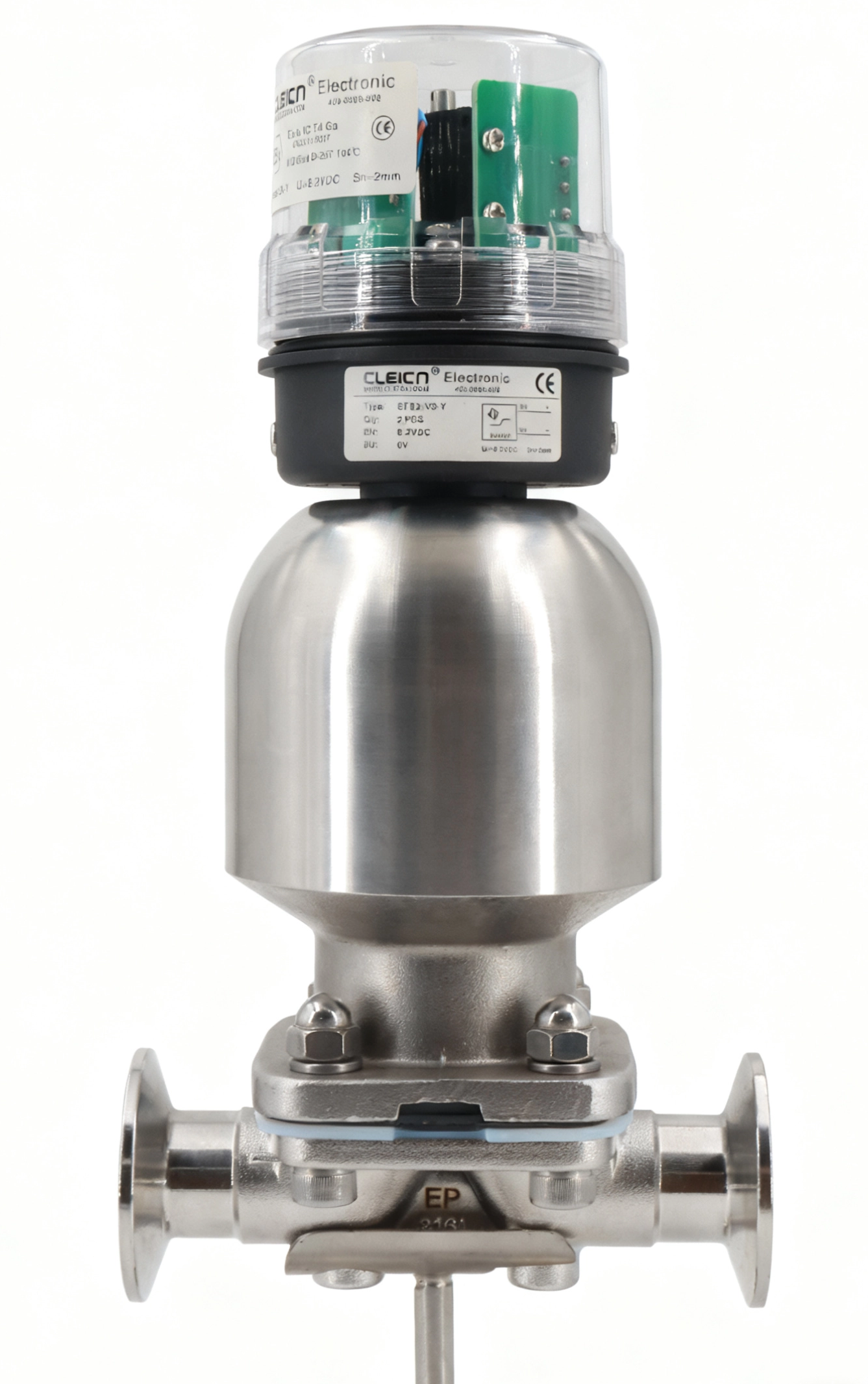

Stainless steel sanitary ptfe lined rubber pneumatic diaphragm valve
The Stainless Steel Sanitary PTFE-lined Rubber Pneumatic Diaphragm Valve is an automated valve designed for corrosive or high-purity fluids. Its PTFE-lined rubber diaphragm ensures leak-free operation, while the pneumatic actuator allows precise, hygienic flow control in food, pharmaceutical, and chemical systems
Working Principles
The Stainless Steel Sanitary PTFE-lined Rubber Pneumatic Diaphragm Valve operates using a pneumatic actuator to move a stem connected to a flexible PTFE-lined rubber diaphragm. When air pressure is applied, the actuator pushes the diaphragm downward to seal against the valve seat, stopping flow, or lifts it to open the passage. The PTFE lining provides excellent chemical resistance, protecting the valve body from corrosive or aggressive fluids, while the rubber ensures a tight, leak-free seal. This design isolates the process fluid from mechanical components, maintaining sanitary conditions. The valve delivers rapid, precise, and automated flow control, ideal for food, pharmaceutical, and chemical processing applications.
Stainless Steel Diaphragm Valve Specification Chart
Max. working pressure | 10 Bar |
Temperature range | -10° ~ +120°C or higher upon request |
Sizes available | 1" to 6" |
End connection | Clamp, Weld, Flange, Thread |
Body material | AISI 316L |
Body structure | 2 way, 3-way, Casting Tee type,U type,Forged Tee type, with draining port, Non dead leg diaphragm block valves |
Seal material | Single diaphragm EPDM,EPDM+PTFE bounded membrane , EPDM/PTFE 2pieces membrane |
Operation | plastic or stainless hand wheel,Pneumatic plastic actuator,Pneumatic stainless steel actuator, Electric actuator |
Surface treatment | Ra 0.4 ~ 0.8µm |
Standards | 3A, SMS, DIN, ISO |
Features
PTFE-Lined Rubber Diaphragm – Provides excellent chemical resistance and ensures leak-free operation in corrosive or high-purity fluid systems.
Pneumatic Actuation – Enables automated, fast, and precise control of fluid flow, reducing manual intervention.
Stainless Steel Body – Durable, corrosion-resistant, and suitable for sanitary or hygienic applications.
Sanitary Design – Smooth, crevice-free surfaces minimize contamination risk and support cleaning-in-place (CIP) procedures.
Reliable Sealing – The diaphragm isolates fluid from mechanical parts, ensuring consistent shutoff and maintaining hygienic integrity.
Versatile Application – Ideal for food, beverage, pharmaceutical, chemical, and biotech industries requiring automated, sanitary, and corrosion-resistant flow control
Application
The Stainless Steel Sanitary PTFE-lined Rubber Pneumatic Diaphragm Valve is widely used in industries requiring corrosion-resistant, hygienic, and automated flow control. Typical applications include chemical processing for acids and solvents, pharmaceutical production for sterile solutions, food and beverage manufacturing for high-purity liquids, and biotechnology for media transfer systems
