JONENG
8481804090

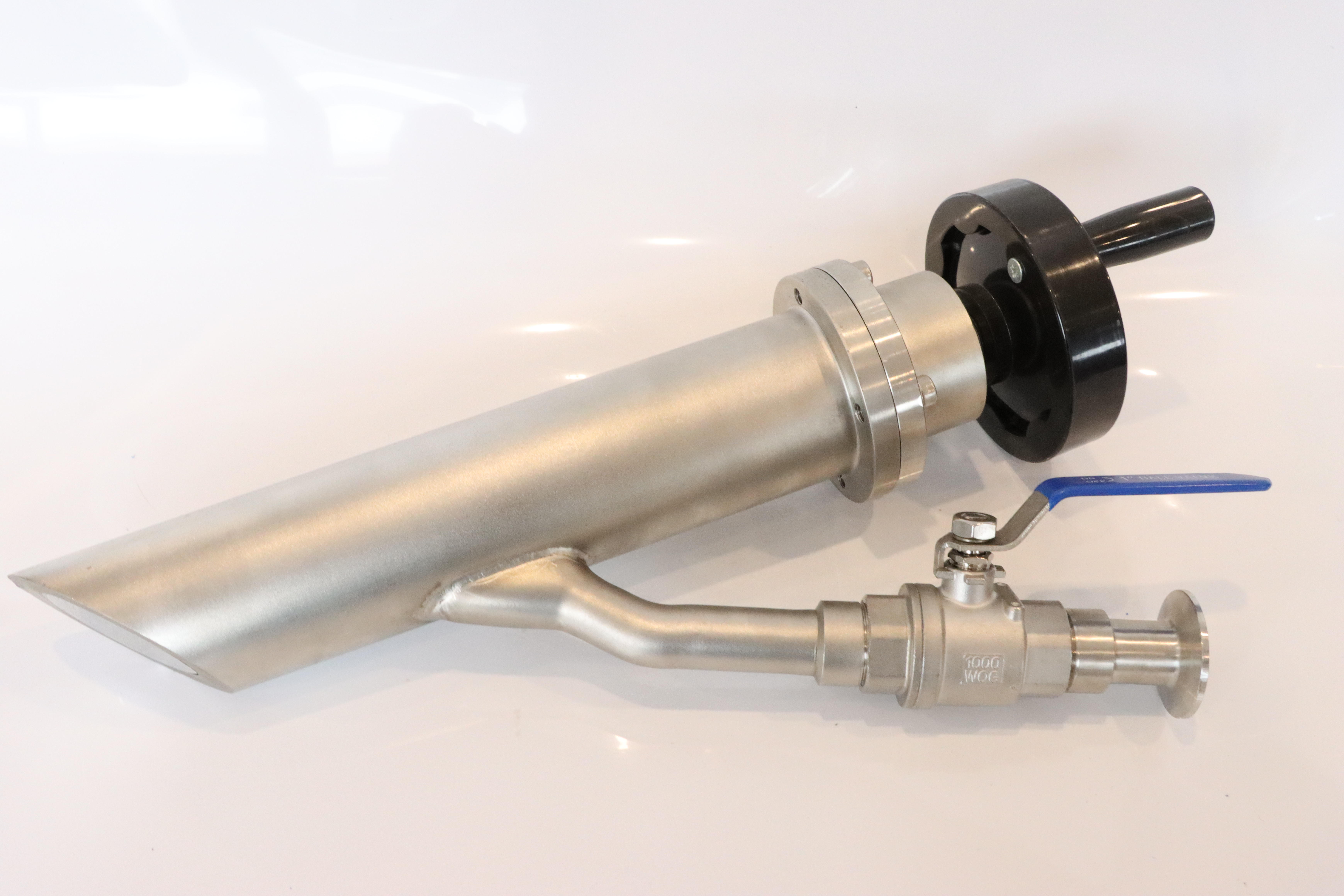

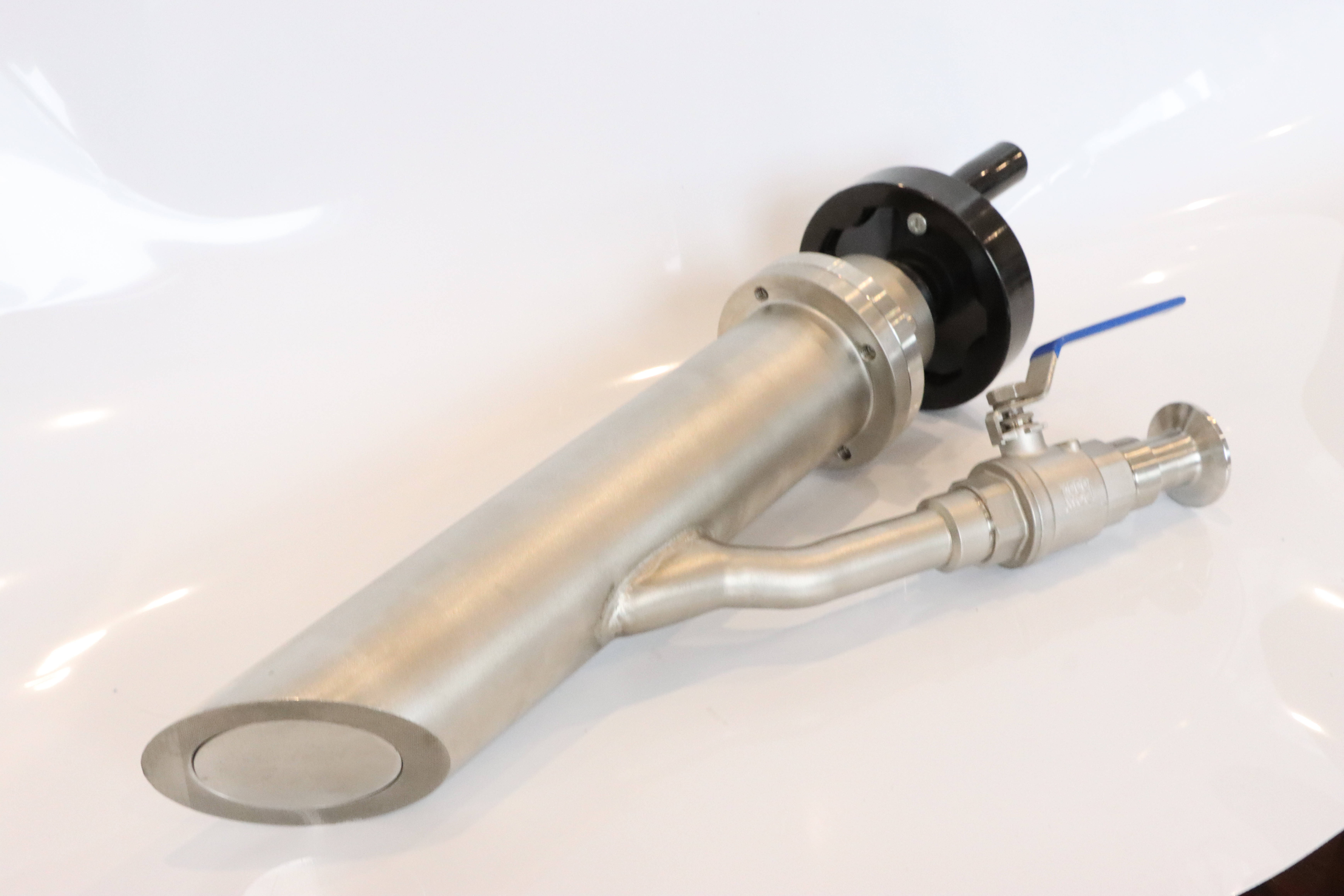

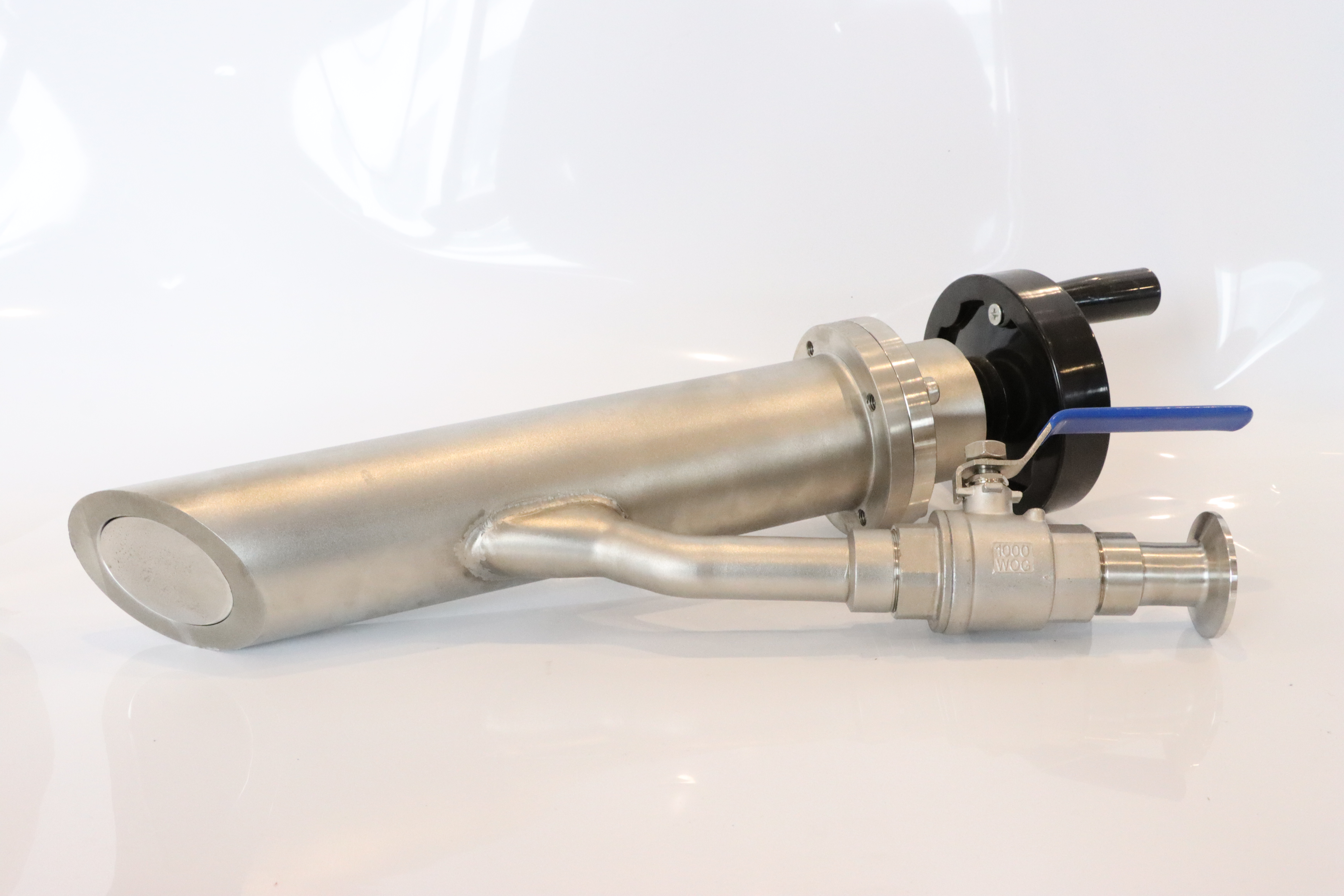

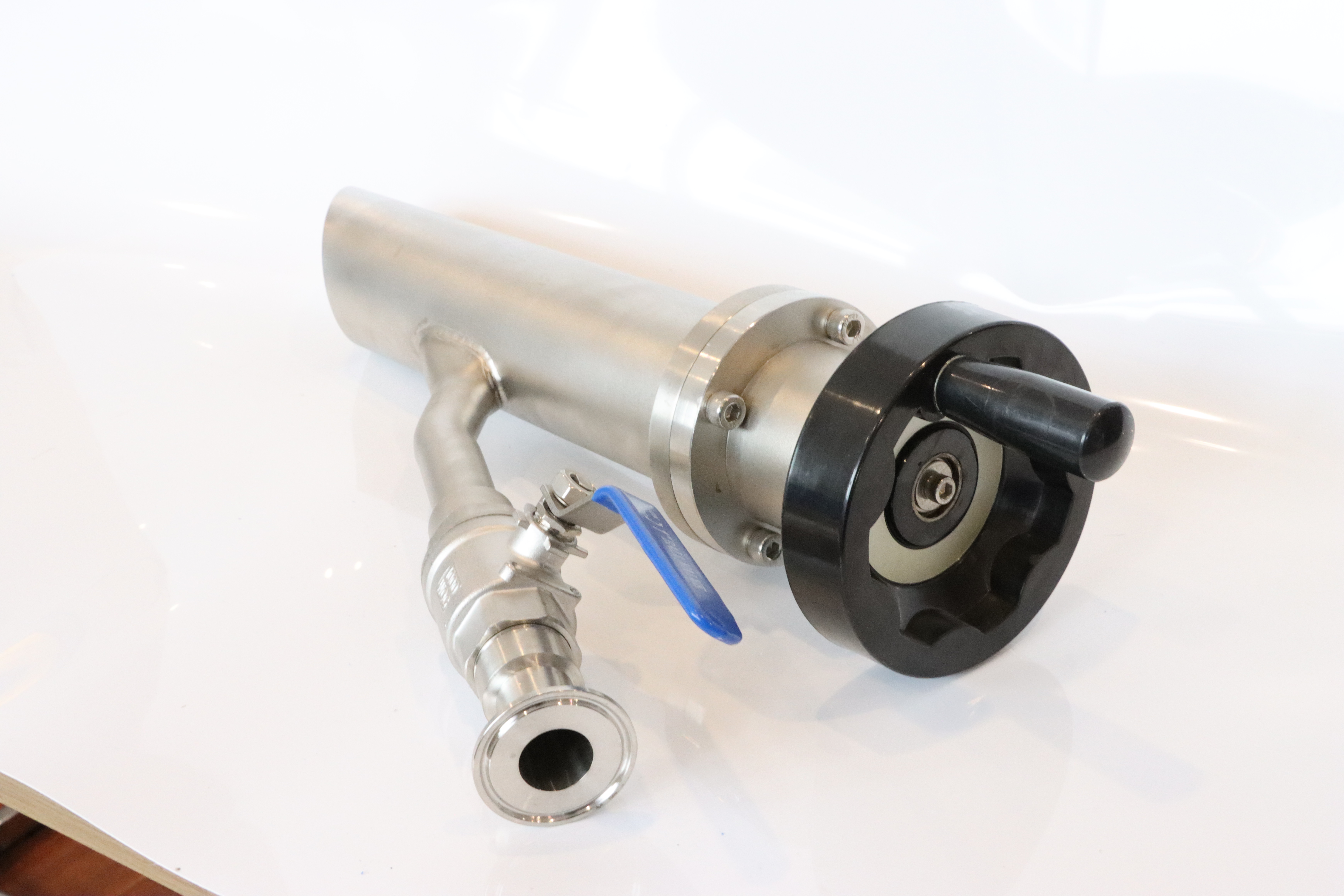

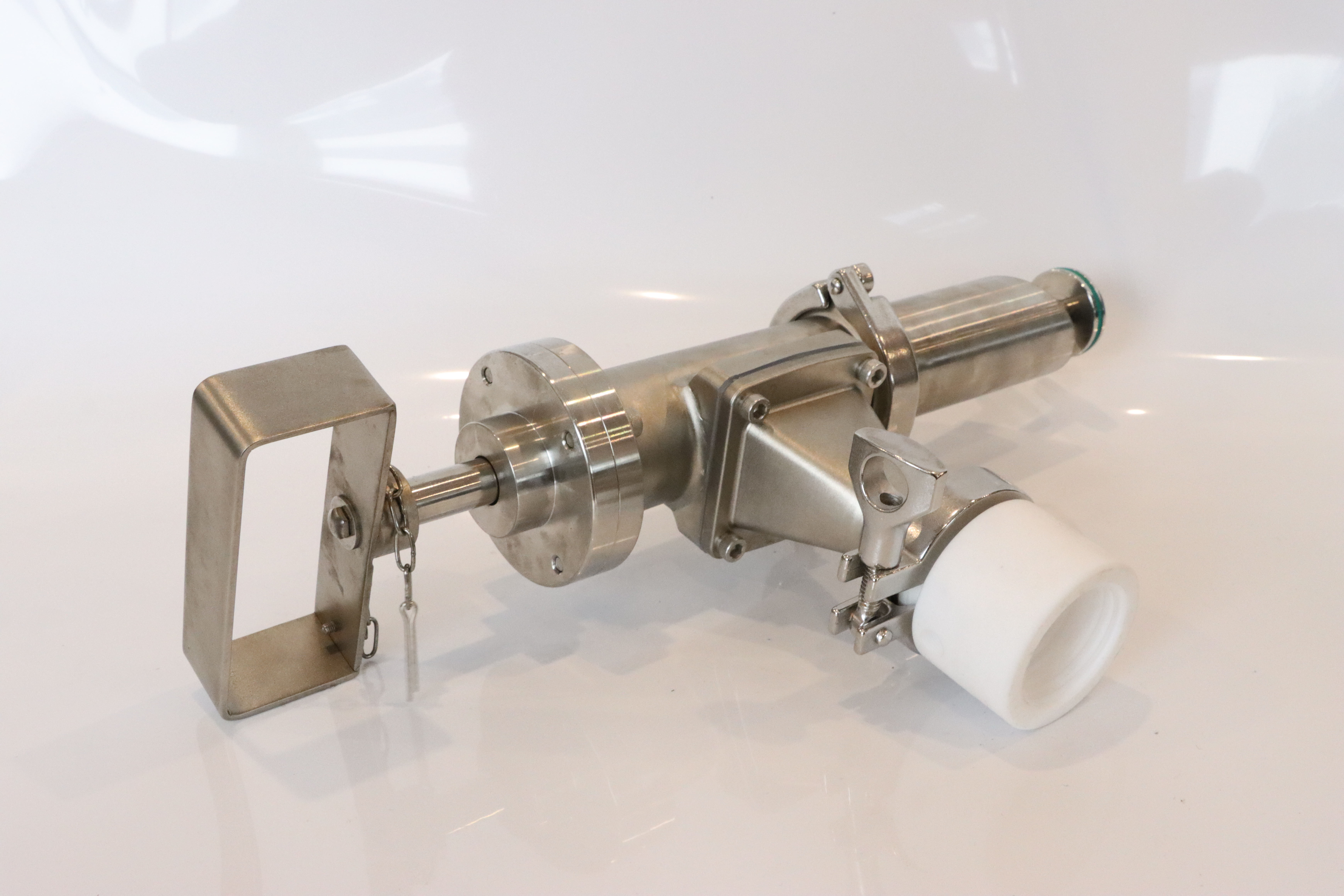

Stainless steel sanitary vacuum plunger oil dairy sampling valve
The stainless steel sanitary vacuum plunger oil dairy sampling valve is a hygienic sampling device designed for clean extraction of oil or dairy products. It features a vacuum-assisted plunger structure that ensures controlled sampling, minimal contamination risk, and reliable sealing in sanitary processing systems.
Working Principles
The stainless steel sanitary vacuum plunger oil dairy sampling valve operates by using a vacuum-assisted plunger mechanism to obtain representative samples from pipelines or tanks under hygienic conditions. When the plunger is pulled or actuated, a controlled vacuum is created inside the valve chamber, allowing the process medium to be gently drawn into the sampling cavity. The sealing elements isolate the sample from the external environment, preventing air ingress and cross-contamination. Once the desired volume is collected, the plunger returns to its original position, closing the flow path and securely retaining the sample. This design enables accurate sampling without interrupting normal process flow, while maintaining system pressure, cleanliness, and product integrity in oil and dairy processing applications.
Stainless Steel Sampling Valve Specification Chart
Size | 1/2",1-1/2" |
Connections | thread,clamp,weld |
Max.pressure | 10bar 145psi |
Min.pressure | Vacuum |
Temperature | -10℃ 50 F-120℃/248℃ |
Standard | 3A,ISO,DIN |
Body material | AISI1304, AISI316L |
Seal material | PTFE |
USAGR | Handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode |
Features
Manufactured from sanitary stainless steel with a smooth polished surface, ensuring excellent corrosion resistance, easy cleaning, and full compliance with hygienic standards for oil and dairy processing systems.
Vacuum plunger structure enables gentle and accurate sample extraction without disturbing process pressure, ensuring representative sampling while maintaining product quality and process stability.
Reliable sealing design effectively prevents air ingress and external contamination, protecting sample purity and supporting aseptic operation in sensitive oil and dairy applications.
Compact and ergonomic construction allows easy installation, operation, and maintenance, making it suitable for frequent sampling in pipelines or tanks with limited space.
Application
Stainless steel sanitary vacuum plunger oil dairy sampling valves are commonly used in dairy and edible oil processing plants for hygienic and accurate sampling of milk, yogurt, or cooking oils. They are also applied in food, beverage, and pharmaceutical production lines where aseptic sampling is critical to ensure product quality, prevent contamination, and maintain compliance with sanitary standards during quality control and laboratory testing.
Working Principles
The stainless steel sanitary vacuum plunger oil dairy sampling valve operates by using a vacuum-assisted plunger mechanism to obtain representative samples from pipelines or tanks under hygienic conditions. When the plunger is pulled or actuated, a controlled vacuum is created inside the valve chamber, allowing the process medium to be gently drawn into the sampling cavity. The sealing elements isolate the sample from the external environment, preventing air ingress and cross-contamination. Once the desired volume is collected, the plunger returns to its original position, closing the flow path and securely retaining the sample. This design enables accurate sampling without interrupting normal process flow, while maintaining system pressure, cleanliness, and product integrity in oil and dairy processing applications.
Feature and Specification
Stainless Steel Sampling Valve Specification Chart
Size | 1/2",1-1/2" |
Connections | thread,clamp,weld |
Max.pressure | 10bar 145psi |
Min.pressure | Vacuum |
Temperature | -10℃ 50 F-120℃/248℃ |
Standard | 3A,ISO,DIN |
Body material | AISI1304, AISI316L |
Seal material | PTFE |
USAGR | Handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode |
Features
Manufactured from sanitary stainless steel with a smooth polished surface, ensuring excellent corrosion resistance, easy cleaning, and full compliance with hygienic standards for oil and dairy processing systems.
Vacuum plunger structure enables gentle and accurate sample extraction without disturbing process pressure, ensuring representative sampling while maintaining product quality and process stability.
Reliable sealing design effectively prevents air ingress and external contamination, protecting sample purity and supporting aseptic operation in sensitive oil and dairy applications.
Compact and ergonomic construction allows easy installation, operation, and maintenance, making it suitable for frequent sampling in pipelines or tanks with limited space.
Application
Stainless steel sanitary vacuum plunger oil dairy sampling valves are commonly used in dairy and edible oil processing plants for hygienic and accurate sampling of milk, yogurt, or cooking oils. They are also applied in food, beverage, and pharmaceutical production lines where aseptic sampling is critical to ensure product quality, prevent contamination, and maintain compliance with sanitary standards during quality control and laboratory testing.
