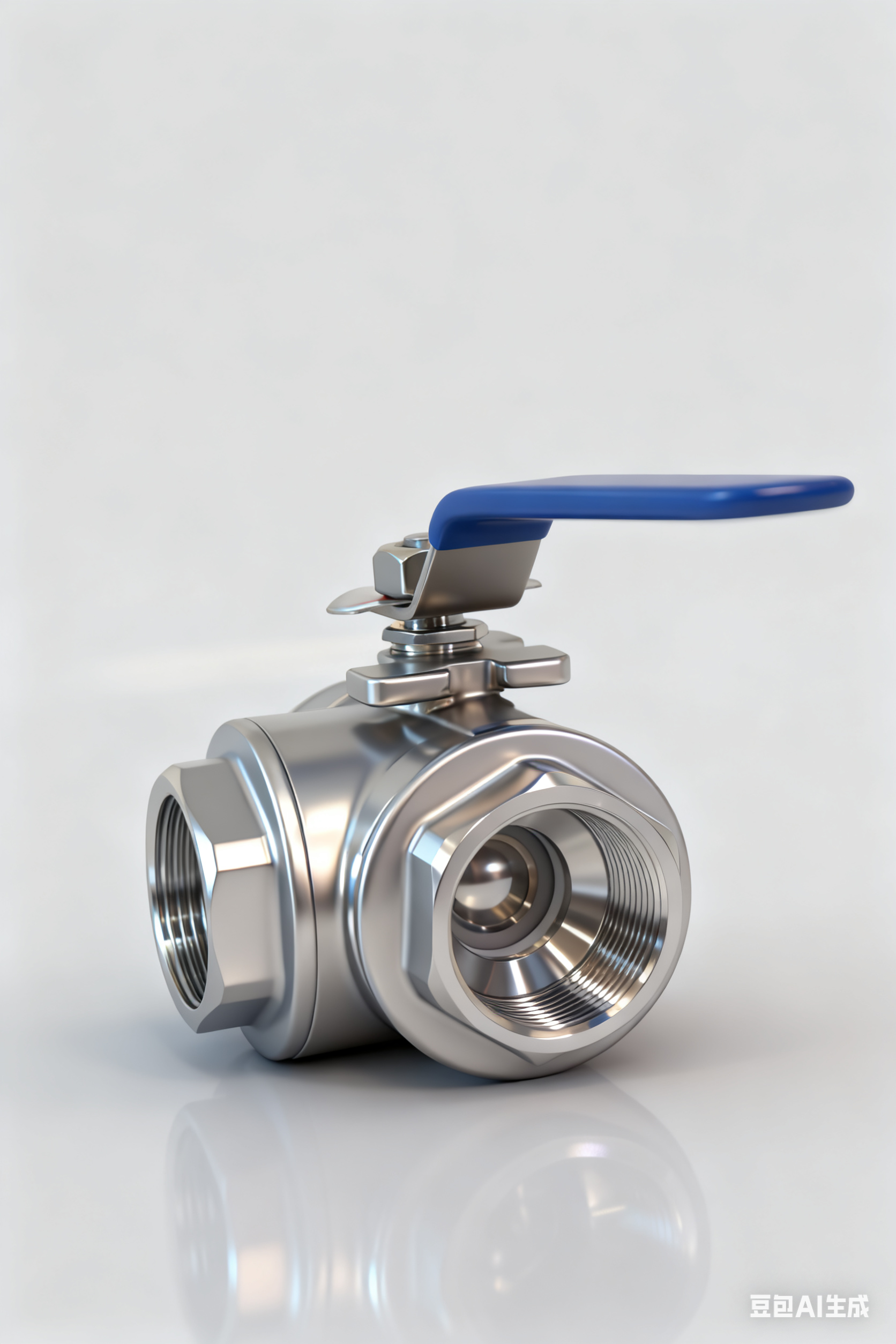

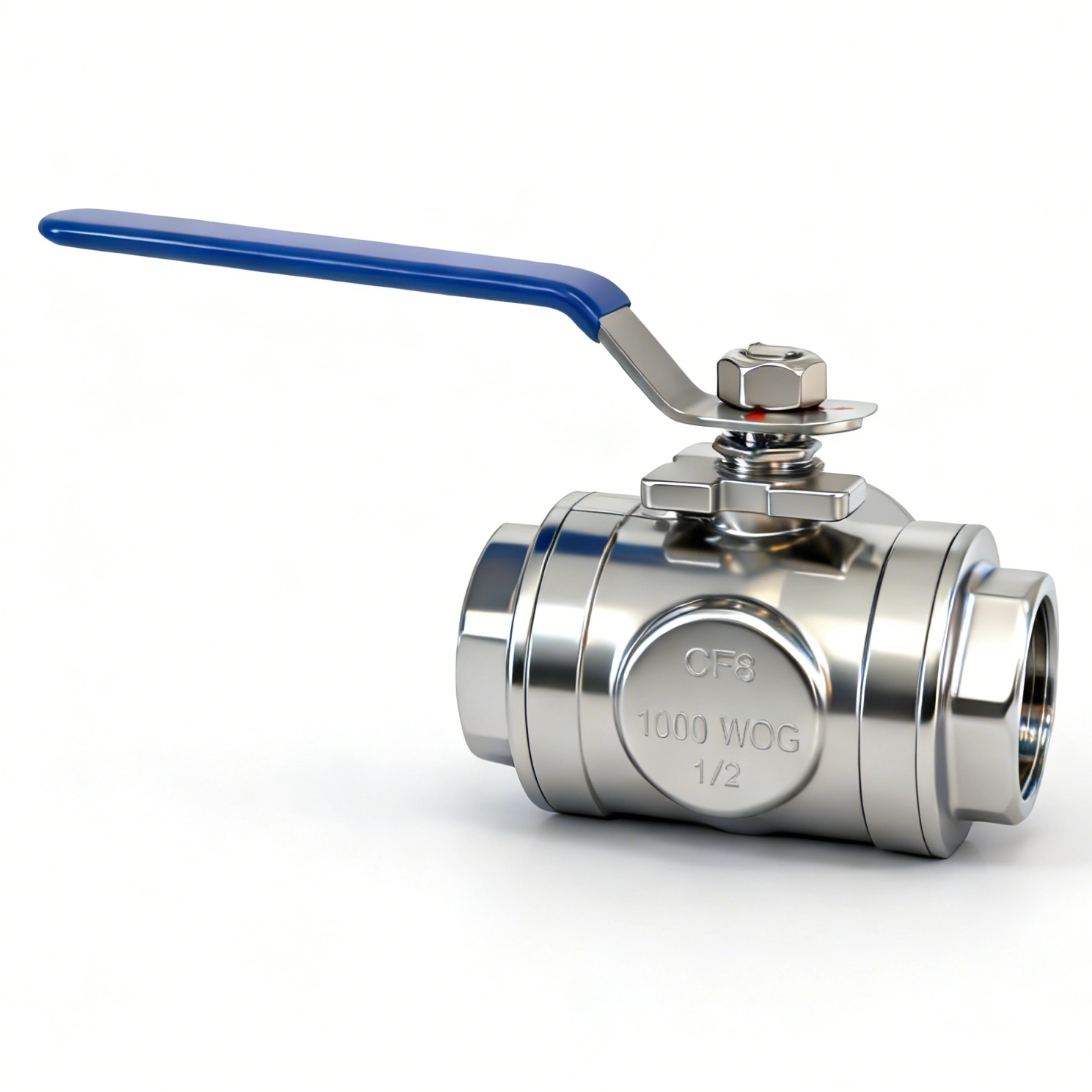

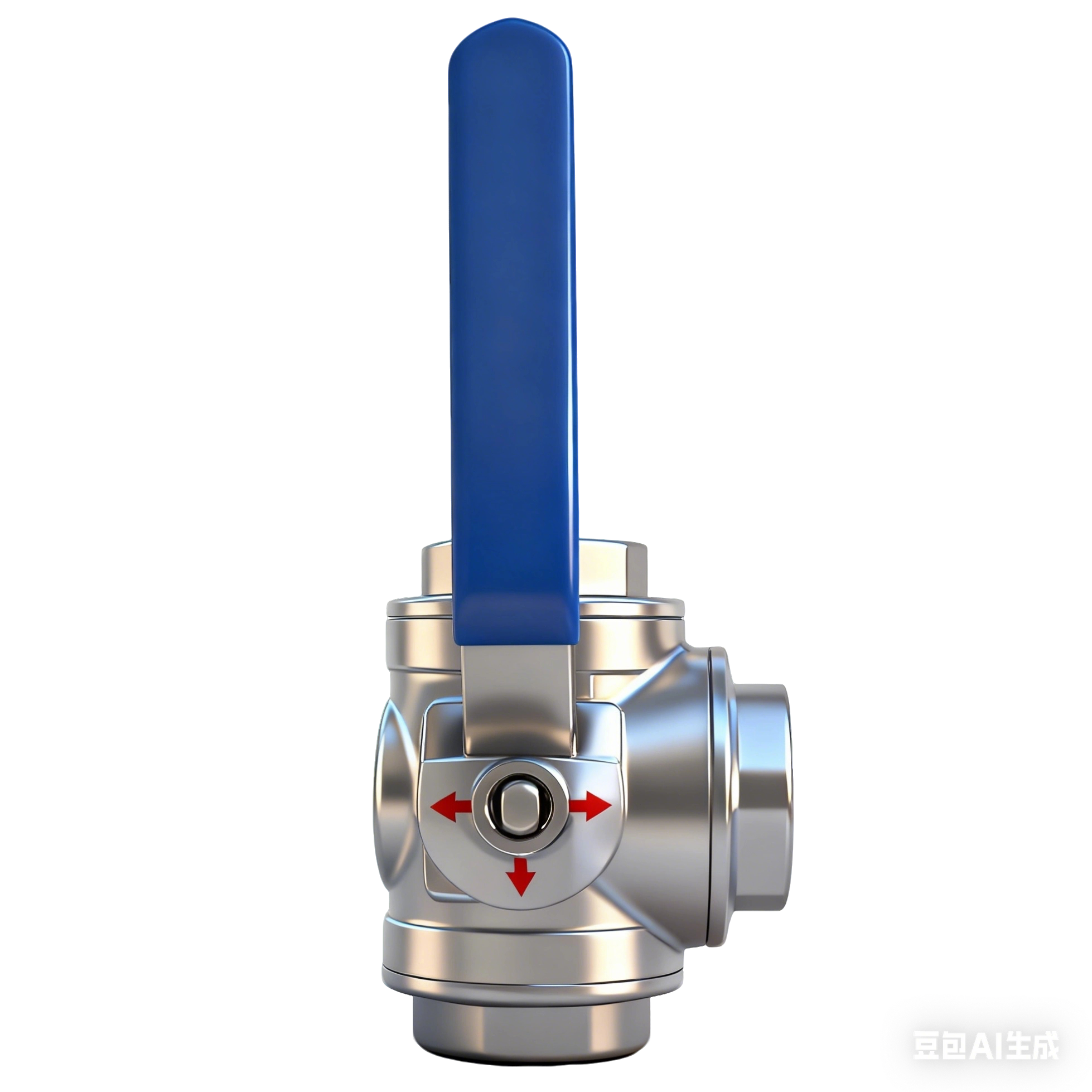

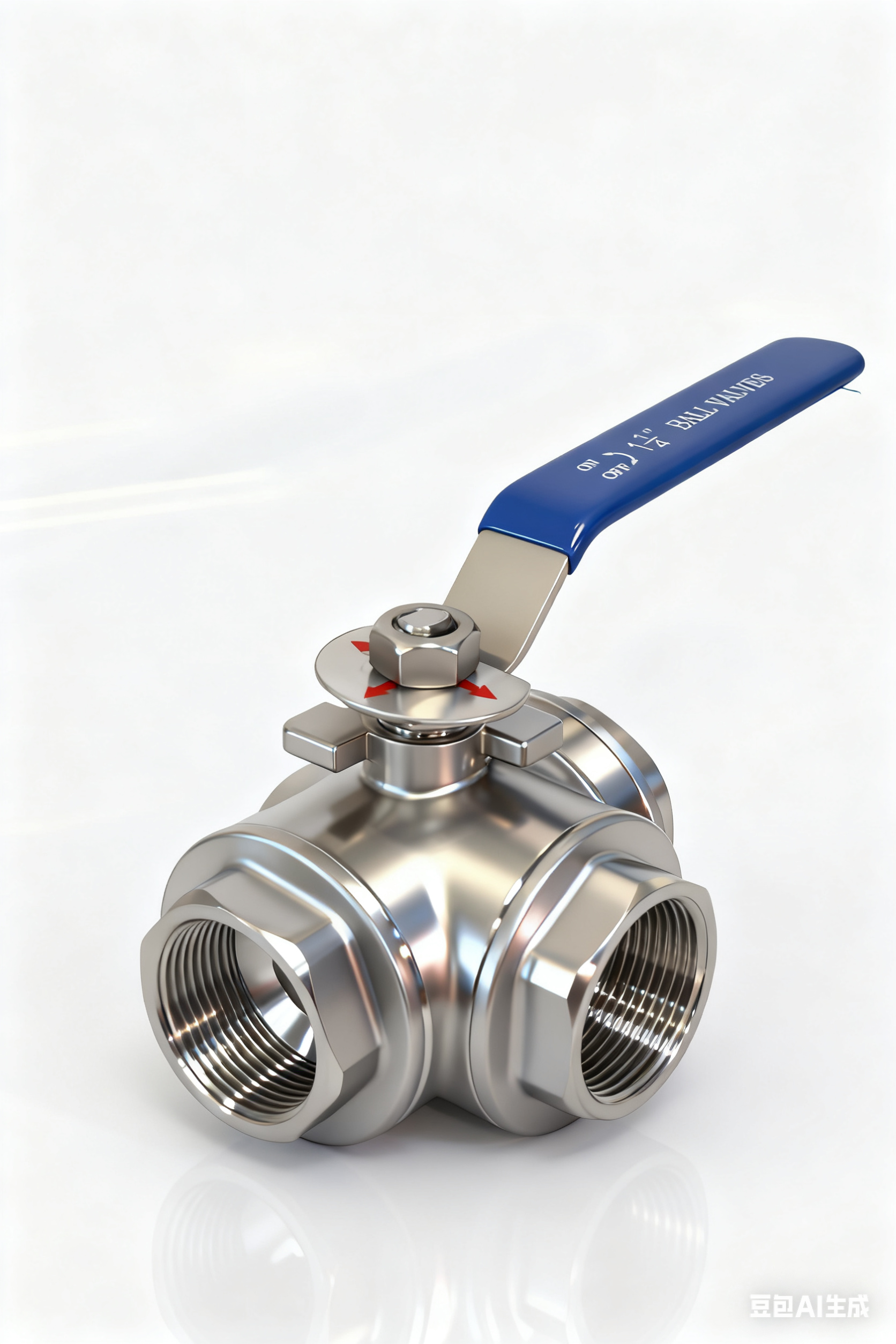

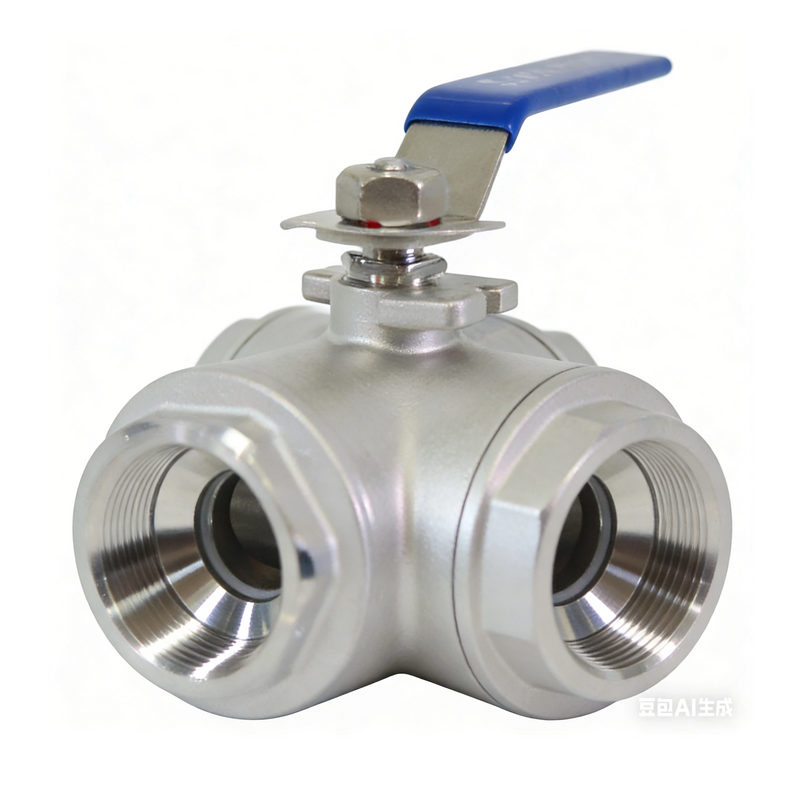

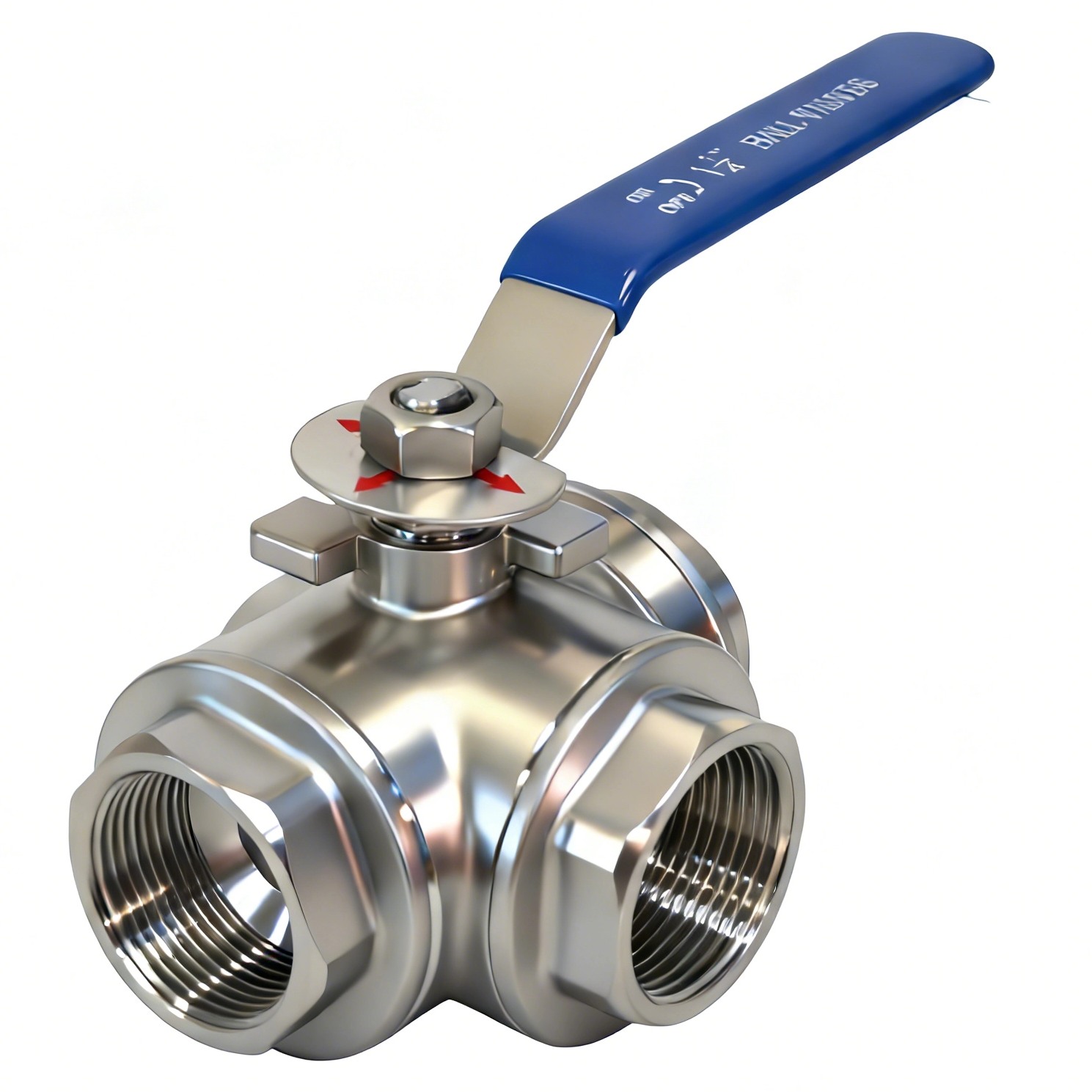

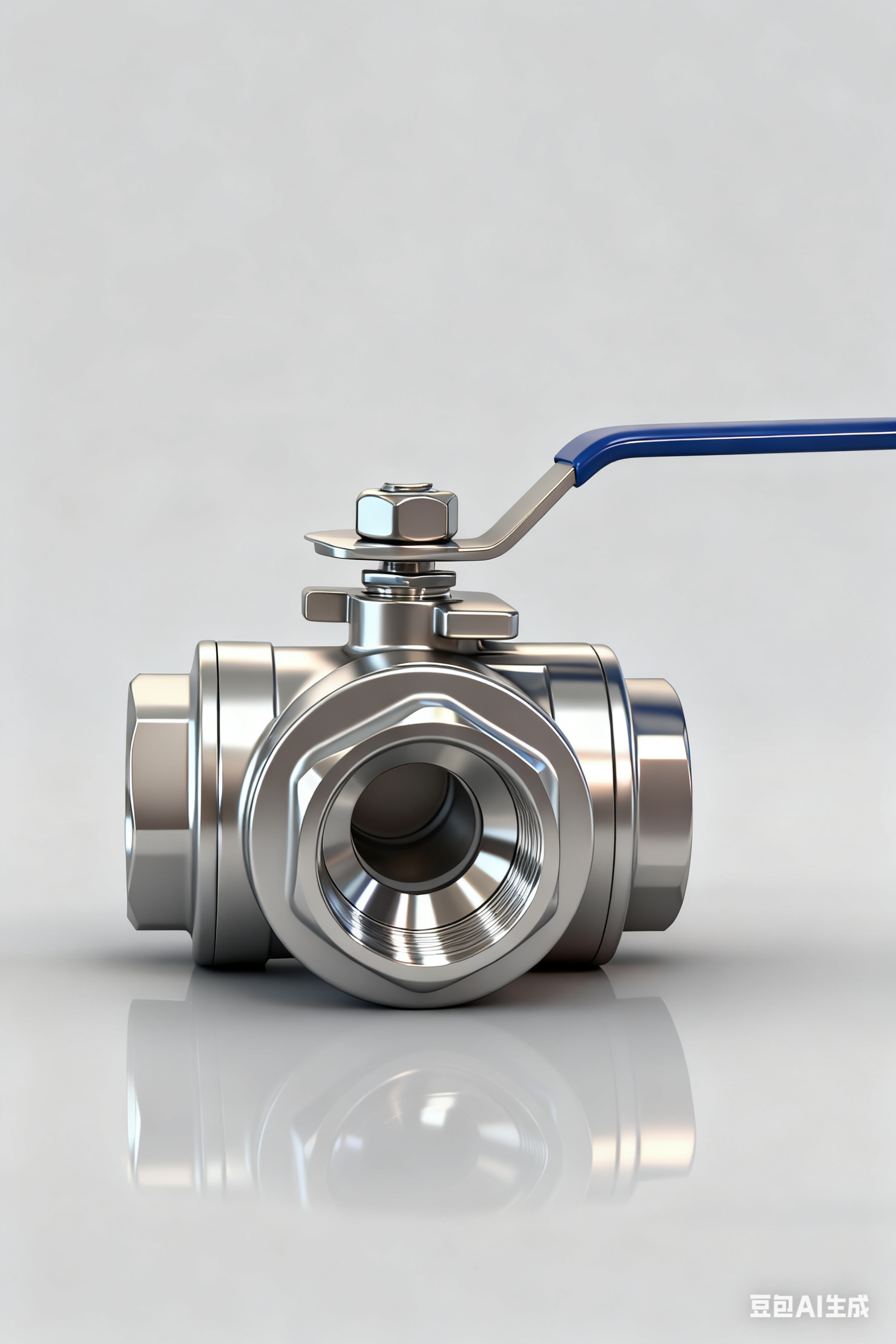

Stainless Steel Sanitary High-Pressure OEM Way Clamp Plug Valve
The stainless steel three-way internal thread manual ball valve, made of stainless steel for corrosion resistance, features easy installation with internal thread connection, 90° manual flow direction switching, and is suitable for flow division and combination in pipelines across multiple industries, with reliable sealing and convenient operation.
Working Principles
The working principle of the stainless steel three-way internal thread manual ball valve is as follows: Rotate the handle manually to drive the valve stem, which rotates the ball inside the valve body. The ball is equipped with an L-shaped or T-shaped flow channel. When the handle is rotated 90 degrees, the flow channel of the ball aligns with the valve body interfaces, thereby realizing the switching, splitting or combining of the medium flow direction Meanwhile, the tight fit between the sealing element and the ball ensures the pipeline sealing.
Stainless Steel Plug Valve Specification Chart
Working temperature | -10°C ~ 150°C |
Working Pressure | 1bar |
Working operate | Manual |
Connection end | Weld, Tri-clamped , union, male type |
Standard | DIN, 3A, RJT, SMS |
Body Material | AISI 304, AISI 316L |
Inside surface finish | Ra0.4 |
Size | DN25-DN100 , 1"-4" |
Type | 2 way, 3way:T type or L type ball core, 4 way |
Features
● Suitable for frequent operation, quick and easy opening and closing.
● Small fluid resistance.
● Simple structure, relatively small size, light weight, and easy maintenance.
● Good sealing performance.
● It is not restricted by the installation direction, and the flow direction of the medium can be arbitrary.
● No vibration, low noise
● Metal sealing capability to minimize leakage
Application
The plug valves are commonly used in industries like Food, beverage, dairy, pharmacy, chemical or any food processing industries .
