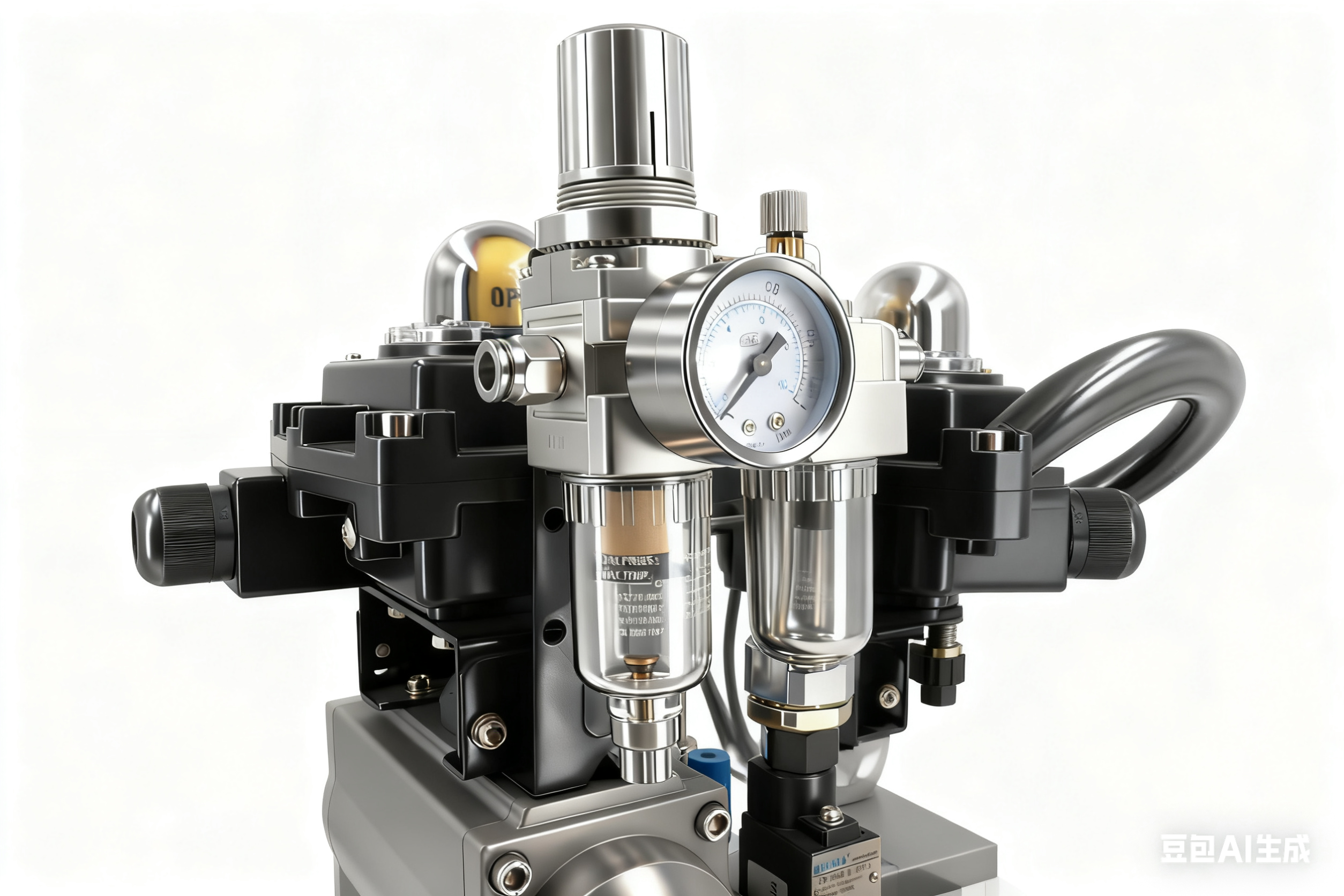

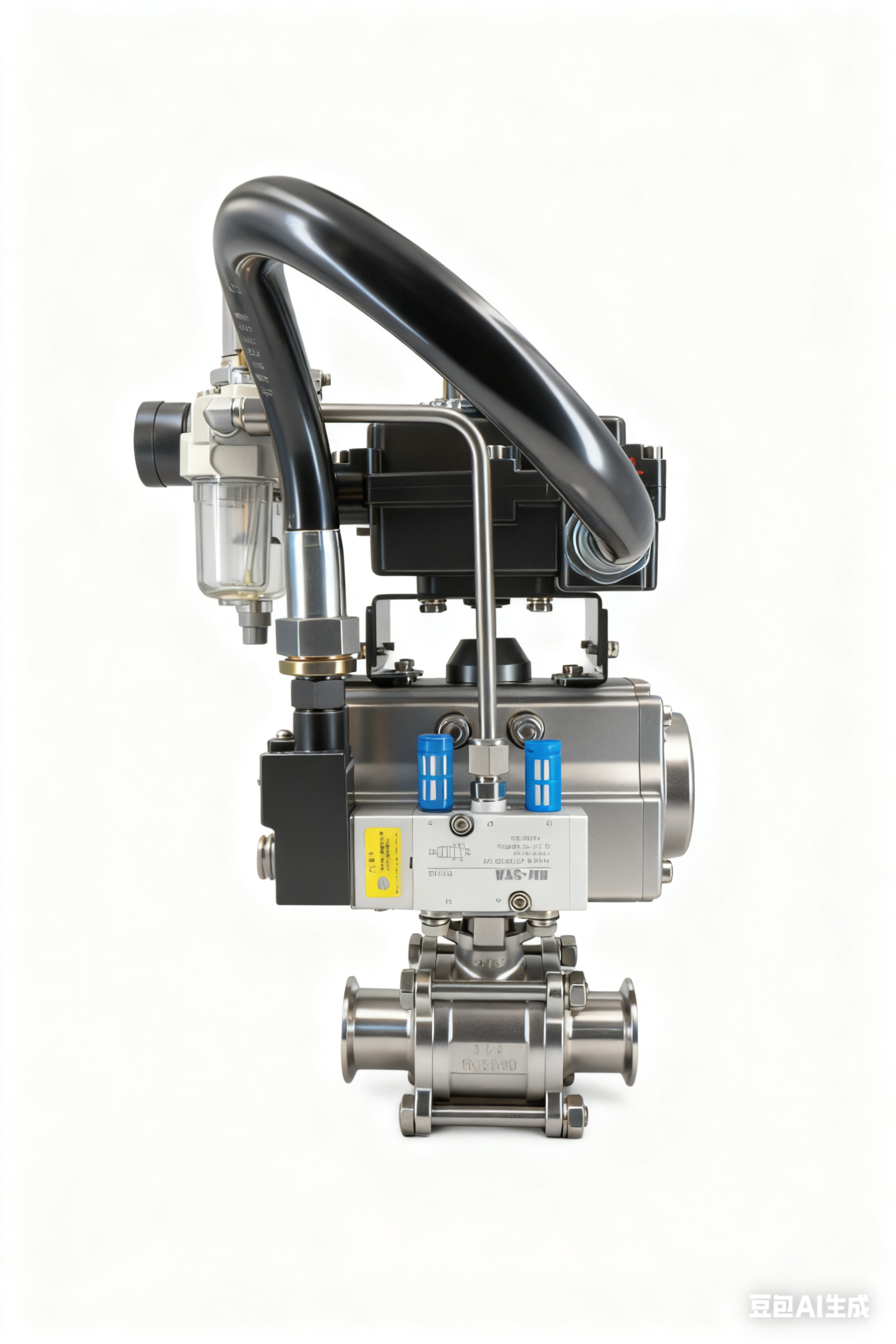

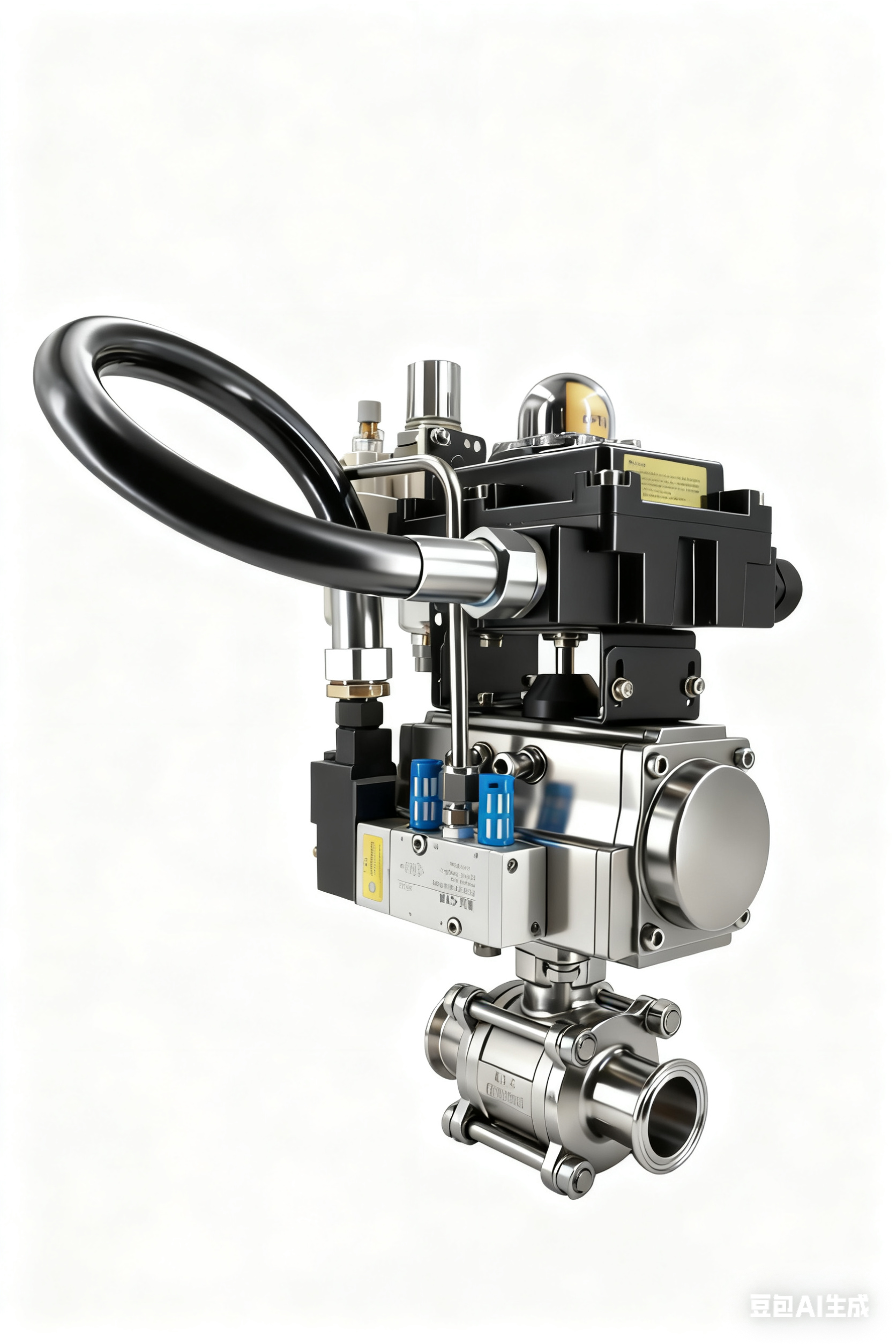

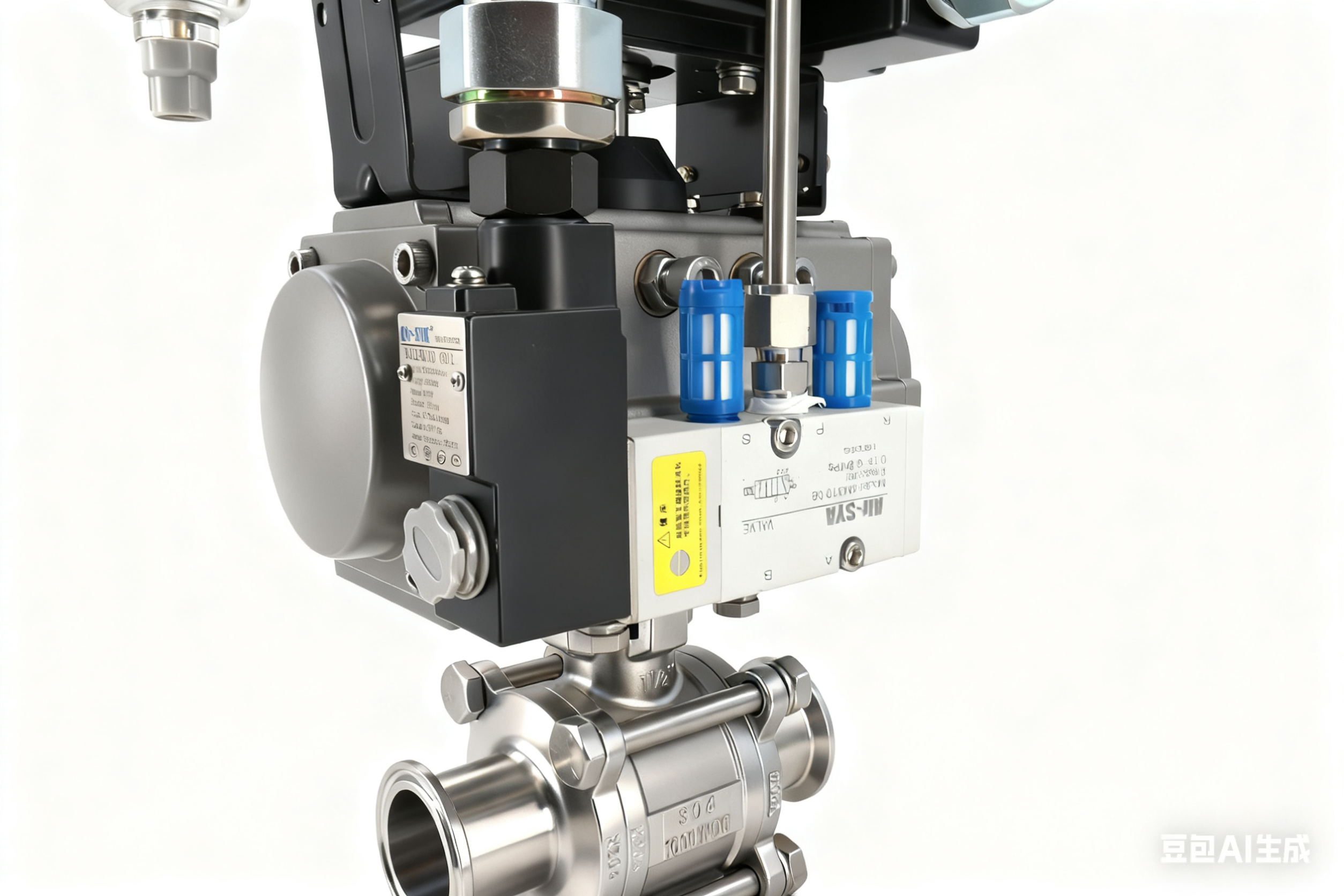

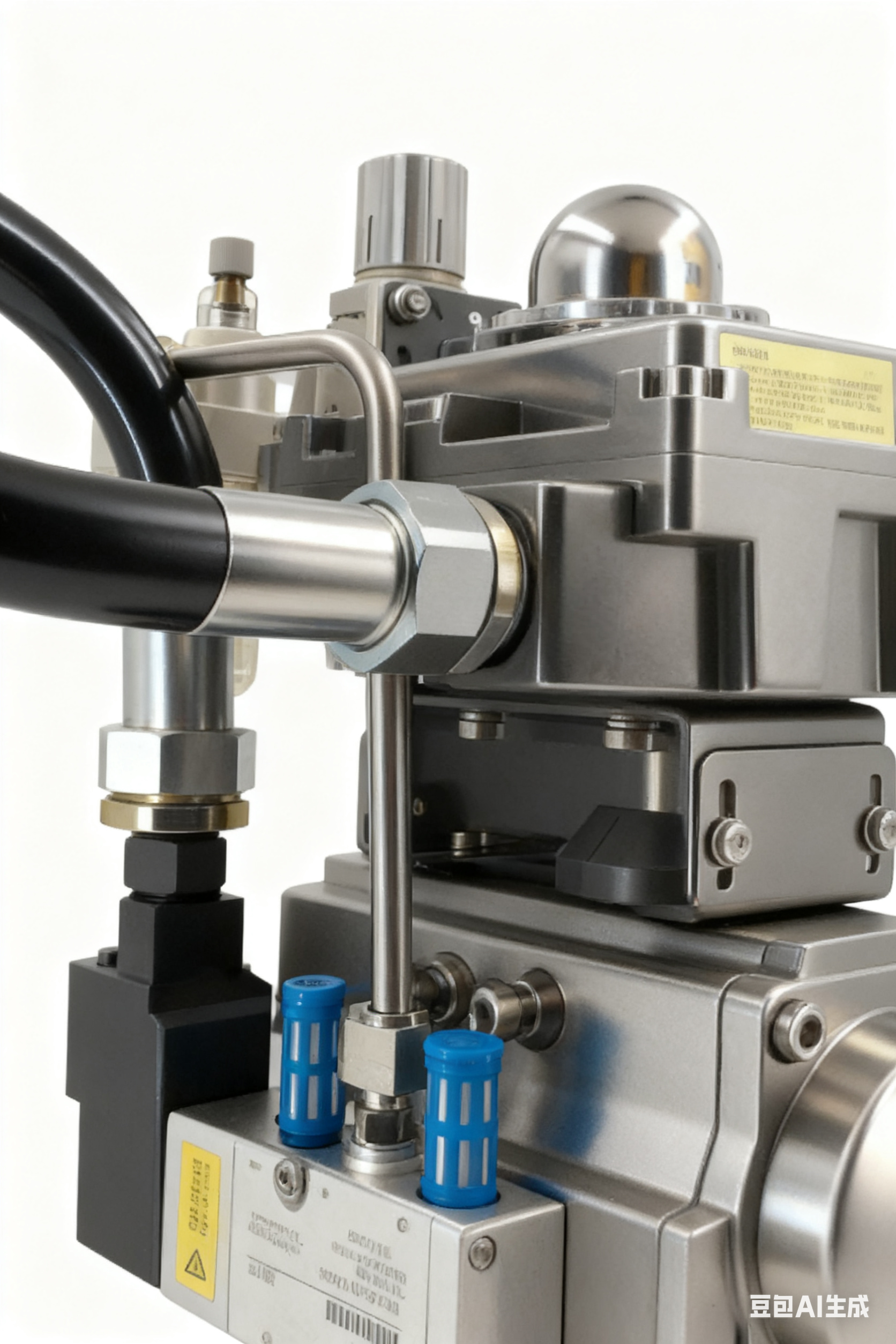

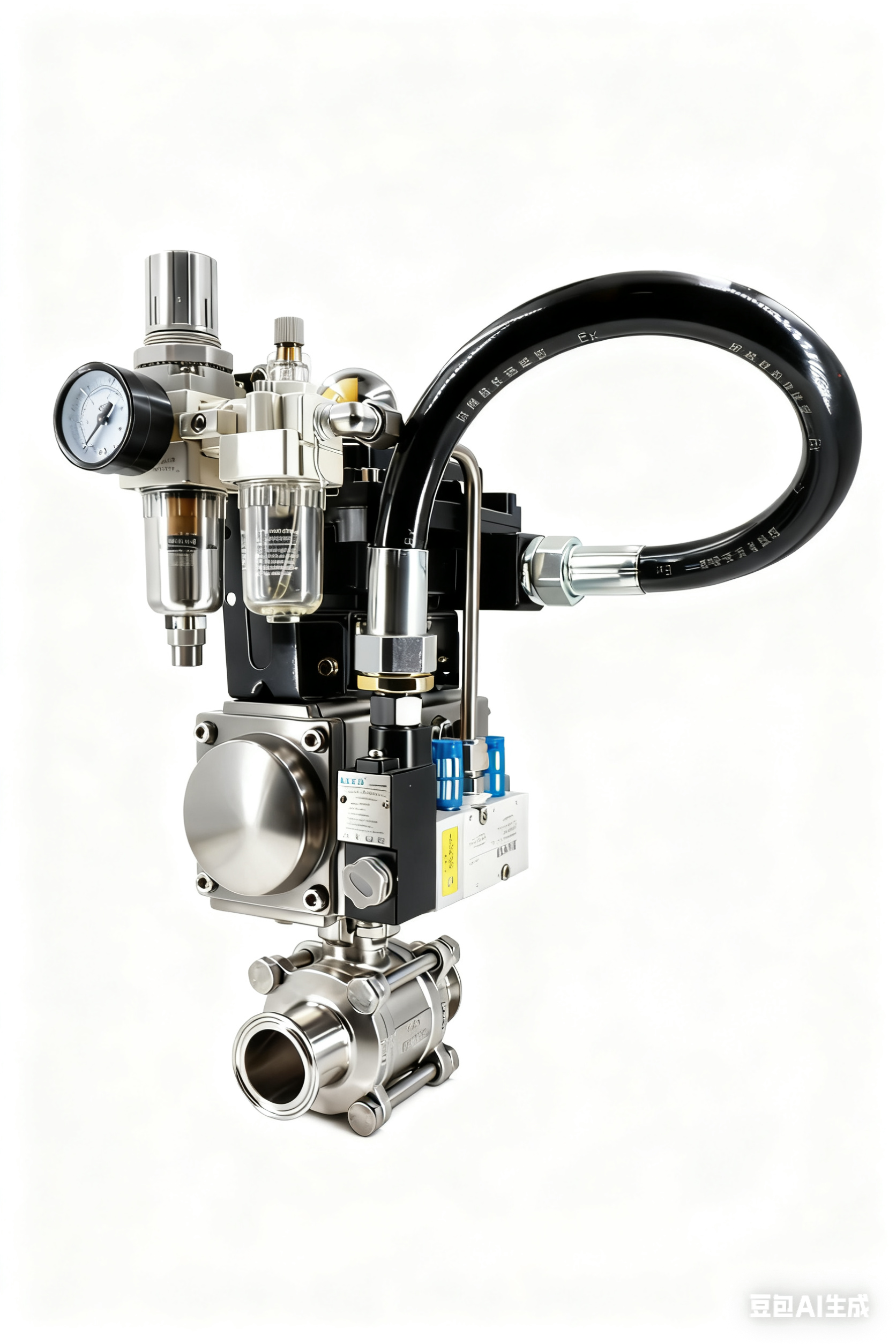

316 Stainless Steel Sanitary Pneumatic Three-Piece Quick-Installation Ball Valve

316 Stainless Steel Sanitary Pneumatic Three-Piece Quick-Installation Ball Valve


Availability:

Quantity:



Inquire Add to Basket

The 316 Stainless Steel Sanitary Pneumatic Three - Piece Quick - Fit Ball Valve is a high - performance valve designed for hygienic applications in industries like food, pharmaceutical, and beverage. Made from 316 stainless steel, it offers excellent corrosion resistance and durability. The three - piece structure enables easy maintenance and disassembly. The quick - fit design allows for fast and convenient installation and removal. With a pneumatic actuator, it enables automated control of fluid flow, ensuring precise operation and high efficiency. It meets strict sanitary standards, making it ideal for applications where cleanliness and hygiene are paramount.

Brand:
JONENG

ball valve stainless steel ball valve quick-installation ball valve Pneumatic Flow Control Valve Self cleaning ball valve Flow control valve encapsulated ball valve

Product Description

Working Principles

Specification Chart

Features

Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve

The 316 Stainless Steel Sanitary Pneumatic Three - Piece Quick - Fit Ball Valve is a high - performance valve designed for hygienic applications in industries like food, pharmaceutical, and beverage. Made from 316 stainless steel, it offers excellent corrosion resistance and durability. The three - piece structure enables easy maintenance and disassembly. The quick - fit design allows for fast and convenient installation and removal. With a pneumatic actuator, it enables automated control of fluid flow, ensuring precise operation and high efficiency. It meets strict sanitary standards, making it ideal for applications where cleanliness and hygiene are paramount.

Working Principles

未标题-1

The valve operates via pneumatic actuation: compressed air drives the actuator to rotate the ball core (with a through hole) 90 degrees. When aligned with the flow path, it opens; when perpendicular, it seals tightly. The three-piece structure enables easy disassembly, while 316 stainless steel ensures corrosion resistance.

Using this product achieves multiple effects: it provides reliable leak-proof sealing for sanitary applications like food, pharmaceutical, and beverage industries. Its quick-connect design simplifies installation and maintenance, boosting operational efficiency. The 316 SS material meets hygiene standards, preventing contamination. Pneumatic control enables rapid, automated on-off operation, suitable for pipeline systems requiring precise and efficient flow control.

Specification Chart

未标题-1

Max. working pressure	Typically 1.6 MPa (may vary slightly with valve size)
Temperature range	-20° ~ +150°C or higher upon request
Sizes available	DN15, DN20, DN25, DN32, DN40, DN50, etc. (common sanitary pipe sizes)
End connection	Tri-clamp (sanitary quick-release clamp connection)
Body material	316 Stainless Steel
Ball material	316 Stainless Steel
Seal material	Food-grade Silicone, EPDM, FKM, etc. (selected based on medium and temperature)
Actuator Options	Pneumatic actuator (single-acting or double-acting available)
Surface Finish	Ra ≤ 0.8μm (Standard), Ra
Flow Control	On-off control (also allows rough flow regulation to some extent)

Features

未标题-1

316 Stainless Steel Valve Body Material
Sanitary Quick-Connect Structure Design
Precise Control of Pneumatic Actuator
Technical Feature: Mirror Polished Flow Channel (Ra≤0.8μm)
Double Sealing Structure (PTFE + Nitrile Rubber)

Application

未标题-1

Extend Equipment Service Life, Reduce Maintenance Costs

Improve Cleaning Efficiency, Meet Sanitary Standards

Fast Switching Response, Accurate Positioning

Low Material Resistance, No Residue

Excellent Sealing Performance, No Leakage

Pneumatic weld

Working Principles

未标题-1

The valve operates via pneumatic actuation: compressed air drives the actuator to rotate the ball core (with a through hole) 90 degrees. When aligned with the flow path, it opens; when perpendicular, it seals tightly. The three-piece structure enables easy disassembly, while 316 stainless steel ensures corrosion resistance.

Using this product achieves multiple effects: it provides reliable leak-proof sealing for sanitary applications like food, pharmaceutical, and beverage industries. Its quick-connect design simplifies installation and maintenance, boosting operational efficiency. The 316 SS material meets hygiene standards, preventing contamination. Pneumatic control enables rapid, automated on-off operation, suitable for pipeline systems requiring precise and efficient flow control.

Specification Chart

未标题-1

Max. working pressure	Typically 1.6 MPa (may vary slightly with valve size)
Temperature range	-20° ~ +150°C or higher upon request
Sizes available	DN15, DN20, DN25, DN32, DN40, DN50, etc. (common sanitary pipe sizes)
End connection	Tri-clamp (sanitary quick-release clamp connection)
Body material	316 Stainless Steel
Ball material	316 Stainless Steel
Seal material	Food-grade Silicone, EPDM, FKM, etc. (selected based on medium and temperature)
Actuator Options	Pneumatic actuator (single-acting or double-acting available)
Surface Finish	Ra ≤ 0.8μm (Standard), Ra
Flow Control	On-off control (also allows rough flow regulation to some extent)
