JONENG
8481804090

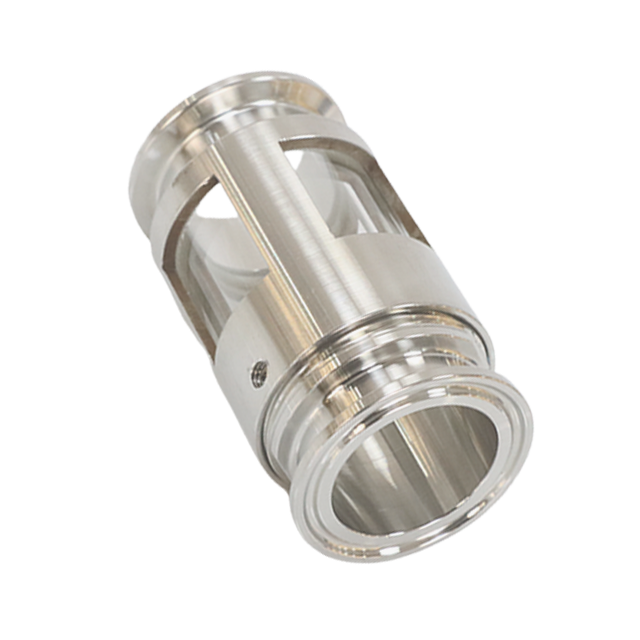

Industrial Stainless Steel TriClover Minimalist Sight Glass
This sight glass facilitates convenient visual observation of liquids and other media in tanks, pipelines and vessels. It also serves a dual purpose: establishing a secure connection between two pipeline sections while enabling real-time visualization of material flow within the line. Specifically designed for system liquid inspection, our sight glasses are available in multiple configurations—straight, cross and ball cross types for pipeline applications, and union-type models for tank installations.
Working Principles
Once the unit’s connection is established between the pipelines, product is allowed to flow through inside of the unit for easy visual examination and observation of the liquid flow. A secure seal enhances the safety, helps in quality control and resist corrosion.
Stainless Steel Sight Glass Specification Chart
Size | 1” to 6” |
End connections | Sanitary clamp, butt-weld, i-line or others on request. |
Guard | polycarbonate guard (protects from being broken or damaged) |
Seal material | PTFE, silicone,EPDM |
Studs and Nuts | AISI 304 |
| Flange | AISI304, AISI 316L |
Pressure | - up to 10 bar |
Temperature | - up to 250 F. |
Features
●Clarity, visibility
● leak resistance
● Compatibility
● Durability
● Ease of maintenance
● Safety, quality control and assurance
● Corrosion
● Erosion monitoring.
● High precise
Application
These are used in various industrial applications like chemical processing, pharmaceutical manufacturing, food industry, beverage, dairy, pharmacy, chemical, oil and gas industry, power generation, hygiene industry, laboratory equipments and others.
