JONENG

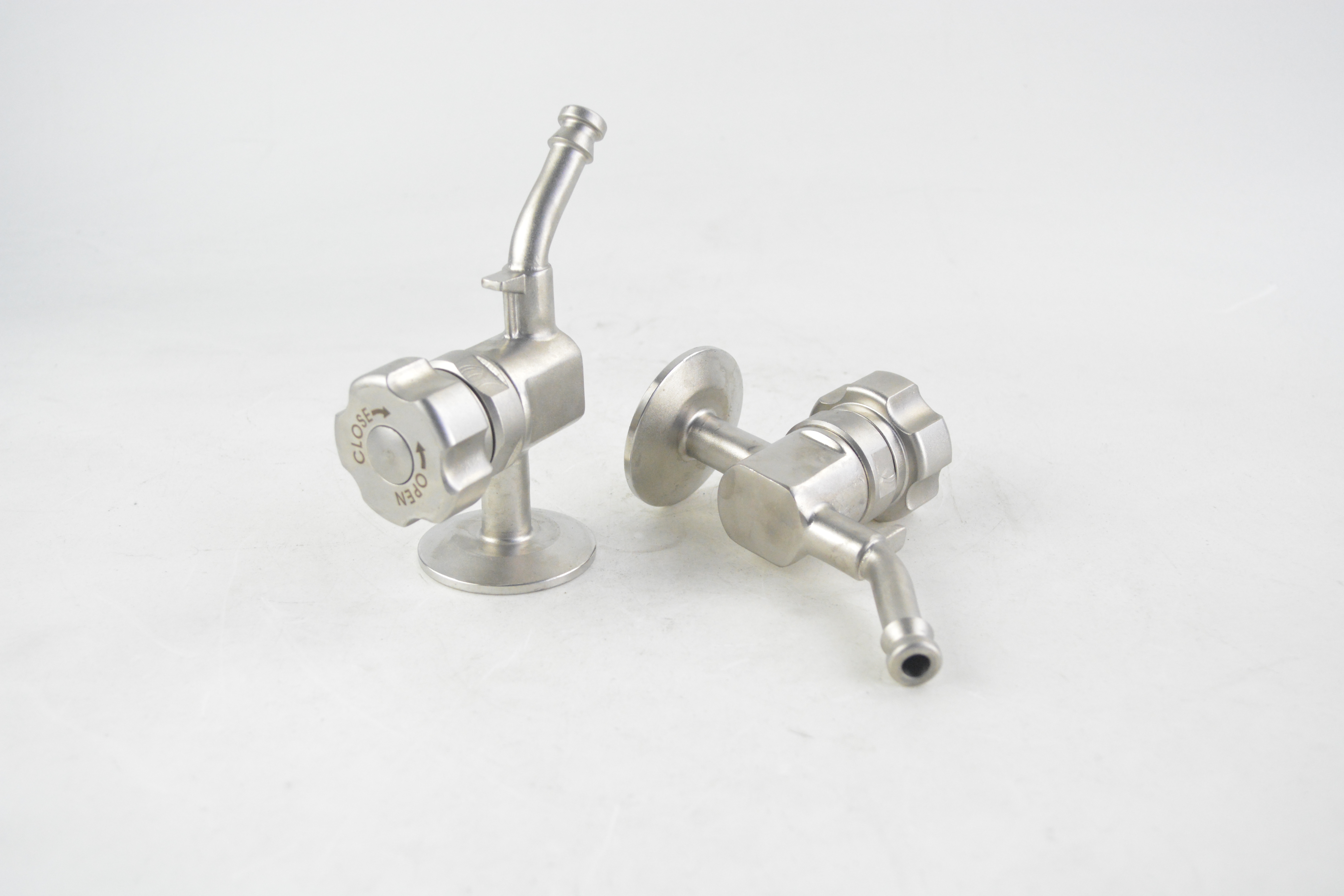

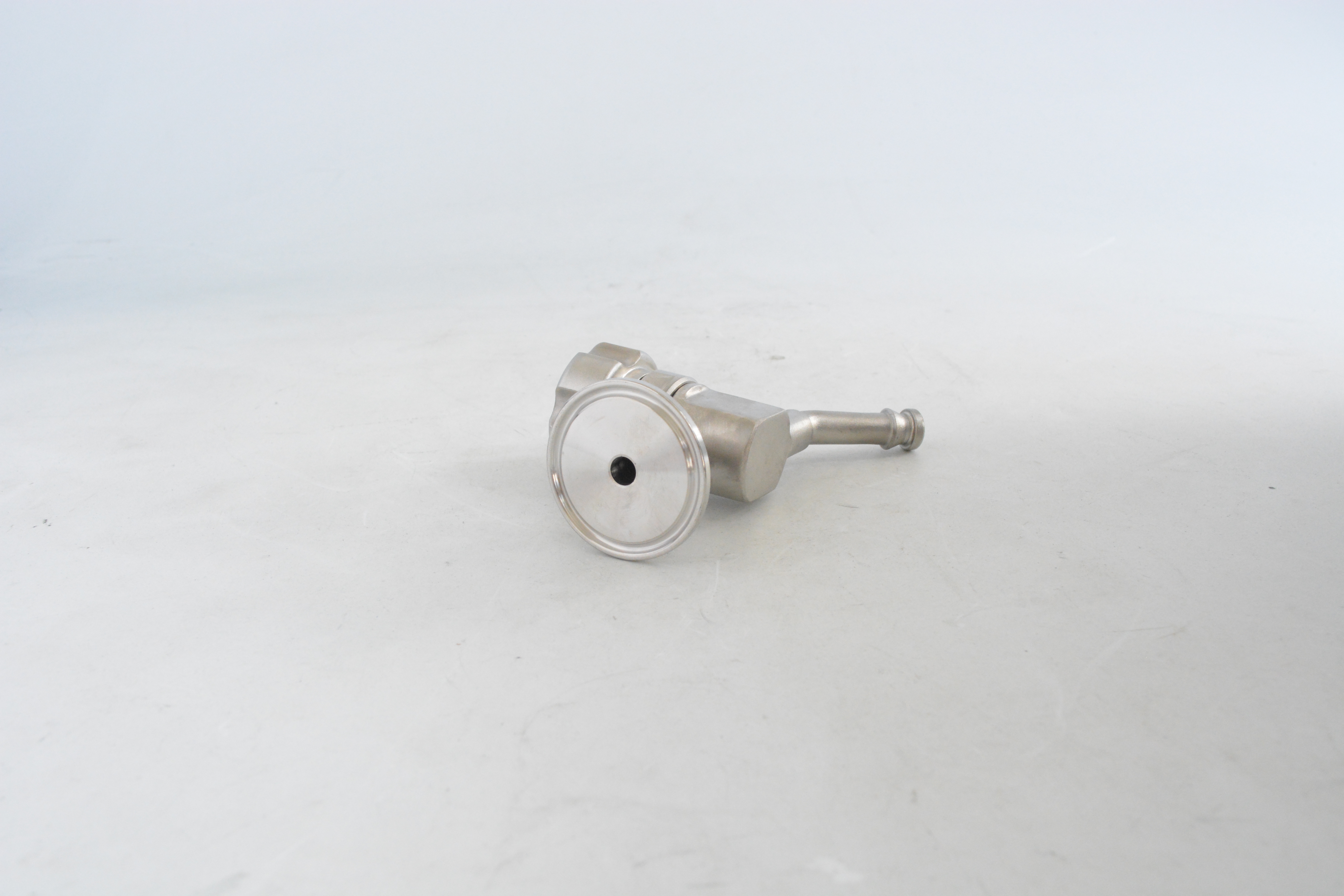

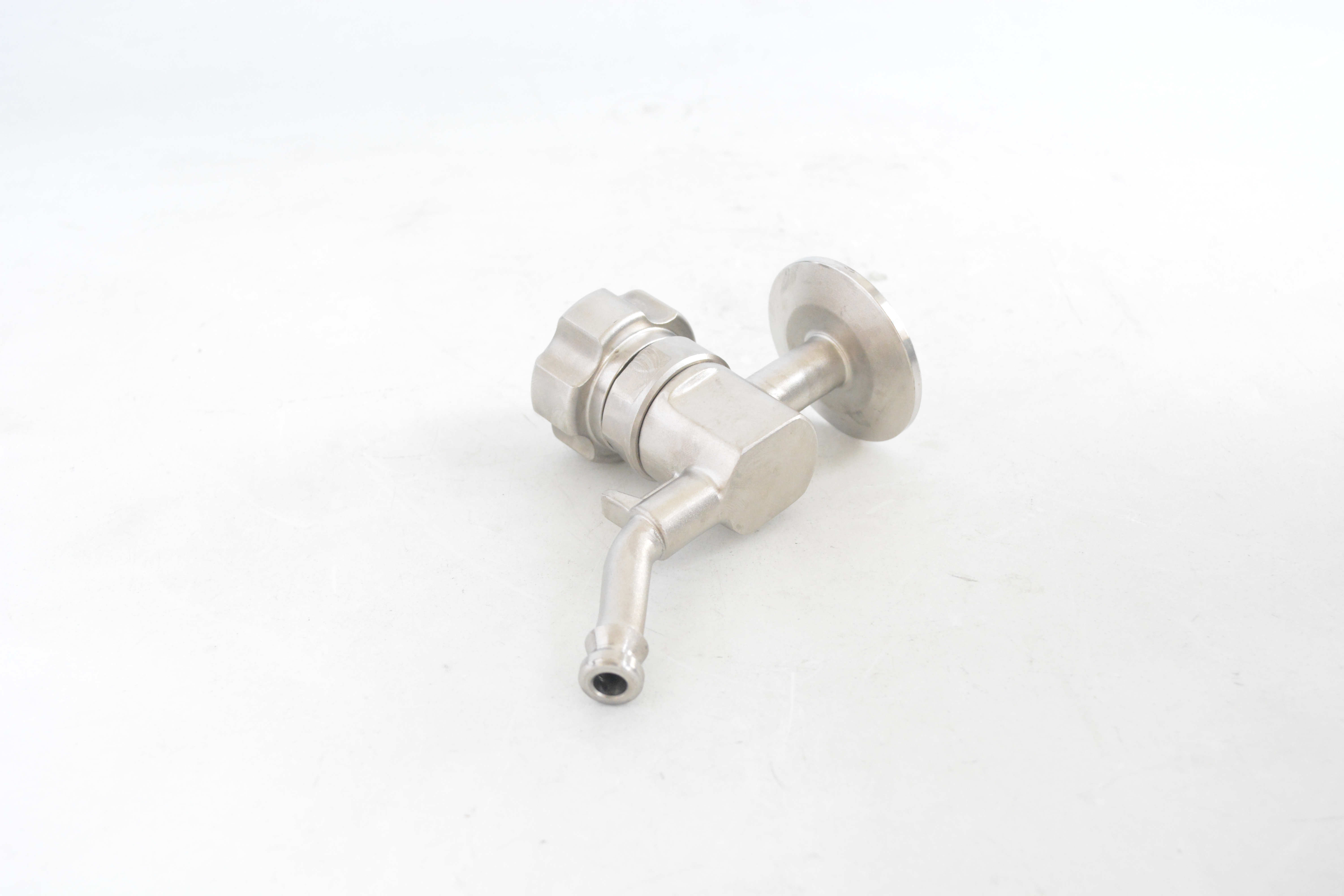

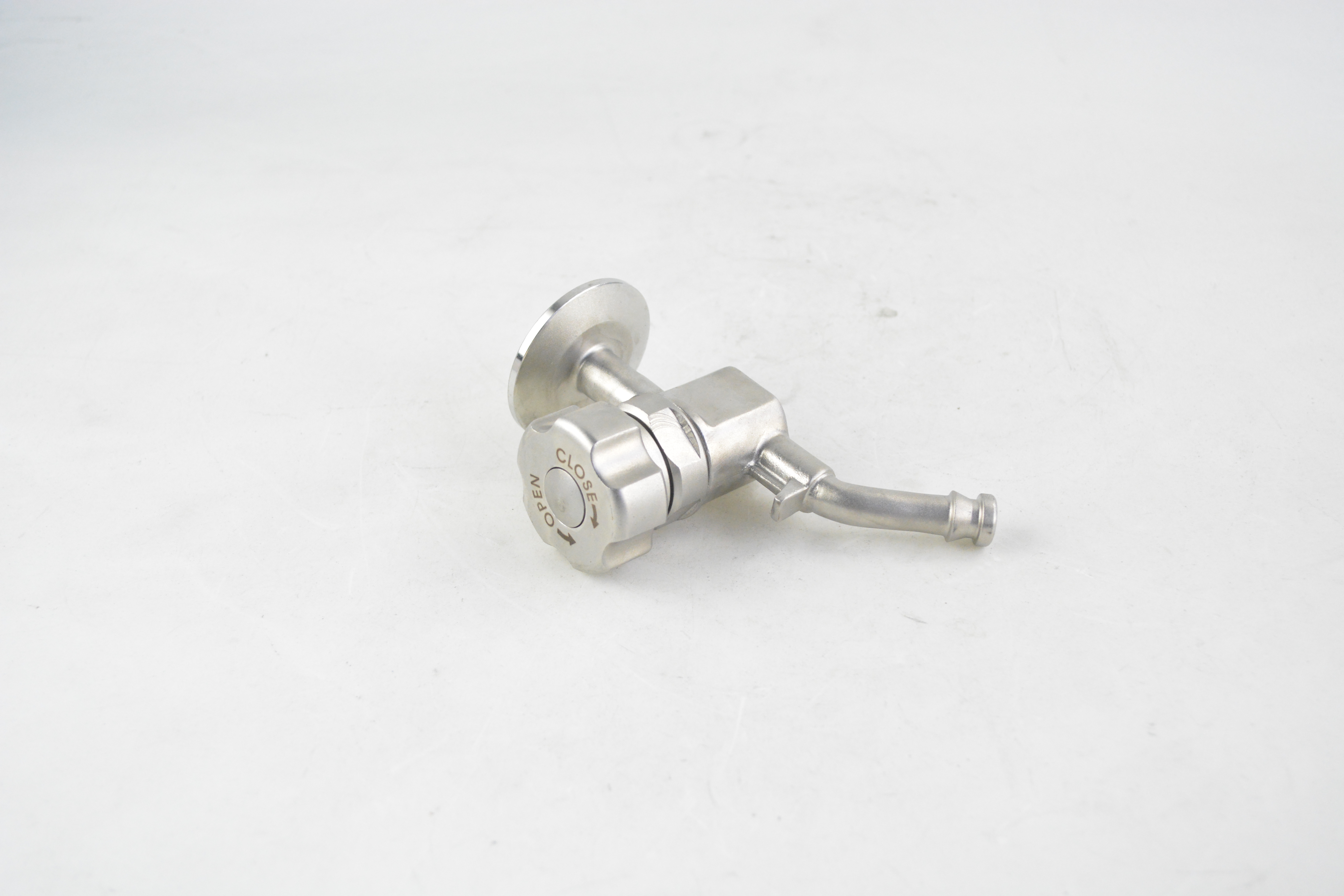

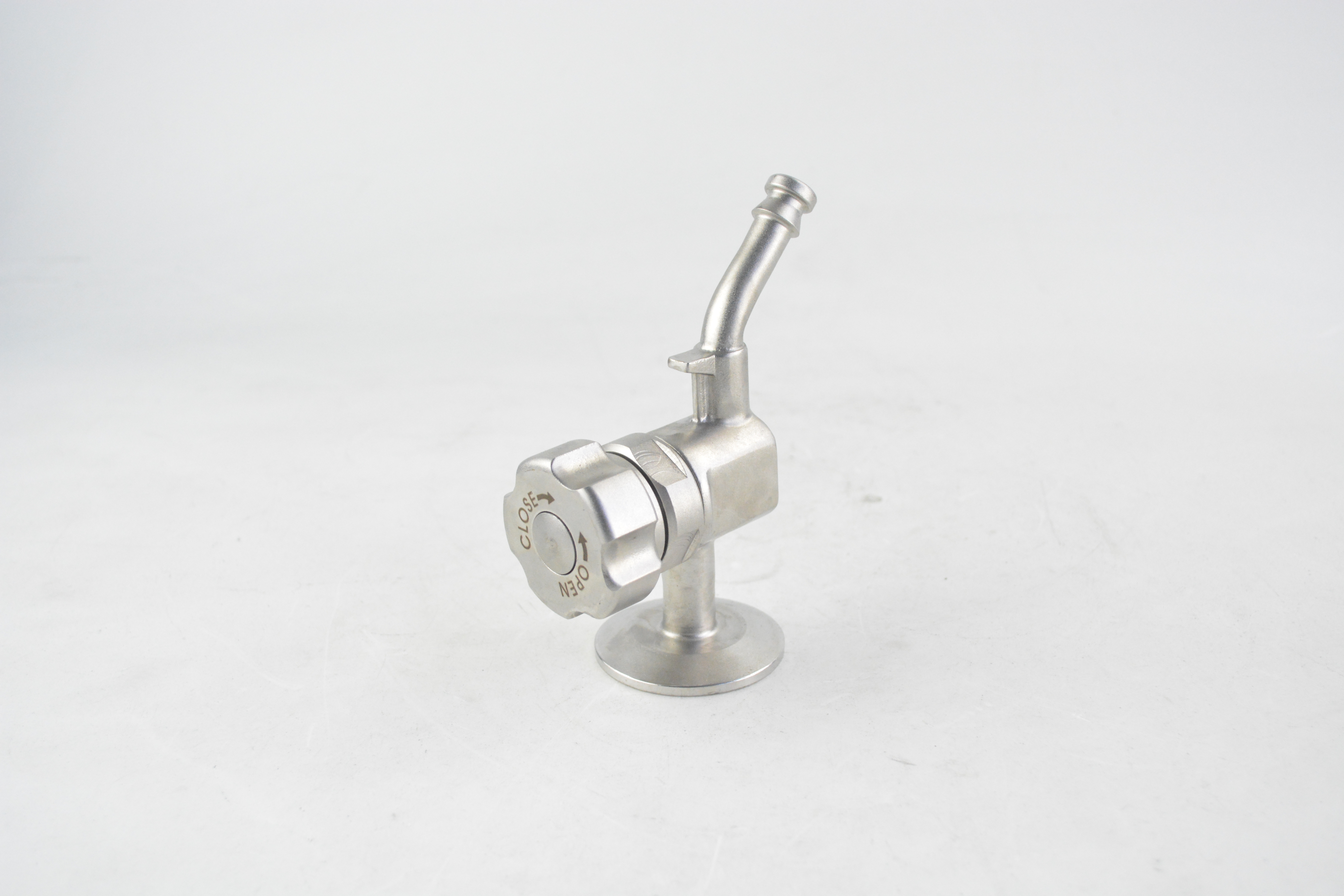

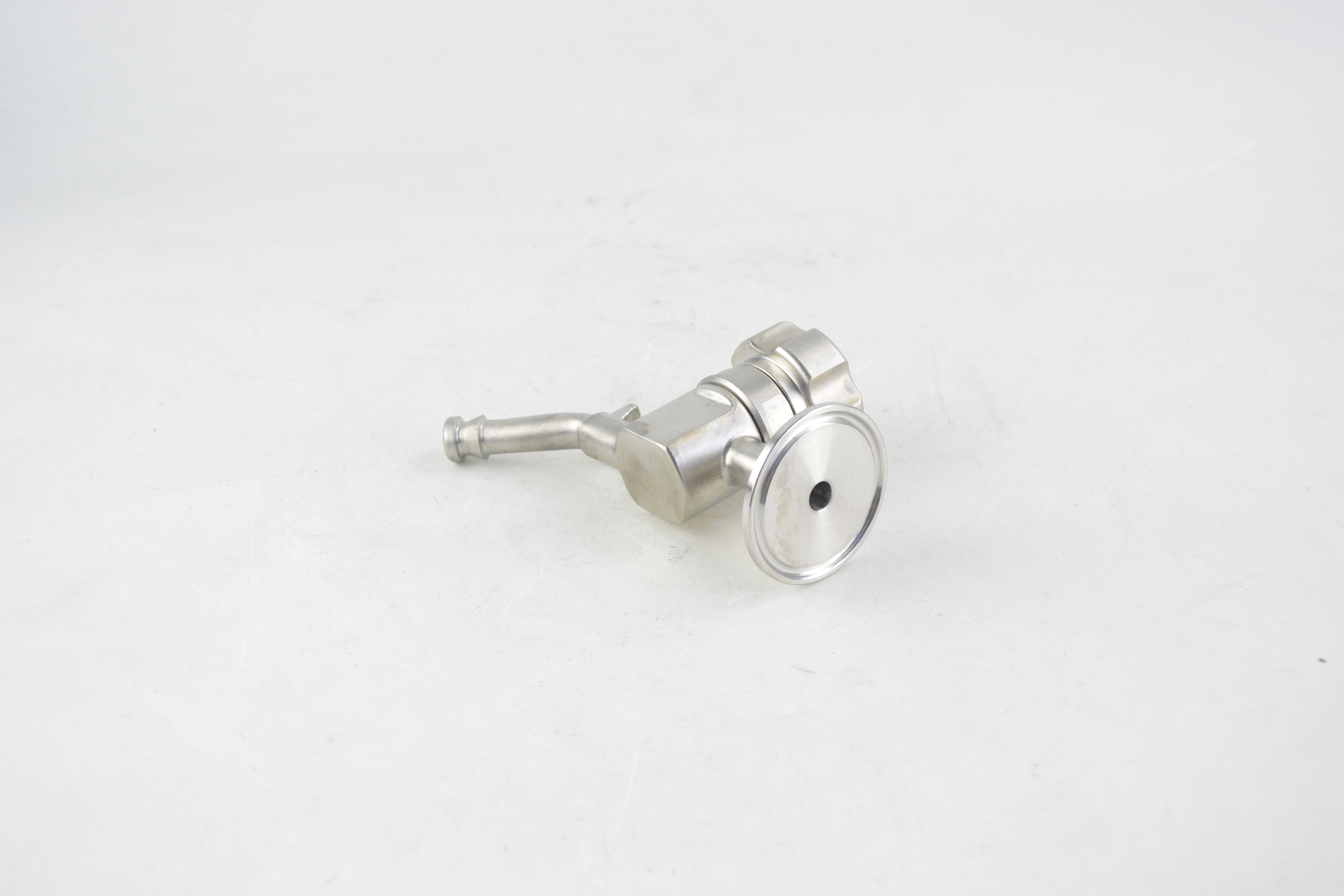

SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valve
The SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valve is a hygienic sampling valve designed for controlled fluid extraction from pressurized systems. Made of SS304 stainless steel, it ensures corrosion resistance, cleanability, and safe sampling without interrupting process flow or compromising product purity
Working Principles
The SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valve operates by using an integrated faucet-style mechanism to control the opening and closing of the sampling port under system pressure. When the handle is turned, the internal stem lifts from the valve seat, allowing a measured amount of process fluid to flow through the outlet for sampling. Sealing components ensure tight closure when the valve is shut, preventing leakage and contamination. The valve is designed to withstand internal pressure, enabling safe sampling without stopping the process. Its sanitary construction allows easy cleaning and sterilization, ensuring sample integrity and hygienic operation
Stainless Steel Sampling Valve Specification Chart
Size | 1/2",1-1/2" |
Connections | thread,clamp,weld |
Max.pressure | 10bar 145psi |
Min.pressure | Vacuum |
Temperature | -10℃ 50 F-120℃/248℃ |
Standard | 3A,ISO,DIN |
Body material | AISI1304, AISI316L |
Seal material | PTFE |
USAGR | Handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode |
Features
Made from SS304 sanitary-grade stainless steel, providing excellent corrosion resistance, mechanical strength, and full compliance with hygienic standards required in food, beverage, and pharmaceutical processing environments.
Integrated pressure-rated faucet-type structure enables safe and controlled sampling directly from pressurized pipelines without interrupting production or compromising system stability.
Smooth internal surfaces and crevice-free design minimize residue buildup, allowing efficient cleaning, sterilization, and reliable maintenance of product purity.
Manual handle operation offers precise flow control during sampling, ensuring accurate sample volumes while maintaining secure sealing after each use.
Compact and robust construction supports easy installation, long service life, and stable performance in frequent sampling applications
Application
SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valves are widely used in food and beverage production lines, such as dairy processing and beverage fermentation, where hygienic sampling under pressure is required. They are also applied in pharmaceutical manufacturing for quality control sampling, as well as in biotechnology and cosmetic industries to monitor process fluids safely and efficiently
Working Principles
The SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valve operates by using an integrated faucet-style mechanism to control the opening and closing of the sampling port under system pressure. When the handle is turned, the internal stem lifts from the valve seat, allowing a measured amount of process fluid to flow through the outlet for sampling. Sealing components ensure tight closure when the valve is shut, preventing leakage and contamination. The valve is designed to withstand internal pressure, enabling safe sampling without stopping the process. Its sanitary construction allows easy cleaning and sterilization, ensuring sample integrity and hygienic operation
Feature and Specification
Stainless Steel Sampling Valve Specification Chart
Size | 1/2",1-1/2" |
Connections | thread,clamp,weld |
Max.pressure | 10bar 145psi |
Min.pressure | Vacuum |
Temperature | -10℃ 50 F-120℃/248℃ |
Standard | 3A,ISO,DIN |
Body material | AISI1304, AISI316L |
Seal material | PTFE |
USAGR | Handle quick-opening type, handle wheel fine-turning type, pneumatic and hand-gas integrated four open mode |
Features
Made from SS304 sanitary-grade stainless steel, providing excellent corrosion resistance, mechanical strength, and full compliance with hygienic standards required in food, beverage, and pharmaceutical processing environments.
Integrated pressure-rated faucet-type structure enables safe and controlled sampling directly from pressurized pipelines without interrupting production or compromising system stability.
Smooth internal surfaces and crevice-free design minimize residue buildup, allowing efficient cleaning, sterilization, and reliable maintenance of product purity.
Manual handle operation offers precise flow control during sampling, ensuring accurate sample volumes while maintaining secure sealing after each use.
Compact and robust construction supports easy installation, long service life, and stable performance in frequent sampling applications
Application
SS304 Sanitary Grade Integrated Pressure Faucet-Type Sampling Valves are widely used in food and beverage production lines, such as dairy processing and beverage fermentation, where hygienic sampling under pressure is required. They are also applied in pharmaceutical manufacturing for quality control sampling, as well as in biotechnology and cosmetic industries to monitor process fluids safely and efficiently
