JONENG
Clamp sanitary DN25 PTFE butterfly valves are available in manual or actuated types, with wafer or clamp connections. Common sizes center on DN25, using 304 or 316L stainless steel bodies, PTFE seats, hygienic design, corrosion resistance, and smooth, easy-to-clean internal surfaces.
The stainless steel clamp sanitary DN25 PTFE butterfly valve operates by rotating a circular disc mounted on a central shaft inside the valve body. When the handle or actuator turns the shaft, the disc rotates 90 degrees to open or close the flow path. In the open position, the disc aligns parallel to the flow, allowing smooth and low-resistance passage of fluid. When closing, the disc presses evenly against the PTFE seat, forming a tight and reliable seal. The clamp sanitary connection ensures quick installation and easy removal for cleaning, making the valve suitable for hygienic process applications.
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |

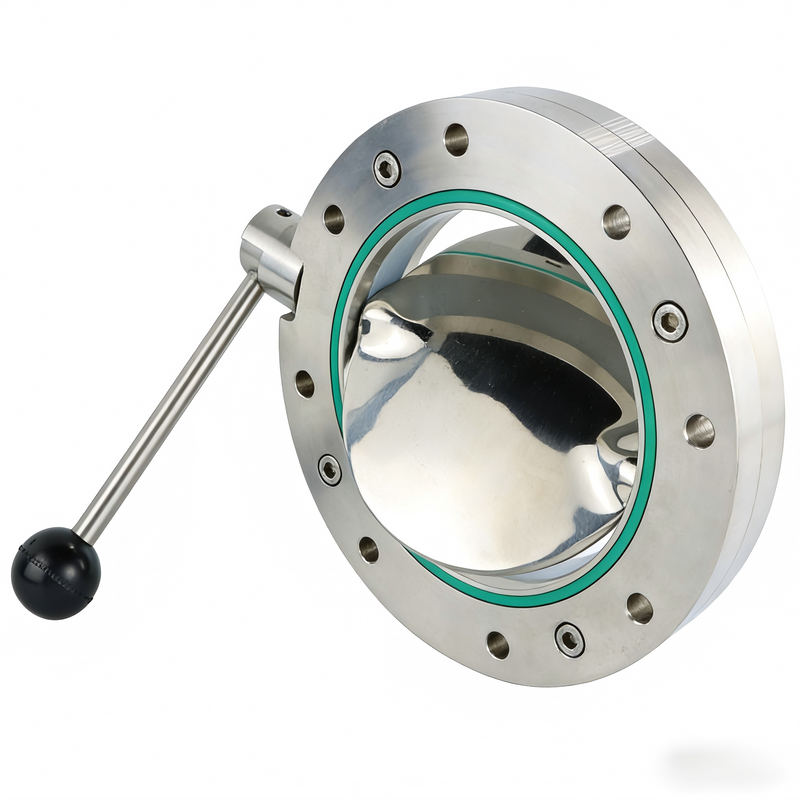

Double flange DN300 PN16 butterfly valve ensures stable pipeline connection, providing excellent alignment accuracy, uniform stress distribution, and reliable sealing performance in large-diameter industrial piping systems under medium pressure conditions.
Manufactured from 316L stainless steel, it offers superior corrosion resistance, excellent durability, and long service life, making it suitable for aggressive fluids, hygienic processes, and demanding chemical or marine environments.
The robust disc and shaft design enables smooth quarter-turn operation, low operating torque, and precise flow regulation, ensuring efficient on-off or throttling control with minimal pressure loss.
PN16 pressure rating allows safe operation in moderate-pressure applications, maintaining structural integrity and sealing reliability during frequent operation and temperature fluctuations in industrial processes.
Compatible with manual, pneumatic, or electric actuators, this butterfly valve provides flexible automation options, easy maintenance access, and reliable performance for water, gas, steam, and process media handling.
Stainless steel sanitary welded manual butterfly valve with pull rod handle is mainly used in industries with high requirements for hygiene standards. The following are several typical industries. Food processing: control liquid flow to ensure the hygiene and stability of the production line. Beverage production: adjust the flow, prevent pollution, and keep the beverage pipeline clean. Dairy products: Regulate milk flow to ensure that pipelines meet hygiene standards. Pharmaceutical industry: Control liquid delivery to meet high hygiene production requirements. Biopharmaceuticals: Control the flow of drug raw materials to maintain pollution-free delivery. Chemical industry: Used for liquid flow control to ensure the hygiene and safety of the pipeline system.
Working Principles
The stainless steel clamp sanitary DN25 PTFE butterfly valve operates by rotating a circular disc mounted on a central shaft inside the valve body. When the handle or actuator turns the shaft, the disc rotates 90 degrees to open or close the flow path. In the open position, the disc aligns parallel to the flow, allowing smooth and low-resistance passage of fluid. When closing, the disc presses evenly against the PTFE seat, forming a tight and reliable seal. The clamp sanitary connection ensures quick installation and easy removal for cleaning, making the valve suitable for hygienic process applications.
Specification Chart
Working Pressure | 10 Bar (Max. Pressure is 16bar for but welded connection in small sizes |
Working temperature | -10ºC TO + 120ºC |
Size | 1/2”-12”, DN15-DN300 |
Grade | AISI304 and AISI316L |
FDA approved gaskets in silicone, EPDM, viton, PTFE | |
Connection | Clamp, Weld, Thread,male threaded; female threaded; flange end;union connection |
Surface | Sanitary inside polish (Ra ≤ 0.8 μm) |
Sanitary outside polish (Ra ≤1.6 μm) | |
Standard | ISO, 3A, SMS, RJT, DIN and so on |
Butterfly valve disc and body is made from forging | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
Required compressed air | 4-8Bar |
Connection of compressed air | G 1/8’’ |
Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose |
Valve parts
Body | Stainless steel AISI316L or AISI 304 (1.4301/1.4404) |
Disc | AISI304 or AISI316L |
Pull-position handle | Stainless Steel Material, Round type or square type |
Multi-position Gripper Handle | ABS gripper handle, SS gripper handle, 2/3/4/12 positions to adjustment, Universal type |
Gasket | EPDM, VITON(FPM), Silicone, different color is available |
Bushing | EPDM or PTFE, other material request |
Nut | Stainless Steel 304 or 316 Material or other request |
Bolt | Stainless Steel 304 or 316 Material or other request |
Features
Double flange DN300 PN16 butterfly valve ensures stable pipeline connection, providing excellent alignment accuracy, uniform stress distribution, and reliable sealing performance in large-diameter industrial piping systems under medium pressure conditions.
Manufactured from 316L stainless steel, it offers superior corrosion resistance, excellent durability, and long service life, making it suitable for aggressive fluids, hygienic processes, and demanding chemical or marine environments.
The robust disc and shaft design enables smooth quarter-turn operation, low operating torque, and precise flow regulation, ensuring efficient on-off or throttling control with minimal pressure loss.
PN16 pressure rating allows safe operation in moderate-pressure applications, maintaining structural integrity and sealing reliability during frequent operation and temperature fluctuations in industrial processes.
Compatible with manual, pneumatic, or electric actuators, this butterfly valve provides flexible automation options, easy maintenance access, and reliable performance for water, gas, steam, and process media handling.
Application
Stainless steel sanitary welded manual butterfly valve with pull rod handle is mainly used in industries with high requirements for hygiene standards. The following are several typical industries. Food processing: control liquid flow to ensure the hygiene and stability of the production line. Beverage production: adjust the flow, prevent pollution, and keep the beverage pipeline clean. Dairy products: Regulate milk flow to ensure that pipelines meet hygiene standards. Pharmaceutical industry: Control liquid delivery to meet high hygiene production requirements. Biopharmaceuticals: Control the flow of drug raw materials to maintain pollution-free delivery. Chemical industry: Used for liquid flow control to ensure the hygiene and safety of the pipeline system.
