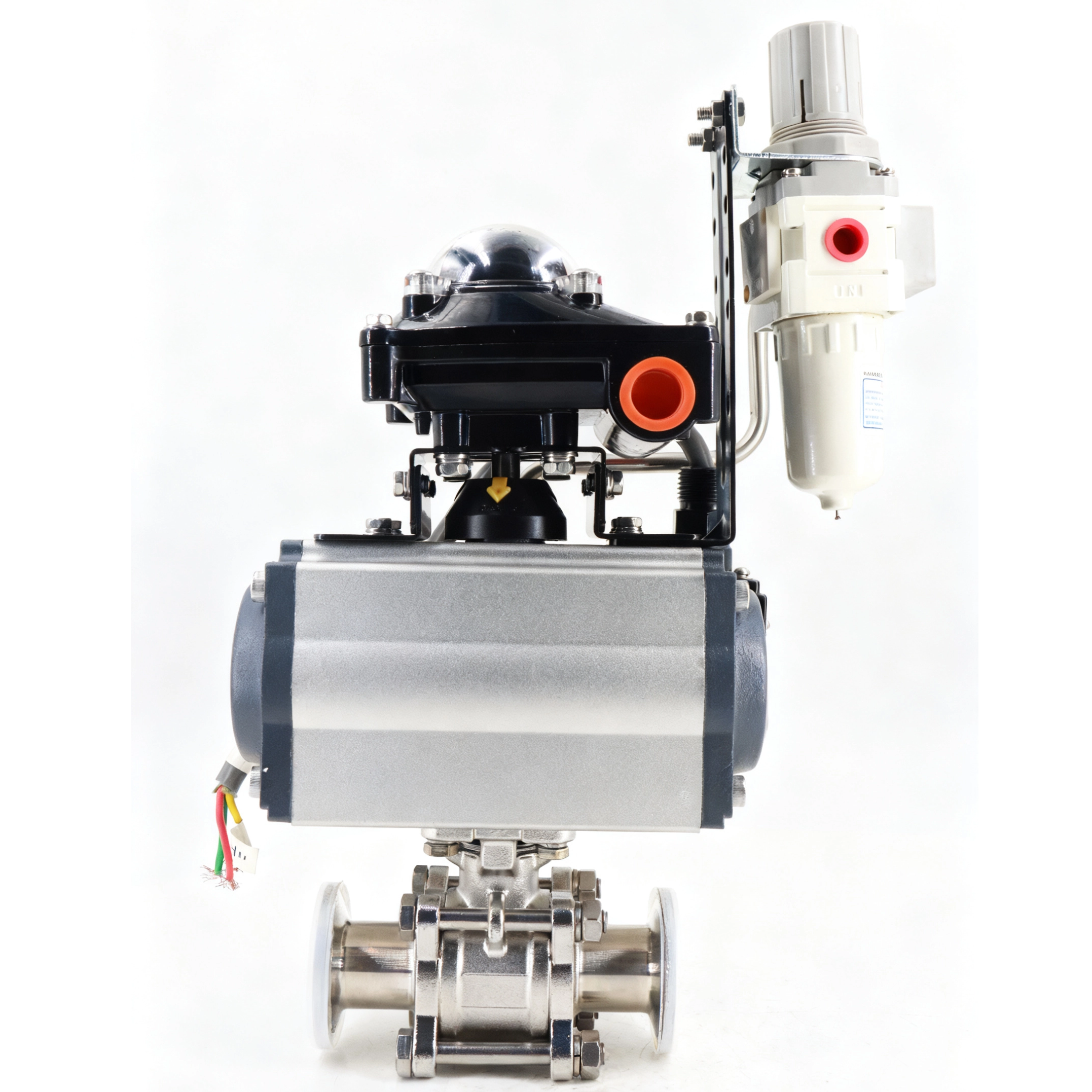

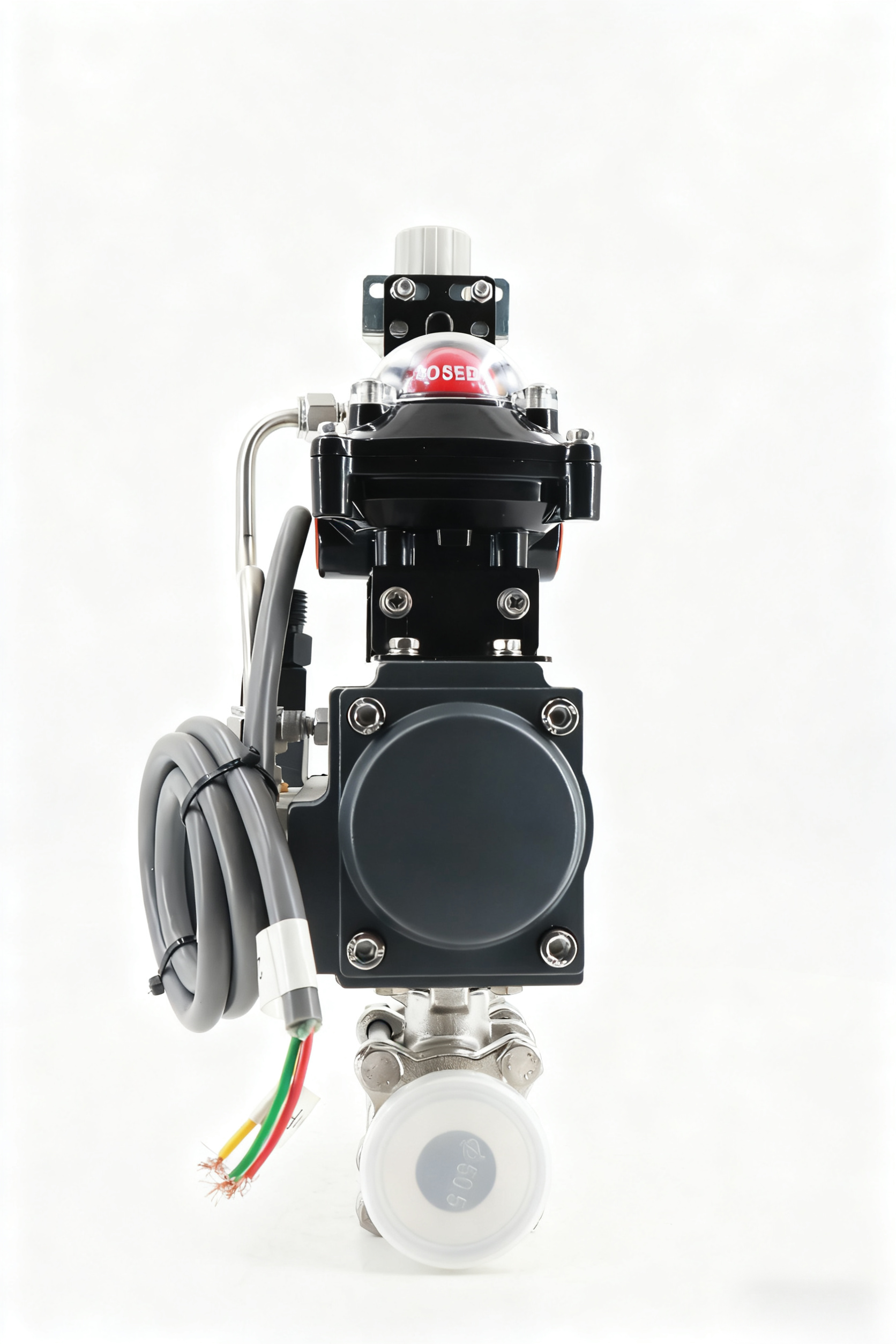

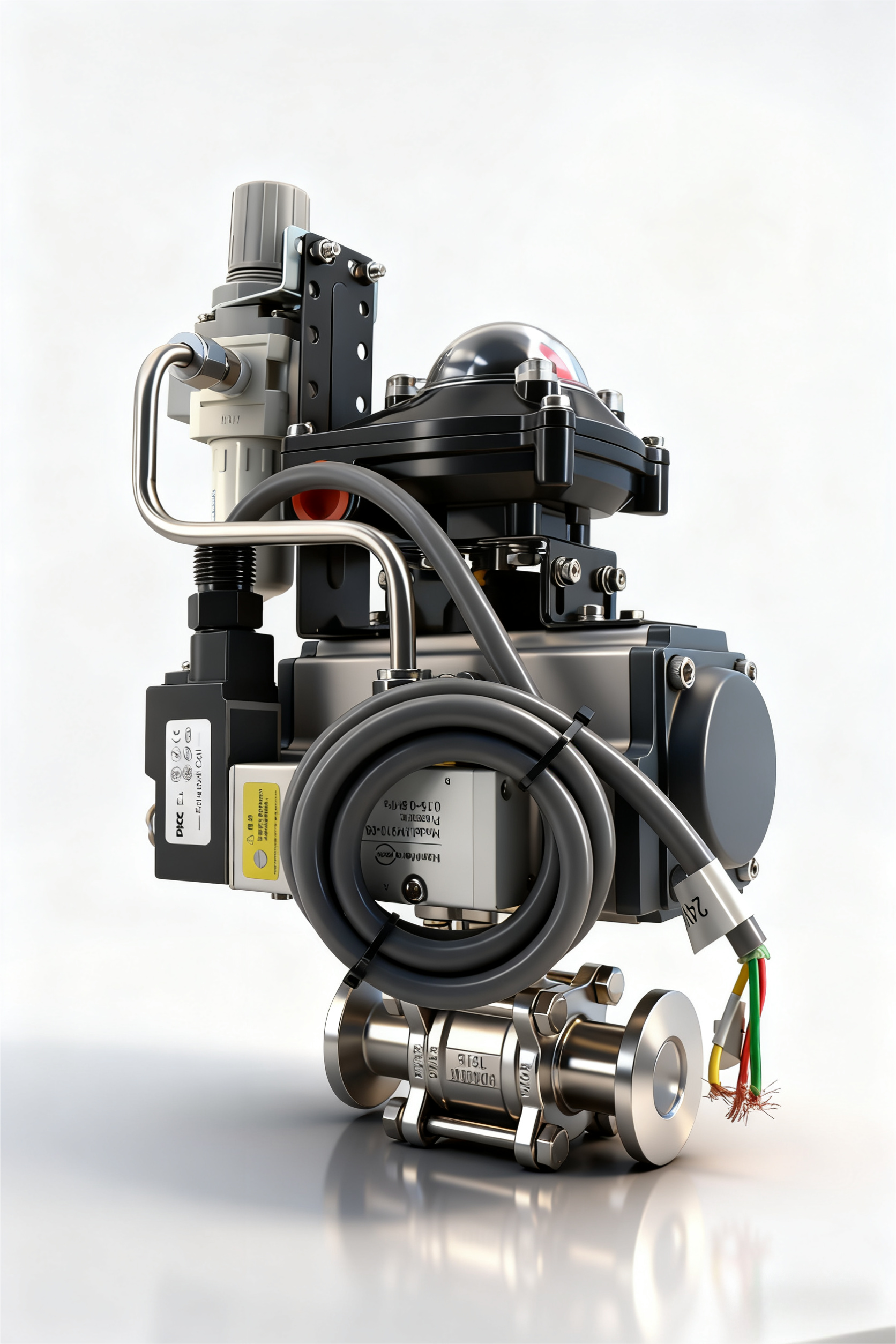

Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve
The Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve is an automated valve designed for on/off flow control. Its straight-through design ensures smooth flow, while the pneumatic actuator and quick-install connections provide fast, reliable operation in sanitary and industrial fluid systems
Working Principles
The Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve operates using a pneumatic actuator that rotates a spherical ball with a central bore inside the valve body. When air pressure is applied, the actuator turns the ball 90 degrees, aligning the bore with the pipeline to allow flow or rotating it perpendicular to stop flow. The ball is held between elastomeric seats, ensuring a tight, leak-free seal. Its straight-through design provides minimal pressure drop and smooth media passage. Quick-install connections allow rapid assembly and maintenance without removing the valve, making it suitable for sanitary, food, pharmaceutical, and biotech applications
Specification Chart
Max. working pressure | 150 PSI |
Temperature range | -20° ~ +150°C or higher upon request |
Sizes available | 1/2" to 4" |
| End connection | Tri-Clamp, Butt-Weld, Flange, Threaded |
Body material | Stainless Steel 316L |
Ball material | Stainless Steel 316L |
Seal material | FDA Approved EPDM, Silicone, Viton |
Actuator Options | Manual, Pneumatic |
Surface Finish | Ra ≤ 0.8μm (Standard), Ra |
Flow Control | Linear |
Features
Pneumatic Actuation – Uses compressed air for fast, automated opening and closing, improving process efficiency and reducing manual operation.
Straight-through Design – Provides smooth, unobstructed flow with minimal pressure drop, suitable for liquids, gases, or viscous media.
Quick-Install Connections – Tri-clamp or sanitary fittings allow rapid installation and easy maintenance without system shutdown.
Leak-Free Ball Seal – The floating ball and elastomeric seats ensure reliable shutoff and hygienic operation.
Stainless Steel Construction – Durable, corrosion-resistant, and suitable for sanitary, food, pharmaceutical, and biotech applications.
Rapid and Precise Response – Offers stable, accurate control with minimal hysteresis, ensuring consistent performance in critical processes
Application
The Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve is used in industries requiring automated and hygienic flow control. Typical applications include beverage bottling, dairy processing, pharmaceutical production, biotechnology, and cosmetic manufacturing, where rapid actuation, reliable sealing, and easy maintenance ensure efficient and contamination-free operations
Working Principles
The Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve operates using a pneumatic actuator that rotates a spherical ball with a central bore inside the valve body. When air pressure is applied, the actuator turns the ball 90 degrees, aligning the bore with the pipeline to allow flow or rotating it perpendicular to stop flow. The ball is held between elastomeric seats, ensuring a tight, leak-free seal. Its straight-through design provides minimal pressure drop and smooth media passage. Quick-install connections allow rapid assembly and maintenance without removing the valve, making it suitable for sanitary, food, pharmaceutical, and biotech applications
Specification Chart
Max. working pressure | 150 PSI |
Temperature range | -20° ~ +150°C or higher upon request |
Sizes available | 1/2" to 4" |
End connection | Tri-Clamp, Butt-Weld, Flange, Threaded |
Body material | Stainless Steel 316L |
Ball material | Stainless Steel 316L |
Seal material | FDA Approved EPDM, Silicone, Viton |
Actuator Options | Manual, Pneumatic |
Surface Finish | Ra ≤ 0.8μm (Standard), Ra |
Flow Control | Linear |
Features
Pneumatic Actuation – Uses compressed air for fast, automated opening and closing, improving process efficiency and reducing manual operation.
Straight-through Design – Provides smooth, unobstructed flow with minimal pressure drop, suitable for liquids, gases, or viscous media.
Quick-Install Connections – Tri-clamp or sanitary fittings allow rapid installation and easy maintenance without system shutdown.
Leak-Free Ball Seal – The floating ball and elastomeric seats ensure reliable shutoff and hygienic operation.
Stainless Steel Construction – Durable, corrosion-resistant, and suitable for sanitary, food, pharmaceutical, and biotech applications.
Rapid and Precise Response – Offers stable, accurate control with minimal hysteresis, ensuring consistent performance in critical processes
