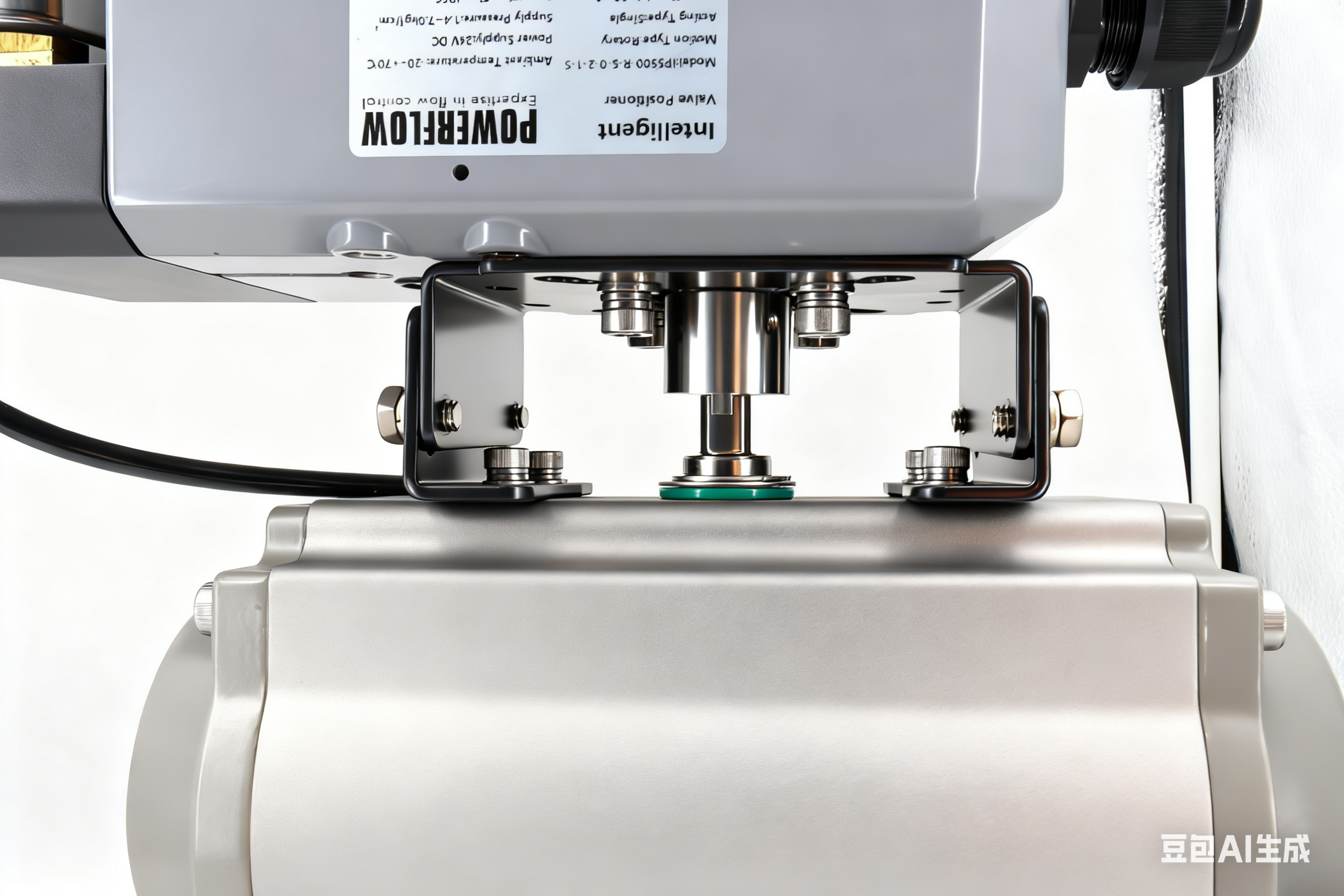

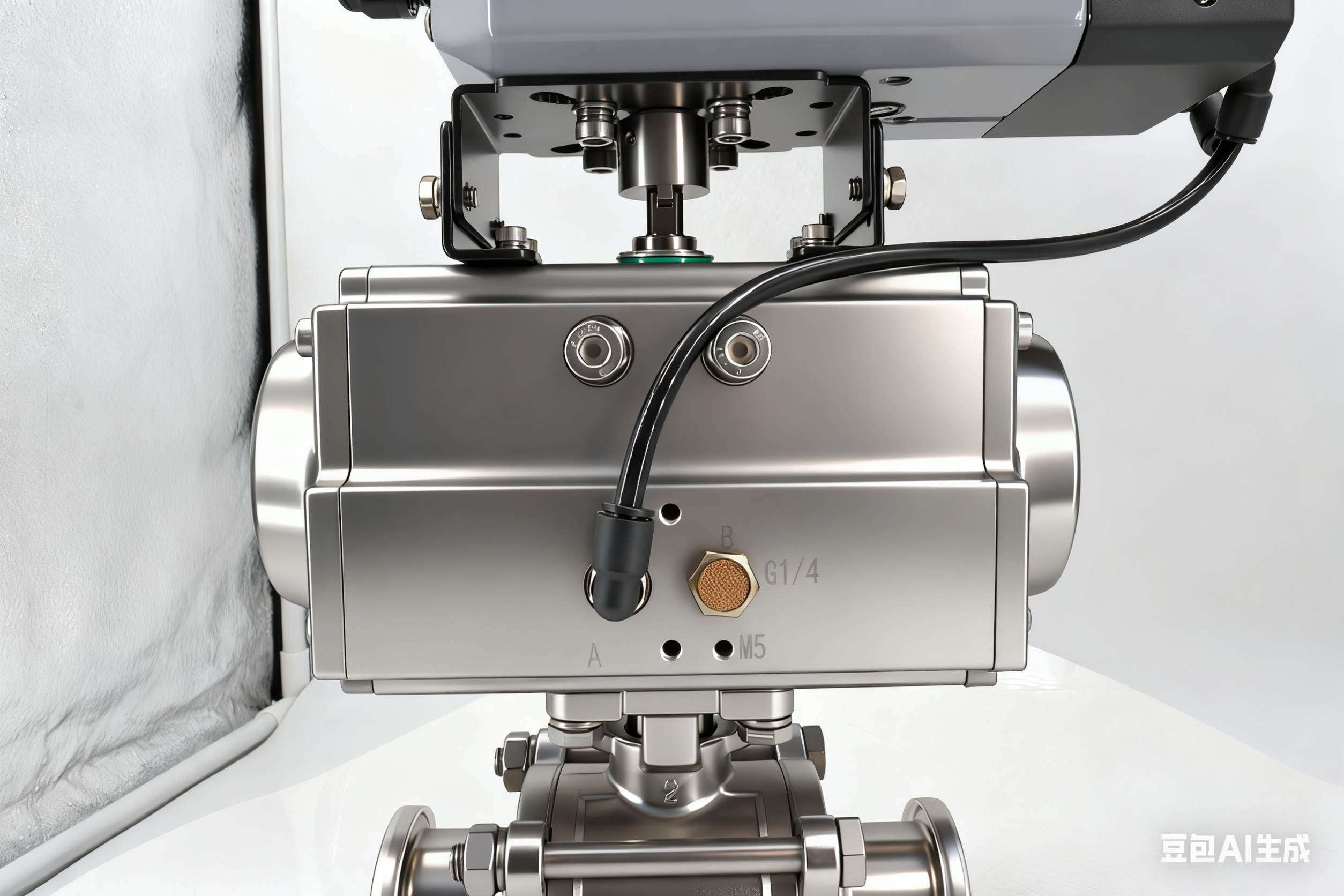

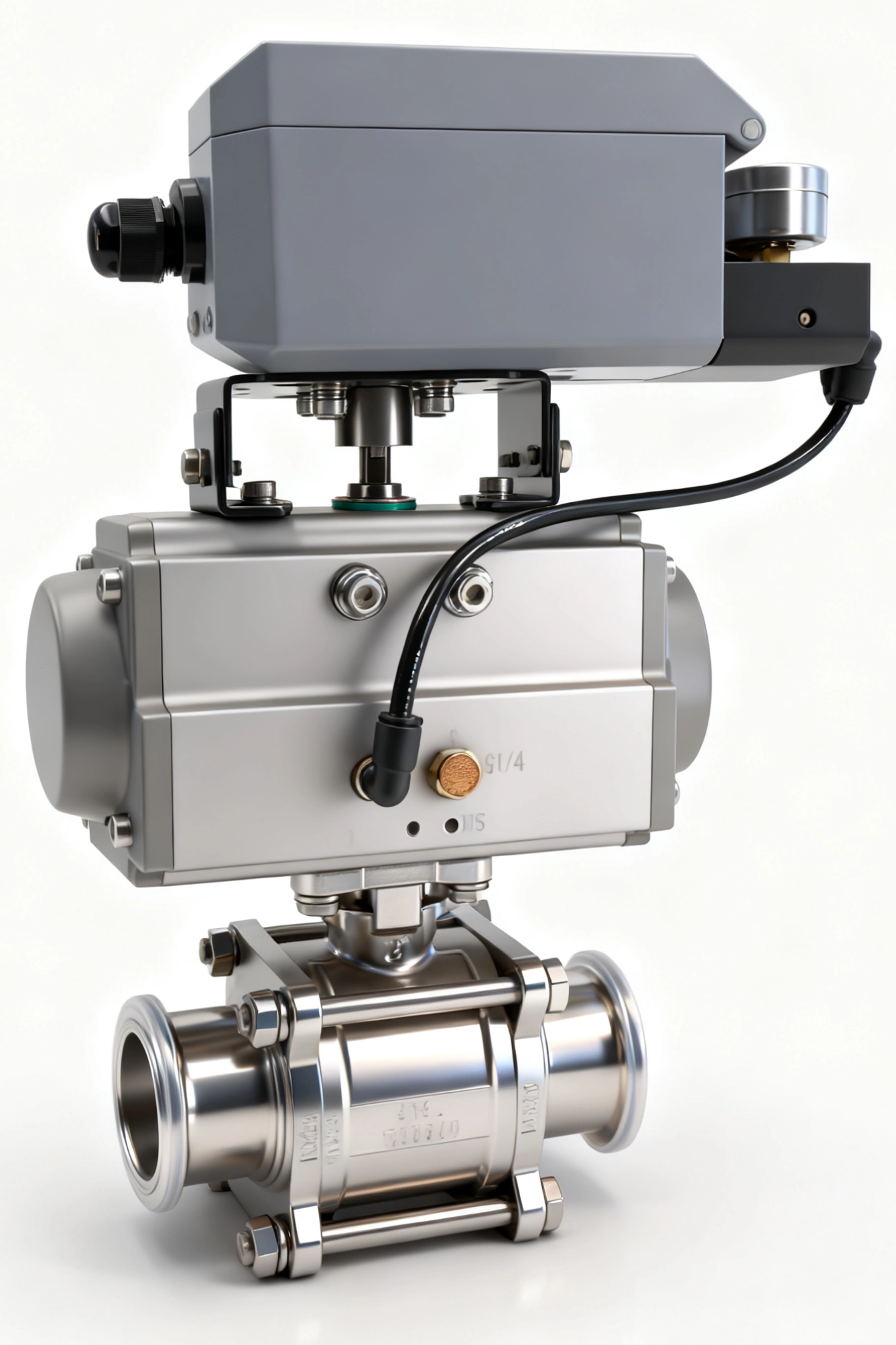

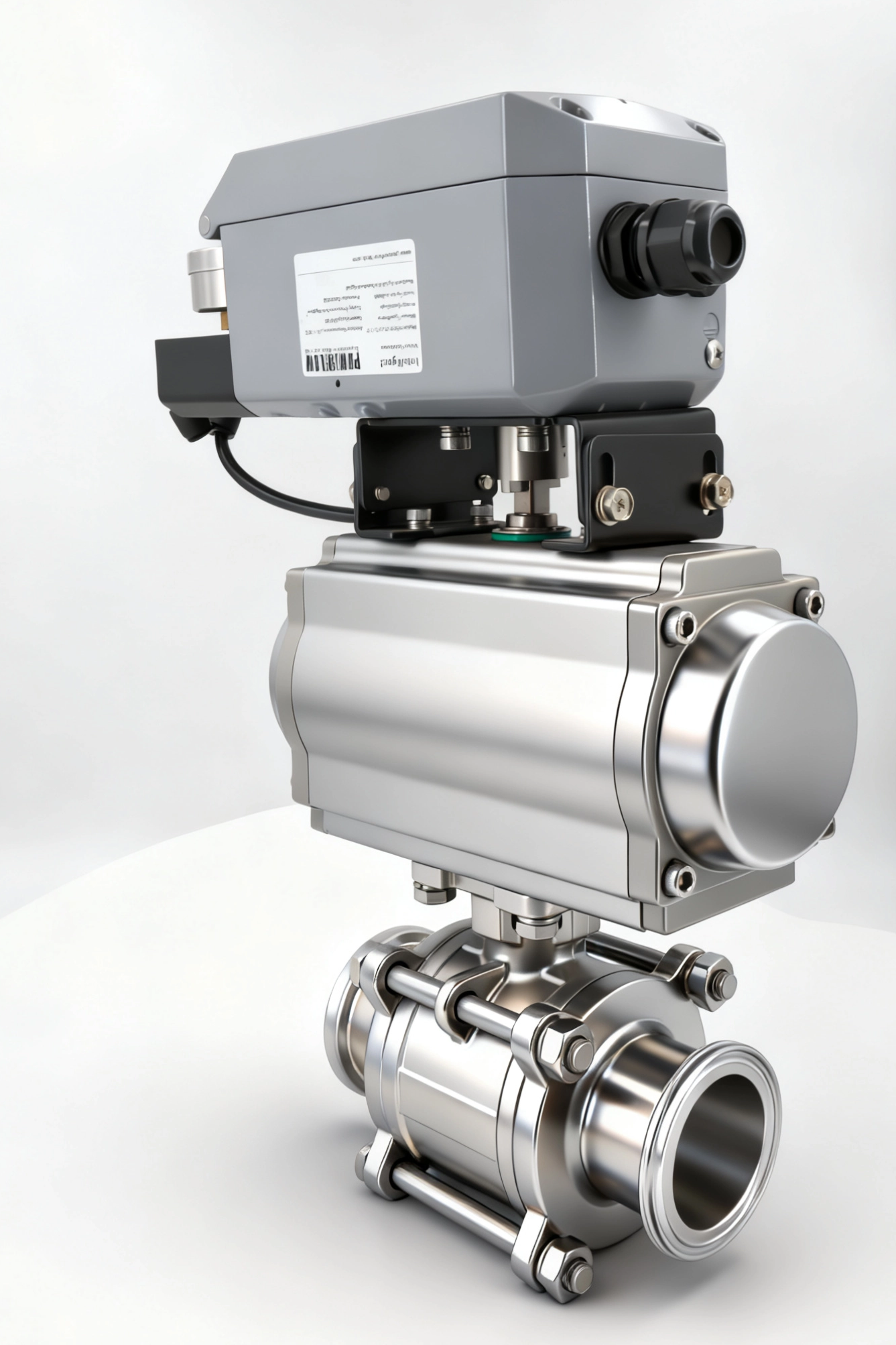

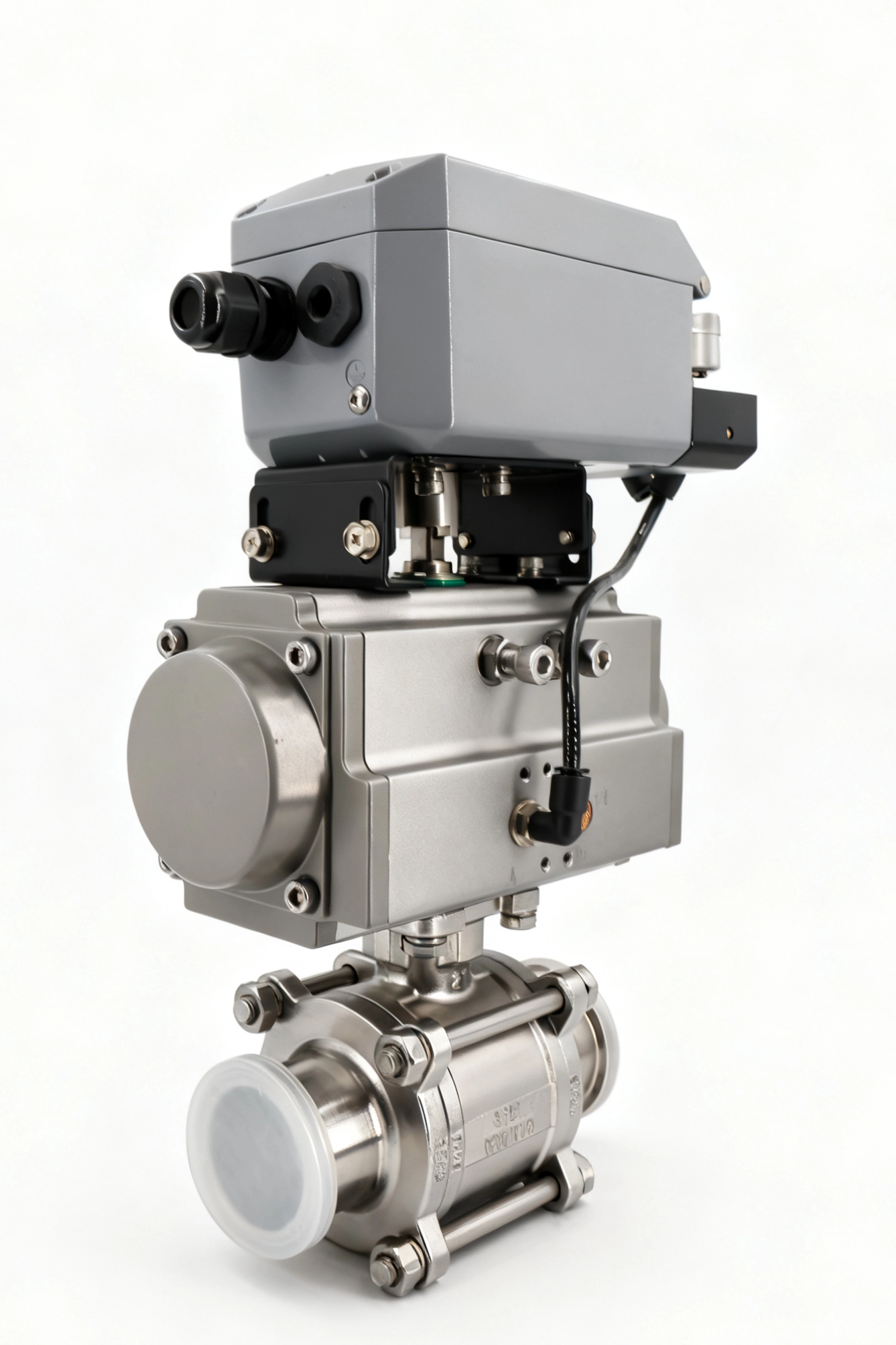

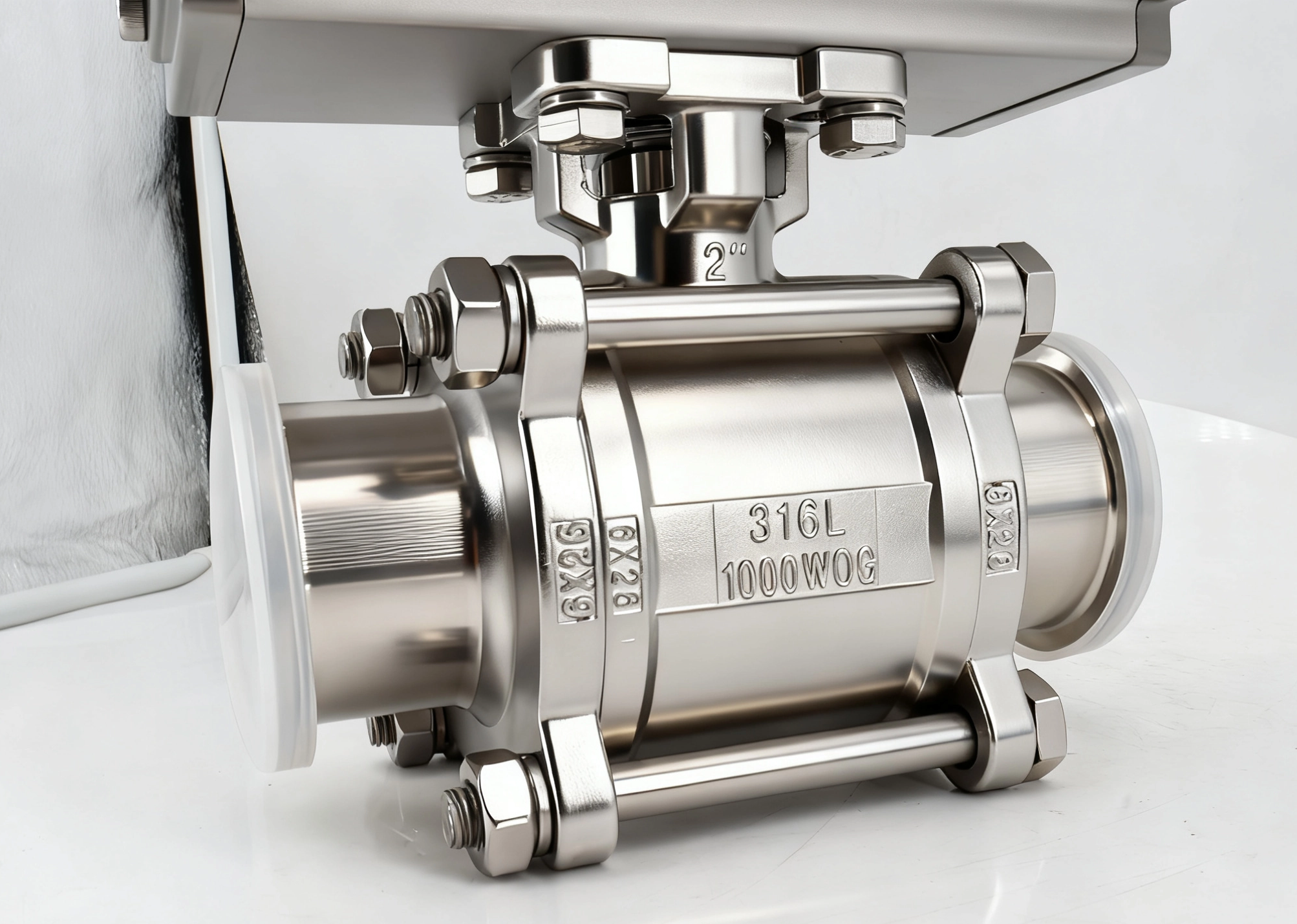

Stainless steel sanitary positioner pneumatic regulating ball valve

Stainless steel sanitary positioner pneumatic regulating ball valve


Availability:

Quantity:



Inquire Add to Basket

The Stainless Steel Sanitary Positioner Pneumatic Regulating Ball Valve is an automated valve designed for precise flow control. Its pneumatic actuator and positioner enable accurate modulation, while the stainless steel construction ensures hygienic, leak-free operation in food, pharmaceutical, and biotech systems

Brand:
JONENG

regulating ball valve ball valve stainless steel ball valve quick-installation ball valve Pneumatic Flow Control Valve Self cleaning ball valve Flow control valve encapsulated ball valve

Product Description

Working Principles

Specification Chart

Features

Stainless Steel Sanitary Straight-through Pneumatic Quick-install Ball Valve

The Stainless Steel Sanitary Positioner Pneumatic Regulating Ball Valve is an automated valve designed for precise flow control. Its pneumatic actuator and positioner enable accurate modulation, while the stainless steel construction ensures hygienic, leak-free operation in food, pharmaceutical, and biotech systems

Working Principles

未标题-1

The Stainless Steel Sanitary Positioner Pneumatic Regulating Ball Valve operates using a pneumatic actuator controlled by a positioner. The actuator rotates a ball with a central bore inside the valve body, adjusting its alignment with the pipeline to modulate flow precisely. The positioner receives a control signal, compares it with the valve stem position, and continuously adjusts the actuator to achieve the desired flow rate. The ball is held between elastomeric or metal seats, ensuring a tight, leak-free seal. Stainless steel construction and a sanitary design provide smooth, crevice-free surfaces, minimizing contamination risk and supporting hygienic processes in food, pharmaceutical, and biotechnology applications.

Specification Chart

未标题-1

Max. working pressure	Typically 1.6 MPa (may vary slightly with valve size)
Temperature range	-20° ~ +150°C or higher upon request
Sizes available	DN15, DN20, DN25, DN32, DN40, DN50, etc. (common sanitary pipe sizes)
End connection	Tri-clamp (sanitary quick-release clamp connection)
Body material	316 Stainless Steel
Ball material	316 Stainless Steel
Seal material	Food-grade Silicone, EPDM, FKM, etc. (selected based on medium and temperature)
Actuator Options	Pneumatic actuator (single-acting or double-acting available)
Surface Finish	Ra ≤ 0.8μm (Standard), Ra
Flow Control	On-off control (also allows rough flow regulation to some extent)

Features

未标题-1

Pneumatic Actuation with Positioner – Provides precise automated control, adjusting flow accurately according to process signals.
Stainless Steel Construction – Corrosion-resistant and durable, suitable for sanitary and high-purity applications.
Regulating Ball Design – Allows smooth modulation and stable flow control with minimal pressure drop.
Leak-Free Sealing – Elastomeric or metal seats ensure reliable shutoff and maintain hygienic integrity.
Sanitary Finish – Smooth, crevice-free surfaces reduce contamination risk and support easy cleaning-in-place (CIP).
Versatile Industry Use – Ideal for food, beverage, pharmaceutical, and biotechnology systems requiring precise, automated flow regulation.

Application

未标题-1

The Stainless Steel Sanitary Positioner Pneumatic Regulating Ball Valve is used in industries requiring precise, automated, and hygienic flow control. Typical applications include dairy processing for milk flow regulation, beverage production for syrup and water mixing, pharmaceutical manufacturing for sterile liquids, and biotechnology for culture media dosing.

Pneumatic weld

Working Principles

未标题-1

The Stainless Steel Sanitary Positioner Pneumatic Regulating Ball Valve operates using a pneumatic actuator controlled by a positioner. The actuator rotates a ball with a central bore inside the valve body, adjusting its alignment with the pipeline to modulate flow precisely. The positioner receives a control signal, compares it with the valve stem position, and continuously adjusts the actuator to achieve the desired flow rate. The ball is held between elastomeric or metal seats, ensuring a tight, leak-free seal. Stainless steel construction and a sanitary design provide smooth, crevice-free surfaces, minimizing contamination risk and supporting hygienic processes in food, pharmaceutical, and biotechnology applications.

Specification Chart

未标题-1

Max. working pressure	Typically 1.6 MPa (may vary slightly with valve size)
Temperature range	-20° ~ +150°C or higher upon request
Sizes available	DN15, DN20, DN25, DN32, DN40, DN50, etc. (common sanitary pipe sizes)
End connection	Tri-clamp (sanitary quick-release clamp connection)
Body material	316 Stainless Steel
Ball material	316 Stainless Steel
Seal material	Food-grade Silicone, EPDM, FKM, etc. (selected based on medium and temperature)
Actuator Options	Pneumatic actuator (single-acting or double-acting available)
Surface Finish	Ra ≤ 0.8μm (Standard), Ra
Flow Control	On-off control (also allows rough flow regulation to some extent)

Features

未标题-1

Pneumatic Actuation with Positioner – Provides precise automated control, adjusting flow accurately according to process signals.
Stainless Steel Construction – Corrosion-resistant and durable, suitable for sanitary and high-purity applications.
Regulating Ball Design – Allows smooth modulation and stable flow control with minimal pressure drop.
Leak-Free Sealing – Elastomeric or metal seats ensure reliable shutoff and maintain hygienic integrity.
Sanitary Finish – Smooth, crevice-free surfaces reduce contamination risk and support easy cleaning-in-place (CIP).
Versatile Industry Use – Ideal for food, beverage, pharmaceutical, and biotechnology systems requiring precise, automated flow regulation.
