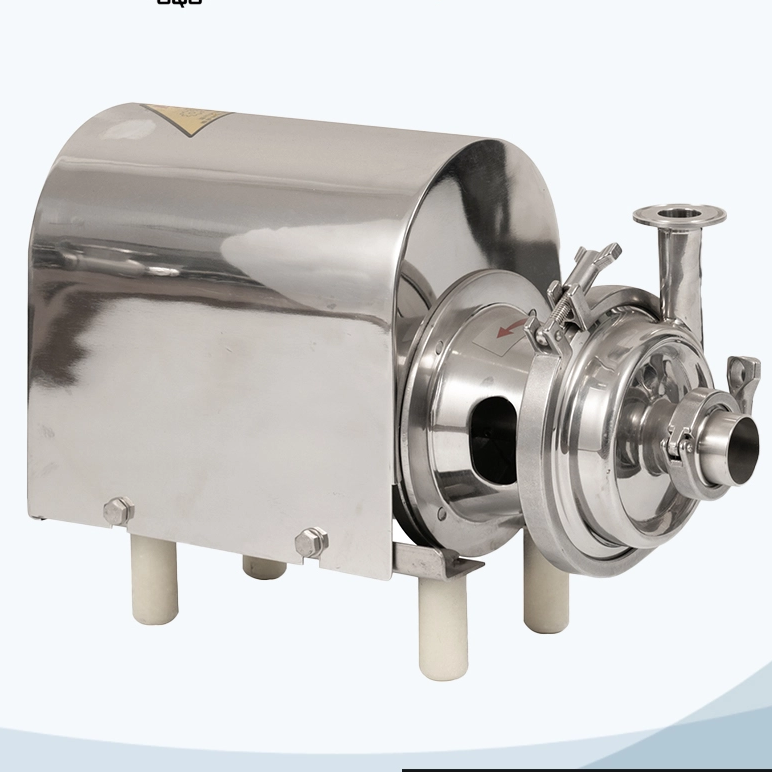

Common Faults and Troubleshooting Methods for Sanitary Stainless Steel Centrifugal Pumps in Dairy Processing

The following outlines common malfunctions and troubleshooting methods for sanitary stainless steel centrifugal pumps used in dairy processing. Troubleshooting these issues requires taking into account the pump's specific design features—such as open impellers and double mechanical seals—as well as the characteristics of dairy processing operations, including pasteurization and CIP (Clean-in-Place) procedures.

Issue 1: Insufficient flow rate, inadequate head, or unstable discharge

This is the most common issue encountered during production.

Check rotation direction and speed: First, verify that the motor's rotation direction matches the arrow on the pump casing. In dairy plants, phase reversal often occurs after motor maintenance. For pumps driven by variable frequency drives (VFDs), verify that the frequency corresponds to the rated speed.

Excessive clearance between the impeller and pump casing: Sanitary centrifugal pumps utilize open impellers, and the clearance between the impeller face and the pump cover significantly impacts performance. If shims are not properly adjusted after disassembly/reassembly, or if the impeller wears down over time, the clearance increases; this leads to a sharp rise in internal recirculation, resulting in reduced flow and head. The clearance must be adjusted to the standard value (typically 0.3–0.7 mm) as specified in the manual.

Inlet line obstruction: Check that the manual inlet valve is fully open and that the strainer or trap is not clogged. For milk intake hoses, ensure the hose has not collapsed under suction or become kinked.

Severe cavitation: If the pump operates with distinct crackling or popping sounds and irregular vibration, cavitation is likely occurring. This is common during the commissioning of new pumps or when operating conditions change. Causes include inlet strainer or pipeline blockages, or excessively high fluid temperatures (e.g., milk exiting a pasteurizer) which raise the saturated vapor pressure; combined with low inlet liquid levels or excessively long pipelines, this results in insufficient Net Positive Suction Head (NPSH). Solutions include raising the inlet liquid level, lowering the fluid temperature, shortening or increasing the diameter of the inlet piping, or selecting an impeller with an inducer for low-NPSH performance.

Air trapped in the pump: Sanitary pumps are designed to drain completely when stopped, but they must be primed (filled with liquid and vented) before restarting. If air accumulates in the pump casing or at high points in the inlet piping, it can cause unstable flow or even a complete loss of flow. Open the vent valve or loosen the discharge fitting to bleed out the air.

Fault 2: Mechanical Seal Leakage

The mechanical seal is the critical component for leakage prevention in sanitary pumps; its failure directly compromises product safety and the effectiveness of cleaning and disinfection processes.

Double-face seal leakage alarm: Sanitary pumps are often equipped with double-face seals featuring monitoring ports. If liquid flows continuously from the monitoring port, it is necessary to determine whether the leak originates from the product side or the atmospheric side.

Product-side (inner) seal leakage: Common causes identified after disassembly include material scorching or crystallization (due to failure to clean promptly after pasteurization), scratches from metallic foreign objects, or fretting wear caused by cavitation or vibration. Cracks or thermal stress spots on the surfaces of the rotating and stationary rings (e.g., silicon carbide/carbon) indicate exposure to dry running or severe thermal shock.

Atmospheric-side (outer) seal leakage: This is often caused by excessive axial movement resulting from bearing wear or by irregularities in the seal flush fluid supply.

Seal aging and material selection: Frequent CIP (Clean-in-Place) procedures in dairy processing—involving acidic/alkaline solutions and high-temperature steam (85–140°C)—subject rubber secondary seals to cyclic thermochemical degradation. If leakage occurs frequently, verify that O-rings are made of high-temperature-resistant materials such as EPDM or FKM, and establish a regular replacement schedule.

Improper installation: Incorrect compression, misalignment of the rotating and stationary rings, or the presence of tiny impurities on the sealing surfaces are the most common causes of immediate leakage following maintenance. Strict adherence to cleanliness and correct installation procedures is essential.

Fault 3: Abnormal Vibration and Noise

Cavitation: As previously mentioned, this is the most common source of vibration and noise; the sound resembles gravel passing through the pump.

Imbalance or looseness of rotating parts: If the impeller ingests a hard object while conveying materials containing particulates (such as fruit chunks in yogurt), the blades may become damaged, leading to imbalance. A loose impeller locking nut can also cause vibration.

Piping-to-pump misalignment stress: The pump's inlet and outlet must align naturally with the piping; gaps should not be closed by forcibly tightening flange bolts. Piping stress transmitted to the pump casing causes vibration across the entire pump assembly and accelerates damage to mechanical seals and bearings.

Bearing issues: The motors and bearing housings of sanitary pumps are often subjected to high-intensity washdowns. If bearing seals are compromised, the ingress of water or cleaning fluids into the bearing housing causes the grease to emulsify and degrade, resulting in bearing whining and overheating. Food-grade grease must be replenished according to the maintenance schedule.

Fault 4: Motor overheating or overload trip

Material viscosity or specific gravity exceeds limits: If materials such as viscous yogurt or cream—which should be handled by a lobe pump—are mistakenly fed into a centrifugal pump, the power consumption will far exceed the motor's rated capacity, causing an overload.

Mechanical friction: The impeller clearance is set too tight, causing friction against the pump casing; or the mechanical seal compression is excessive, leading to severe heat generation.

Electrical faults: Check for common electrical issues such as phase loss, voltage imbalance, or loose wiring. Incorrect variable frequency drive (VFD) parameter settings (e.g., motor rated current) can also trigger false alarms.

Issue 5: Incomplete cleaning and sanitary "dead zones"

This is a specific "fault" associated with sanitary pumps; while invisible to the naked eye, it poses a significant microbiological risk.

Insufficient CIP flow velocity: To clean the inner pump walls and the impeller, the CIP return flow velocity must exceed 1.5 m/s to generate effective turbulence. If the pump remains stationary or operates at low speed during the cleaning cycle, its self-cleaning efficiency is severely compromised.

Incomplete pump casing drainage: The pump must be installed with a 1–2 degree tilt to ensure the bottom drain port is at the lowest point. Horizontal installation—or worse, a reverse tilt—causes liquid to pool inside the casing, creating a breeding ground for bacteria.

Cleaning the back of the impeller: In some older or poorly designed pumps, the stagnant zone between the back of the impeller and the pump cover is difficult to clean via the main flow path. It is necessary to verify whether the pump design includes a back-flushing channel and to ensure the pump is running during the cleaning process.

Cleaning sealing surface grooves: The tiny gaps formed between the rotating and stationary rings of a mechanical seal present a challenge for sanitary processing. Strict control of CIP chemical concentration, temperature, and duration is essential, and the seal design itself must be suitable for Clean-in-Place (CIP) operations.

A Systematic Troubleshooting Approach

When a pump malfunctions, it is recommended to follow this logic for rapid diagnosis:

First, listen for unusual sounds and feel for vibrations to distinguish between hydraulic issues (such as cavitation), mechanical problems (bearings or friction), and seal-related issues.

Next, inspect the suction piping—an area often overlooked, yet the source of most flow-related problems.

Then, review process records to check for changes in temperature, viscosity, or operating frequency at the time of the malfunction.

Finally, review the maintenance history; components that were recently serviced are the most likely culprits.

Furthermore, establishing a preventive maintenance program is fundamental. Unexpected downtime can be effectively avoided by regularly monitoring and recording parameters such as flow rate, pressure, vibration, and seal leakage; periodically replacing mechanical seals, bearings, and sealing rings; and accurately measuring impeller clearances after every service.
