How to select a pneumatic actuator for controlling sanitary stainless steel valves

Selecting a pneumatic actuator for a stainless steel sanitary valve is a multi-dimensional decision-making process that requires comprehensive

consideration of core factors such as operating environment, control requirements, valve torque, and sanitary standards.

Four core questions to clarify during selection:

What medium? Defining the fluid characteristics determines the valve material and type of seals.

How to control? Determine whether it's a simple on/off switch or requires precise flow control (regulating type).

Safety requirements? In case of failure (e.g., gas interruption), should the valve be in an "open," "closed," or "remaining in place" state?

What torque? Provide the valve model, diameter, and operating pressure to calculate the required torque.

Four-step selection method: From operating conditions to actuator

Step 1: Clarify operating conditions and environment: Laying the foundation for selection

This is the basis for all selections. Key parameters include:

Media type: Is it corrosive, high temperature/high pressure, or high viscosity?

Sanitary grade: Food and pharmaceutical industries must comply with FDA, GMP, and other standards.

Installation Environment: Is it a humid, salt-spray-prone outdoor environment, or a chemical plant with explosion risks?

Step 2: Determine the Control Method: The "Soul" of the Actuator

Select the actuator type based on the desired control logic and fail-safe requirements.

Double-acting Actuator: Achieves opening and closing by alternately supplying air to both sides of the cylinder. Suitable for systems requiring

reliable operation and cost-sensitive.

Single-acting Actuator: One side is an air chamber, the other a spring. In emergencies (such as air supply failure), the spring automatically resets,

 returning the valve to a preset safe position (open or closed). This is the preferred choice for fail-safe systems.

Regulating Control: Requires the installation of an electric valve positioner to receive a standard 4-20mA control signal, precisely controlling the

valve opening to regulate flow and pressure.

Step 3: Torque Calculation and Comparison: Ensuring Power Matching

This is the most critical technical step in the selection process. Excessive torque leads to waste, while insufficient torque prevents the valve from

opening and closing properly.

Obtain Valve Torque (T₀): First, obtain the required maximum opening and closing torque from the valve supplier.

Calculate the required torque (T): Multiply the valve torque T₀ by a safety factor K. The safety factor K is typically selected between 1.2 and 1.8.

For normal operating conditions (clean media, low pressure, low frequency), 1.2 is suitable.

For harsh operating conditions (high/low temperature, high pressure, high frequency, impurities, crystallization/scaling), 1.8 or higher should be

used.

Check the air source pressure: Query the actuator's output torque curve at the actual air source pressure (e.g., 0.4-0.6 MPa) at the project site,

ensuring that the output torque at this pressure is greater than the calculated required torque T.

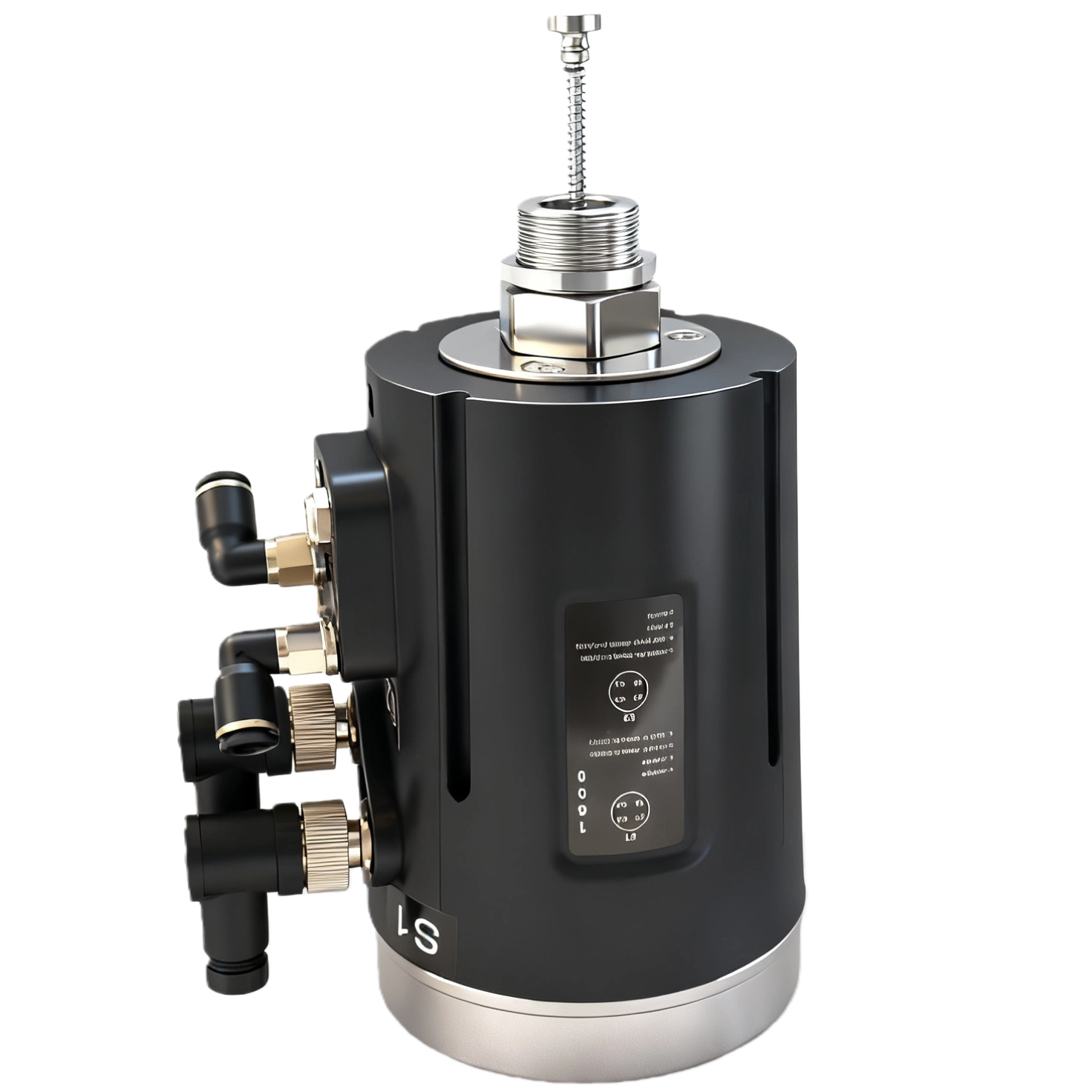

Step 4: Accessory Configuration: From Standalone to Intelligent

Accessories enhance control, monitoring, and protection functions.

Solenoid valve: Controls the on/off state of the air path and is a core component of automated control.

Limit switch: Provides remote feedback on the "open" or "closed" status of the valve.

Air source treatment unit (FRL): Includes a filter, pressure reducing valve, and lubricator to ensure clean air source and stable air pressure.

Electric valve positioner: As mentioned above, used for precise adjustment and control.

Manual handwheel: Allows manual operation of the valve during power outages or maintenance.

Specific considerations for sanitary applications:

Sanitary environments have higher requirements, requiring additional attention during selection:

Material certification: Ensure that the actuator or valve parts in contact with the medium are made of 316L stainless steel, and provide a material

testing report.

Surface treatment: The inner surface of the valve typically requires mirror polishing or electropolishing to prevent material residue and bacterial

growth.

Seals: Pipeline seals should be made of food-grade or pharmaceutical-grade materials such as EPDM, PTFE, and silicone.

Common problems and precautions: During selection and use, the following points should also be noted:

Actuator and valve connection standards: Ensure that the bottom connection holes of the actuator conform to ISO 5211 standards for smooth

installation.

Explosion-proof certification: In environments with flammable and explosive gases, such as chemical plants and oil and gas fields, actuators with

ATEX or IECEx explosion-proof certification must be selected.

Installation and Commissioning Safety Guidelines:

Pneumatic Circuit Safety:It is recommended to configure a pneumatic system with an air source treatment unit (TUF G) to ensure its service life.

Commissioning Safety:It is strictly forbidden to commission the actuator while the pipeline is pressurized. Always close the valve first to release

the pressure in the pipeline to prevent sudden valve operation and potential accidents.

Summary:In general, the core logic for correctly selecting pneumatic actuators for stainless steel sanitary valves can be summarized as follows: the

application scenario determines the material, the function determines the type, the torque determines the size, and the accessories determine the

intelligence.
