Key differences between valve positioners and smart valve heads + Selection guide

Both valve positioners and smart valve heads are control auxiliary components for regulating valves/pneumatic valves. The core difference lies in their function: valve positioners are "professional flow/position precision control components," compatible with all regulating valves requiring precise adjustment, primarily addressing "precise valve position following the control signal"; smart valve heads, on the other hand, are "integrated, simple intelligent control modules," mostly used with pneumatic ball valves/butterfly valves and other on/off/regulating valves, focusing on "simple intelligent control + valve position feedback," with adjustment accuracy far lower than that of positioners.

The two differ fundamentally in their functional positioning, structural integration, accuracy, compatible valves, and application scenarios. Selection should revolve around valve type, control requirements, and operating accuracy. The following sections provide a detailed explanation and clear selection solutions.

I. Core Definition and Functional Positioning (Essential Differences)

Valve Positioner

A professional, precise valve position control actuator, it is the "core brain" of the control valve. It lacks independent control capability and must be used in conjunction with a pneumatic actuator. Its core function is to precisely convert the electrical/pneumatic signals (4-20mA/0.02-0.1MPa) from the control system into the stroke of the pneumatic actuator, ensuring a perfect match between the valve core/disc opening and the control signal. It also compensates for stroke deviations caused by valve friction and medium pressure differences, achieving high-precision, linear, and continuous regulation. Simply put: the core of the positioner is "precise regulation," ensuring continuous stepless regulation of the control valve, without a dedicated design for on/off control.

Smart Actuator Head

An integrated, simple intelligent control module, often directly integrated into/used with the pneumatic actuators of pneumatic ball valves, butterfly valves, and plug valves. It serves as a "simple control unit" for on/off/simple regulating valves. Its core function is to receive on/off/analog signals and control the opening/closing/simple regulation of the pneumatic valve. It also integrates intelligent functions such as valve position feedback, fault alarms, and parameter setting. However, it lacks high-precision stroke compensation and linear calibration capabilities. In short: the core of the smart head is "intelligent on/off + simple regulation," emphasizing integration and low cost, meeting the needs of conventional on/off control and low-precision regulation.

II. Core Differences: Structure / Function / Precision / Adaptability (Comprehensive Comparison)

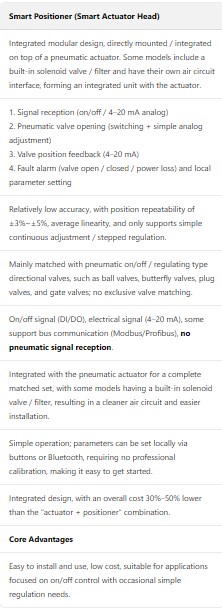

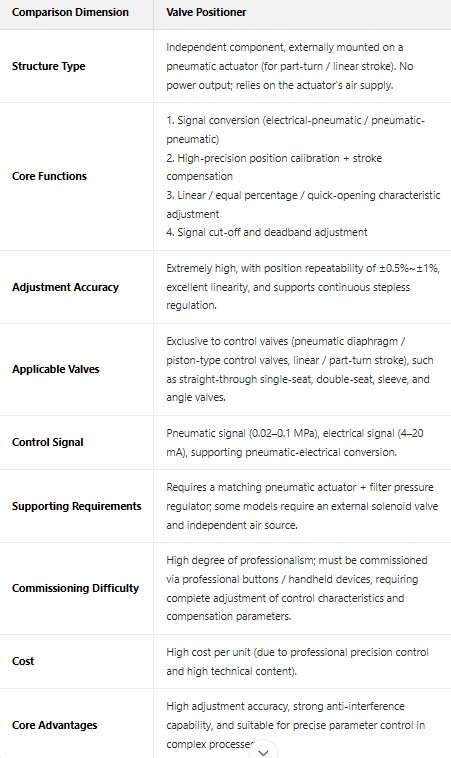

All the differences between the two stem from their functional positioning. The locator is a "professional adjustment accessory," while the smart head is an "integrated and easy-to-use control accessory." The following is a comprehensive comparison of the core features, which is also the key basis for selection:

III. Working Principle: Differences in Core Control Logic

Valve Positioner: Precise Closed-Loop Compensation Control

The positioner receives adjustment signals (such as 4-20mA) from the control system and simultaneously acquires the actual valve position stroke of the pneumatic actuator in real time through its built-in displacement sensor, forming a closed-loop valve position control:

1. Compare the theoretical stroke corresponding to the set signal with the actual stroke to calculate the deviation;

2. Output a precise air pressure signal (opening larger/closing smaller) to the pneumatic actuator based on the deviation,

driving the valve stem to move;

3. If the stroke deviation is caused by valve friction or medium pressure difference, the positioner will compensate the air pressure in real

time to ensure that the actual stroke is completely consistent with the theoretical stroke;

4. Supports adjustable characteristics (linear/equal percentage) to ensure that the valve opening and process parameters (flow rate/pressure)

have an ideal correspondence.

Smart Head: Simple Open-Loop/Semi-Closed-Loop Control

The smart head receives switch/analog signals from the control system and directly controls the on/off state of the internal solenoid valve, realizing the intake/exhaust of air from the pneumatic actuator and driving the valve to move. It only provides simple valve position feedback and has no precise compensation.

1. With digital input signal: Directly controls the solenoid valve, driving it to fully open/close. Valve position feedback only confirms the

open/closed status.

2. With 4-20mA analog signal: The valve opening is determined by the signal strength (e.g., 20mA for fully open, 4mA for fully closed).

The built-in displacement sensor collects and feeds back the valve position, but there is no stroke deviation compensation.

3. If valve position deviation is caused by friction/medium pressure difference, the smart head will not actively correct it; it only feeds back

 the actual valve position, requiring manual intervention from the control system.

IV. Precise Selection Guide:

Choose Based on "Operating Condition + Valve + Control Requirements" to Avoid Pitfalls

Core Selection Principles: Consider valve type + control requirements. For high-precision continuous adjustment, choose a positioner; for primarily on/off/simple adjustment, choose a smart head. There are no gray areas. Below are clear selection solutions for different scenarios, covering 99% of industrial operating conditions:

Four Scenarios for Selecting Valve Positioners (Core: High-Precision Continuous Control)

1. The valve type is a control valve (pneumatic diaphragm/piston type), used for closed-loop precise control of process parameters

(such as continuous adjustment of flow, pressure, temperature, and liquid level);

2. The process requires high adjustment accuracy (valve position repeatability ≤ ±1%), good linearity, and suitability for complex processes

(such as chemical reactors, pharmaceutical liquid preparation, and power plant steam regulation);

3. The valve operates under high pressure differential and high friction conditions (such as high-pressure pipelines and viscous media),

 requiring stroke compensation to avoid valve position deviation;

4. The control system outputs a pneumatic signal (0.02-0.1MPa), requiring electro-pneumatic/pneumatic signal conversion.

Four Scenarios for Selecting Smart Valves (Core: On/Off Control + Simple Adjustment)

1. Valves are pneumatic ball valves/butterfly valves/plug valves, etc., with core on/off control and only occasional simple continuous

adjustment required (e.g., pipeline switching, coarse adjustment in mass production);

2. Processes with low requirements for adjustment accuracy (valve position repeatability ≥ ±3%) and no strict linearity requirements

(e.g., ordinary water supply and drainage systems, ventilation systems, raw material conveying pipelines);

3. Pursuing integration, low cost, and easy installation, requiring minimal on-site installation space and no need for professional commissioning;

4. Control system outputting switch quantity/4-20mA electrical signal, requiring valve position feedback and simple intelligent functions

 (e.g., fault alarm, local parameter setting).

Selection Taboos (Avoid Incorrect Matching Leading to Incompatible Operating Conditions)

1. Control valves cannot be paired with smart valve heads: Smart valve heads have low precision and no stroke compensation, which will cause

 a significant decrease in the control valve's adjustment accuracy, failing to meet the precise process parameter control requirements;

2. On/off valves (ball valves/butterfly valves) do not need to be paired with positioners: Positioners are expensive and complex to debug.

The structural characteristics of on/off valves cannot fully utilize the high precision advantages of positioners, which is "overkill," increasing costs;

3. Smart valve heads cannot be selected for pneumatic signal control applications: Smart valve heads lack pneumatic signal receiving capabilities

and cannot be adapted to pneumatic signal control systems.

V. Rapid on-site differentiation: 2 core features (identifiable at a glance)

The two types can be quickly distinguished by their installation method and the matching valves, requiring no professional knowledge and

can be identified at a glance on-site:

1. Check the installation method: A valve positioner is a separate unit connected independently to the pneumatic actuator, with a separate

signal/air path interface; a valve positioner is directly integrated/installed on top of the actuator, forming a single unit without a separat structure.

2. Check the matching valves: A valve positioner is a matching pneumatic diaphragm/piston control valve

(linear stroke valves often have a vertical diaphragm head, rotary stroke valves often have a rack and pinion actuator + control valve body);

 a valve positioner is a matching pneumatic ball valve/butterfly valve/plug valve (on/off valve body, ball/butterfly valve core).

Key Summary

1. Core Functions: Positioner = Professional and precise adjustment, serving control valves; Smart Head = Simple and intelligent control,

serving pneumatic on/off valves;

2. Accuracy Difference: The accuracy of the positioner (±0.5%~±1%) is much higher than that of the smart head (±3%~±5%).

The former supports continuous stepless precise adjustment, while the latter only allows for simple adjustment;

3. Structural Difference: The positioner is a separate, independent component, while the smart head is an integrated, one-piece module;

4. Selection Criteria: A positioner is essential for control valves. For pneumatic on/off valves (ball valves/butterfly valves)

with on/off or simple adjustment, choose a smart head. Select according to valve type and control accuracy; there's no need to overthink it.
