The core difference between directional control valves and anti-mixing valves

Although both directional control valves and anti-mixing valves are fluid flow switching valves, their core design purposes, sealing principles, flow control precision, and applicable operating conditions are completely different: directional control valves are "general-purpose flow switching valves," primarily for opening/closing flow, without media anti-mixing design, and with standard sealing requirements; anti-mixing valves are "dedicated non-mixing flow switching valves," primarily for "absolutely preventing mixing/cross-contamination of different media while switching flow paths," with extremely high sealing requirements, and are dedicated valves for hygienic/clean environments. The two differ fundamentally in their core functions, working principles, structural design, and applicable scenarios, which will be explained in detail below, while also clarifying the key distinguishing points.

I. Core Definition and Design Purpose (Essential Difference)

Directional Control ValveThis is a general-purpose fluid control valve. Its core function is to change the flow direction of fluid and switch the flow path. It only solves the problem of "which path the fluid takes" and does not have a dedicated design to prevent media mixing. The design focuses on the flexibility and reliability of the flow path switching. The seal is a conventional industrial seal (mainly to prevent media leakage). It allows for a small amount of media residue/cross-flow within the valve and is suitable for ordinary operating conditions where media mixing is not a requirement.

Anti-Mixed Flow Valve

Also called a non-mixed flow valve or anti-cross-contamination valve, this is a specialized precision switching valve (mostly sanitary/food grade). Its core function is to achieve "absolute media isolation" while switching between different media paths, preventing different media from mixing and cross-contaminating within the valve, while also avoiding media residue. The design focuses on zero mixing, zero residue, and ultimate sealing. The seal is a double seal + vent/cleaning design (to prevent media cross-flow). It is specifically designed for multi-media switching, clean/sterile, food and pharmaceutical applications, and other conditions with zero tolerance for cross-contamination. It is a high-end, specialized upgrade of the directional control valve.

II. Working Principle: Differences in Core Logic (Switching vs. "Switching + Isolation")

Both valves achieve channel switching through valve core rotation/movement, but the anti-mixing valve adds a core step of double sealing isolation and intermediate cavity venting/cleaning on the basis of switching, which fundamentally prevents media mixing. This is the core difference between it and the directional valve.

Directional control valve (taking the most commonly used three-way directional control valve as an example)

The principle is simple: it only controls the opening and closing of the passage/reversal, without any isolation step. The valve core has a single-seal structure; during switching, the contact position between the valve core and the valve seat is directly changed to achieve passage switching.

1. Valve core in position A: Medium flows from the inlet to passage 1, passage 2 is closed;

2. Valve core rotates/moves to position B: Medium flows from the inlet to passage 2, passage 1 is closed;

3. During switching, the contact surface between the valve core and the valve seat only provides a "single seal." Any residual medium from the

previous type will flow into the next passage, and there is no dedicated design for residual discharge. Key features: Fast switching speed, simple

structure, focusing only on "passage opening and closing," not "medium isolation."

Anti-mixing valve (taking a sanitary double-seat anti-mixing valve as an example, the mainstream structure)

The principle is "double sealing + intermediate cavity control," and switching = "sealing → isolation → switching → re-sealing." The valve core has a double-sealing surface structure, and the valve body has an intermediate venting chamber (the core anti-mixing component), which in principle prevents media cross-flow.

1. Initial State: Medium A flows from the inlet to passage 1. The valve core's sealing surface 1 is in contact with the valve seat (sealing passage 1),

and sealing surface 2 is in contact with the valve seat (sealing passage 2). The intermediate vent chamber is open to atmosphere/vacuum/cleaningfluid.

2. Isolation Before Switching: The valve core moves first, maintaining a double seal on both sealing surfaces 1 and 2. Passages 1 and 2 are

simultaneously disconnected from the inlet, communicating only with the intermediate vent chamber. Any residual medium A inside the valve is

 discharged from the vent chamber/cleaned by the cleaning fluid.

3. Passage Switching: The valve core continues to move, maintaining a double seal, completing the passage reversal (inlet aligned with passage 2).

4. Sealing After Switching: The valve core is in contact with the new valve seat, and sealing surface 2 seals passage 2. Medium B flows from the

inlet to  passage 2. The intermediate vent chamber remains open to atmosphere/vacuum. If either sealing surface is damaged, the medium will be

discharged from the vent chamber (rather than entering another passage). Key features: Switching includes an "isolation/cleaning" step;

alarm for double seal failure; core features achieve zero cross-flow, zero residue, and zero mixing.

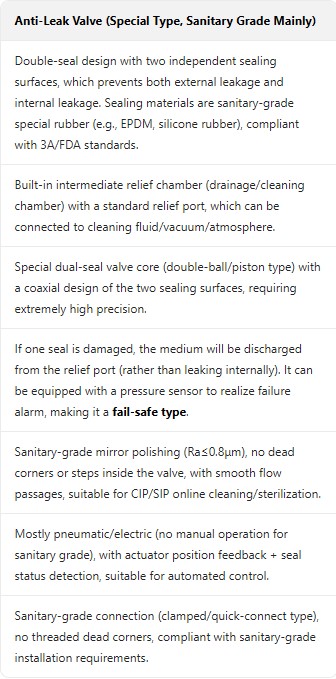

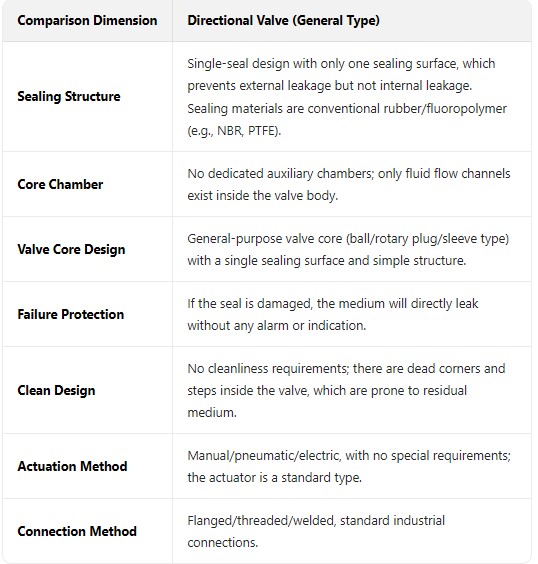

III. Structural Design: Key Differences Between Core Components and Seals

The structural design is determined by the design purpose. Directional control valves have a general-purpose, simple structure, while anti-mixing valves have a precision, specialized structure. The core differences lie in the sealing structure, valve core design, and auxiliary chambers; these are also the most fundamental structural distinctions between the two.

IV. Applicable Industries and Application Scenarios (No substitution relationship, precise matching)

The compatibility of the two operating conditions is determined by their core functions. The reversing valve is suitable for general industrial conditions, while the anti-mixing valve is suitable for clean/sterile conditions with zero tolerance for cross-contamination. Moreover, anti-mixing valves are mostly sanitary grade and are specialized valves for industries such as food, pharmaceuticals, and daily chemicals.

Reversing valve: For general industrial/non-clean environments, requiring only path switching. Ideal for single-medium path switching in conventional applications where media mixing/residue is not a concern, and where cleanliness and sterility are not required. It is the most commonly used path switching valve in industrial production：

1. General Industry: Common fluid transport in chemical, petrochemical, metallurgical, and water treatment industries, such as switching

cooling water paths, reversing raw oil paths, and opening/closing wastewater pipelines;

2. HVAC: Water path switching in central air conditioning and heating systems;

3. Hydraulics and Pneumatics: Oil/air path reversing in hydraulic and pneumatic systems (e.g., solenoid valve-type directional valves);

4. General Water Supply and Drainage: Pipeline path switching for municipal water supply and industrial wastewater.

Anti-mixing valve: Hygienic/sterile/multi-media operation, eliminating cross-contamination. Ideal for multi-media switching and clean/sterile environments with zero tolerance for cross-contamination/media residue. An essential valve for the food, pharmaceutical, and daily chemical industries, primarily used at media switching points on production lines.

1. Food and Beverage Industry: Production lines for dairy products (milk/yogurt), juices, alcoholic beverages, and condiments, such as

switching between different flavor raw materials, switching between products and cleaning solutions, and switching pathways in aseptic

filling lines;

2. Pharmaceutical and Biotechnology Industry: Production of injections/supplements, sterile APIs, and vaccines/antibodies,

such as switching between different drug solutions, switching between pharmaceutical pure water/water for injection (WFI) pathways,

and switching between CIP/SIP cleaning pathways;

3. Daily Chemical and Cosmetic Industry: Aseptic production lines for high-end skincare products, sterile cosmetics, and medical personal

care products, such as switching between different formulation raw materials;

4. Fine Chemical Industry: Clean production of food-grade additives and pharmaceutical excipients, with precise switching between

multiple media and no residue.

V. Key Differentiation Points (Quick Identification, On-Site Assessment)

Reversing valves and anti-mixing valves can be quickly distinguished by appearance, structure, and accessories without disassembly. Key identification points are listed in descending order of recognizability:

1. Check the vent: Valve body with independent vent/drain port (small diameter interface, mostly on the side/bottom of the valve body)

→ Anti-mixing valve; No vent → Directional control valve (the most crucial feature);

2. Check the seal and cleanliness: Sanitary quick-connect (clamp), mirror-polished inner wall of the valve body, no dead corners

 → Anti-mixing valve; Conventional flange/threaded connection, dead corners inside the valve → Directional control valve;

3. Check the drive and accessories: Actuator with position feedback + seal detection wiring port → Anti-mixing valve; Ordinary

manual/pneumatic actuator, no additional detection interface → Directional control valve;

4. Check the application scenario: Aseptic production lines for food/pharmaceutical/daily chemical products → Anti-mixing valve;

Piping for general chemical/metallurgical/HVAC systems → Directional control valve.

Key Summary

1. Core Functions: Directional control valve = simple flow switching, no anti-mixing; Anti-mixing valve = switching + absolute isolation,

zero mixing and zero residue;

2. Design Focus: Directional control valves prioritize switching flexibility and conventional sealing; anti-mixing valves prioritize ultimate sealing

 and cleanliness, with dual seals and a vent chamber;

3. Operating Conditions: Directional control valves are suitable for general industrial conditions, while anti-mixing valves are suitable

for hygienic/sterile conditions such as food and pharmaceutical manufacturing;

4.Quick Identification: The presence of a vent on the valve body is the most crucial visual characteristic of an anti-mixing valve;

flow switching valves without a vent are all directional control valves.
