Tank bottom valves play a vital role in industrial tanks, ensuring smooth drainage and filling processes. These valves are designed for hygienic control, preventing contamination during the draining and cleaning of tanks. Commonly used in industries like pharmaceuticals, food, chemicals, and beverages, they help maintain the integrity and safety of stored liquids. In this post, you’ll learn about their key functions, design features, and the industries that rely on them.

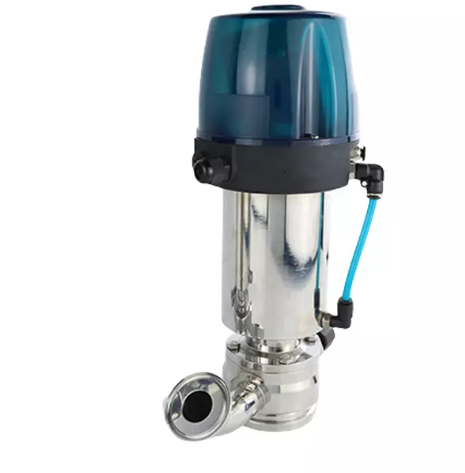

A tank bottom valve is a specialized valve located at the lowest point of an industrial tank. These valves can be welded or bolted directly to the tank, ensuring secure attachment. Their primary function is to control the flow of liquids, facilitating both the drainage and filling of the tank efficiently.
Tank bottom valves are crucial in maintaining smooth operations, ensuring the tank is completely emptied during cleaning or refilling. Their design also allows for precise flow control, which is essential in industries where exact measurements and hygiene are a priority.
Tank bottom valves are vital for several reasons:
● Prevention of Reverse Flow: They ensure that liquids or gases do not flow back into the tank, which could cause contamination.
● Complete Tank Emptying and Cleaning: These valves are designed to allow full drainage of the tank, making cleaning and sterilization more effective.
● Minimization of Dead Legs and Contamination Risk: Their conical design and flush-mounting reduce dead space, preventing areas where dirt and bacteria can accumulate.
Tank bottom valves are designed to ensure complete drainage of the tank. Their conical or flush-mounted designs help eliminate dead spaces, where liquids could stagnate or debris could accumulate. This is crucial in industries where hygiene is paramount. By minimizing these areas, cleaning processes like Clean-in-Place (CIP) and Sterilize-in-Place (SIP) become much more efficient, allowing for thorough and effective sanitation without the need for disassembly.
These valves play an essential role in regulating fluid flow. They control the rate and amount of liquid being discharged from the tank, offering precise control in industrial processes. In addition, tank bottom valves are built to withstand high pressure and temperature, ensuring durability even under harsh conditions. They also prevent backflow, which can be a source of contamination, ensuring that no unwanted liquids are reintroduced into the system.
In industries like pharmaceuticals, food, and beverages, tank bottom valves are key to maintaining sterile conditions. These valves are designed to be used in aseptic and hygienic applications, ensuring that products remain uncontaminated. They comply with rigorous industry standards, including 3A, FDA, and USP Class VI, which ensures that they meet the highest hygiene and safety requirements for sensitive applications.
Tank bottom valves come in several types, each designed for specific applications and industry needs:
● Ball Valves: These provide reliable shut-off control, allowing for easy operation and maintenance. They are often used in systems requiring quick and secure sealing.
● Diaphragm Valves: Known for their hygienic design, diaphragm valves offer a dead-space-free option, making them ideal for industries requiring sanitary processes.
● Mixproof Valves: These valves are essential in preventing cross-contamination, especially in processes that involve two different products or media.
When it comes to actuation, tank bottom valves can be either pneumatic or manual. Pneumatic valves are ideal for automation, offering quick response and ease of control in large systems. Manual actuation is often preferred for smaller systems, where manual control is more efficient and cost-effective.
Tank bottom valves are designed to meet the specific needs of various industries:
● Pharmaceutical Industry: These valves ensure aseptic conditions are maintained, preventing contamination in the production of medications and sterile products.
● Food and Beverage Industry: In these industries, valves need to maintain hygiene and facilitate processes like fermentation, filling, and mixing.
● Chemical Industry: Chemical processes require valves that can withstand aggressive chemicals and high-pressure conditions.
● Cosmetic Industry: Valves in the cosmetic industry help maintain the purity of products, including lotions, creams, and gels.
Some examples of highly specialized valve brands include VESTA® and Rattiinox CAD, known for their innovative designs and focus on hygiene and process efficiency. These valves are engineered to meet strict standards and enhance performance in demanding applications.
Tank bottom valves feature smooth internal surfaces, eliminating weld seams that could trap dirt or bacteria. This design reduces contamination risks and supports thorough cleaning. Many valves offer a 360° adjustable body, which helps in precise installation. Flush mounting ensures no pockets or dead spaces, making cleaning easier and more effective.
These valves are usually made from high-quality stainless steel, like 316L, known for its durability and corrosion resistance. They also include components such as PTFE bellows and EPDM diaphragms, which resist harsh chemicals, high temperatures, and pressure. This robust construction helps valves last longer and perform reliably in tough environments.
Maintenance is simple thanks to features like quick diaphragm replacement, which saves time and reduces downtime. Many valves come equipped with visual status indicators, letting operators see whether the valve is open or closed at a glance. Some models include advanced control systems for easy automation and feedback during operation.
When it comes to installing tank bottom valves, there are two common methods: welding and bolting. Both have their advantages and disadvantages.
● Welding: Welding offers a more permanent and secure attachment, making it ideal for ensuring a tight seal and preventing leaks. It's commonly used for high-pressure or high-temperature applications. However, the process can be more time-consuming, and once welded, it can be difficult to remove or replace the valve.
○ Pros: Provides a strong, leak-proof seal; ideal for high-stress environments.
○ Cons: Less flexibility for maintenance or replacement; requires specialized equipment and skills.
● Bolting: Bolting is often quicker and easier to install. It allows for easier removal and replacement of the valve, making maintenance more convenient. However, it might not create as tight of a seal as welding and may be more prone to leaks over time.
○ Pros: Faster installation; easier to replace or maintain.
○ Cons: Can potentially lead to leaks; might not be as secure as welding.
The method you choose impacts both maintenance and hygiene. While welding ensures fewer gaps for bacteria to hide, bolting offers greater flexibility for regular cleaning and valve replacement.
Choosing the right tank bottom valve requires careful consideration of several factors:
● Material Compatibility: Ensure the valve is made from materials that are compatible with the media stored in the tank. For example, stainless steel (316L) is often preferred for its resistance to corrosion and harsh chemicals.
● Size and Connection Types: The valve size must match the tank’s requirements. Additionally, check the connection type (e.g., threaded, welded, or quick-release) to ensure proper integration into your system.
● Operation Mode: Consider whether you need a manual or pneumatic valve. Manual valves are suitable for smaller operations, while pneumatic valves are ideal for automated or larger systems.
● Compliance with Hygiene and Industry Standards: Ensure the valve meets industry-specific standards, particularly for sanitary applications. This is crucial for industries like food and pharmaceuticals where cleanliness is vital.
Certifications ensure the valve meets specific performance, safety, and hygiene standards:
● FDA: Ensures the valve meets safety standards for food and drug contact.
● 3A: Guarantees the valve is suitable for hygienic food and beverage processes.
● USP Class VI: Indicates the valve is safe for pharmaceutical applications.
● ATEX: Confirms the valve is safe for use in explosive atmospheres.
● EHEDG: Ensures the valve complies with European hygienic design standards.
Choosing a valve that holds the right certifications ensures safety, efficiency, and compliance in critical processes.
Tank bottom valves are widely used across many industries. They play a key role in dairy, beverage, chemical, pharmaceutical, and cosmetic production. These valves help maintain product quality while ensuring efficient processing.
They handle various challenging materials, including viscous liquids like creams and gels, sterile products in pharmaceuticals, and aggressive chemicals in manufacturing. Their robust design suits demanding environments.
Using tank bottom valves helps minimize downtime by simplifying maintenance and cleaning. They also reduce contamination risks and waste, boosting overall process safety and cost-effectiveness.
Q: What is the main function of a tank bottom valve?
A: The main function of a tank bottom valve is to control the flow of liquids, allowing for draining, filling, and ensuring efficient tank cleaning.
Q: How does a tank bottom valve prevent contamination?
A: Tank bottom valves prevent contamination by minimizing dead spaces and backflow, which reduces the risk of harmful bacteria or other contaminants.
Q: Can tank bottom valves handle high temperatures?
A: Yes, tank bottom valves are designed to withstand high temperatures, with materials like stainless steel and PTFE bellows that are resistant to heat.
Q: What materials are tank bottom valves made of?
A: Tank bottom valves are typically made from stainless steel (e.g., 316L), with components like PTFE bellows and EPDM diaphragms for durability and resistance to chemicals.
Q: How are tank bottom valves maintained?
A: Maintenance involves simple tasks like quick diaphragm replacement, using visual status indicators, and ensuring easy access for cleaning and operation adjustments.
Tank bottom valves are essential for efficient tank drainage and filling.
They prevent backflow and contamination while supporting hygiene standards.
Their designs suit various industries, including food, pharma, and chemicals.
Choosing the right valve improves safety, maintenance, and process efficiency.
Investing in quality valves ensures reliable, long-term operation in demanding environments.
