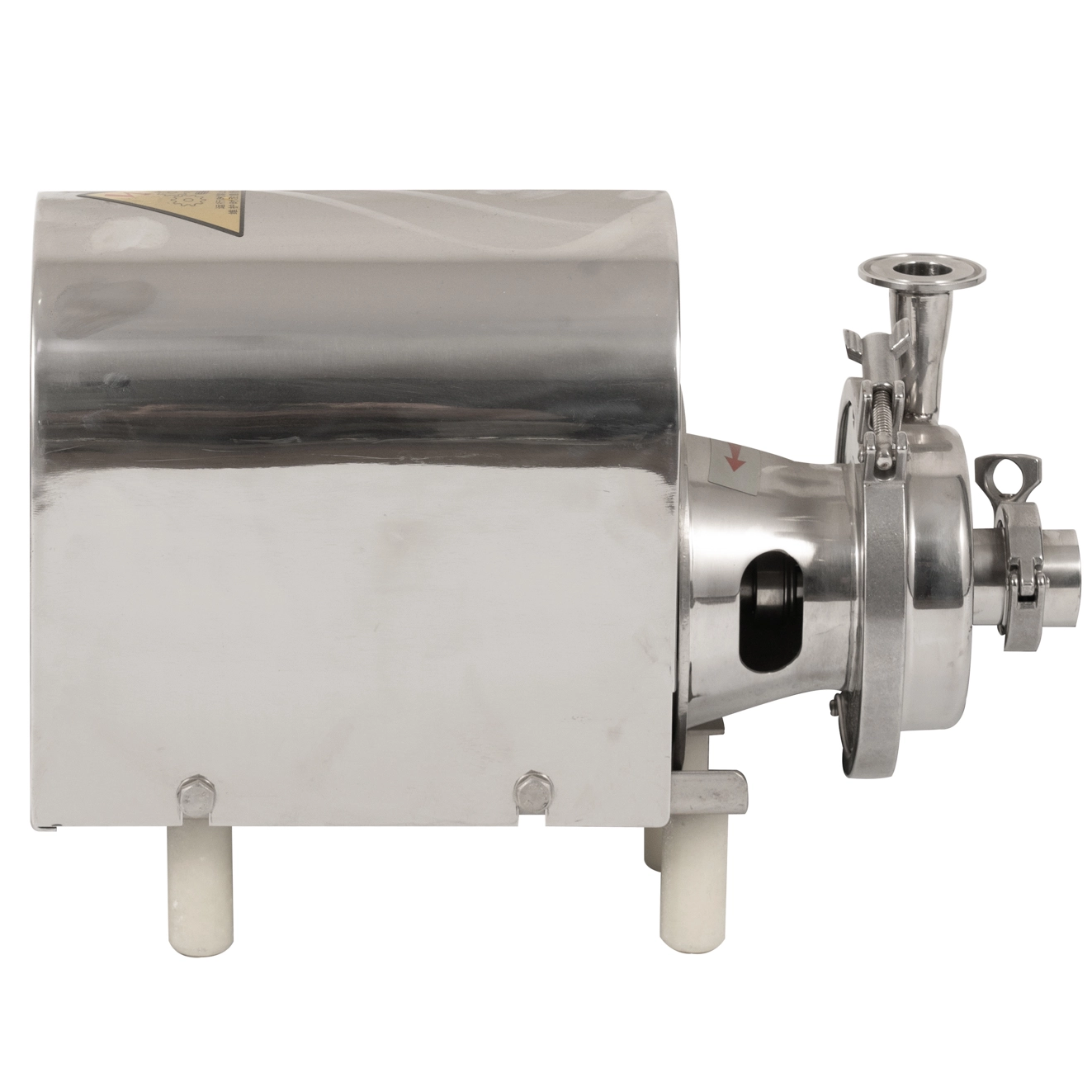

How to Select Sanitary Stainless Steel Centrifugal Pumps for Pharmaceutical Applications

The logic behind selecting sanitary stainless steel centrifugal pumps for pharmaceutical applications shares similarities with the dairy industry, yet the requirements are far more stringent. The fundamental difference lies in the pharmaceutical industry's adherence to FDA cGMP (Current Good Manufacturing Practice) and ASME BPE (Bioprocessing Equipment) standards, which demand the highest levels of sterility, cleanability, sterilizability, and documentation traceability.

The following are key selection criteria for pharmaceutical applications (such as purified water, water for injection, drug formulation, and biopharmaceutical intermediates):

1. Regulatory and Standard Requirements: From 3A to ASME BPE

Design Standards: Pumps must be designed in accordance with ASME BPE specifications. These standards dictate every detail, ranging from dimensional tolerances, materials, and surface finishes to seals and connections.

Material Certification: Metal components in contact with the product must possess material certificates meeting EN 10204 3.1B or higher standards, ensuring traceability to the material's heat number and heat treatment batch.

Polymer Compliance: All elastomers and plastic components require not only an FDA compliance statement but typically must also meet USP Class VI (United States Pharmacopeia biological reactivity testing) standards and provide a BSE/TSE (Bovine Spongiform Encephalopathy/Transmissible Spongiform Encephalopathy) free declaration.

2. Surface Treatment and Material: Pursuing Ultimate Cleanliness

Material Upgrades: While AISI 316L is the baseline requirement, highly corrosive pharmaceutical fluids may necessitate superior materials such as 904L, AL-6XN, or Hastelloy. A critical improvement lies in the smelting process; the base material must have an extremely low ferrite content to prevent defects arising from repeated sterilization and passivation cycles.

Surface Roughness as a Key Metric: ASME BPE standards mandate that the surface roughness (Ra) of product-contact surfaces be 0.5 μm (20 μin) or finer, with specific requirements for mechanical polishing and electropolishing processes.

Electropolishing (EP) as Standard: Unlike the pickling and passivation commonly used in the dairy industry, the internal surfaces of pharmaceutical pumps typically undergo electropolishing. This process effectively removes the surface metal layer and associated impurities, creating a dense, chromium-rich, and microscopically ultra-smooth passivation layer that maximizes resistance to bacterial adhesion and biofilm formation.

3. Aseptic and Sterilization Capabilities: CIP/SIP Compatibility

This is the key capability distinguishing pharmaceutical pumps from dairy pumps.

Complete Drainability and Cleanability: The pump casing must feature a fully self-draining design, allowing for the complete gravity-based evacuation of liquid without any residual dead zones. The flow path design must undergo cleanability testing by EHEDG or a similar organization. All connections must be sanitary clamps (Tri-Clamp) or orbital welds; threaded connections are strictly prohibited.

Steam-in-Place (SIP) Capability: The pump body, impeller, and mechanical seal must all withstand in-line sterilization using pure steam at temperatures between 121°C and 135°C for a minimum of 30 minutes. This entails:

Materials and Construction: Thermal expansion at these temperatures must be calculated and verified to ensure that thermal expansion or contraction does not cause component seizure, deformation, or changes in clearances.

Elimination of Thermal Dead Spots: The pump body design must ensure unobstructed steam flow to every location—including mechanical seal gaps and vent ports—to achieve the cumulative temperature and time values required for sterilization; otherwise, validation cannot be achieved.

Aseptic Barrier for Mechanical Seals: A double mechanical seal must be employed. Its flush system (typically using clean steam condensate or Water for Injection) serves not only to lubricate and cool the seal but, more importantly, acts as an aseptic liquid barrier that completely isolates the product side from the external atmosphere. In applications involving live microorganisms or highly active ingredients, the seal must demonstrate aseptic integrity.

4. Documentation and Validation Support

Selecting a pump means selecting a comprehensive documentation package. The supplier must provide a complete set of validation support documents, including but not limited to:

Material certification: 3.1B material certificates for all product-contact parts.

Surface roughness reports: Measured Ra values and documentation of the electropolishing process.

Composition and cleanliness certificates: FDA/USP Class VI certificates for elastomers, as well as pre-shipment cleaning and passivation reports.

Functional and performance documentation: Pump performance curves, NPSHr curves, and motor certificates.

Manufacturing test records: Hydrostatic test reports and vibration test reports.

Traceability: Serial numbers on all certificates must correspond exactly to the pump nameplate.

Summary: When selecting pumps for pharmaceutical applications, the key priorities are adherence to ASME BPE standards, 316L electropolished finish (Ra ≤ 0.5 µm), double mechanical seals with a sterile barrier, full SIP compatibility, and complete traceability documentation.
