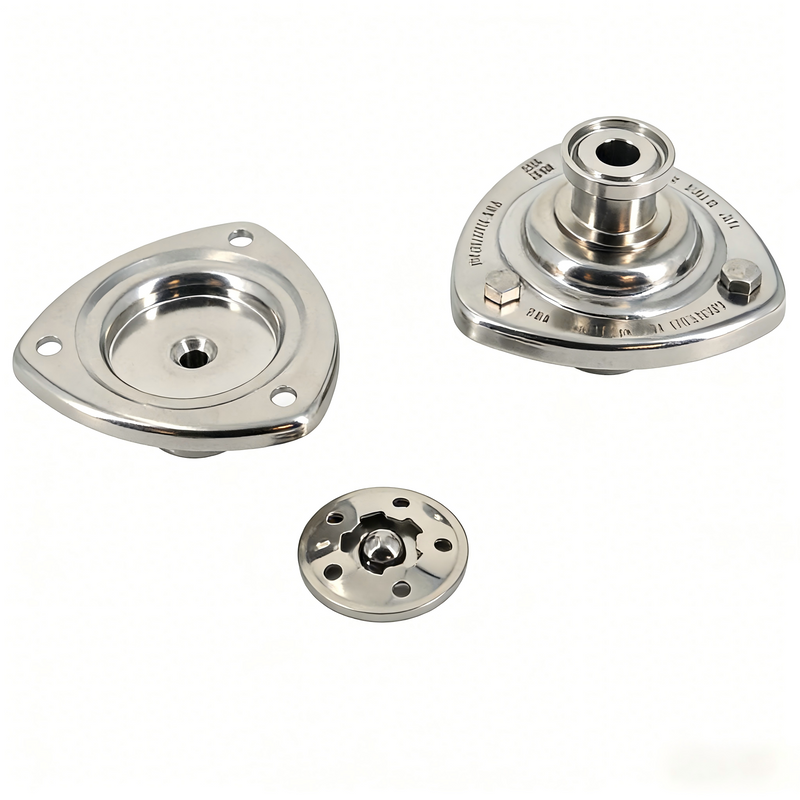

STAINLESS STEEL Armstrong Thermodynamic Superheated Water Valve Steam Trap
steam trap are available in threaded and flanged types, with various sizes and pressure ratings. They are high-temperature and corrosion-resistant, offer sensitive opening and closing, and provide stable drainage, making them suitable for steam systems.
Working Principles
This steam trap, uses a float and a temperature control element to remove condensate from steam systems. When steam enters the valve body, the float rises and closes the valve to prevent steam leakage. When condensate accumulates, the float descends, opening the valve to drain the condensate. Simultaneously, the temperature control element can release air or non-condensable gases. This working principle ensures continuous and efficient operation of the steam system, avoids water hammer and condensate buildup, optimizes heat utilization, and features a simple structure for easy maintenance and testing.
Stainless Steel Steam Ttap Specification Chart
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Stainless steel construction provides excellent corrosion resistance and durability in testing steam and condensate discharge applications.
Thermostatic float mechanism enables continuous condensate removal while automatically venting air and non-condensable gases.
3/4 inch compact design allows easy installation in limited space testing and pilot steam systems.
Stable and accurate response to condensate level changes ensures efficient heat transfer and reduced steam energy loss.
Simple internal structure supports reliable operation, easy inspection, and convenient maintenance during routine testing.
Application
steam traps are widely used in food processing, pharmaceutical, chemical, and paper industries. In food plants, they remove condensate from boilers and heating pipes, ensuring uniform steam heating, improving production efficiency, and preventing equipment corrosion and water hammer.
