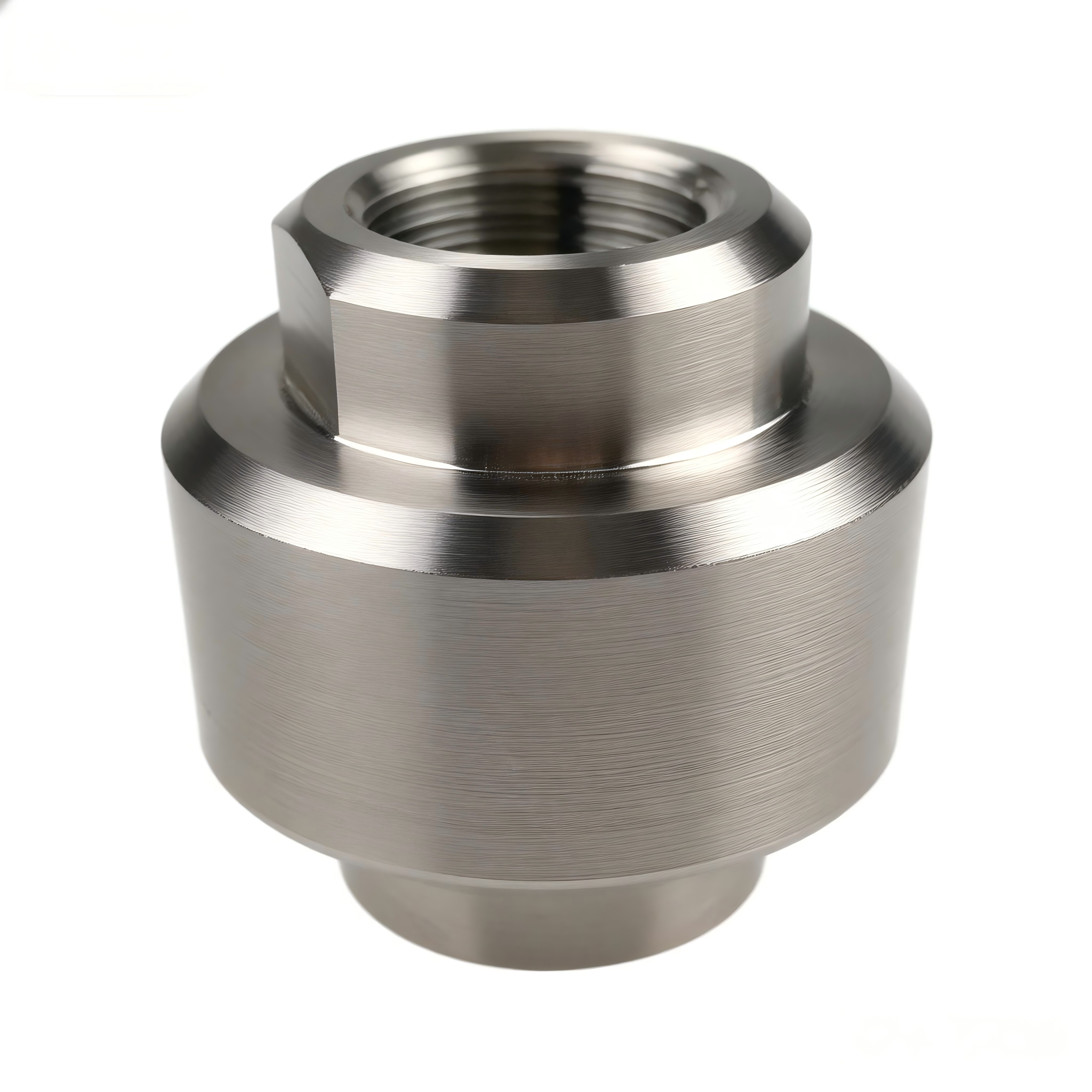

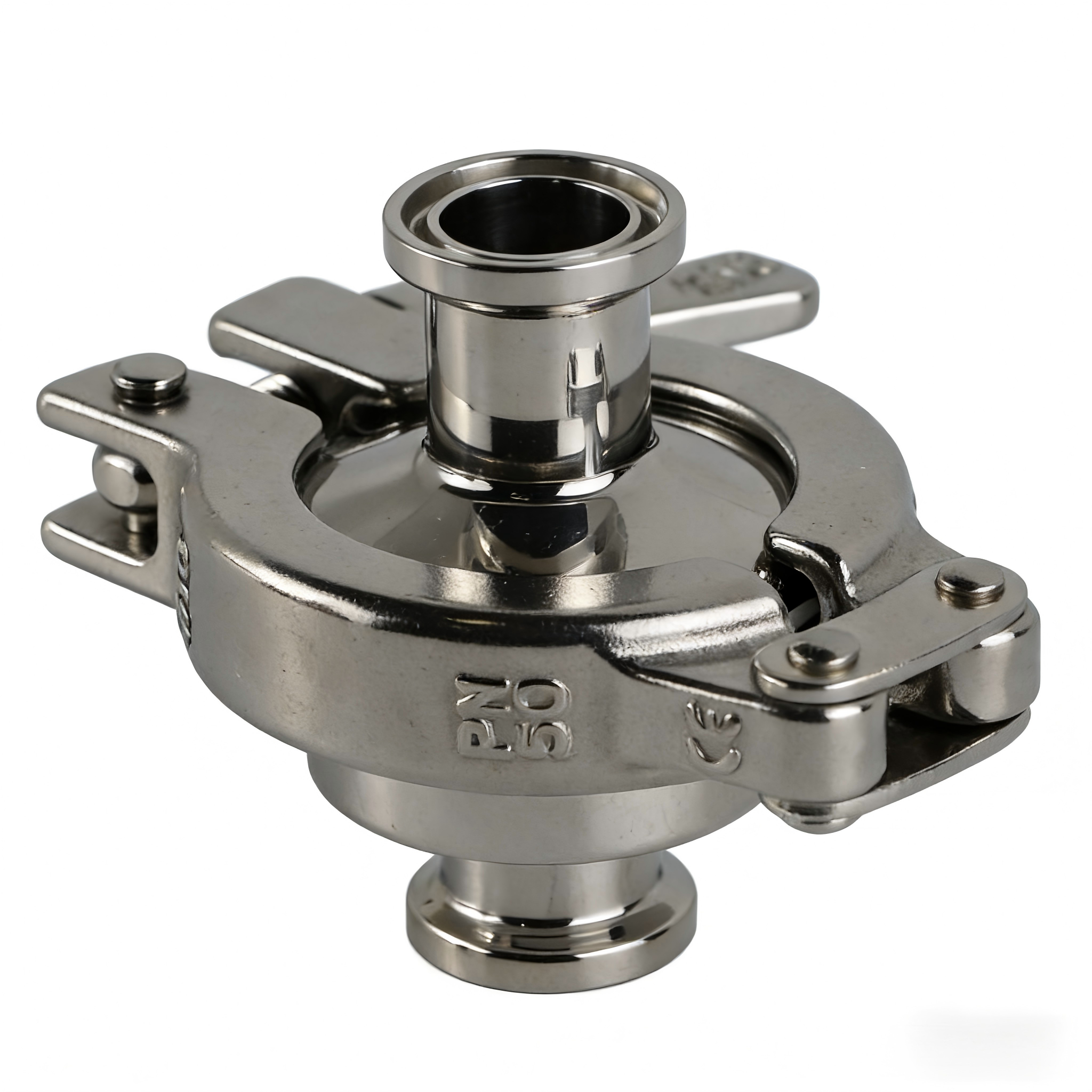

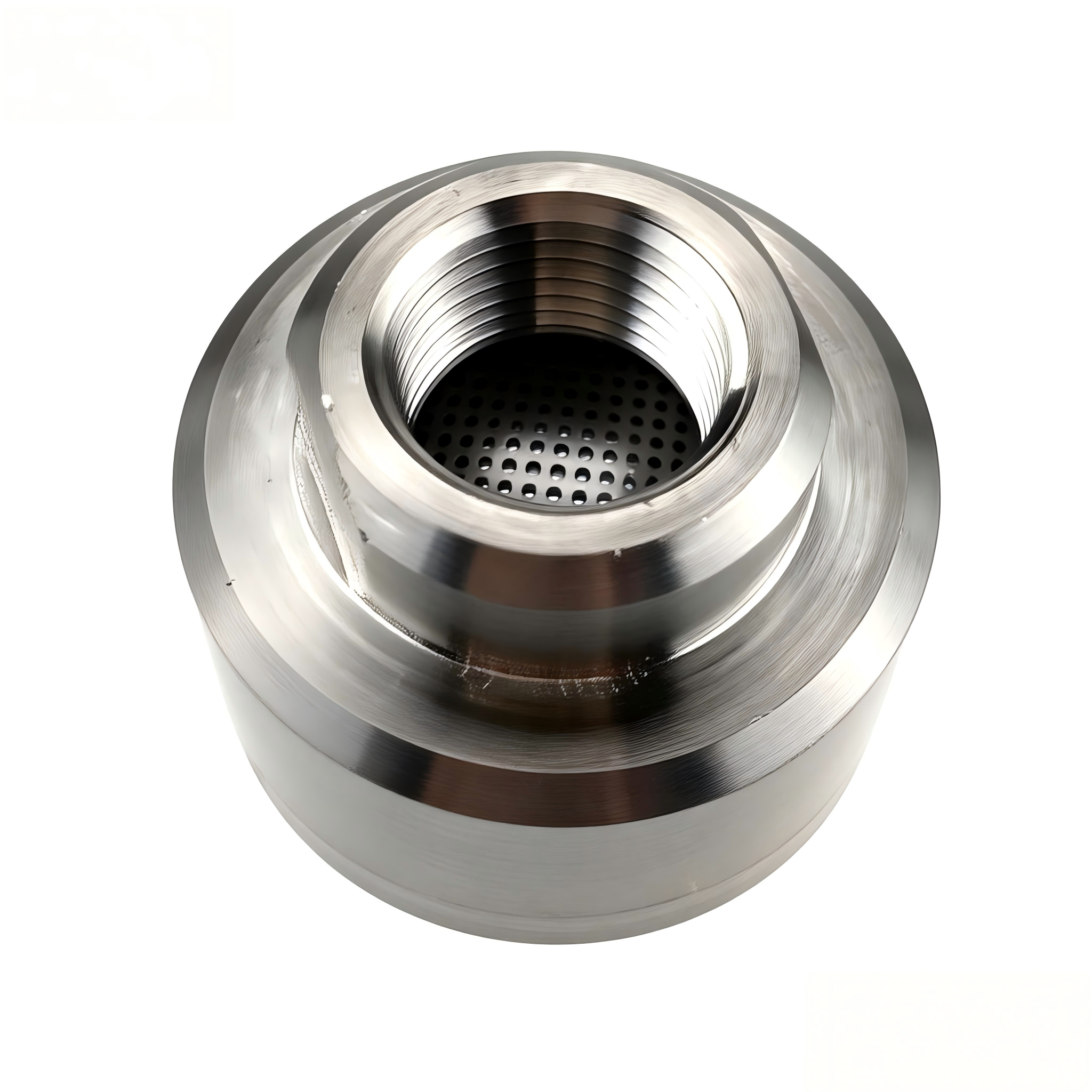

STAINLESS STEEL Spirax Sarco Thermostatic Repair Steam Trap
steam trap are available in threaded and flanged types, with various sizes and pressure ratings. They are high-temperature and corrosion-resistant, offer sensitive opening and closing, and provide stable drainage, making them suitable for steam systems.
Working Principles
This steam trap utilizes the coordinated operation of a float and a thermostatic element. When condensate enters the valve body, the rising liquid level causes the float to open the valve port, continuously discharging the condensate. When steam enters, the thermostatic element expands due to temperature changes, closing the valve port to prevent steam leakage. Under superheated or high-temperature conditions, the valve automatically adjusts its opening and closing states to achieve efficient separation of steam and condensate, ensuring stable system operation and reducing energy consumption.
Stainless Steel Steam Ttap Specification Chart
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Made from high-grade stainless steel, offering excellent corrosion resistance and reliable performance in high-temperature steam and condensate applications.
Thermostatic operating element automatically adjusts to temperature changes, ensuring efficient condensate discharge while preventing live steam loss.
Repairable internal design allows easy replacement of thermostatic elements, reducing maintenance time and overall operating costs.
Compact structure supports flexible installation in confined steam systems and testing pipelines with minimal modification.
Stable and responsive operation ensures air venting during start-up and maintains consistent thermal efficiency under varying load conditions.
Application
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
