JONENG

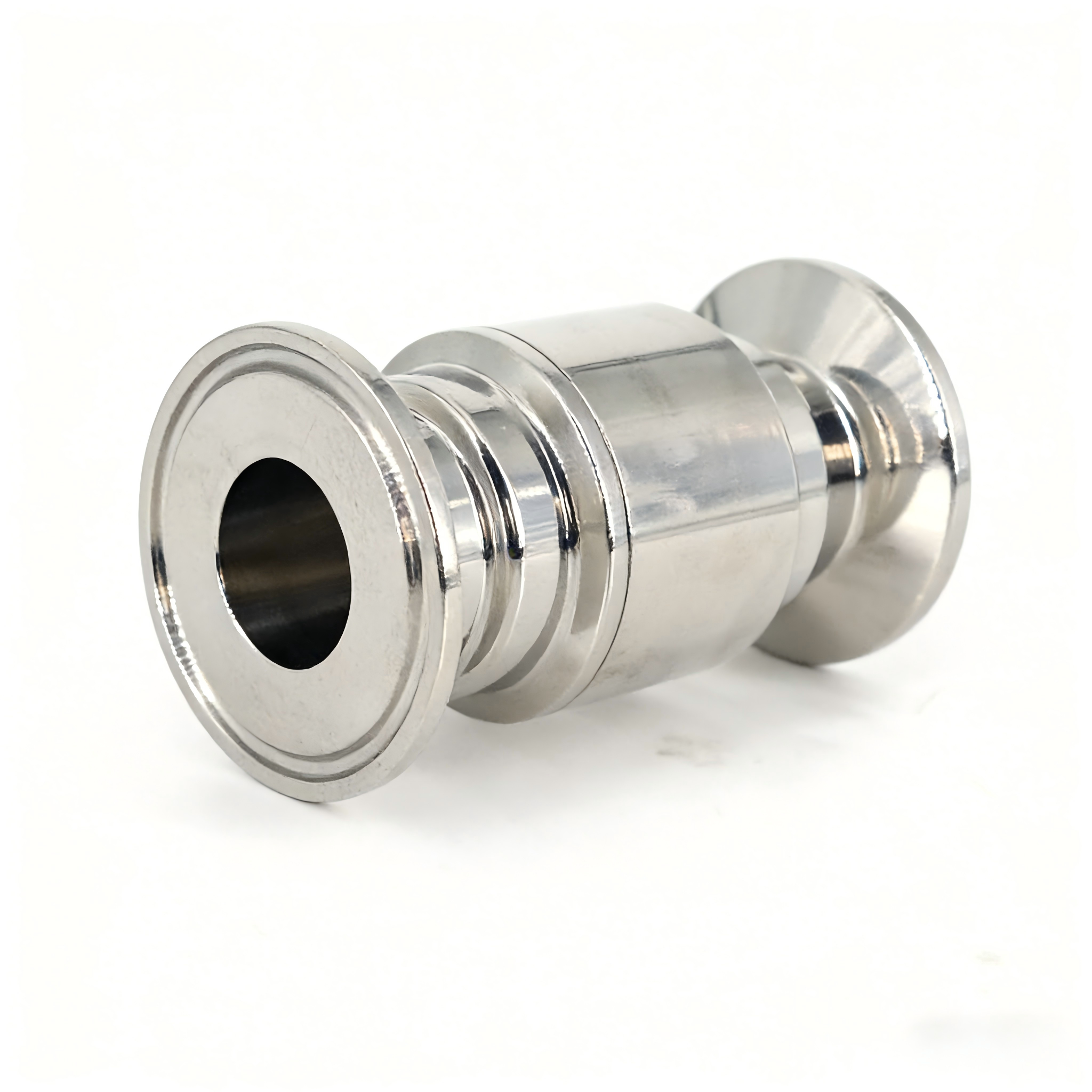

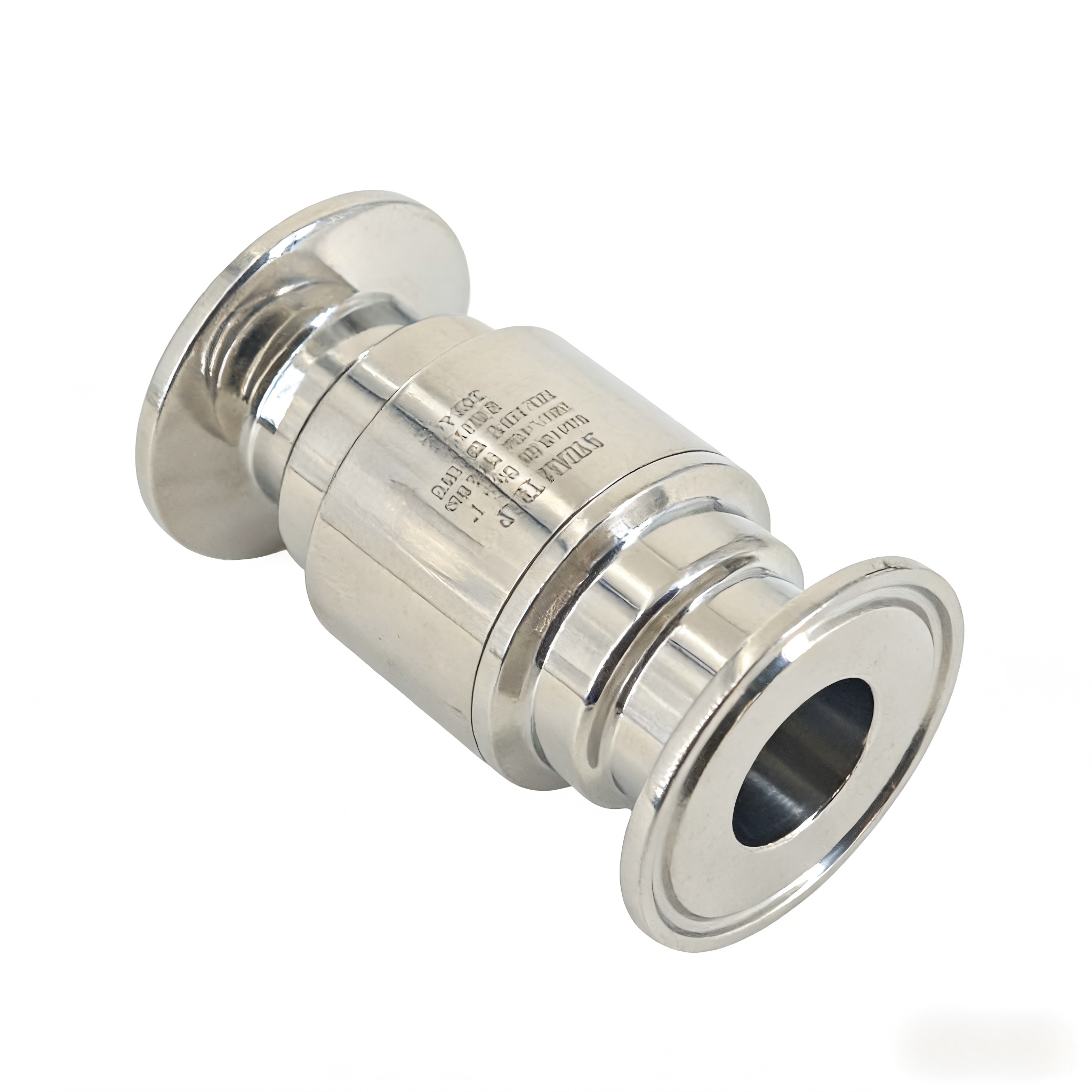

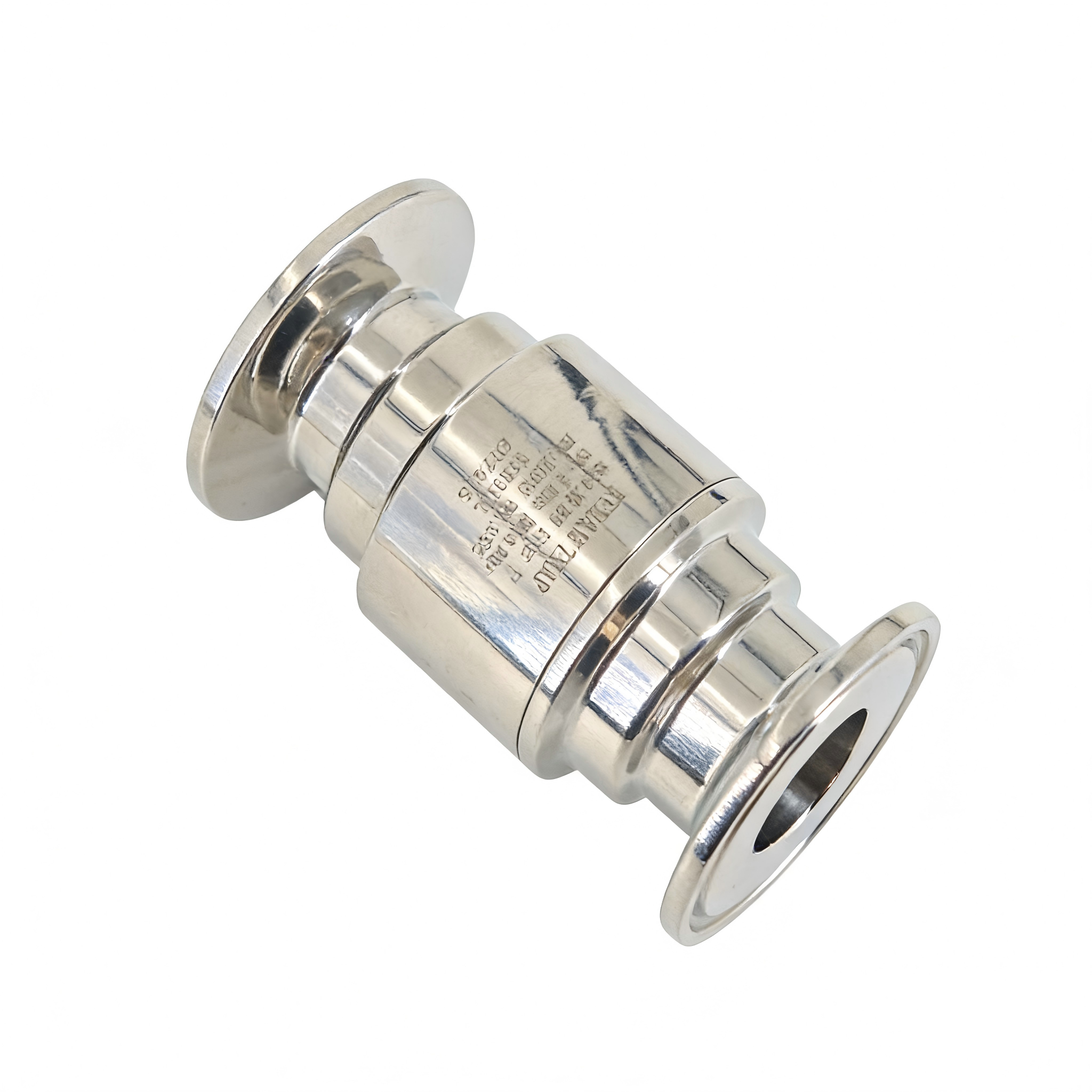

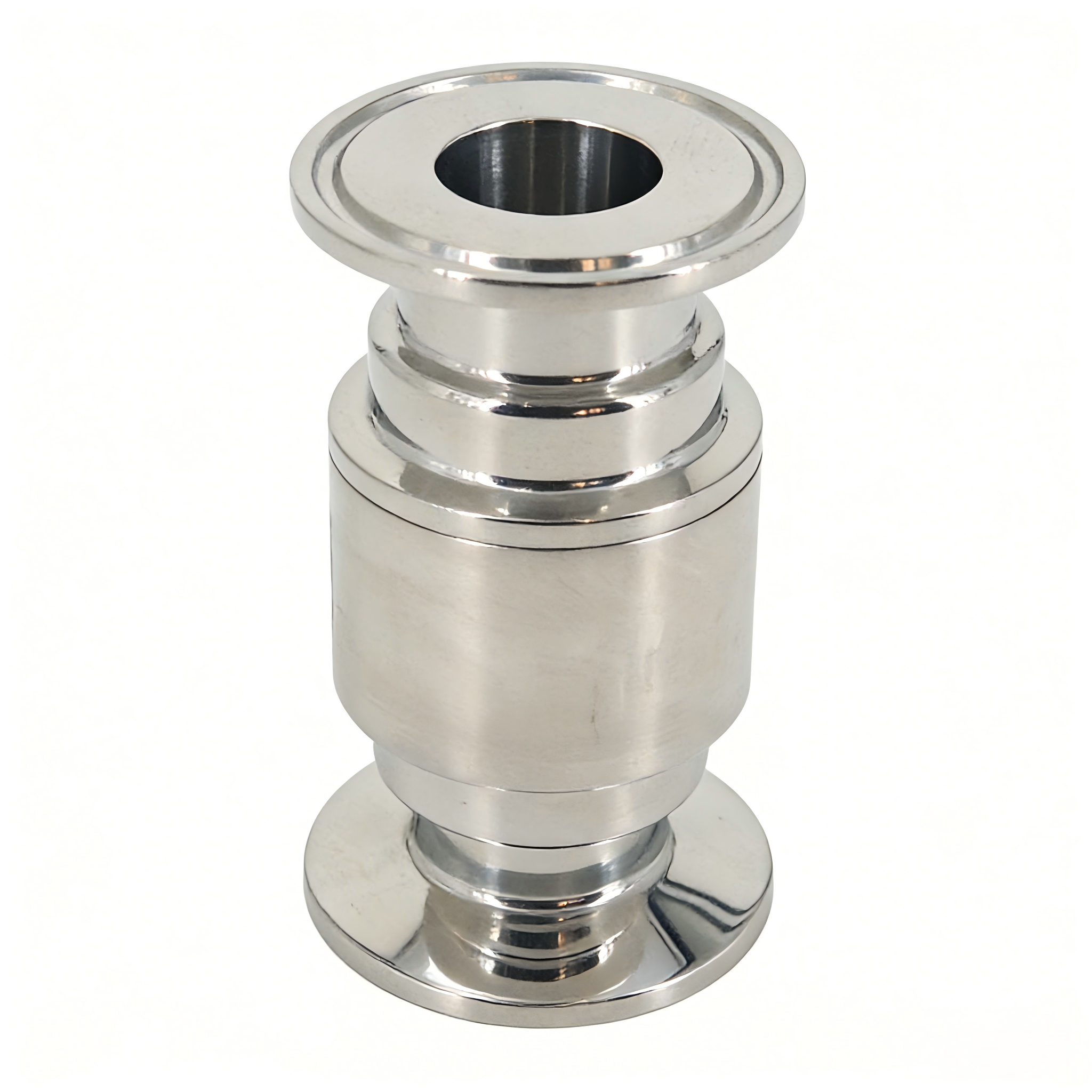

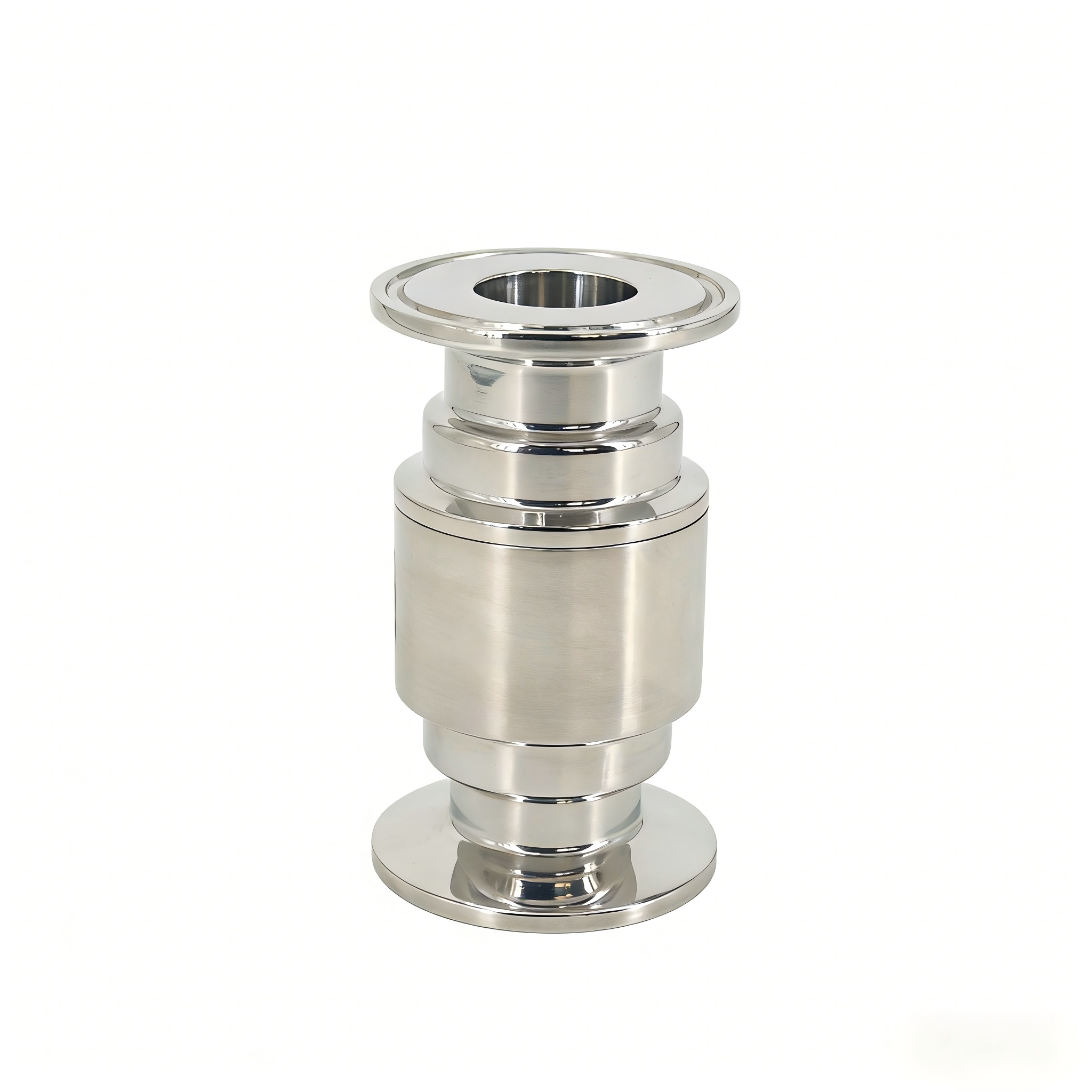

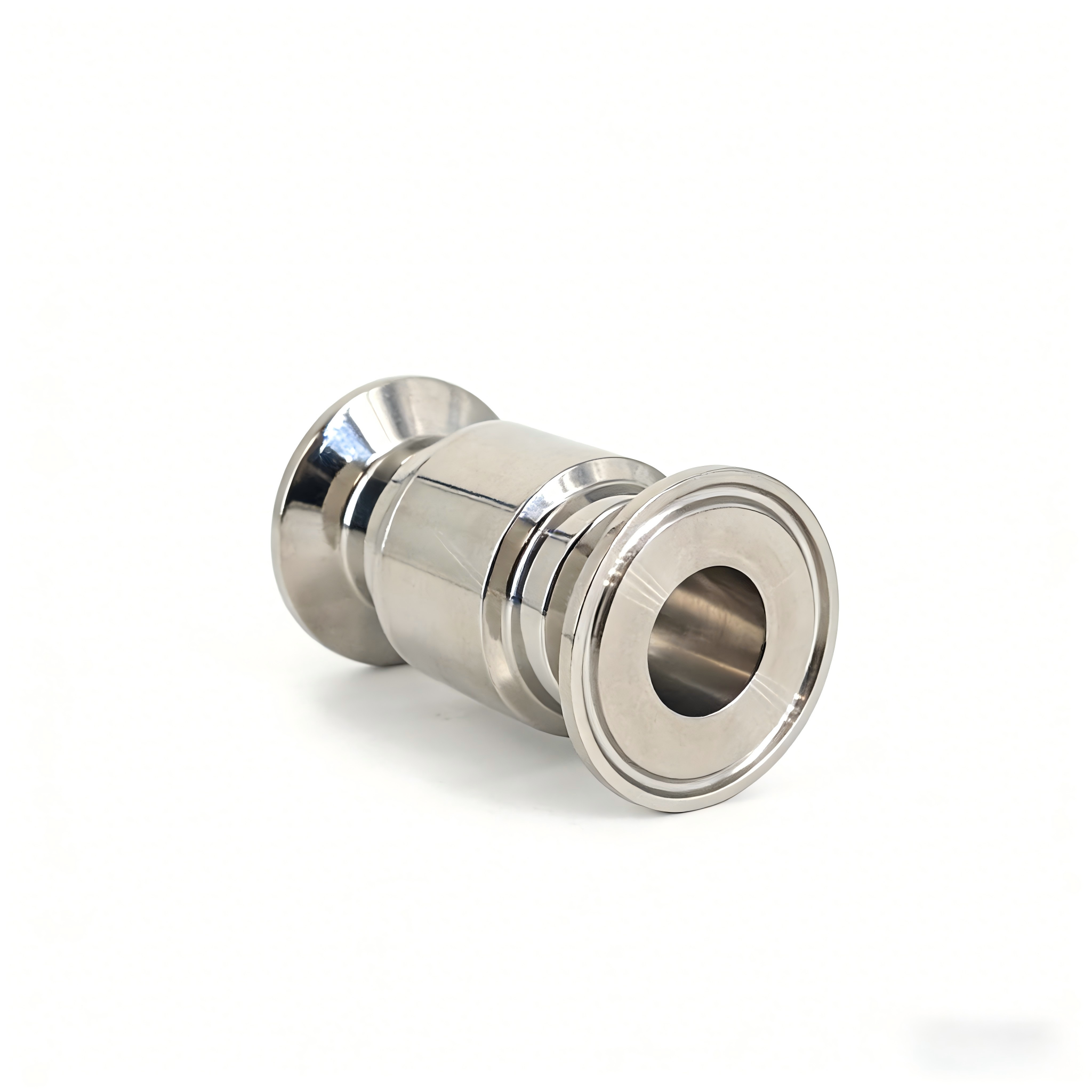

steam trap are available in threaded and flanged types, with various sizes and pressure ratings. They are high-temperature and corrosion-resistant, offer sensitive opening and closing, and provide stable drainage, making them suitable for steam systems.
The steam trap is based on its inverted bucket structure and steam pressure difference. When steam enters the valve body, it fills the inverted bucket, causing it to rise and close the drain port. When condensate or air enters the valve, the inverted bucket becomes lighter and sinks, opening the drain port to discharge the condensate while automatically preventing steam leakage. The wireless monitoring system can detect the valve's operating status and drainage in real time, feeding back the data to the control system via wireless signals for remote monitoring and management, improving operational efficiency and safety. It is suitable for high-temperature and high-pressure steam systems.
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Constructed from high-quality SS316 stainless steel, ensuring excellent corrosion resistance and long-lasting performance in high-temperature steam environments.
Inverted bucket design enables efficient condensate discharge while preventing steam loss, maintaining optimal energy efficiency.
Wireless monitoring capability allows real-time remote tracking of trap performance and automatic alerts for maintenance needs.
Robust and reliable operation under varying pressures and loads, suitable for both superheated steam and saturated steam applications.
Compact and easy to install, compatible with standard pipe fittings, reducing downtime and simplifying maintenance procedures
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
Working Principles
The steam trap is based on its inverted bucket structure and steam pressure difference. When steam enters the valve body, it fills the inverted bucket, causing it to rise and close the drain port. When condensate or air enters the valve, the inverted bucket becomes lighter and sinks, opening the drain port to discharge the condensate while automatically preventing steam leakage. The wireless monitoring system can detect the valve's operating status and drainage in real time, feeding back the data to the control system via wireless signals for remote monitoring and management, improving operational efficiency and safety. It is suitable for high-temperature and high-pressure steam systems.
Feature and Specification
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Constructed from high-quality SS316 stainless steel, ensuring excellent corrosion resistance and long-lasting performance in high-temperature steam environments.
Inverted bucket design enables efficient condensate discharge while preventing steam loss, maintaining optimal energy efficiency.
Wireless monitoring capability allows real-time remote tracking of trap performance and automatic alerts for maintenance needs.
Robust and reliable operation under varying pressures and loads, suitable for both superheated steam and saturated steam applications.
Compact and easy to install, compatible with standard pipe fittings, reducing downtime and simplifying maintenance procedures
Application
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
