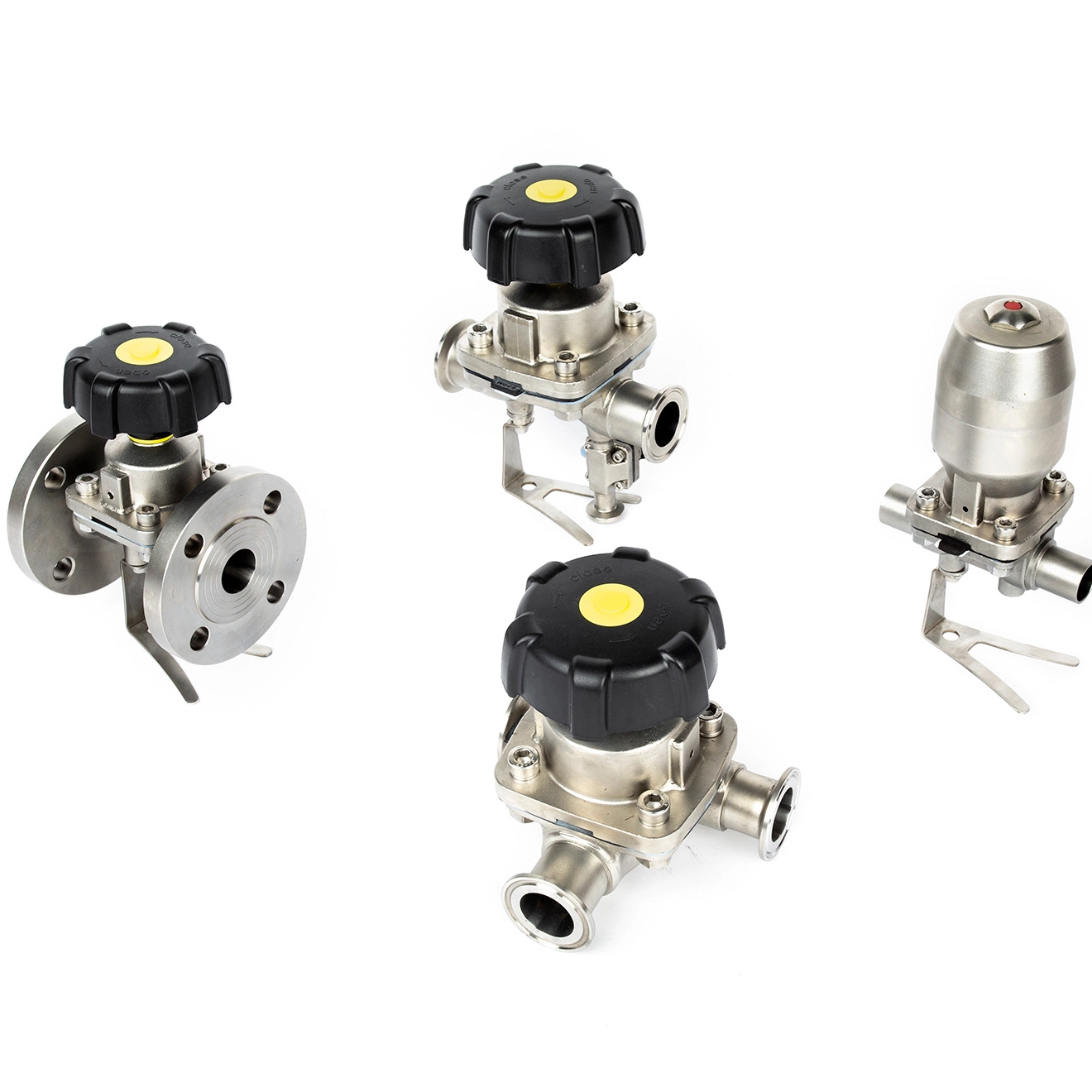

What are the main advantages of using sanitary stainless steel diaphragm valves in process control?

The core advantage of using sanitary stainless steel diaphragm valves in process control lies in integrating unparalleled cleanliness, reliable safety,

and high-efficiency process control, making them the preferred choice for industries with extremely high requirements for hygiene and cleanliness.

Advantage 1: Unparalleled Cleanliness, Eliminating Contamination and Residue

Complete media isolation ensures purity: The diaphragm, located between the valve body and valve cover, forms a physical barrier, completely

isolating the fluid inside the pipeline from external mechanical components such as the valve stem and actuator. This fundamentally eliminates

the risk of external contaminants (such as lubricating oil and metal particles) entering the media, while ensuring that the operating mechanism

is not corroded by the media.

"Zero" dead angle structure eliminates residual risks: The inner wall of the valve body is smooth and flat, employing a self-draining structure

design without dead angles or pits, and the surface is precision polished (roughness can reach Ra 0.4μm or even lower). This allows the media to

be completely drained, preventing the formation of any residual dead angles inside the valve, thereby effectively preventing bacterial growth and

cross-contamination.

Superior sealing performance ensures "zero leakage": The diaphragm and valve seat form a tight seal, ensuring bidirectional zero leakage.

Equipped with high-performance diaphragms such as EPDM and PTFE (EPDM can withstand continuous steam operation up to 150°C), ensuring

absolute sealing even under harsh conditions such as high temperatures and corrosive media.

Advantage 2: Safe and Durable Structure for Efficient Maintenance

Superior Materials, Adaptable to Harsh Environments: The valve body widely uses 316/316L stainless steel, possessing excellent corrosion

resistance and ensuring long-term stable operation even under high temperatures and pressures, especially resistant to corrosion and steam

sterilization. The all-stainless steel drive section also meets the highest requirements for aseptic production conditions.

Rugged Structure and Reliable Design: The diaphragm isolates the actuator from the piping system, reducing wear on moving parts. Compared to

 traditional valves, its structure is simpler and more compact. After long-term use, diaphragm wear can be quickly replaced, significantly reducing

maintenance costs.

Advantage 3: Excellent Process Integration and Automation

Perfectly Adaptable to CIP/SIP Processes: Highly adaptable to CIP (Cleaning in Line) and SIP (Sterilization in Line) processes, its smooth inner wall

and dead-angle-free design ensure full contact between cleaning fluid and steam on all internal surfaces. The reduced thermal mass resulting

from optimized design also effectively shortens sterilization time and improves system productivity.

Process control precision and automation: The diaphragm's motion characteristics allow for sensitive flow regulation (especially between 15° and

70° opening), and with the addition of pneumatic or electric actuators, the valve can be easily integrated into automated production lines.

Compared to traditional throttle valves, gate valves, or stop valves, diaphragm valves can more tightly "hold" particulate matter in pipelines,

performing superiorly in applications with suspended solids or high-viscosity fluids.

Compliance with international standards and regulations: Designed and manufactured in compliance with numerous stringent international

standards such as FDA, EHEDG, 3-A, ASME BPE, and ISO, providing direct evidence of meeting GMP (Good Manufacturing Practice) and other

industry-specific hygiene requirements.

Summary: Sanitary stainless steel diaphragm valves, through their unique design, combine four core advantages: hygiene, safety, reliability, and

high efficiency.
