What is a stainless steel elbow?

1. What is a stainless steel elbow?

A stainless steel elbow is a crucial pipe fitting used to alter the flow direction of fluids within a pipeline, typically installed at points where the pipeline turns. It connects two pipe sections oriented in different directions, enabling the piping system to accommodate equipment layouts, installation space constraints, and fluid transport requirements.

Common angles for stainless steel elbows include 45°, 90°, and 180°, with the 90° elbow being the most widely used. Through optimized design of the bending angle and structure, the elbow facilitates a smooth change in flow direction while ensuring the continuous and safe operation of the piping system.

2. How does a stainless steel elbow work?

A stainless steel elbow does not possess an opening or closing function; instead, it alters the flow direction of the medium primarily through its curved internal channel. When a liquid, gas, or other medium enters the elbow, it follows the curved internal path to change direction and continues flowing into the downstream pipeline.

The design of the elbow—including factors such as the bending radius, the smoothness of the inner wall, and the structural configuration—directly impacts fluid flow performance, specifically regarding pressure loss and fluid resistance. Compared to standard connection methods that involve abrupt directional changes, a well-designed stainless steel elbow minimizes fluid turbulence, resulting in more stable transport of the medium. For high-flow or demanding piping systems, the selection of the elbow's size, angle, and bending radius is particularly critical.

3. Common Materials for Stainless Steel Elbows

Stainless steel elbows are typically manufactured from materials such as 304, 316, and 316L stainless steel. Grade 304 offers good corrosion resistance, strength, and machinability, making it suitable for many standard fluid transport systems. Grade 316L offers superior corrosion resistance and is more widely used in systems handling food, beverages, dairy products, pharmaceuticals, and cosmetics, as well as in applications involving certain corrosive media.

Material selection requires a comprehensive assessment based on the conveyed medium, operating temperature, pressure, and the service environment. Choosing the appropriate stainless steel grade not only enhances the elbow's corrosion resistance but also extends its service life and ensures the long-term, stable operation of the piping system.

4. Surface Treatment of Stainless Steel Elbows

Surface treatment is a crucial aspect of stainless steel elbow quality. Common treatment methods include mechanical polishing, pickling and passivation, and electropolishing.

For general industrial piping applications, surface treatment primarily serves to enhance corrosion resistance and improve aesthetic quality; for instance, pickling and passivation remove oxides and impurities generated during manufacturing, thereby restoring the protective layer on the stainless steel surface.

For systems with stringent hygiene requirements—such as those in the food, beverage, dairy, and pharmaceutical industries—elbows typically require more refined surface treatments. Mechanical polishing or electropolishing reduces inner surface roughness, minimizing media residue and cleaning dead zones, while better meeting the requirements for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.

5. Common Types of Stainless Steel Elbows

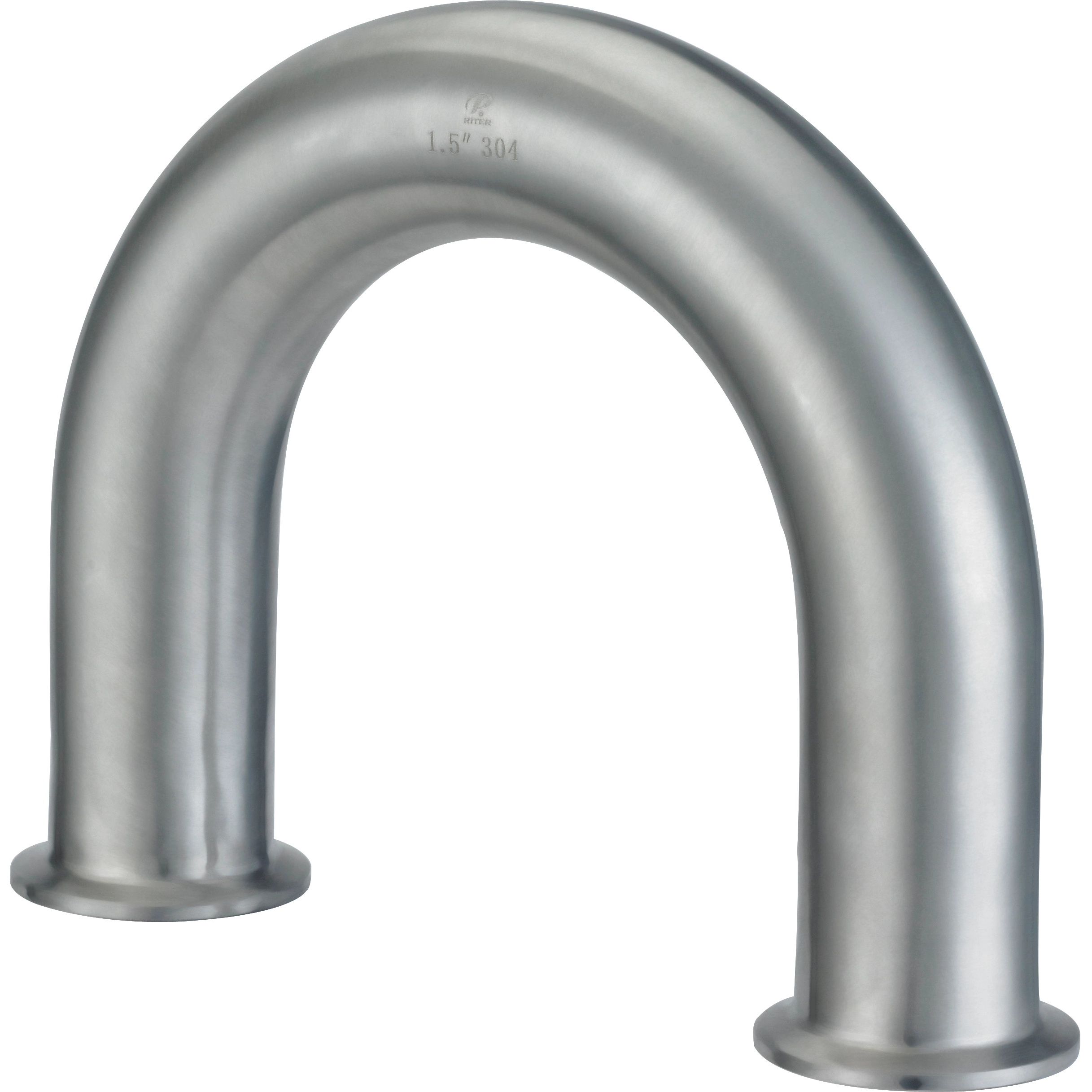

Based on the bending angle, stainless steel elbows primarily include 45-degree, 90-degree, and 180-degree types. 90-degree elbows are suitable for applications requiring a rapid change in piping direction, whereas 45-degree elbows facilitate a more gradual change in direction, thereby reducing fluid resistance.

In terms of manufacturing methods, stainless steel elbows are categorized into seamless and welded types; regarding connection methods, options include welding, threaded connections, flanges, and Tri-Clamp sanitary quick-connect fittings.

Elbows with different configurations are suited to specific application environments. For instance, sanitary piping systems prioritize ease of connection, cleanability, and low-residue design, while industrial piping systems focus more on pressure ratings, temperature resistance, and mechanical strength.

6. Application Areas for Stainless Steel Elbows

Thanks to their excellent corrosion resistance, strength, and durability, stainless steel elbows are widely used across various industries.

In the food, beverage, dairy, pharmaceutical, and biotechnology sectors, stainless steel elbows typically feature sanitary designs that prioritize material safety, surface finish, and cleanability.

In chemical processing, water treatment, oil and gas, energy, and general industrial piping systems, the selection of stainless steel elbows—including material, wall thickness, connection method, and pressure rating—must be based on specific operating conditions to ensure reliable long-term performance.

7. How to Select the Right Stainless Steel Elbow

When selecting a stainless steel elbow, several factors must be considered comprehensively: pipe size, connection standards, bending angle, material, wall thickness, operating pressure, temperature, and the conveyed medium.

For sanitary-grade systems—such as those in the food and pharmaceutical industries—key considerations include the use of 316L stainless steel, internal surface roughness, polishing finish, sanitary compliance, and CIP/SIP cleaning requirements. Conversely, for industrial fluid systems, the focus shifts to corrosion resistance, pressure and temperature tolerance, and long-term operational stability.

Additionally, the connection method and dimensional standards must be verified to ensure proper compatibility with the existing piping system.

8. Conclusion

Stainless steel elbows are simple yet vital components in piping systems, primarily serving to alter the flow direction of the medium. By carefully selecting the material, angle, connection method, and surface finish, stainless steel elbows can meet the requirements of diverse application environments.

Whether used in sanitary fluid systems (such as food, beverage, and pharmaceuticals) or industrial pipelines (such as chemical processing, water treatment, and oil and gas), stainless steel elbows help enhance fluid transport efficiency and system operational reliability.
