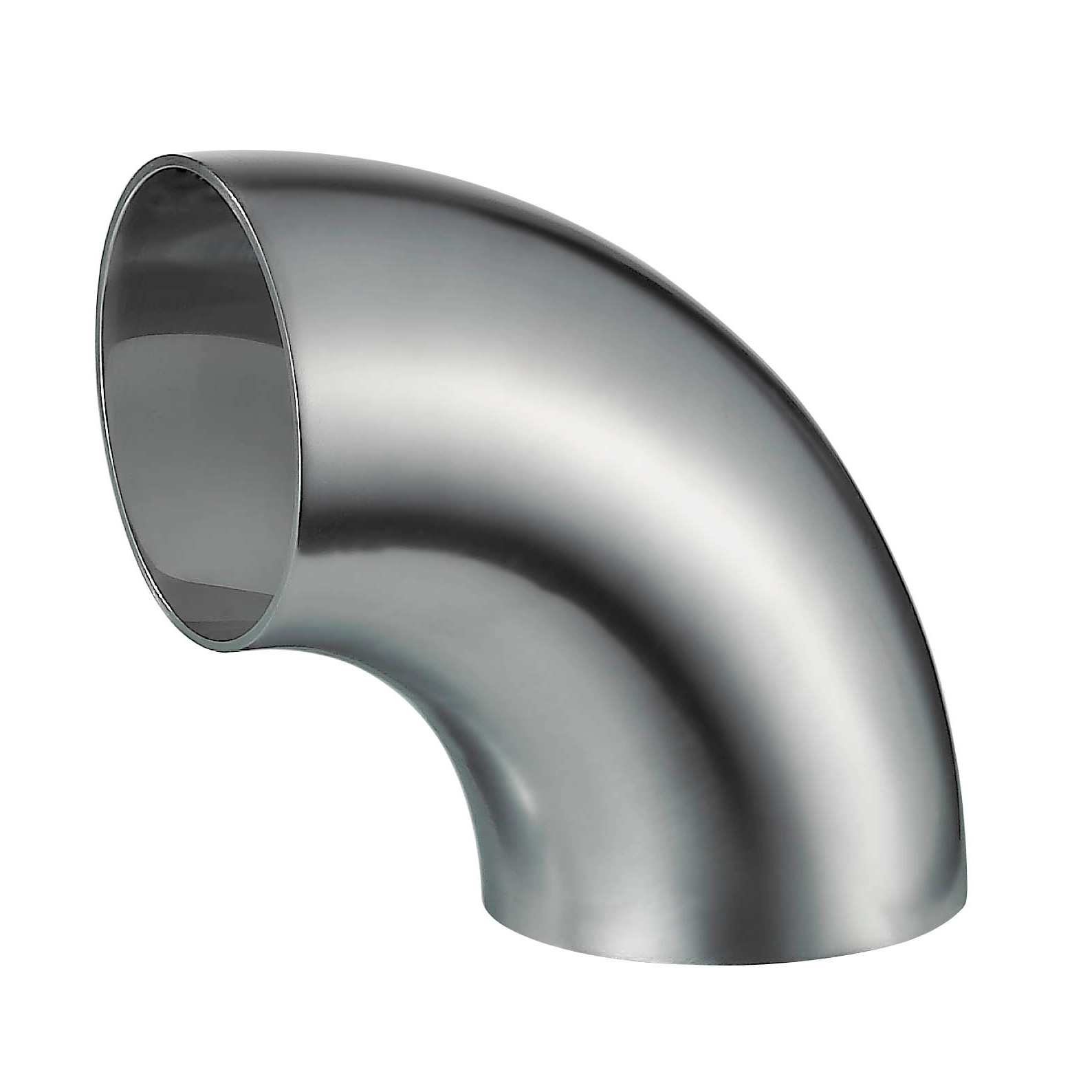

What surface finish is required for stainless steel elbows?

1. Why Stainless Steel Elbows Require Surface Treatment

Although stainless steel elbows possess inherent corrosion resistance, manufacturing processes can result in the formation of oxide layers, oil residues, impurities, and surface defects; therefore, appropriate surface treatment is usually necessary. Common processes include mechanical polishing, pickling and passivation, and electropolishing. Proper surface treatment not only improves the elbow's appearance but also enhances corrosion resistance, reduces surface roughness, and extends the product's service life. The specific treatment method selected depends on factors such as the elbow's material, the conveyed medium, the operating environment, and hygiene requirements.

2. Common surface treatment methods for stainless steel elbows

Pickling and passivation is a common treatment method; it removes oxides, contaminants, and free iron generated during processing and helps restore the stainless steel's passive film, thereby enhancing corrosion resistance. Mechanical polishing is primarily used to improve surface finish and reduce roughness, making the inner and outer surfaces of the elbow smoother. For piping systems requiring high levels of cleanliness—such as those in the food, beverage, dairy, pharmaceutical, and cosmetic industries—finer mechanical polishing is typically employed; for some high-purity applications, electropolishing is also chosen to further improve the surface condition.

3. Why Surface Roughness Matters

Surface roughness is a key indicator of the surface quality of stainless steel elbows. A rougher surface is more prone to having microscopic irregularities where liquids, particles, or other media can accumulate, potentially making cleaning more difficult. For general industrial piping, surface roughness is typically determined based on the medium, pressure, and operating environment; however, for sanitary-grade systems—such as those in the food and pharmaceutical industries—requirements for internal surface roughness are usually much stricter. Common specifications include Ra 0.8 μm, Ra 0.4 μm, or even lower, with the exact standard determined by customer requirements and the specific application.

4. Material affects the choice of surface treatment

304 and 316L are common materials for stainless steel elbows, and both can undergo treatments such as polishing, pickling and passivation, and electropolishing. When making a selection, one must consider not only the surface treatment but also the properties of the medium and the operating environment. For instance, in standard fluid systems, 304 stainless steel combined with an appropriate surface treatment usually meets requirements; however, for more corrosive media or for use in food and pharmaceutical production lines, 316L—paired with fine polishing and passivation—may be more suitable. In short, the material and the surface treatment must be matched effectively to achieve optimal performance.

5. Whether the inner and outer surfaces require the same treatment

The inner and outer surfaces of stainless steel elbows do not necessarily require identical treatment grades. For standard industrial piping, the outer surface treatment focuses primarily on corrosion resistance and aesthetics, whereas the inner surface treatment prioritizes fluid resistance and media compatibility. In sanitary piping, the inner surface is the primary focus because it comes into direct contact with the product, necessitating the minimization of residue and contamination risks. Consequently, sanitary elbows typically undergo finer polishing on the inner surface, with the Ra value controlled according to application requirements, while also accommodating the needs of CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes.

6. How to Select the Appropriate Surface Finish

There is no single "optimal surface finish" for stainless steel elbows that suits all operating conditions. Selection should be based on a comprehensive assessment of factors such as the stainless steel grade, the conveyed medium, operating temperature, the corrosive environment, cleaning methods, and customer specifications. For general industrial piping applications, treatments such as pickling and passivation or mechanical polishing may be selected based on actual operating conditions; however, for sanitary-grade systems—such as those in the food, beverage, dairy, and pharmaceutical industries—greater emphasis must be placed on internal surface smoothness, roughness, polishing quality, and CIP/SIP cleaning requirements.

7. Conclusion

The surface treatment of stainless steel elbows should not be determined simply by a distinction between "industrial grade" and "sanitary grade"; rather, the choice should be based on specific operating conditions. Pickling and passivation enhance corrosion resistance, mechanical polishing improves surface finish and roughness, and electropolishing is suitable for applications demanding superior surface quality and cleanability. Whether for general industrial piping or sanitary systems in sectors such as food processing and pharmaceuticals, properly matching the material, surface treatment method, and roughness specifications is essential to ensure optimal corrosion resistance, cleanability, and long-term operational reliability.
