Working Principle of Centrifugal Pumps？

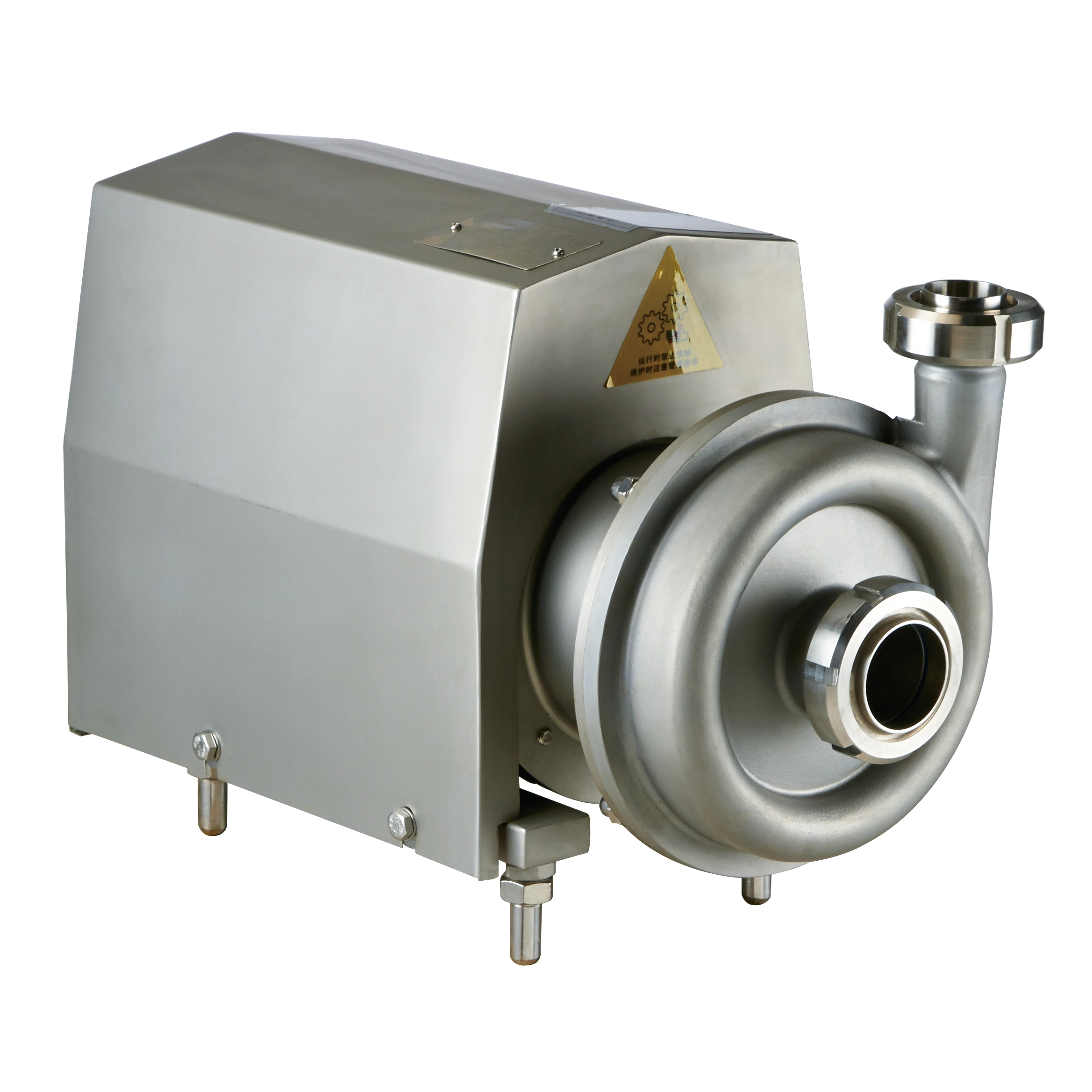

Centrifugal pumps are widely used as fluid transport equipment in piping systems for transferring process fluids in the pharmaceutical, food, and beverage industries. They rely on the centrifugal force generated by a rotating impeller to move the material; the fluid contacts only the wetted parts, making the pump compatible with pipeline cleaning and sterilization processes.

I. Basic Working Principle

Before the equipment starts, the pump chamber and suction piping must be filled with the material to be transported. When the motor drives the impeller inside the pump to rotate at high speed, the impeller blades cause the material within the chamber to rotate as well. Driven by centrifugal force, the material is flung outward from the center of the impeller toward its outer edge at high speed; both kinetic energy and pressure increase simultaneously. The material collects in the volute passage of the pump casing before being discharged through the pump outlet.

As the material is discharged outward from the impeller, a low-pressure zone forms at the impeller's center. Driven by pipeline pressure, upstream material continuously flows into the impeller center to replenish the supply, thereby enabling continuous material transport. This design requires the pump chamber to be filled with material for proper operation; it cannot run dry. If air is present in the chamber, insufficient pressure will result, preventing the material from being transported effectively.

II. Key Flow-Contacting Components and Their Functions

1. Impeller

The core rotating component that comes into direct contact with the material; the vanes undergo a polishing process. The impeller's rotation imparts kinetic energy to the material to induce flow; its structural design minimizes gaps to reduce material retention and accumulation.

2. Pump Casing (Volute)

Features a volute flow channel with smooth transitions that collects material discharged from the impeller and converts a portion of the kinetic energy into transport pressure. The smooth inner wall minimizes material adhesion and residue, facilitating pipeline cleaning.

3. Mechanical Seal Assembly

Isolates the material-side pump chamber from the external motor drive chamber, preventing material leakage while blocking external contaminants—such as lubricating oil or debris—from entering the flow channel and compromising material purity; it is a critical component for ensuring product integrity.

4. Suction and Discharge Ports

Pipeline connection points designed with smooth flow transitions to minimize dead zones and ensure compatibility with sanitary piping connections.

III. Key Operational Characteristics

1. Stable flow rate with minimal pulsation in the output stream, making it suitable for the continuous transfer of various liquid materials.

2. The flow chamber can be polished to ensure smooth internal passages; this facilitates in-line cleaning and sterilization of the piping system and reduces the risk of material residue harboring impurities.

3. The drive motor is completely isolated from the material by a sealing structure; under normal operating conditions, external components do not come into contact with the conveyed material.

4. The pump lacks self-priming capability; it must be primed (filled with liquid) before startup, ensuring no air remains in the pump chamber. Dry running is strictly prohibited, as it can damage the seals and lead to seal failure.

5. The flow rate varies with discharge line resistance; as line resistance increases, the actual flow rate decreases accordingly.

IV. Key Operational Considerations

1. Before startup, ensure the pump chamber and suction piping are fully primed with the process fluid and that all air is purged; failure to do so may result in air binding, preventing the equipment from delivering the fluid.

2. Closely monitor the condition of the mechanical seal. If any leakage occurs, perform maintenance or replacement immediately to prevent product contamination.

3. Avoid operating the equipment far outside its optimal performance range for extended periods. Prolonged operation at low flow rates can cause an internal temperature rise, which may compromise product quality.

4. After shutdown, flush the pump chamber to remove residual material and minimize accumulation, in conjunction with the pipeline cleaning procedure.

V. Summary

Centrifugal pumps utilize impeller rotation to generate the centrifugal force required for fluid transfer. Their flow paths are designed to be smooth and minimize residue, making them suitable for applications in the food and pharmaceutical industries. By ensuring proper priming and air purging, maintaining the seal assembly, and adhering to pipeline cleaning protocols, users can guarantee the purity of the transferred fluid and ensure long-term, reliable operation.
