Differences Between Ball Valves And Plug Valves

I. Overview of Basic Concepts

Both ball valves and plug valves are 90-degree rotary valves that control pipeline flow by rotating the valve core; they share similar opening and closing mechanisms and are often confused during the selection process. The closure element of a ball valve is a sphere with a through-hole, whereas that of a plug valve is a conical or cylindrical plug. Although both rotate 90 degrees, they differ significantly in core structure, sealing method, and operating torque, resulting in differences regarding user experience, media compatibility, and service life.

Both types of valves can be equipped with manual, pneumatic, or electric actuators and used for pipeline shut-off or flow diversion. However, the ball valve is a more recent development, having evolved from the plug valve design through optimization. Selection requires a comprehensive assessment based on the state of the medium, switching frequency, and actual pipeline operating conditions.

II. Key Differences in Structure and Flow Path

1. Valve Core Structure and Contact Mechanism

The core closure element of a ball valve is a sphere with a central through-hole; designs include both floating ball and trunnion-mounted (fixed) ball configurations. The sphere makes annular contact with the seats on both sides, resulting in a small sealing contact area. When fully open, the internal passage is unobstructed, and the flow cross-section essentially matches the pipe bore, creating minimal resistance to the flowing medium.

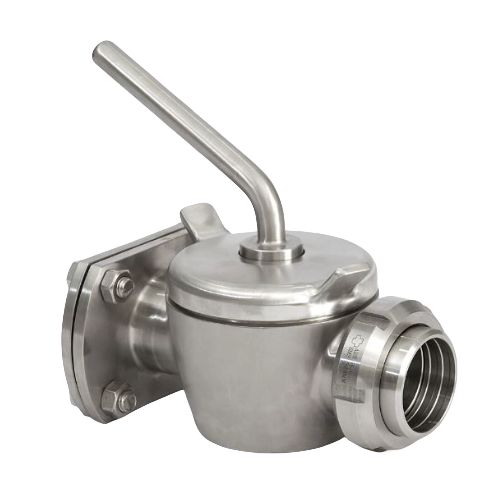

The closure element of a plug valve is a conical or cylindrical plug featuring a flow passage. The plug is embedded within the valve body cavity, with its outer surface making extensive contact with the inner wall of the body—a design characterized by large-area contact. Certain models can be configured as three-way or four-way valves to facilitate multi-path flow diversion.

2. Internal Flow Path Characteristics

Full-bore ball valves feature a smooth, uniform internal flow path free of significant protrusions or recesses, preventing the formation of stagnant zones. In contrast, reduced-bore ball valves have a smaller flow cross-section, which results in some pressure loss. In a plug valve, the flow is controlled primarily by the plug itself; the valve body features a simple structure with minimal internal cavities, making it resistant to material accumulation, although small amounts of the medium may remain in the clearance between the plug and the body.

III. Differences in Sealing Methods and Operational Performance

1. Sealing Mechanism

Ball valves typically rely on resilient seats—often made of PTFE—to achieve a seal; the seat's elasticity presses against the ball's surface, ensuring effective sealing. However, the sealing surfaces are susceptible to scratching by fine particles in the medium; once scratched, the risk of leakage increases significantly. Metal-to-metal hard-sealing versions are also available for high-temperature applications.

Plug valves achieve sealing through the mating of conical surfaces between the plug and the body, usually involving direct metal-to-metal contact. Some models allow for the injection of sealant grease to fill microscopic gaps, thereby reducing friction and enhancing the seal. Their overall structure offers superior scratch resistance, meaning fine particles are less likely to cause immediate seal failure.

2. Operating Torque and Cycling Frequency

Ball valves feature a small contact area between the ball and the seat, resulting in low rotational friction and low operating torque; they operate smoothly by hand and are suitable for repeated cycling, including high-frequency operation when paired with automated actuators.

Plug valves involve a large contact area between the plug and the body, resulting in high frictional resistance and requiring greater torque to operate. After remaining stationary for extended periods, the plug tends to seize against the body, making reopening difficult; consequently, they are better suited for applications requiring the valve to remain open or closed for long durations rather than frequent cycling.

3. Flow Regulation Capability

Ball valves are primarily designed for fully open or fully closed (shut-off) service and are unsuitable for prolonged throttling at small opening angles. At small openings, the medium impinges on the sealing surfaces at high velocity, easily damaging sealing components. A limited number of V-port designs can achieve some degree of flow regulation.

Plug valves are also primarily used for shut-off and flow-direction switching. While some designs allow for flow adjustment, their linearity is generally poor, so they are rarely used for precise regulation of pipeline flow or pressure.

IV. Differences in Media Compatibility and Maintenance

Ball valves are better suited for media with good flow characteristics and low impurity content. When handling media containing solid particles, particles can easily become trapped between the ball and the seat, causing wear on sealing components and shortening the service life. The seat is an independent component, making disassembly and replacement relatively convenient.

Plug valves are better suited for media with higher viscosity and a small amount of solid particles. As the plug rotates, the sealing surfaces create a scraping effect that removes impurities adhering to the surface, thereby reducing the risk of jamming. However, long-term friction between the metal conical surfaces causes wear, and some models require periodic injection of sealant to maintain performance.

V. Summary of Application Scenarios and Selection

Scenarios suitable for ball valves:

1. Pipelines requiring frequent opening/closing and automated control;

2. Media with low impurity content and high sealing performance requirements;

3. Situations where simple valve disassembly and easy component replacement are desired.

Scenarios suitable for plug valves:

1. Media with relatively high viscosity and the presence of particulate matter;

2. Applications involving infrequent valve operation, primarily remaining in a fixed open or closed state for long periods;

3. Situations requiring flow direction switching (using three-way or four-way configurations).

In summary, ball valves offer the advantages of easy operation and stable sealing, making them suitable for frequent cycling; plug valves excel in impurity resistance and flow-switching versatility but require higher operating torque, making them unsuitable for high-frequency switching. When making a selection, the valve type should be determined by comprehensively considering the medium's properties, operating frequency, and pipeline functional requirements.
