Steam Traps: Key Components for High-Purity Steam Piping Systems

I. Overview of Basic Concepts

In steam piping systems subject to stringent cleanliness standards, steam undergoes a phase change to form condensate after heat exchange. Air and non-condensable gases are also introduced during system startup, shutdown, and continuous operation. Since condensate and non-condensable gases are inevitable byproducts of operation, they cannot be completely eliminated at the source. Failure to discharge them promptly not only degrades heat transfer efficiency but also allows the medium to stagnate and accumulate in internal crevices and cavities, compromising cleanliness and creating multiple operational risks.

Steam traps are self-actuating components that require no external drive mechanism; they operate automatically based on changes in medium temperature, density, and fluid dynamics. Their primary functions are to discharge condensate, prevent steam leakage, and vent non-condensable gases. In high-purity piping systems, the steam trap is far more than a simple drainage accessory; its flow path geometry, surface finish, and internal moving parts directly impact medium purity, heat transfer stability, and equipment reliability. Suitable types for this application primarily include the modified float type and the bimetallic thermostatic type; selection requires a comprehensive assessment of structural characteristics, operational risks, and maintenance requirements.

II. Differences in Internal Structure and Working Principles

For steam traps used in high-purity piping, the core design principle is to eliminate cavities, pits, and "dead zones" to minimize medium stagnation.

The modified float type operates based on the density difference between condensate and steam; its main components are a polished hollow float, a lightweight lever, and a valve seat. As condensate enters the valve body, the rising liquid level lifts the float, opening the valve port for continuous drainage; once the condensate is drained and steam enters, the float drops to press against the valve seat, sealing the valve. These units feature redesigned flow paths to eliminate internal stagnation zones and utilize high-precision polishing on sealing surfaces, though they are relatively sensitive to minute impurities.

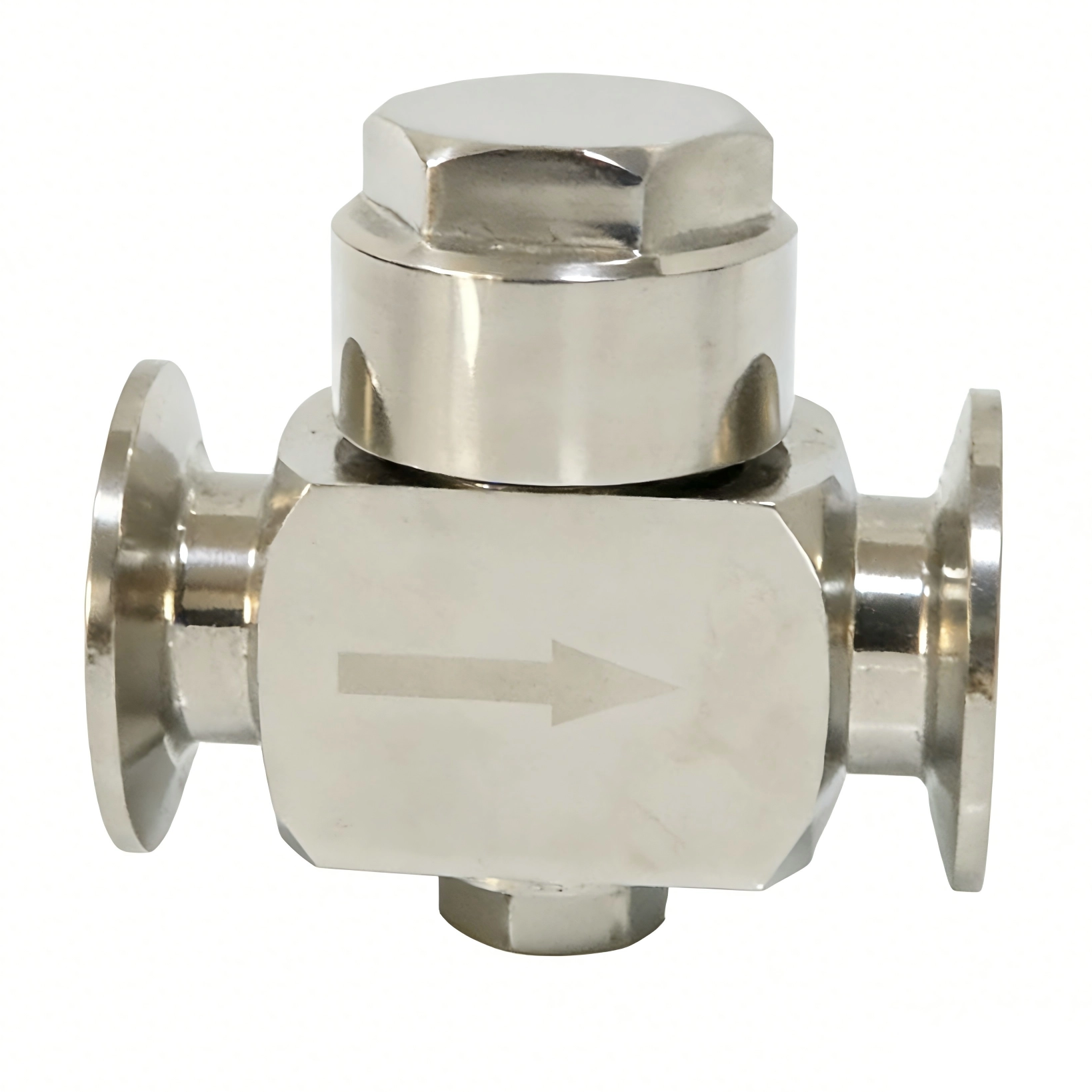

The bimetallic thermostatic type operates based on temperature differentials, utilizing an internal assembly of stacked bimetallic sensing plates with varying coefficients of expansion. When cooler condensate flows through, the plates expand, opening the valve port to drain the fluid; as the medium approaches saturation temperature, the plates deform due to the heat, pressing against the valve seat to seal the valve. The internal chamber features a smooth, streamlined design with excellent venting performance, and some models allow for the adjustment of the operating temperature. Due to inherent subcooling characteristics, condensate is discharged only after cooling; consequently, the unit is not suited for prolonged exposure to drastic temperature fluctuations, which could cause performance drift in the sensing element.

Products suitable for this application are equipped with removable, cleanable filters to trap pipeline impurities and protect sealing components.

III. Operational Value and Potential Risks

Operational Value

First, it ensures stable heat exchange. By promptly discharging condensate, it prevents accumulated water from displacing steam within the heat exchange chamber, thereby ensuring full contact between the steam and the heat exchange surface, maintaining a constant process temperature, and avoiding slow heat-up times or temperature fluctuations.

Second, it reduces damage from pipeline shock. Rapid removal of accumulated water lowers the probability of water hammer, protects joints and sealing components, and minimizes the risk of leakage.

Third, it conserves thermal energy. It eliminates the need for manual direct venting; by discharging only condensate and retaining high-temperature steam, it minimizes unnecessary energy loss.

Fourth, it maintains internal cleanliness. It discharges air and non-condensable gases to eliminate air binding, reduces the dwell time of corrosive media within the chamber, and minimizes residue accumulation.

Potential Operational Risks

Steam traps are subject to two failure modes: failing open or failing closed. If the valve fails open, steam escapes along with the condensate, resulting in energy waste. If the valve fails closed, condensate accumulates continuously; this can trigger water hammer, while the trapped medium may deposit inside the chamber and compromise cleanliness. Factors such as the ingress of fine particles, excessive backpressure, and frequent pressure fluctuations accelerate component wear; thus, the product requires regular maintenance and cannot remain trouble-free indefinitely.

IV. Key Considerations for Model Selection

Selection should not be based solely on pipe diameter; multiple factors must be considered:

1. Condensate discharge capacity: Select based on the system's maximum condensate load with a safety margin, rather than relying only on pipe diameter;

2. Operating pressure differential: Verify actual pressure and maximum allowable backpressure; excessive backpressure can cause drainage failure;

3. Discharge characteristics: Distinguish between saturated high-temperature condensate and sub-cooled condensate, and clarify whether continuous or intermittent discharge is required;

4. Internal structure: Prioritize products with smooth flow paths and no dead zones; consider internal surface treatment, media-contact materials, and connection types;

5. Air venting and maintenance: Prioritize air venting capability during startup; ensure filters and internal components are easy to disassemble, clean, and reassemble.

V. Summary

For steam traps suitable for high-purity steam piping, a flow path design free of stagnant dead zones is a core requirement, in addition to the fundamental functions of draining condensate, blocking steam, and venting air.

Improved float-type and bimetallic clean-service traps each have their own advantages and disadvantages; there is no single product that suits all operating conditions. Once the model is selected, periodic inspection, cleaning, and maintenance are essential. Only by balancing structural selection, actual operating conditions, and standardized maintenance can steam traps simultaneously meet the requirements for heat exchange safety, energy efficiency, and internal cleanliness, thereby ensuring the long-term, stable operation of the entire piping system.
