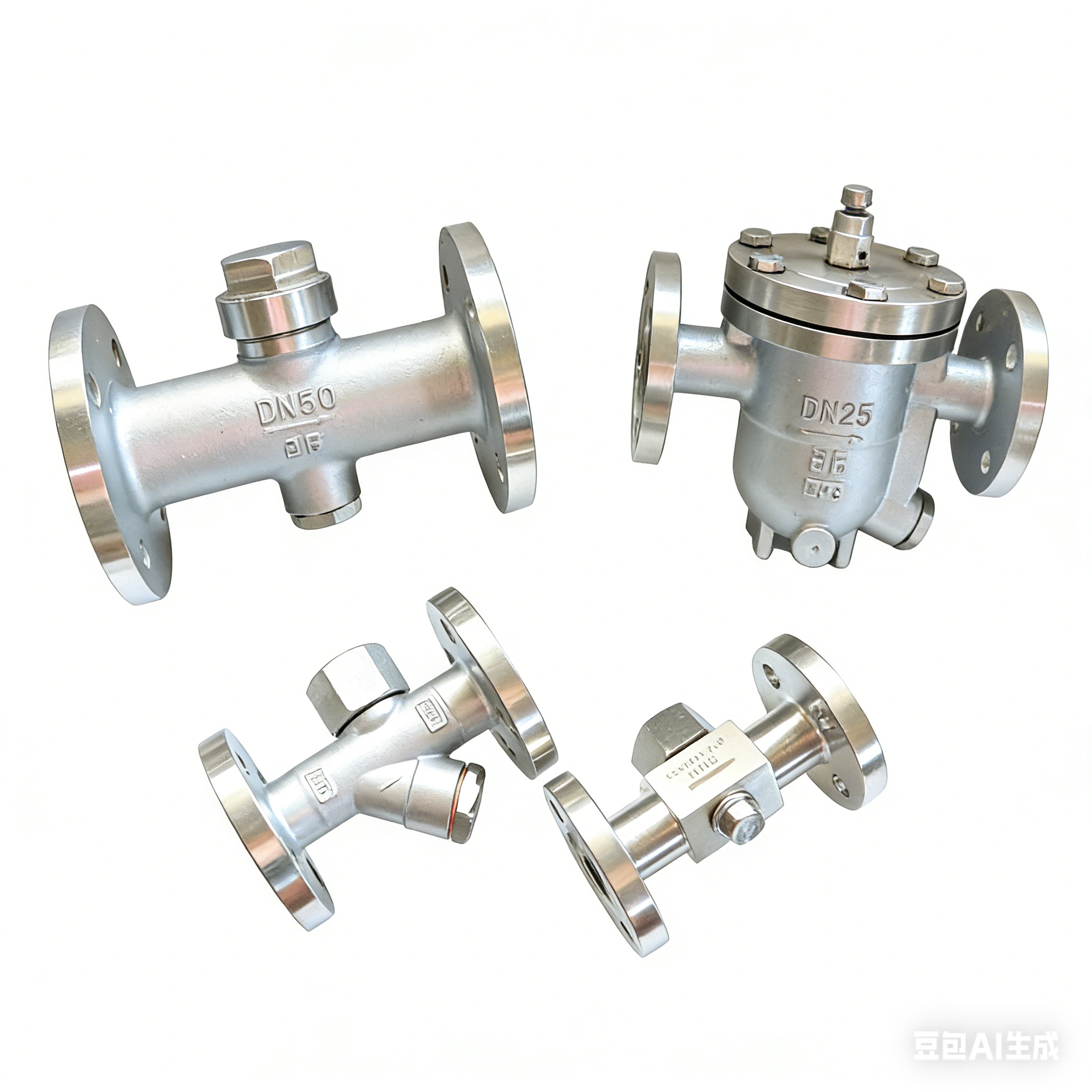

STAINLESS STEEL Ball Float Thermodynamic BPT 13 Steam Trap
steam trap are available in threaded and flanged types, with various sizes and pressure ratings. They are high-temperature and corrosion-resistant, offer sensitive opening and closing, and provide stable drainage, making them suitable for steam systems.
Working Principles
The stainless steel steam trap BPT 13 achieves automatic drainage through the coordinated operation of an inverted bucket (BPT 13) and a ball float mechanism. When condensate enters the valve body, the inverted bucket and float sink, opening the valve to discharge condensate and air. When steam reaches the valve body, the steam pressure causes the inverted bucket to rise and close the valve, preventing steam leakage. The valve continuously cycles between opening and closing, achieving efficient drainage. This valve is reliably designed and suitable for steam tracing lines, heat exchangers, and industrial pipelines, maintaining stable operation under varying loads and reducing energy consumption.
Stainless Steel Steam Ttap Specification Chart
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Combines inverted bucket and thermostatic mechanisms to ensure reliable condensate discharge while preventing live steam loss, maintaining stable operation under fluctuating pressure and load conditions in steam systems.
Manufactured from stainless steel for excellent corrosion resistance, high temperature tolerance, and long service life, making it suitable for hygienic, chemical, and industrial steam applications.
Designed with a 3/4 inch connection size, offering easy integration into standard steam lines while supporting efficient condensate removal and consistent thermal performance.
Provides accurate testing and monitoring capability, allowing operators to evaluate trap performance during operation without system shutdown, improving maintenance efficiency and system reliability.
Features a compact and robust internal structure that resists water hammer and dirt accumulation, ensuring stable operation and reduced risk of blockage or mechanical failure.
Application
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
