JONENG

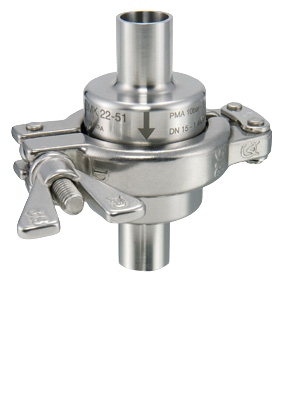

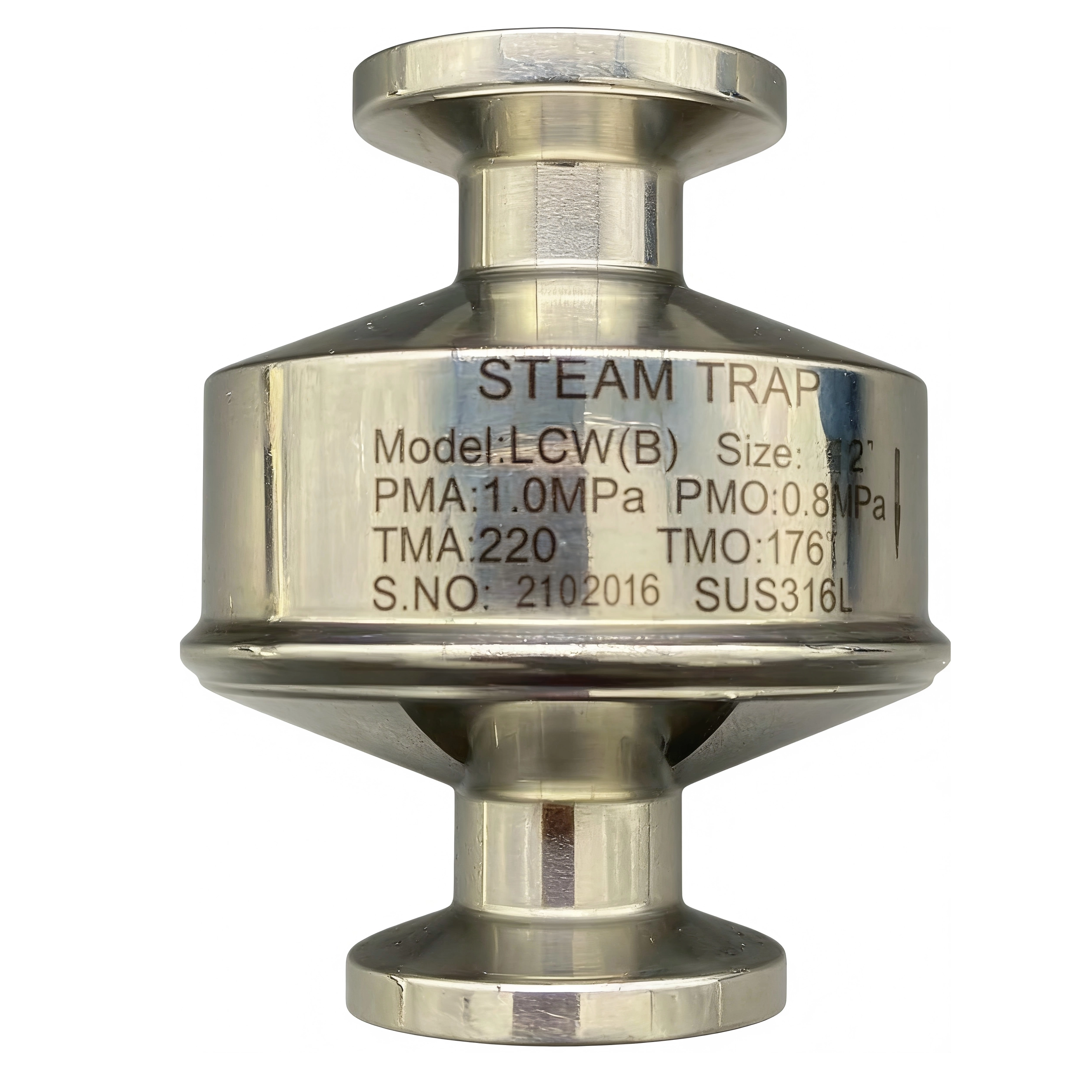

steam traps are available in balanced pressure type and capsule type, adaptable to different pressure ratings. Specifications cover various connection methods, and materials include SS304 and SS316. They feature quick start-up, good venting, corrosion resistance, energy saving, and stable operation.
The steam trap achieves automatic drainage through a temperature-controlled element. When condensate forms in the steam pipe, the element senses that the temperature is below the steam saturation temperature, and the valve opens to discharge condensate and air from the pipe. When steam arrives, the element expands due to heat, closing the valve to prevent steam leakage. This steam trap features a serviceable design, allowing internal components to be disassembled and replaced without removing the entire valve body, thus reducing downtime. Through this cycle, the system achieves efficient drainage, energy-saving operation, and ensures stable and reliable steam piping.
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Made from high-quality stainless steel, ensuring excellent corrosion resistance and long service life in high-temperature steam applications.
Thermostatic mechanism provides precise condensate discharge while automatically venting air and non-condensable gases.
Designed as a repair kit, allowing easy replacement of internal components without full trap removal, reducing downtime.
Compact and robust construction ensures reliable performance under fluctuating pressure and temperature conditions.
Simple and durable internal design minimizes maintenance frequency and ensures consistent, energy-efficient operation in industrial steam systems.
steam traps are widely used in the food and beverage, pharmaceutical, dairy, chemical, and paper industries. For example, in steam jacketed pipelines in pharmaceutical workshops, they are used to drain condensate, ensuring stable temperatures in reactors and heat exchangers, while also facilitating online replacement of internal components and minimizing downtime.
Working Principles
The steam trap achieves automatic drainage through a temperature-controlled element. When condensate forms in the steam pipe, the element senses that the temperature is below the steam saturation temperature, and the valve opens to discharge condensate and air from the pipe. When steam arrives, the element expands due to heat, closing the valve to prevent steam leakage. This steam trap features a serviceable design, allowing internal components to be disassembled and replaced without removing the entire valve body, thus reducing downtime. Through this cycle, the system achieves efficient drainage, energy-saving operation, and ensures stable and reliable steam piping.
Feature and Specification
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Made from high-quality stainless steel, ensuring excellent corrosion resistance and long service life in high-temperature steam applications.
Thermostatic mechanism provides precise condensate discharge while automatically venting air and non-condensable gases.
Designed as a repair kit, allowing easy replacement of internal components without full trap removal, reducing downtime.
Compact and robust construction ensures reliable performance under fluctuating pressure and temperature conditions.
Simple and durable internal design minimizes maintenance frequency and ensures consistent, energy-efficient operation in industrial steam systems.
Application
steam traps are widely used in the food and beverage, pharmaceutical, dairy, chemical, and paper industries. For example, in steam jacketed pipelines in pharmaceutical workshops, they are used to drain condensate, ensuring stable temperatures in reactors and heat exchangers, while also facilitating online replacement of internal components and minimizing downtime.
