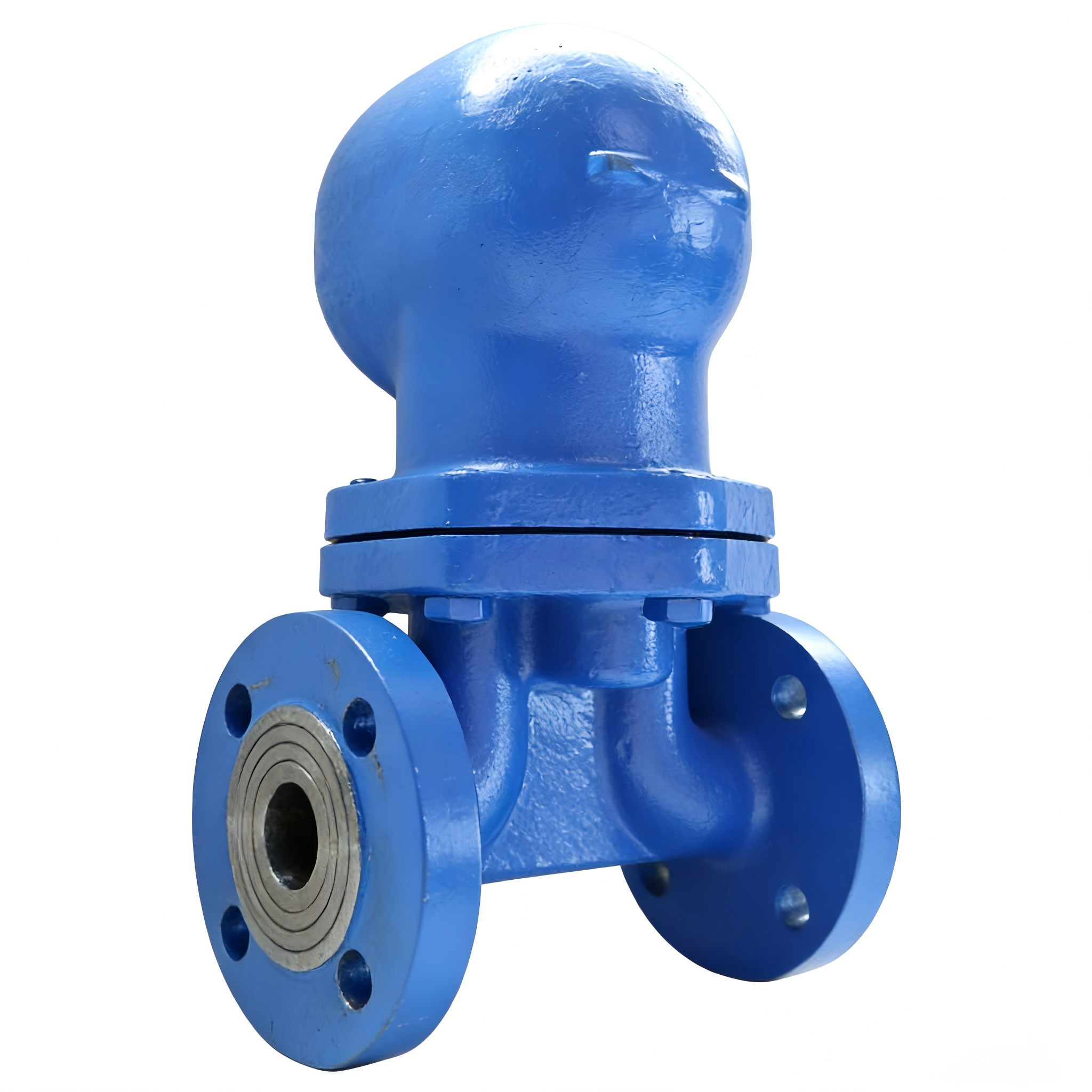

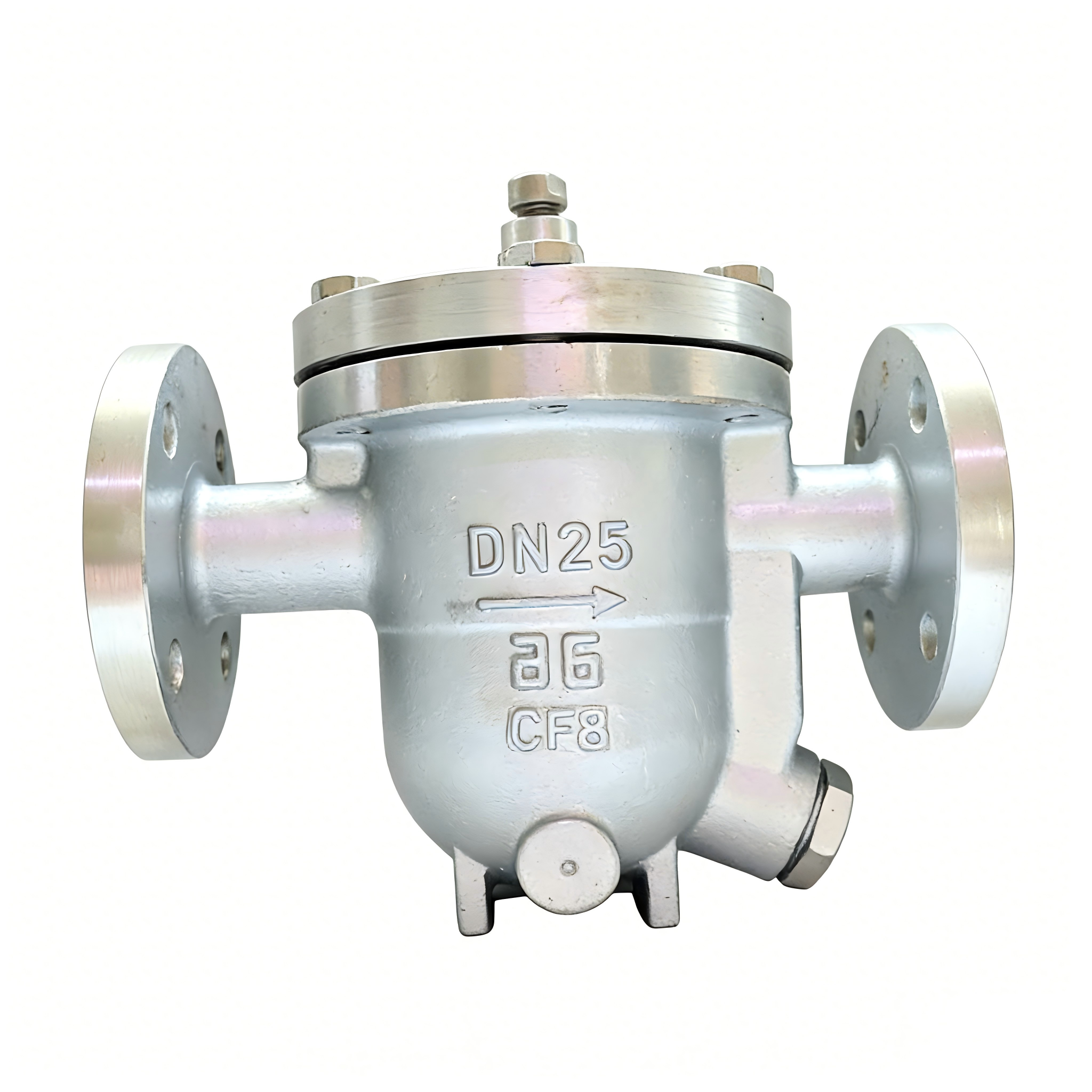

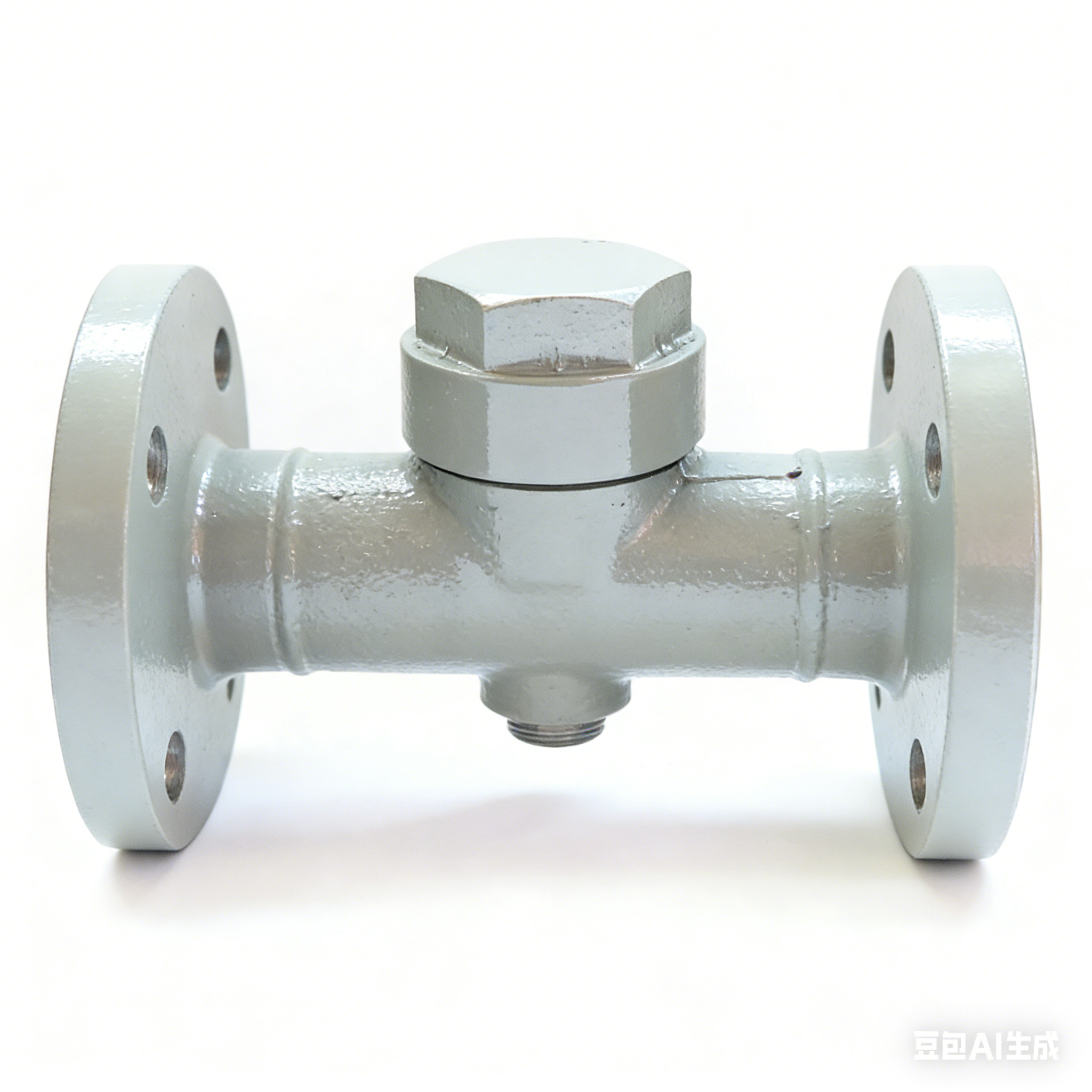

STAINLESS STEEL Spirax Sarco Analyzer 3/4” Wireless Monitor Steam Trap
steam traps It uses stainless steel materials meeting industry-grade standards (e.g., 316/CF8M stainless bodies and internals with pressure‑rated flanges). Dimension standards follow common flange norms such as ANSI/ASME B16.5 (150/300 class) or EN1092 for ¾‑inch flanged connections. The steam trap typically operates across a pressure range up to ~32–40 bar g with design limits often higher (e.g., PMA up to ~40 bar or more depending on model) and handles steam temperatures up to ~400 °C under rated conditions. The wireless monitor integrates sensors capable of monitoring trap performance at typical industrial pipe temperatures.
Working Principles
The stainless steel Spirax Sarco Analyzer 3/4” wireless monitor flange steam trap operates by discharging condensate from the steam system while preventing steam loss. Condensate enters the trap, and a mechanical or thermostatic element inside opens to allow fluid to exit. When live steam reaches the trap, the element closes tightly, maintaining steam in the pipeline. The wireless monitor continuously measures parameters such as temperature, pressure, and trap operation status, transmitting real-time data for analysis and maintenance planning. This combination ensures efficient condensate removal, energy savings, and reliable system performance while enabling remote monitoring in industrial steam applications.
Stainless Steel Steam Ttap Specification Chart
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded/flange |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Wireless monitoring capability allows real-time performance tracking and predictive maintenance of steam traps.
Stainless steel construction provides excellent corrosion resistance and long service life in industrial environments.
Flanged 3/4-inch design ensures easy installation and secure connection in standard pipeline systems.
Efficient condensate removal prevents steam loss while maintaining optimal system pressure and temperature.
Compact and robust design minimizes maintenance requirements and ensures reliable operation under varying conditions.
Application
The stainless steel Spirax Sarco Analyzer 3/4” wireless monitor flange steam trap is widely used in industries that rely on efficient and monitored steam systems. It is commonly applied in chemical plants to track condensate discharge in reactors, in food and beverage factories for steam heating and sterilization lines, and in pharmaceutical facilities where stable steam performance is critical. It is also suitable for power plants, refineries, and large HVAC systems, where wireless monitoring helps reduce energy loss, detect failures early, and optimize maintenance across extensive steam networks.
