It typically follows standard industrial grade and dimension standards (such as EN 1092 for flanges and relevant face‑to‑face norms), with a stainless steel body that meets quality grade requirements for pressure equipment. These traps commonly operate in a pressure range from about 0.1 MPa to around 4.6 MPa (approx. 1–46 bar) and handle steam temperatures up to approximately 400–425 °C, depending on model and flange rating. Flange dimensions conform to typical industrial standards for 2‑inch connections, ensuring compatibility with PN or ANSI rated piping systems.

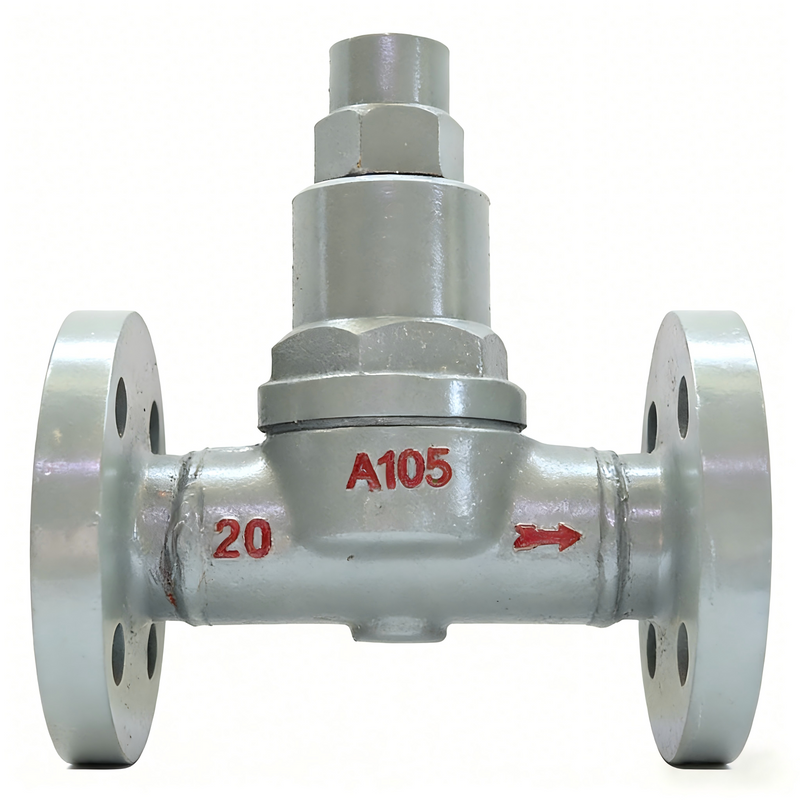

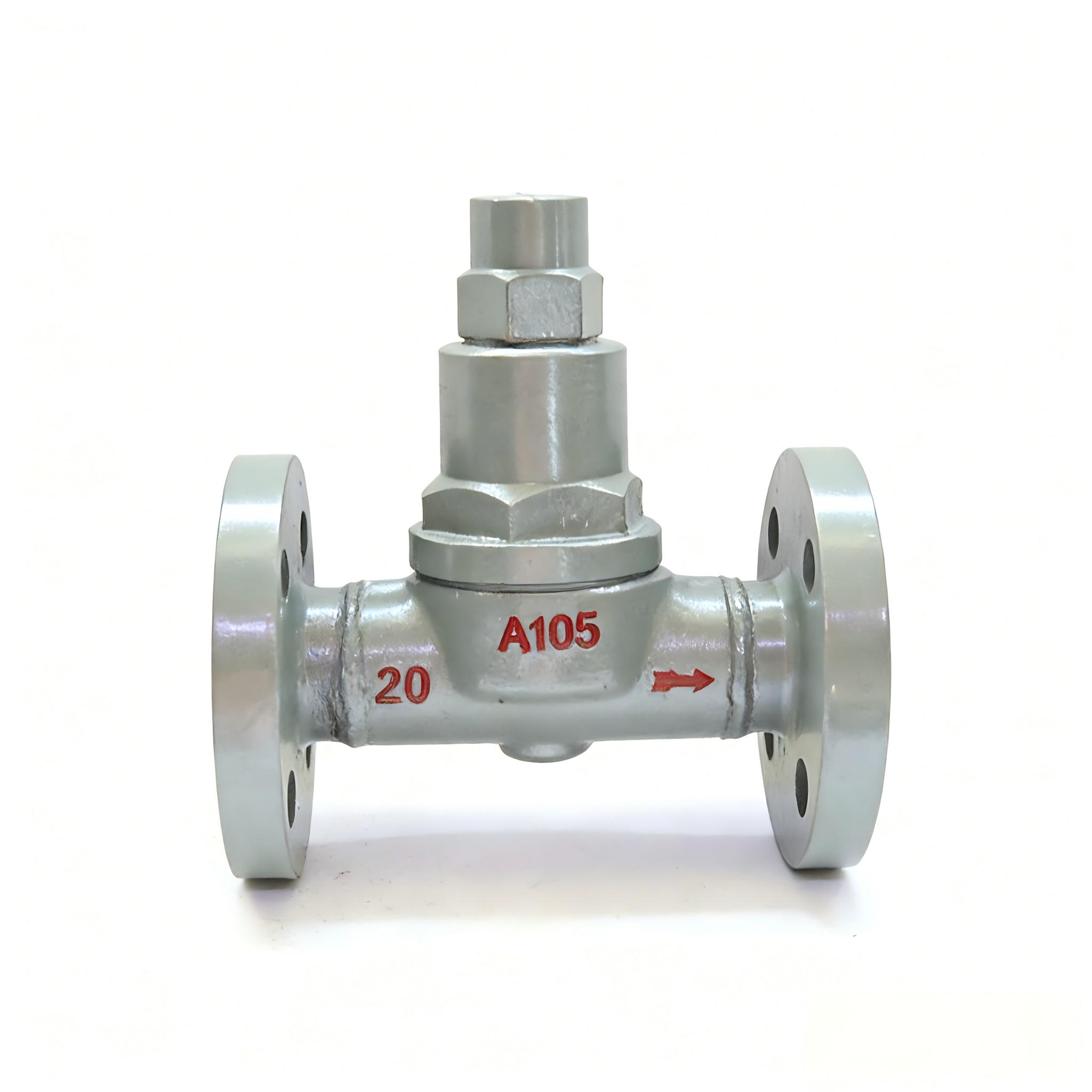

The stainless steel TLV thermodynamic FT44 2-inch test steam flange steam trap operates based on the thermodynamic principle. Steam enters the trap and flows over a flat disc positioned on a seat. When condensate or non-condensable gases reach the trap, the pressure under the disc drops, lifting it and allowing fluid to discharge. As live steam reaches the trap, its higher velocity and pressure cause the disc to close tightly, preventing steam loss. The trap continuously cycles between open and closed positions depending on the presence of condensate, ensuring efficient removal of condensate while maintaining steam in the system. Its simple design allows reliable operation under varying pressures and temperatures.
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Thermodynamic disc design ensures rapid condensate discharge while preventing live steam loss.
Stainless steel body and internal parts provide excellent corrosion resistance and long service life.
Compact flange-mounted design allows easy installation and replacement in 2-inch piping systems.
Wide pressure and temperature range enables reliable operation under varying steam conditions.
Simple, rugged construction minimizes maintenance needs and ensures dependable continuous operation.
The stainless steel TLV thermodynamic FT44 2-inch test steam flange steam trap is widely used in industries requiring efficient steam management. It is ideal for food and beverage processing, chemical plants, and pharmaceutical production, where condensate must be removed without steam loss. It is also applied in heating systems, sterilizers, and steam-heated equipment, ensuring consistent temperature control and energy efficiency. Its stainless steel construction makes it suitable for corrosive environments and hygienic applications, providing reliable, low-maintenance operation in demanding industrial processes.
Working Principles
The stainless steel TLV thermodynamic FT44 2-inch test steam flange steam trap operates based on the thermodynamic principle. Steam enters the trap and flows over a flat disc positioned on a seat. When condensate or non-condensable gases reach the trap, the pressure under the disc drops, lifting it and allowing fluid to discharge. As live steam reaches the trap, its higher velocity and pressure cause the disc to close tightly, preventing steam loss. The trap continuously cycles between open and closed positions depending on the presence of condensate, ensuring efficient removal of condensate while maintaining steam in the system. Its simple design allows reliable operation under varying pressures and temperatures.
Feature and Specification
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Thermodynamic disc design ensures rapid condensate discharge while preventing live steam loss.
Stainless steel body and internal parts provide excellent corrosion resistance and long service life.
Compact flange-mounted design allows easy installation and replacement in 2-inch piping systems.
Wide pressure and temperature range enables reliable operation under varying steam conditions.
Simple, rugged construction minimizes maintenance needs and ensures dependable continuous operation.
Application
The stainless steel TLV thermodynamic FT44 2-inch test steam flange steam trap is widely used in industries requiring efficient steam management. It is ideal for food and beverage processing, chemical plants, and pharmaceutical production, where condensate must be removed without steam loss. It is also applied in heating systems, sterilizers, and steam-heated equipment, ensuring consistent temperature control and energy efficiency. Its stainless steel construction makes it suitable for corrosive environments and hygienic applications, providing reliable, low-maintenance operation in demanding industrial processes.
