JONENG
steam trap are available in threaded and flanged types, with various sizes and pressure ratings. They are high-temperature and corrosion-resistant, offer sensitive opening and closing, and provide stable drainage, making them suitable for steam systems.

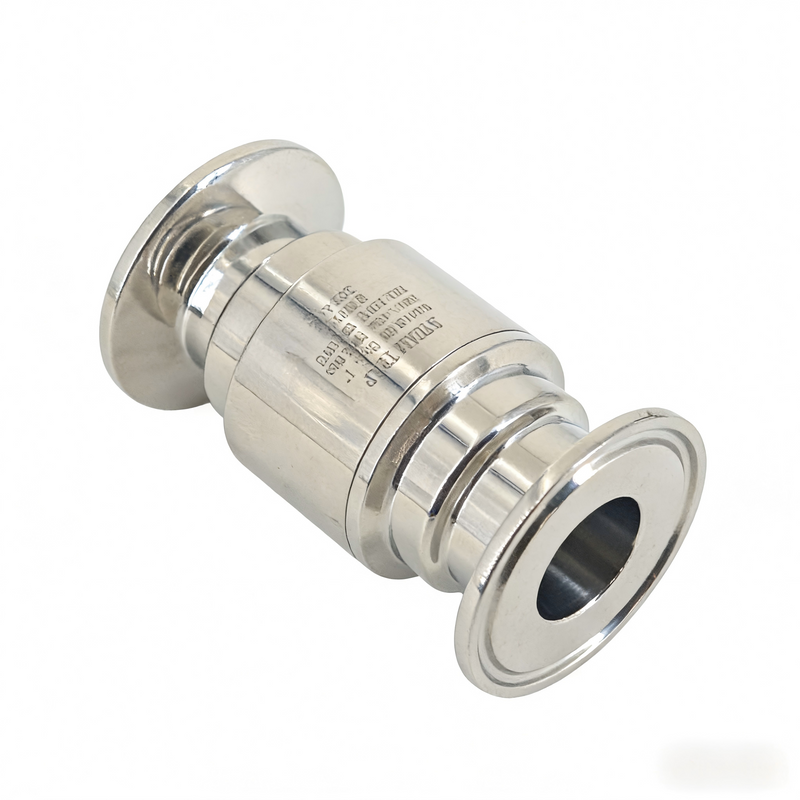

This 317 stainless steel thermodynamic wireless monitoring steam trap operates based on the flow rate and pressure difference between steam and condensate. When condensate and air enter the valve body, the valve plate is opened, and the condensate is quickly discharged. When high-temperature steam arrives, it creates a momentary low-pressure zone above the valve plate, causing the valve plate to close quickly and preventing steam leakage. The valve cycles periodically between opening and closing, achieving efficient condensation. The wireless monitoring module can collect data such as temperature and opening/closing status in real time and transmit it remotely for operation monitoring and energy-saving management.
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Stainless steel body provides excellent corrosion resistance and mechanical strength, ensuring reliable performance in high-temperature steam and condensate applications over extended service life.
Bucket-type thermostatic mechanism enables stable condensate discharge while preventing live steam loss under fluctuating load and pressure conditions.
BPT 13 design allows intermittent, efficient drainage with minimal wear, suitable for continuous-duty industrial steam systems.
Integrated monitoring capability supports condition tracking of trap operation, helping identify blockage, leakage, or failure at an early stage.
Compact structure simplifies installation and maintenance, making it ideal for pipelines, tracing lines, and heat exchange equipment
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
Working Principles
This 317 stainless steel thermodynamic wireless monitoring steam trap operates based on the flow rate and pressure difference between steam and condensate. When condensate and air enter the valve body, the valve plate is opened, and the condensate is quickly discharged. When high-temperature steam arrives, it creates a momentary low-pressure zone above the valve plate, causing the valve plate to close quickly and preventing steam leakage. The valve cycles periodically between opening and closing, achieving efficient condensation. The wireless monitoring module can collect data such as temperature and opening/closing status in real time and transmit it remotely for operation monitoring and energy-saving management.
Feature and Specification
| Body Material | SS304 / SS316L Stainless Steel |
| Connection Type | Clamp / Threaded / Welded |
| Nominal Size | DN15 – DN50 (1/2" – 2") |
| Design Pressure | PN16 / PN25 / PN40 |
| Working Pressure | 16 – 40 bar |
| Working Temperature | 220 – 400°C |
| Applicable Media | Saturated Steam, Condensate |
| Surface Finish | Ra ≤ 0.8 μm |
| Standards | DIN / SMS / ISO / 3A |
Features
Stainless steel body provides excellent corrosion resistance and mechanical strength, ensuring reliable performance in high-temperature steam and condensate applications over extended service life.
Bucket-type thermostatic mechanism enables stable condensate discharge while preventing live steam loss under fluctuating load and pressure conditions.
BPT 13 design allows intermittent, efficient drainage with minimal wear, suitable for continuous-duty industrial steam systems.
Integrated monitoring capability supports condition tracking of trap operation, helping identify blockage, leakage, or failure at an early stage.
Compact structure simplifies installation and maintenance, making it ideal for pipelines, tracing lines, and heat exchange equipment
Application
This steam trap is widely used in food and beverage, pharmaceutical, bioengineering, chemical, and cleanroom piping systems. For example, it is used in pasteurization equipment, reactor jackets, heat exchangers, and steam tracing pipelines to promptly drain condensate, prevent water hammer, improve heating efficiency, and ensure the stability and safety of the production process.
