| Quantity: | |
|---|---|
JN-SV2005
JONENG
8481804090
A control valve is an essential component in fluid control systems, designed to regulate the flow, pressure, and direction of liquids and gases in pipelines. Manufactured from high-grade stainless steel, it offers excellent corrosion resistance, reliable sealing, and long service life. With a compact structure and easy operation, it ensures stable performance and precise control under various working conditions. It is widely applied in food, beverage, pharmaceutical, chemical, and water treatment industries to meet different process requirements.
Working Principles
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
Excellent sealing performance to effectively prevent fluid leakage.
Made of premium stainless steel for high corrosion resistance.
Stable and reliable operation with long service life.
Easy to install, operate and maintain for lower cost.
Compact structure, suitable for various pipeline layouts.
Wide adaptability to different media and working conditions.
Application
Working Principles
Feature and Specification

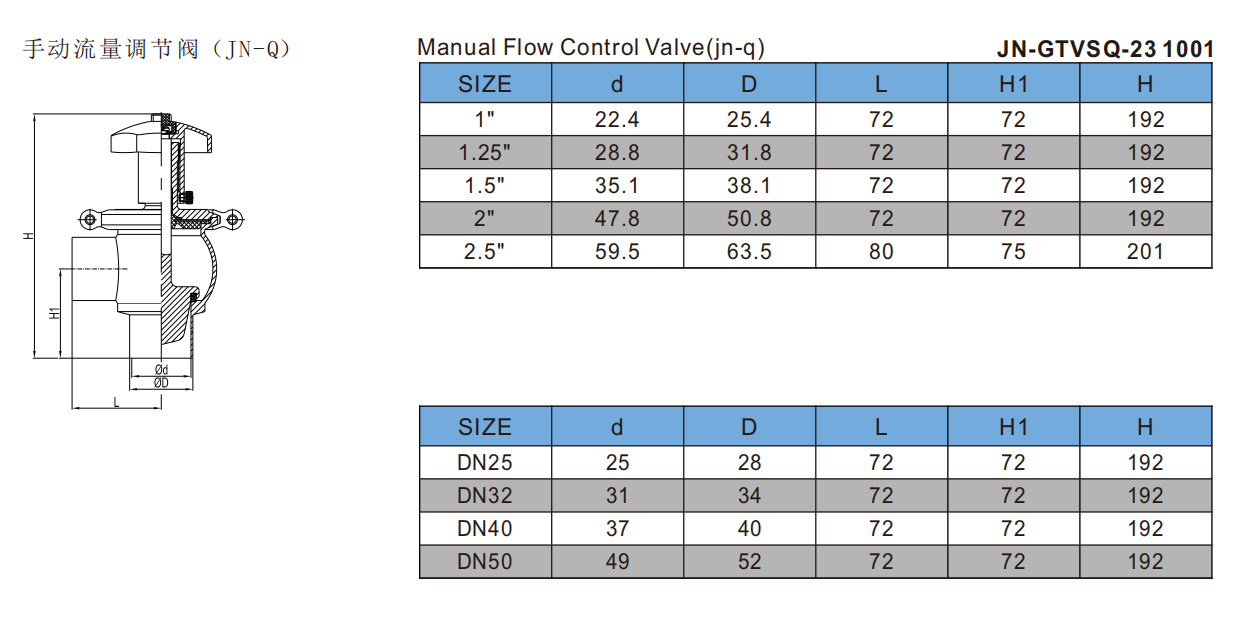

Stainless Steel Control Valve Specification Chart
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
Excellent sealing performance to effectively prevent fluid leakage.
Made of premium stainless steel for high corrosion resistance.
Stable and reliable operation with long service life.
Easy to install, operate and maintain for lower cost.
Compact structure, suitable for various pipeline layouts.
Wide adaptability to different media and working conditions.
Application
Control valves are widely applied in modern industrial production and fluid transportation systems. They are mainly used to regulate the flow, pressure and flow rate of various media such as liquids, gases and steam. With their stable performance and reliable structure, they can meet the strict requirements of food, beverage, pharmaceutical, chemical, water treatment, petrochemical and other industries. They play an important role in ensuring safe production, improving process efficiency and maintaining stable system operation.
