| Quantity: | |
|---|---|

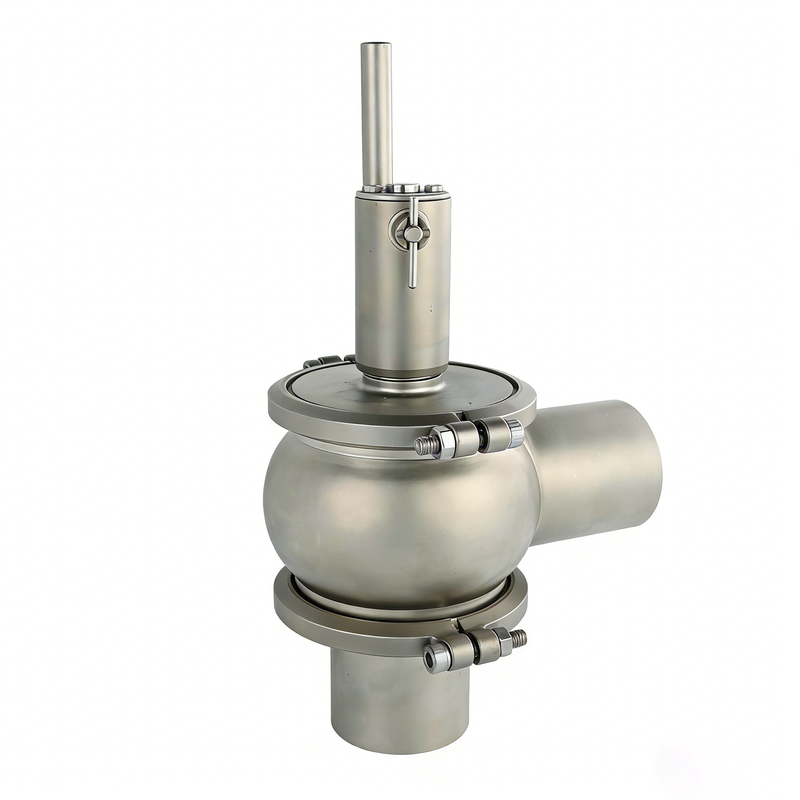

JN-SV2005
JONENG
8481804090
The working principle of a control valve is based on adjusting the flow passage area to control fluid parameters. Driven by a manual lever or an actuator, the valve core (or spherical plug) inside the valve body moves or rotates to change the opening degree between the valve core and the valve seat. When the opening increases, the fluid resistance decreases, allowing a larger flow rate; when the opening decreases, the fluid resistance increases, reducing the flow rate accordingly. This adjustment process enables precise control of fluid flow, pressure, and temperature in the pipeline, ensuring the stability and efficiency of the entire process system, with reliable sealing performance to prevent fluid leakage during operation.
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
Precision flow control for accurate regulation of fluid rate and pressure.
High-quality stainless steel construction for corrosion resistance and long service life.
Excellent sealing performance to ensure zero leakage during operation.
Compact and stable structure for easy installation in limited space.
Simple operation and low maintenance requirements, reducing operating costs.
Wide compatibility with various media and suitable for diverse industrial applications.
Application
Working Principles
The working principle of a control valve is based on adjusting the flow passage area to control fluid parameters. Driven by a manual lever or an actuator, the valve core (or spherical plug) inside the valve body moves or rotates to change the opening degree between the valve core and the valve seat. When the opening increases, the fluid resistance decreases, allowing a larger flow rate; when the opening decreases, the fluid resistance increases, reducing the flow rate accordingly. This adjustment process enables precise control of fluid flow, pressure, and temperature in the pipeline, ensuring the stability and efficiency of the entire process system, with reliable sealing performance to prevent fluid leakage during operation.
Feature and Specification
Stainless Steel Control Valve Specification Chart
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
Precision flow control for accurate regulation of fluid rate and pressure.
High-quality stainless steel construction for corrosion resistance and long service life.
Excellent sealing performance to ensure zero leakage during operation.
Compact and stable structure for easy installation in limited space.
Simple operation and low maintenance requirements, reducing operating costs.
Wide compatibility with various media and suitable for diverse industrial applications.
Application
