Stainless Steel Transmission Main Hydraulic Pneumatic Flow Control Valve

Stainless Steel Transmission Main Hydraulic Pneumatic Flow Control Valve


Availability:

Quantity:



Inquire Add to Basket

This industrial-grade control valve integrates precision fluid regulation, robust structural design and versatile adaptability, serving as a core component for stable flow, pressure, temperature and level control in automated process systems. Manufactured with high-strength alloy or stainless steel trim and body, it delivers exceptional corrosion resistance, pressure endurance and sealing reliability for harsh working conditions. Equipped with pneumatic, electric or electro-hydraulic actuators, it supports precise proportional adjustment and remote signal feedback, realizing real-time linkage with DCS/PLC control systems. Featuring a low-turbulence flow path, low wear rate and easy maintenance structure, it minimizes energy consumption and downtime while ensuring consistent process stability. It is widely deployed in petroleum, chemical, water treatment, power generation, food processing and pharmaceutical industries, complying with international standards such as ANSI, DIN and BS to satisfy diverse industrial process control requirements.

Model:
JN-SV2005
Brand:
JONENG
Code:
8481804090

hydraulic control valve pneumatic control valve stainless steel control valve main control valve transmission control valve Flow control valve

Product Description

Working Principles

Feature and Specification

Features

Application

Stainless Steel Transmission Main Hydraulic Pneumatic Flow Control Valve

This industrial-grade control valve integrates precision fluid regulation, robust structural design and versatile adaptability, serving as a core component for stable flow, pressure, temperature and level control in automated process systems. Manufactured with high-strength alloy or stainless steel trim and body, it delivers exceptional corrosion resistance, pressure endurance and sealing reliability for harsh working conditions. Equipped with pneumatic, electric or electro-hydraulic actuators, it supports precise proportional adjustment and remote signal feedback, realizing real-time linkage with DCS/PLC control systems. Featuring a low-turbulence flow path, low wear rate and easy maintenance structure, it minimizes energy consumption and downtime while ensuring consistent process stability. It is widely deployed in petroleum, chemical, water treatment, power generation, food processing and pharmaceutical industries, complying with international standards such as ANSI, DIN and BS to satisfy diverse industrial process control requirements.

Working Principles

未标题-1

The control valve functions as a throttling and regulating element in a process loop. Signals from a controller (DCS/PLC) are transmitted to its pneumatic, electric or electro-hydraulic actuator, which converts the control signal into mechanical displacement to drive the valve stem and trim assembly.

As the plug, ball or disc moves relative to the valve seat, it variably restricts the flow passage, dynamically adjusting flow rate, pressure, temperature or liquid level to match the set process parameter. A built-in positioner ensures accurate positioning and stable action, reducing hysteresis and overshoot.

Sealing components maintain tight shut‑off and prevent external leakage during operation, while the streamlined flow path reduces cavitation, noise and erosion. The valve continuously modulates its opening in real time to maintain stable process conditions under fluctuating inlet pressure or load demands.

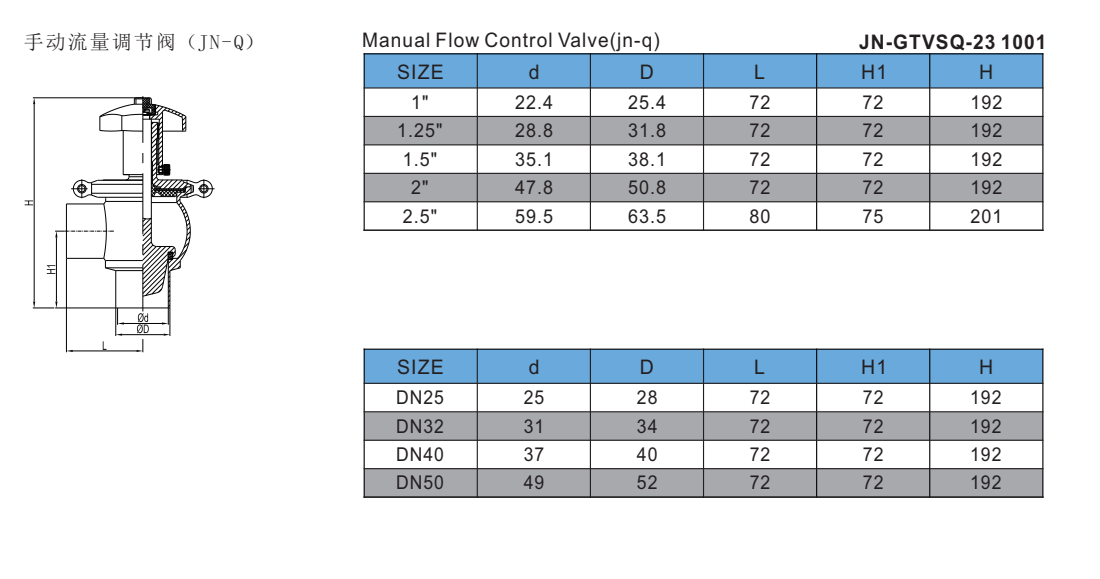

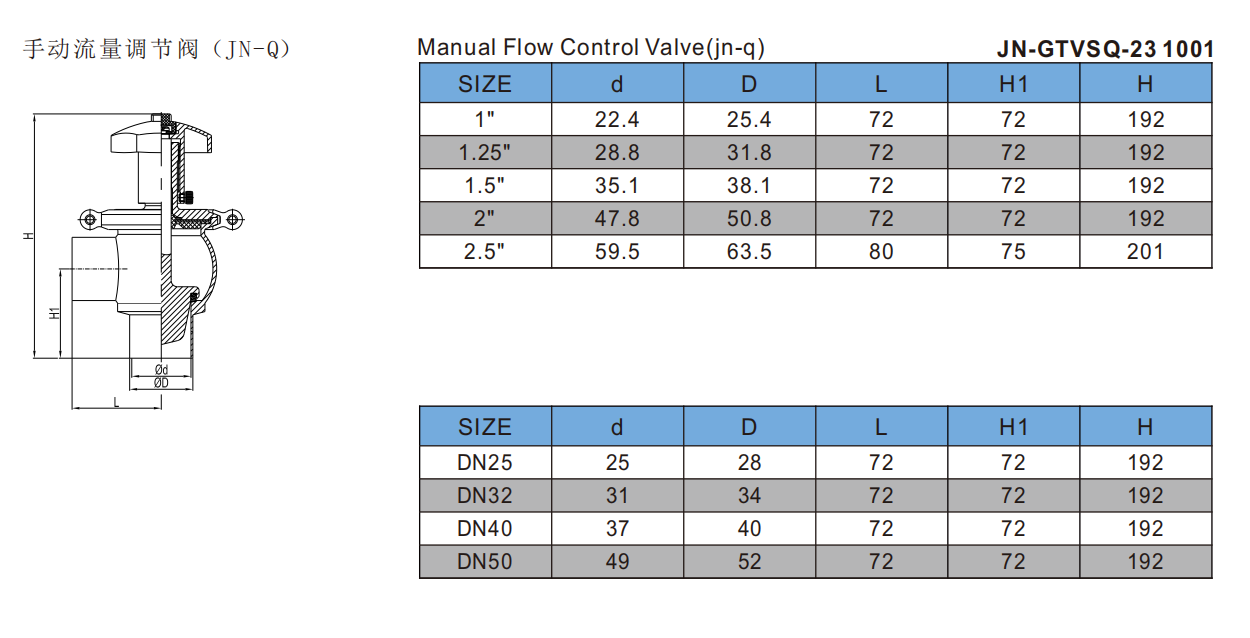

Stainless Steel Control Valve Specification Chart

1f681dd2-7196-4149-a055-fd73dd91d07b

未标题-1

Working Temperature	-10 ° to 120 °
Pressure	10bar
Work operate	Manual, pneumatic type
Gasket	EPDM, Silicone, Viton according to FDA 177.2600
Valve body type	LL, LT, TL and TT type
Connection mode	Clamped, welded, male threaded, female threaded, flange end, union connection
Specification	1/2"-4", DN15-DN100
Material quality	SUS304, SUS316L
Surface	Mirror polished,Matte polished or sand blasting type
inner surface	Ra 0.4um to meet the requirement of food industries
Standard	SMS,DIN,3A,ISO,RJT and so on
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose )
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator.
External position sensors is available if needed
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
C top control unit is available if needed.

Features

未标题-1

Supports pneumatic, electric, and electro-hydraulic actuation for seamless integration with diverse automated control systems.
Equipped with a dedicated valve positioner to deliver accurate stroke control, low hysteresis, and stable throttling performance.
Fabricated from stainless steel, alloy steel, or specialty corrosion-resistant materials, suitable for aggressive media and harsh environments.
Optimized flow path and specialized trim structure minimize cavitation, erosion, and flow noise for long service life.
Engineered to handle extreme operating pressures and temperatures, ensuring stable performance under variable working conditions.
Modular construction, interchangeable internal parts, and compliance with ANSI/DIN/BS standards simplify assembly, repair, and replacement.

Application

This control valve is extensively applied across petrochemical, oil refining, chemical processing, power generation, water treatment, food and beverage, and pharmaceutical sectors, delivering stable and precise regulation of flow, pressure, temperature and liquid level in continuous automated production lines, and adapting to diverse media including corrosive fluids, high-temperature steam, viscous slurries and sterile process streams to meet stringent industrial process control requirements.

Working Principles

未标题-1

The control valve functions as a throttling and regulating element in a process loop. Signals from a controller (DCS/PLC) are transmitted to its pneumatic, electric or electro-hydraulic actuator, which converts the control signal into mechanical displacement to drive the valve stem and trim assembly.

As the plug, ball or disc moves relative to the valve seat, it variably restricts the flow passage, dynamically adjusting flow rate, pressure, temperature or liquid level to match the set process parameter. A built-in positioner ensures accurate positioning and stable action, reducing hysteresis and overshoot.

Sealing components maintain tight shut‑off and prevent external leakage during operation, while the streamlined flow path reduces cavitation, noise and erosion. The valve continuously modulates its opening in real time to maintain stable process conditions under fluctuating inlet pressure or load demands.

Feature and Specification

未标题-1

772769a7-1ccd-47fb-9a2f-dfa9111a2961

Stainless Steel Control Valve Specification Chart

未标题-1

Working Temperature	-10 ° to 120 °
Pressure	10bar
Work operate	Manual, pneumatic type
Gasket	EPDM, Silicone, Viton according to FDA 177.2600
Valve body type	LL, LT, TL and TT type
Connection mode	Clamped, welded, male threaded, female threaded, flange end, union connection
Specification	1/2"-4", DN15-DN100
Material quality	SUS304, SUS316L
Surface	Mirror polished,Matte polished or sand blasting type
inner surface	Ra 0.4um to meet the requirement of food industries
Standard	SMS,DIN,3A,ISO,RJT and so on
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose )
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator.
External position sensors is available if needed
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
C top control unit is available if needed.

Features

未标题-1

Supports pneumatic, electric, and electro-hydraulic actuation for seamless integration with diverse automated control systems.
Equipped with a dedicated valve positioner to deliver accurate stroke control, low hysteresis, and stable throttling performance.
Fabricated from stainless steel, alloy steel, or specialty corrosion-resistant materials, suitable for aggressive media and harsh environments.
Optimized flow path and specialized trim structure minimize cavitation, erosion, and flow noise for long service life.
Engineered to handle extreme operating pressures and temperatures, ensuring stable performance under variable working conditions.
Modular construction, interchangeable internal parts, and compliance with ANSI/DIN/BS standards simplify assembly, repair, and replacement.

Application

This control valve is extensively applied across petrochemical, oil refining, chemical processing, power generation, water treatment, food and beverage, and pharmaceutical sectors, delivering stable and precise regulation of flow, pressure, temperature and liquid level in continuous automated production lines, and adapting to diverse media including corrosive fluids, high-temperature steam, viscous slurries and sterile process streams to meet stringent industrial process control requirements.
