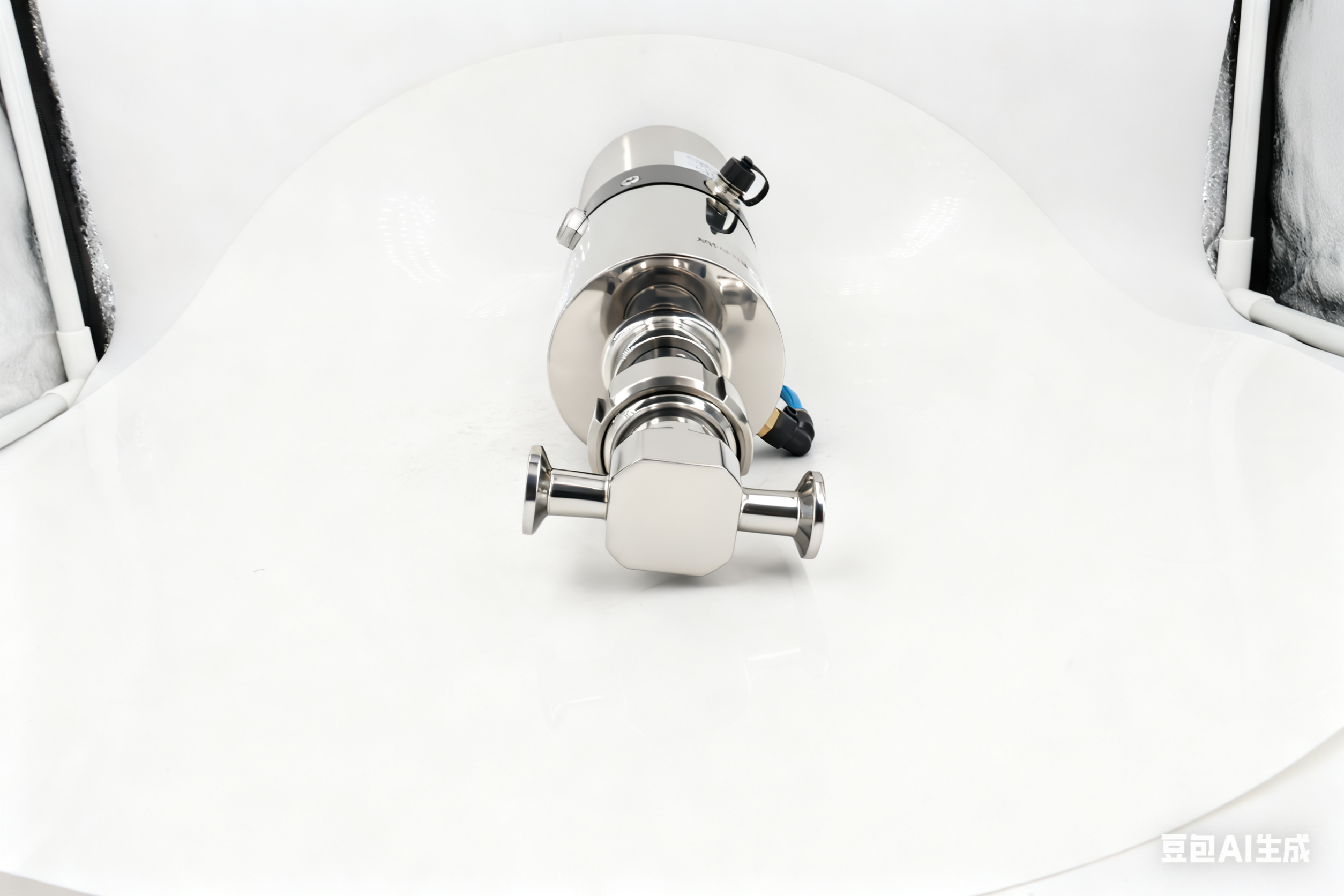

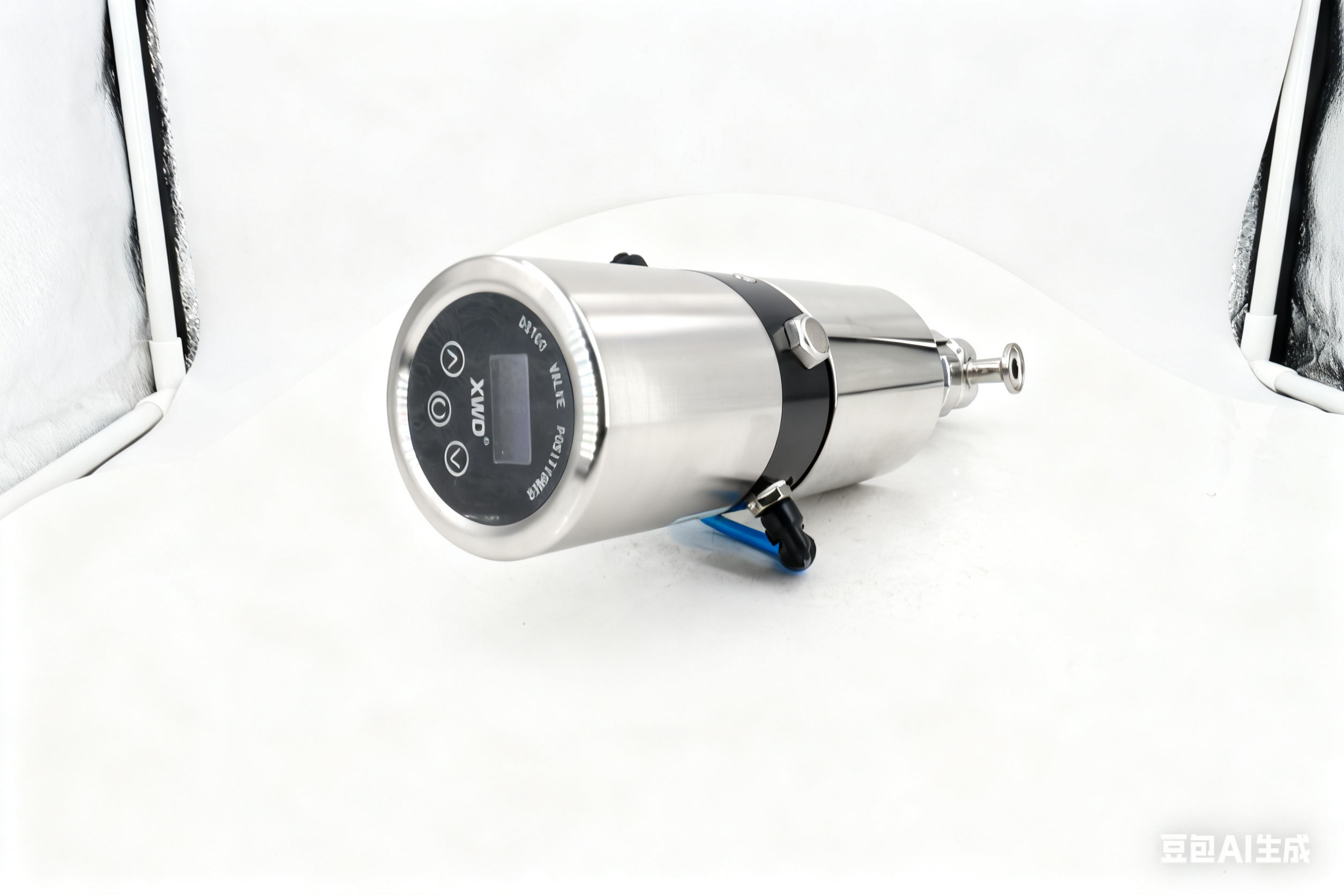

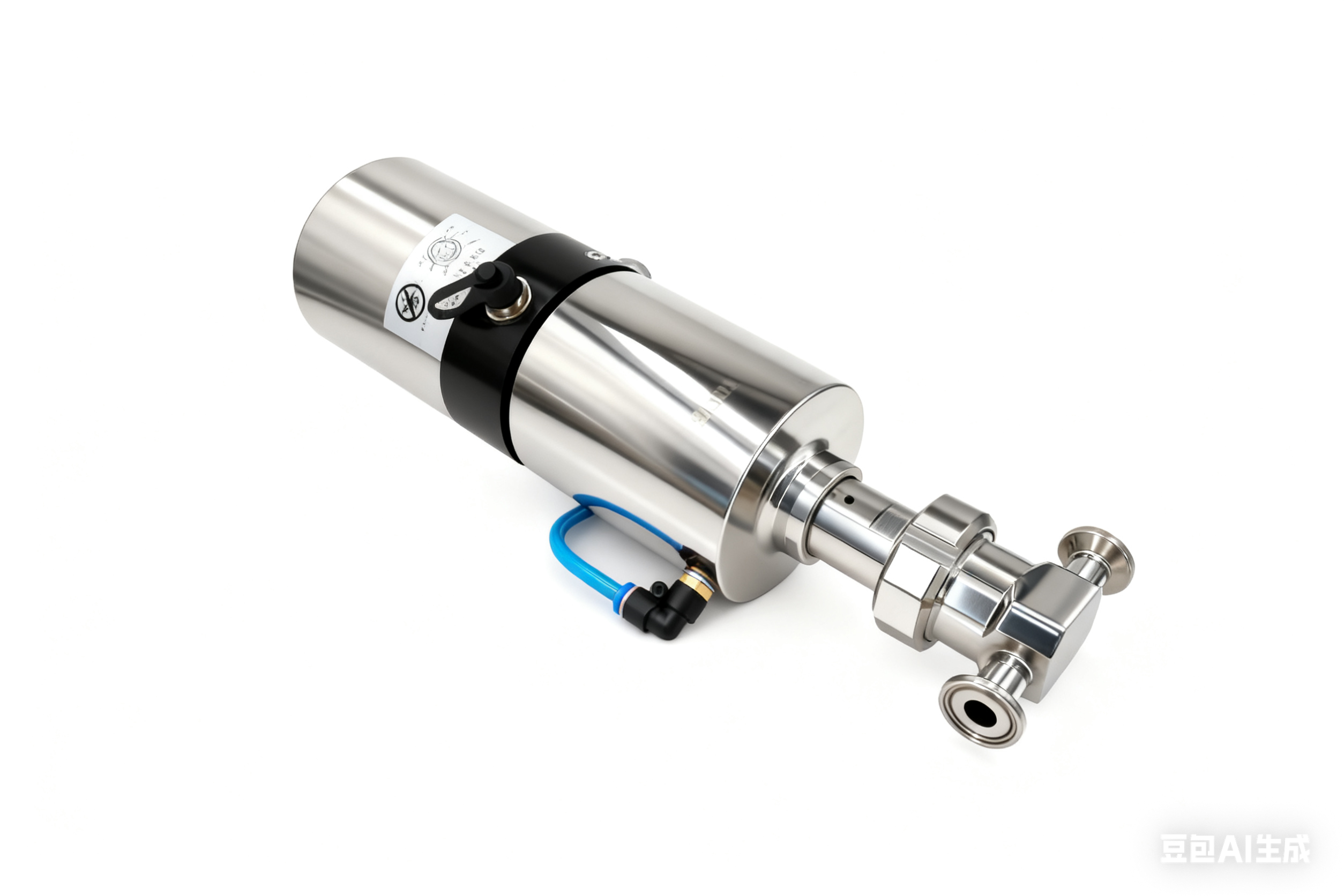

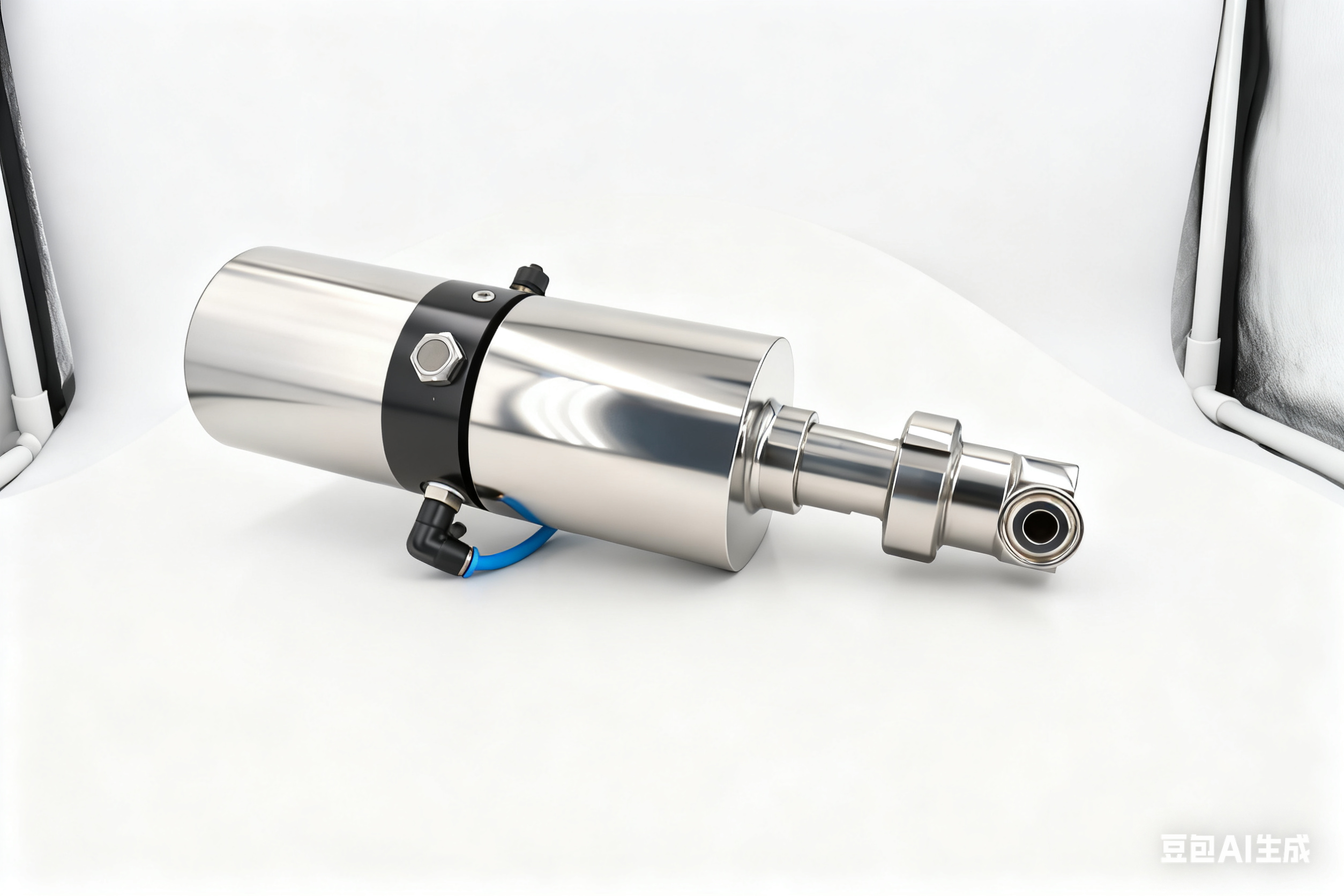

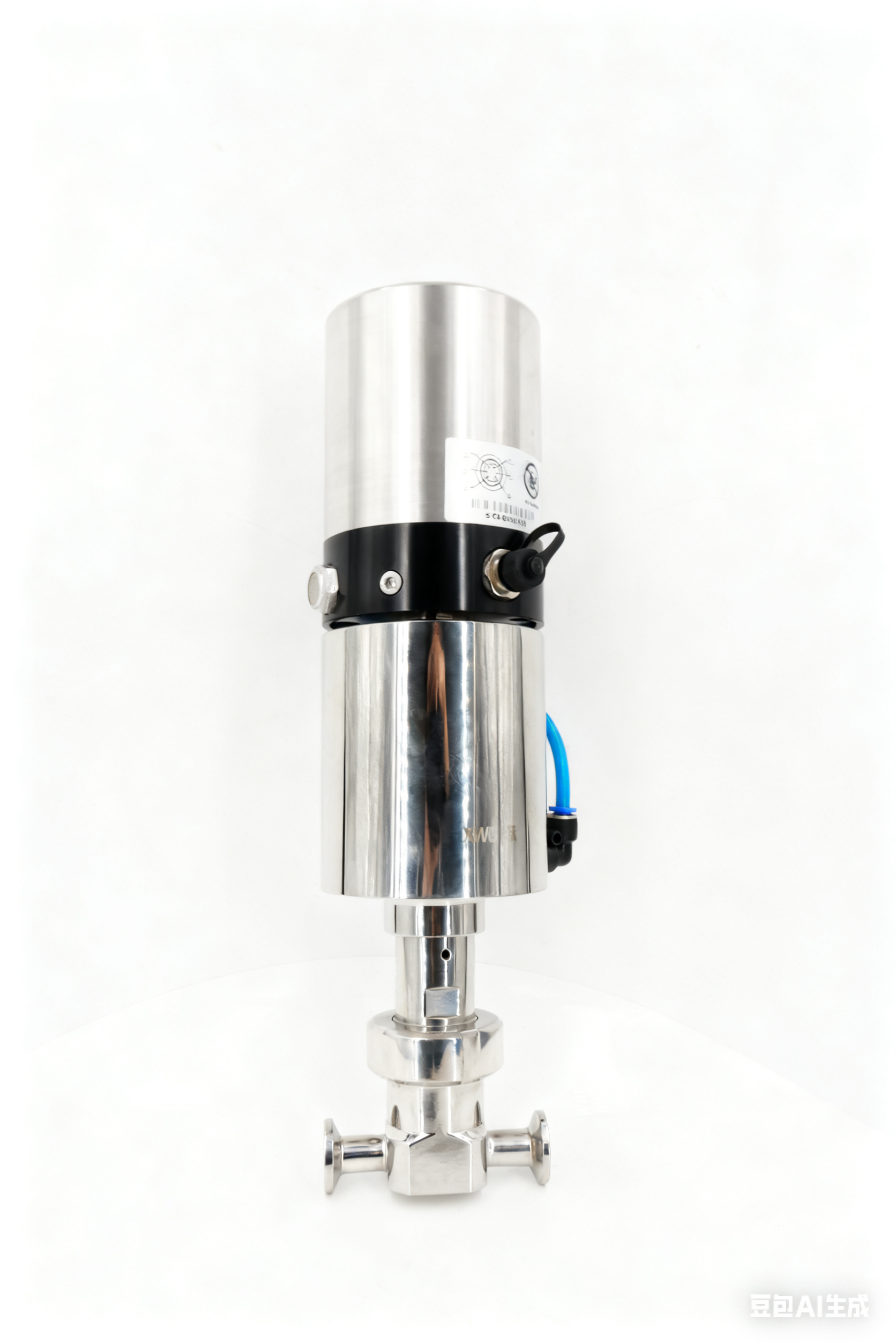

Stainless Steel Food Grade Pneumatic Diverter Flow Regulating Valve
It is a precision fluid control device made of stainless steel, driven by pneumatic power. Designed for small-flow applications, it features external thread connections for easy installation. With excellent corrosion resistance and high control accuracy, it is widely used in industries such as chemical, pharmaceutical, and semiconductor for precise regulation of fluid flow.
Working Principles
The working principle of the stainless steel pneumatic small-flow external thread control valve is as follows: It relies on pneumatic pressure to actuate the valve stem, which in turn drives the valve core to move within the valve body. By changing the gap between the valve core and the valve seat, the flow area of the fluid is adjusted, thus precisely controlling the small flow rate of the medium passing through. The external thread design enables convenient connection to the pipeline system. Meanwhile, the stainless steel material ensures good corrosion resistance, making the valve suitable for various harsh fluid control environments in industries like chemical, pharmaceutical, and electronics.
Specification Chart
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
● The stainless steel sanitary quick-install pneumatic reversing valve adopts a spherical valve body structure, which reduces the resistance in the fluid flow and ensures a smooth fluid channel.
● The quick-install connection design of the stainless steel sanitary quick-install pneumatic reversing valve eliminates the dead corners in the valve body, which is convenient for quick disassembly and cleaning.
● The stainless steel sanitary quick-install pneumatic reversing valve adopts a pneumatic double-acting actuator, which can achieve precise control and fast switching through different air sources.
● The stainless steel sanitary quick-install pneumatic reversing valve is designed with a larger fluid channel, which is suitable for the delivery of high-flow and high-viscosity fluids.
● The stainless steel sanitary quick-install pneumatic reversing valve design supports two-way fluid flow control, and the flow direction can be flexibly switched according to needs.
● The stainless steel sanitary quick-install pneumatic reversing valve adopts a modular design, which is convenient for replacing and combining different components according to different needs.
Application
Stainless steel sanitary quick-install pneumatic reversing valves are widely used in the following industries: Food processing: used for fluid distribution and switching to ensure hygiene standards. Pharmaceutical industry: control fluid flow direction in drug production to prevent contamination. Beverage industry: used for efficient delivery of juice, beverages and other liquids to ensure hygiene. Cosmetic production: control the flow of raw materials to ensure the purity of the formula. Dairy processing: switch fluids in dairy production to avoid cross contamination. Water treatment industry: used for fluid control in water treatment systems to ensure accurate flow direction switching.
