| Quantity: | |
|---|---|
JN-SV2005
JONENG
8481804090
Workin g Principles
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
Clamp-style connections and smooth internal surfaces meet 3A, DIN, and SMS sanitary standards.

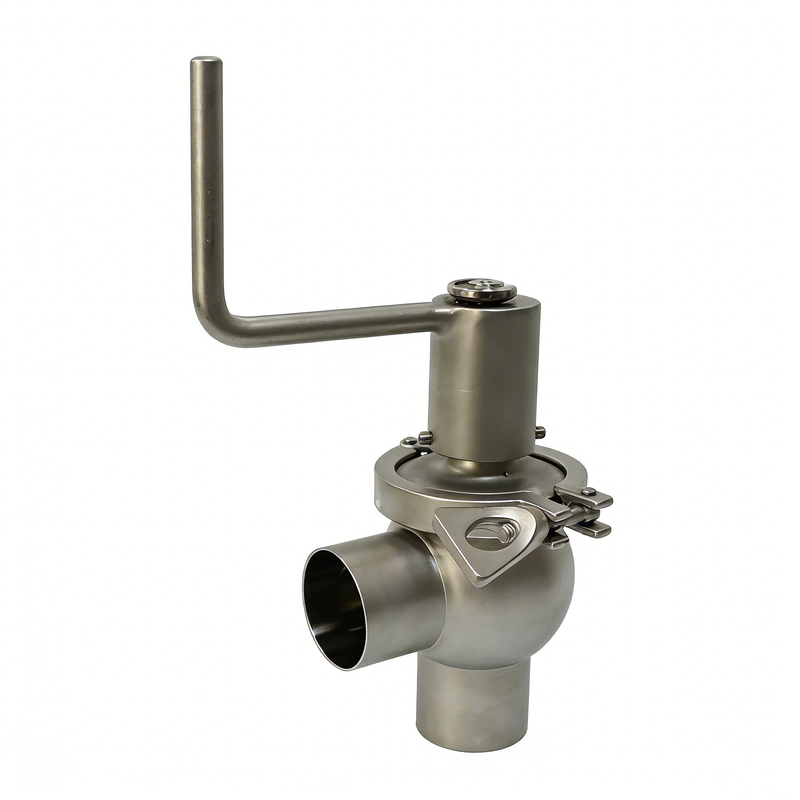

A robust hand lever enables precise, tool-free flow diversion with tactile feedback
Constructed from 304/316L stainless steel for corrosion resistance and long service life.
Tool-free clamp design allows fast cleaning and maintenance to reduce downtime.
Seals made of EPDM or PTFE ensure compatibility with food, beverage, and pharmaceutical fluids.
Space-saving configuration integrates easily into existing process piping systems.
Application
Working Principles
Feature and Specification

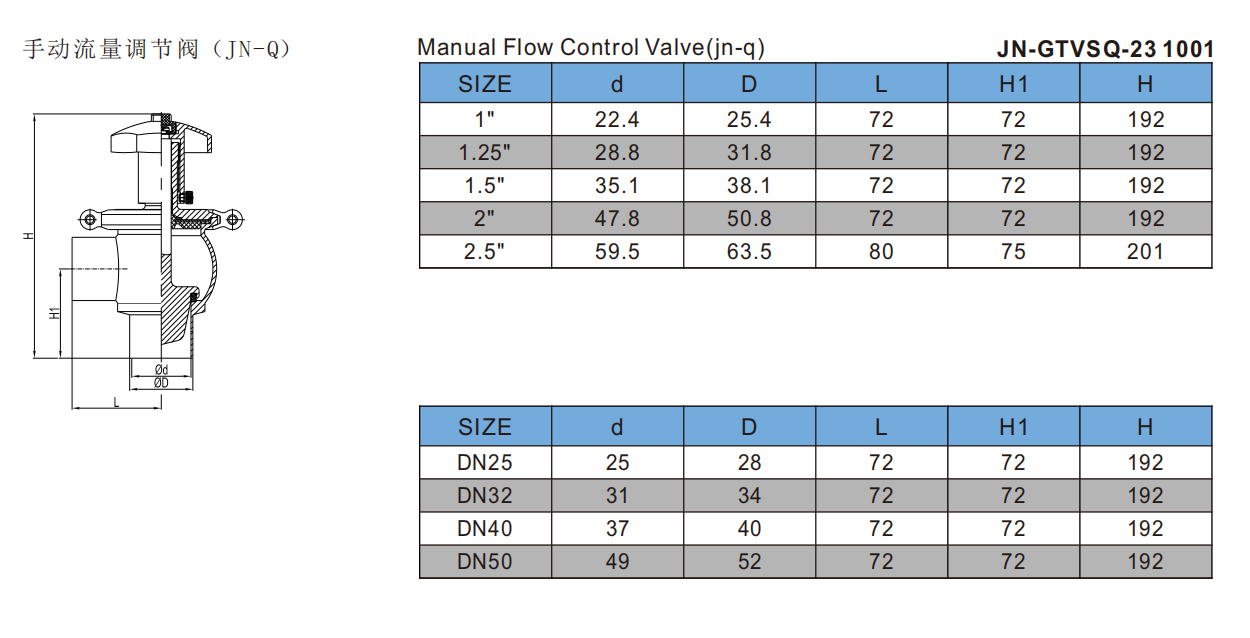

Stainless Steel Control Valve Specification Chart
