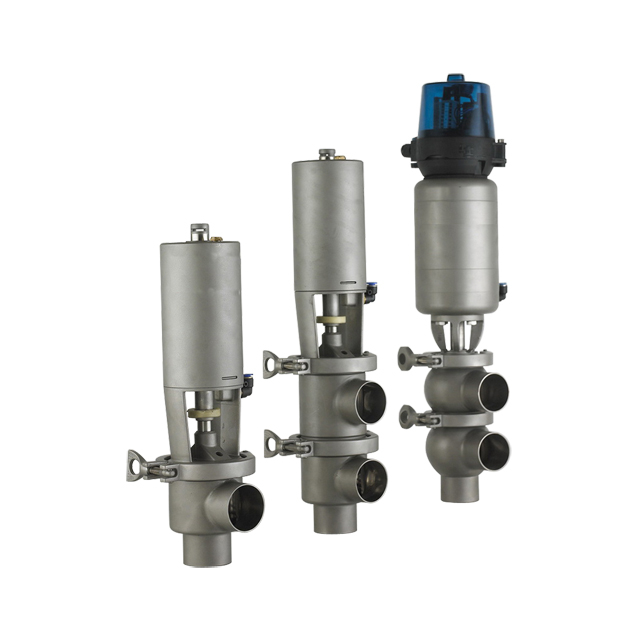

Stainless Steel Sanitary Quick Install Food Grade Reversing Valve
Working Principles
The working principle of the stainless steel sanitary clamp-type pneumatic reversing valve is as follows: it controls the switching of fluid flow directions by virtue of pneumatic actuation.
First, when the control system supplies air pressure via the air source, the air enters the pneumatic chamber inside the valve body and drives the valve core or piston to move. Depending on the direction of the applied air pressure, the valve core shifts the fluid passage position, thereby altering the fluid flow path.
Typically, this valve adopts a two-way pneumatic actuation design, where the valve switching action is realized through air pressure regulation. When the air pressure changes, the valve core automatically reverts to its initial position, closing one passage while opening another, thus achieving precise directional control of the fluid.
The options of the stainless steel sanitary quick-install pneumatic reversing valve include:
Drive mode: single-acting, double-acting pneumatic drive.
Number of channels: 2/2 channels, 3/2 channels, 4/2 channels, 5/2 channels.
Connection mode: quick connection, threaded connection, flange connection.
Sealing material: EPDM, PTFE, Viton.
Operation mode: automatic control, manual operation.
Pressure range: low pressure, high pressure selection.
Specification Chart
Working Temperature | -10 ° to 120 ° |
Pressure | 10bar |
Work operate | Manual, pneumatic type |
Gasket | EPDM, Silicone, Viton according to FDA 177.2600 |
Valve body type | LL, LT, TL and TT type |
Connection mode | Clamped, welded, male threaded, female threaded, flange end, union connection |
Specification | 1/2"-4", DN15-DN100 |
Material quality | SUS304, SUS316L |
Surface | Mirror polished,Matte polished or sand blasting type |
inner surface | Ra 0.4um to meet the requirement of food industries |
| Standard | SMS,DIN,3A,ISO,RJT and so on |
| Required compressed air | 4-8Bar |
| Connection of compressed air | G 1/8’’ |
| Limit switch | 6-36V, DC 2nos of NPN or PNP( to be chose ) |
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator. | |
External position sensors is available if needed | |
Manual or pneumatic actuated or electric actuated are chosen as per the different applications. | |
C top control unit is available if needed. | |
Features
● The stainless steel sanitary quick-install pneumatic reversing valve is equipped with a precise pneumatic drive system that can finely adjust the valve opening to ensure accurate switching of the fluid flow direction.
● The inner and outer surfaces of the stainless steel sanitary quick-install pneumatic reversing valve adopt an electrolytic polishing process to improve the surface finish and anti-pollution ability, and reduce the possibility of fluid residue and bacterial growth.
● The pneumatic drive system design of the stainless steel sanitary quick-install pneumatic reversing valve has the ability to adapt to multiple gas sources, and can operate stably under different pressures and gas source types, providing higher system compatibility.
● The stainless steel sanitary quick-install pneumatic reversing valve adopts a quick-change connector design, which can be disassembled, installed or replaced within a few minutes, saving a lot of maintenance time.
● The stainless steel sanitary quick-install pneumatic reversing valve has a self-sealing function, which automatically adjusts the sealing state during the installation process to avoid leakage problems caused by poor sealing.
● The stainless steel sanitary quick-install pneumatic reversing valve adopts a specially designed sealing ring and valve body structure to ensure leakage-free operation even under high pressure or extreme temperature.
Application
Stainless steel sanitary quick-install pneumatic reversing valves are widely used in the following industries: Food processing: used to control the flow direction of liquids to keep the production line smooth. Pharmaceutical industry: accurately control the fluid path to ensure safe and pollution-free production process. Beverage manufacturing: switch the fluid direction to optimize production efficiency and hygiene requirements. Chemical industry: control the flow direction of chemical raw materials to prevent cross contamination. Water treatment: adjust the water flow direction to ensure stable operation of the system. Dairy production: control the flow of emulsions to prevent bacterial contamination.
