Stainless Steel Proportional Hydraulic Pneumatic Flow Monoblock Control Valve

Stainless Steel Flow Directional Actuator Transmission Monoblock Control Valve


Availability:

Quantity:



Inquire Add to Basket

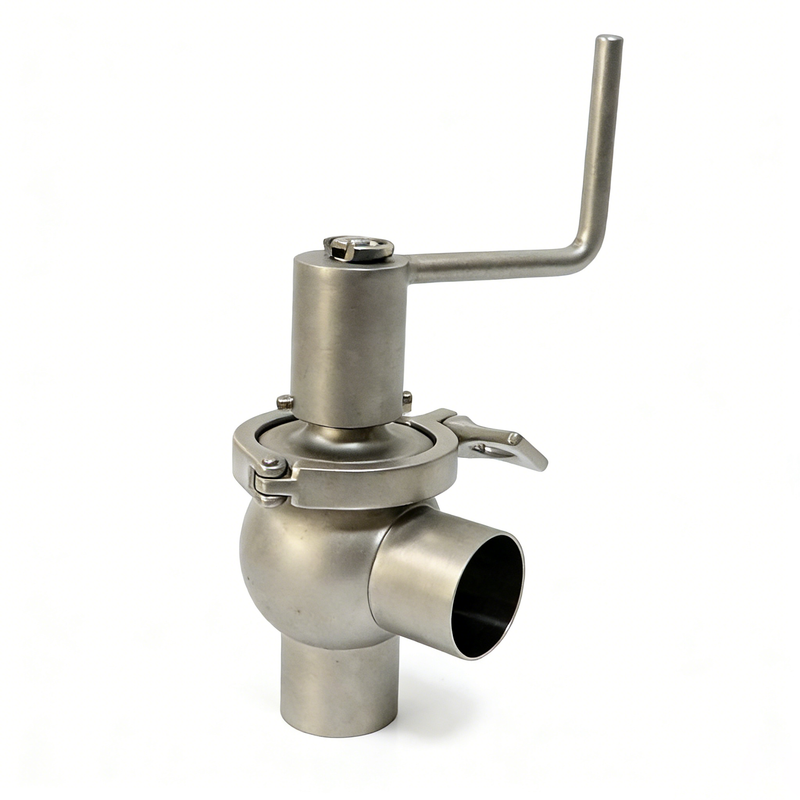

Our sanitary manual divert valve is expertly engineered from 304/316L stainless steel, delivering uncompromising hygiene and reliability for food, beverage, and pharmaceutical processing. The ergonomic L-handle ensures smooth, precise flow diversion, while the tri-clamp design enables tool-free installation and rapid disassembly for effortless cleaning and maintenance. With a crevice-free polished interior that meets 3A and EHEDG standards, this valve is built to prevent contamination, withstand high-pressure and high-temperature conditions, and deliver long-lasting performance in your most critical production workflows.

Model:
JN-SV2005
Brand:
JONENG
Code:
8481804090

Control Valve Directional Valve Stainless steel valve Proportional Valve transmission valve monoblock valve actuator valve

Product Description

Working Principles

Feature and Specification

Features

Application

Stainless Steel Directional Actuator Transmission Flow Monoblock Control Valve

Our sanitary manual divert valve is expertly engineered from 304/316L stainless steel, delivering uncompromising hygiene and reliability for food, beverage, and pharmaceutical processing. The ergonomic L-handle ensures smooth, precise flow diversion, while the tri-clamp design enables tool-free installation and rapid disassembly for effortless cleaning and maintenance. With a crevice-free polished

interior that meets 3A and EHEDG standards, this valve is built to prevent contamination, withstand high-pressure and high-temperature conditions, and deliver long-lasting performance in your most critical production workflows.

Working Principles

未标题-1

This sanitary manual divert valve operates via a simple, robust mechanical mechanism. When the ergonomic L-shaped handle is rotated, it drives a precision-machined plug or ball within the valve body to rotate. This action redirects the fluid flow between the inlet and either of the two outlet ports, allowing for on-demand switching of process streams.

The valve’s crevice-free, polished internal surfaces ensure that the flow path remains smooth and free of dead zones, preventing fluid retention and contamination. Its tri-clamp design maintains a tight, hygienic seal, and the stainless steel construction ensures the mechanism resists corrosion and wear, delivering consistent, reliable performance even under frequent use.

Stainless Steel Control Valve Specification Chart

772769a7-1ccd-47fb-9a2f-dfa9111a2961

未标题-1

Working Temperature	-10 ° to 120 °
Pressure	10bar
Work operate	Manual, pneumatic type
Gasket	EPDM, Silicone, Viton according to FDA 177.2600
Valve body type	LL, LT, TL and TT type
Connection mode	Clamped, welded, male threaded, female threaded, flange end, union connection
Specification	1/2"-4", DN15-DN100
Material quality	SUS304, SUS316L
Surface	Mirror polished,Matte polished or sand blasting type
inner surface	Ra 0.4um to meet the requirement of food industries
Standard	SMS,DIN,3A,ISO,RJT and so on
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose )
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator.
External position sensors is available if needed
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
C top control unit is available if needed.

Features

未标题-1

Constructed from 304/316L stainless steel, ensuring compliance with strict hygiene standards for food, pharmaceutical, and cosmetic applications.

Polished internal surfaces eliminate dead zones and fluid retention, preventing contamination and simplifying cleaning to meet 3A and EHEDG requirements.

The ergonomic L-shaped handle enables smooth, accurate rotation of the internal plug for reliable flow diversion between ports.

Allows for quick installation and disassembly, reducing maintenance time and ensuring a secure, leak-proof seal.

Built to withstand high temperatures, pressures, and corrosive media, delivering long-lasting performance in demanding processing environments.
Enables on-demand switching of process streams, making it suitable for multi-line production setups in food, beverage, and biotech industries.

Application

This sanitary manual divert valve is widely applied in industries requiring strict hygienic standards, including food and beverage, pharmaceuticals, biotechnology, cosmetics and personal care, as well as food-grade chemical processing. It is used for flow diversion and transmission of diverse media such as dairy products, juices, beer, sterile pharmaceuticals, cell culture media, cosmetic creams, food additives and syrups, adapting to production links including mixing, fermentation, filtration, storage and filling to meet flexible and hygienic process control demands.
