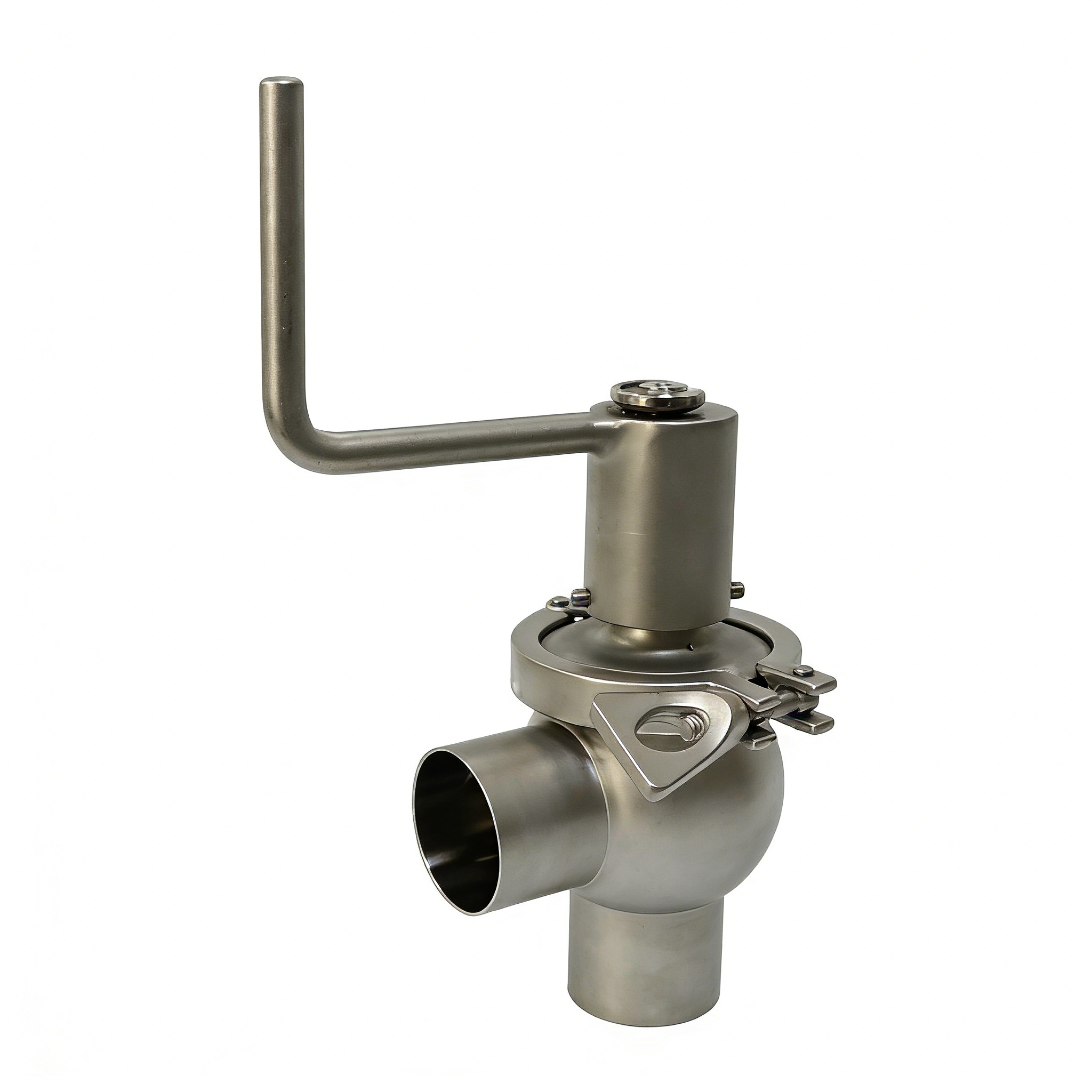

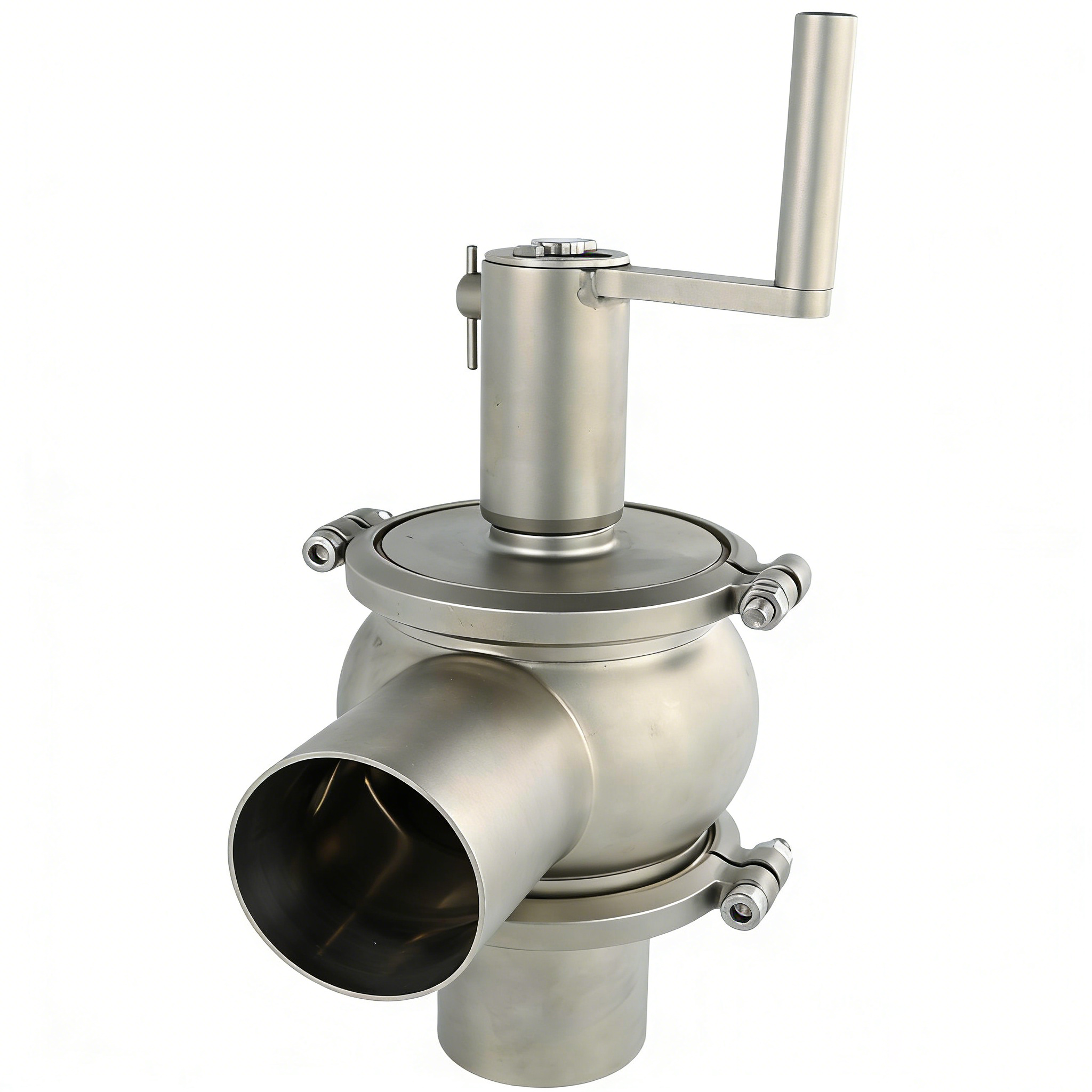

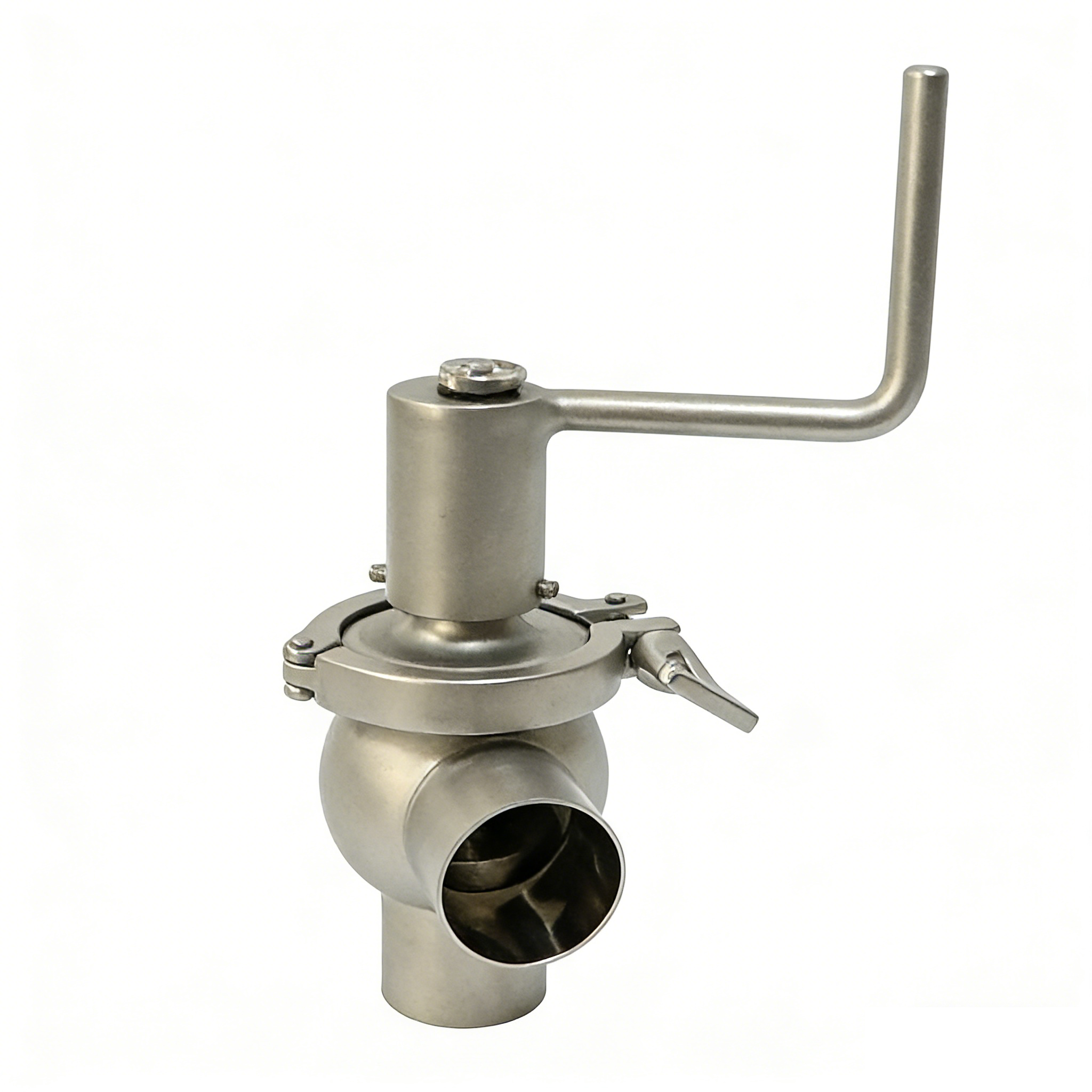

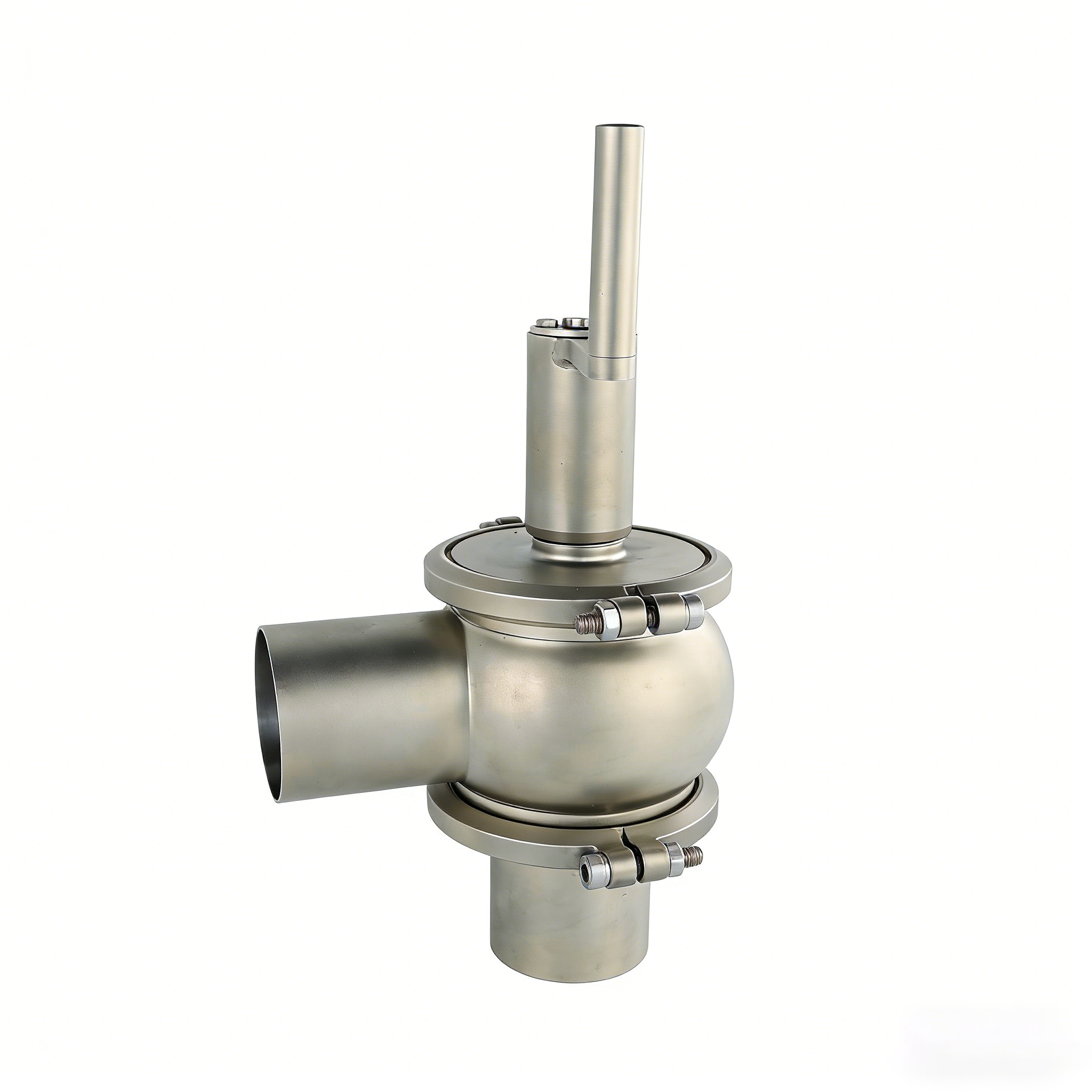

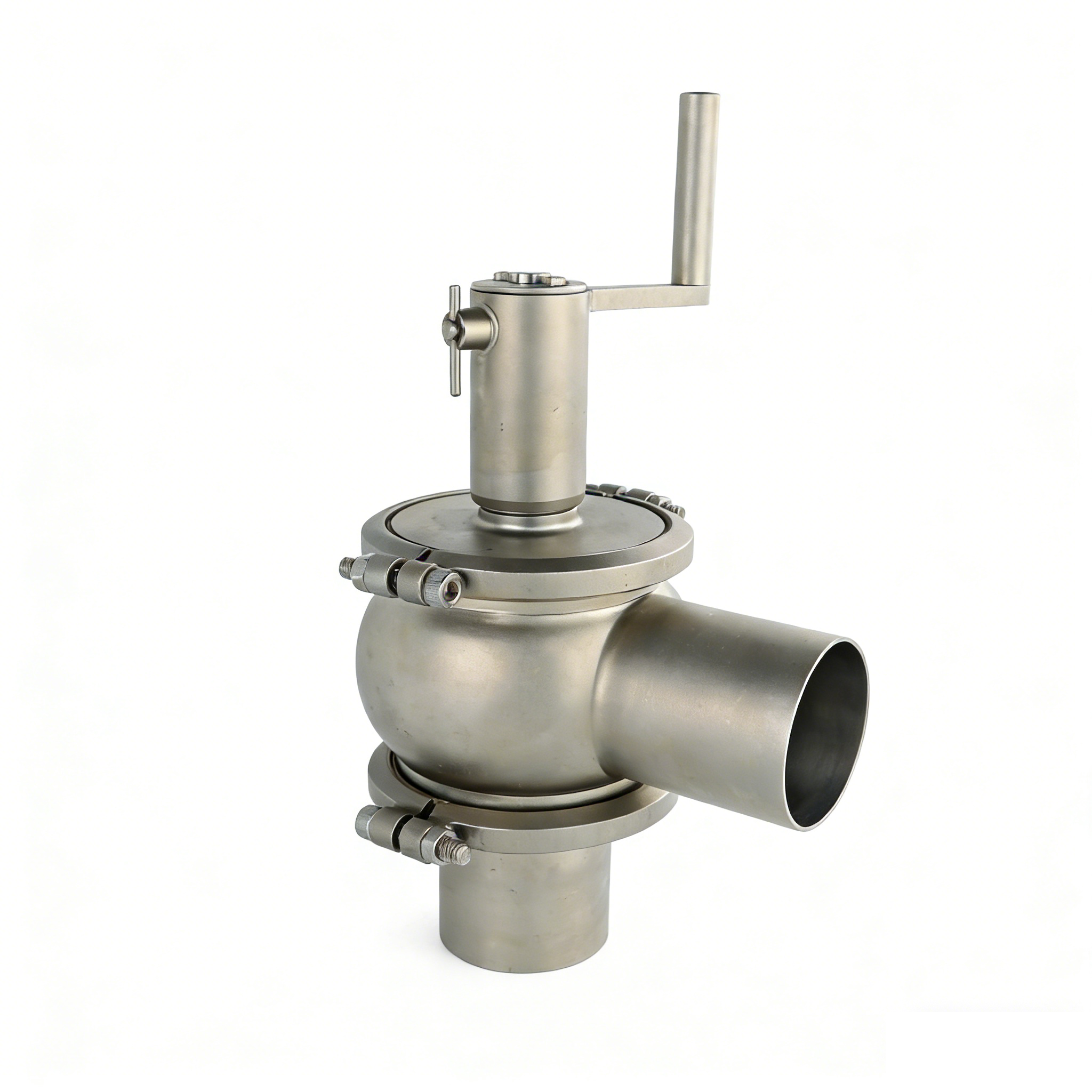

Stainless Steel Air Hydraulic Pneumatic Flow Monoblock Control Valve

Stainless Steel Electric Transmission Automatic Control Valve


Availability:

Quantity:



Inquire Add to Basket

A control valve is a key fluid control device widely used in industrial pipeline systems. It is mainly used to adjust the flow rate, pressure, temperature and flow direction of liquid, gas, steam and other media. Made of high‑quality materials with a compact and reasonable structure, it has the advantages of stable performance, good sealing, long service life and easy operation. It can adapt to different working pressures, temperatures and media conditions, and can be controlled manually or automatically. With high reliability and regulation accuracy, control valves are widely applied in food, beverage, pharmaceutical, chemical, water treatment, petrochemical and other industries, helping to achieve stable, safe and efficient operation of modern industrial production processes.

Model:
JN-SV2005
Brand:
JONENG
Code:
8481804090

Control Valve electric valve automatic valve transmission control valve Stainless steel valve

Product Description

Working Principles

Feature and Specification

Features

Application

Stainless Steel Electric Transmission Automatic Control Valve

A control valve is a key fluid control device widely used in industrial pipeline systems. It is mainly used to adjust the flow rate, pressure, temperature and flow direction of liquid, gas, steam and other media. Made of high‑quality materials with a compact and reasonable structure, it has the advantages of stable performance, good sealing, long service life and easy operation. It can adapt to different working pressures, temperatures and media conditions, and can be controlled manually or automatically. With high reliability and regulation accuracy, control valves are widely applied in food, beverage, pharmaceutical, chemical, water treatment, petrochemical and other industries, helping to achieve stable, safe and efficient operation of modern industrial production processes.

Working Principles

未标题-1

The working principle of a control valve is to adjust the flow area inside the valve body by moving the valve plug or disc. Driven by an actuator or manual force, the internal component changes its position to increase or restrict fluid flow, so as to accurately control the flow rate, pressure and temperature of the medium in the pipeline. This stable and responsive adjustment ensures that the entire system operates under preset parameters, while the reliable sealing structure effectively prevents medium leakage during operation, providing safe and consistent fluid control.

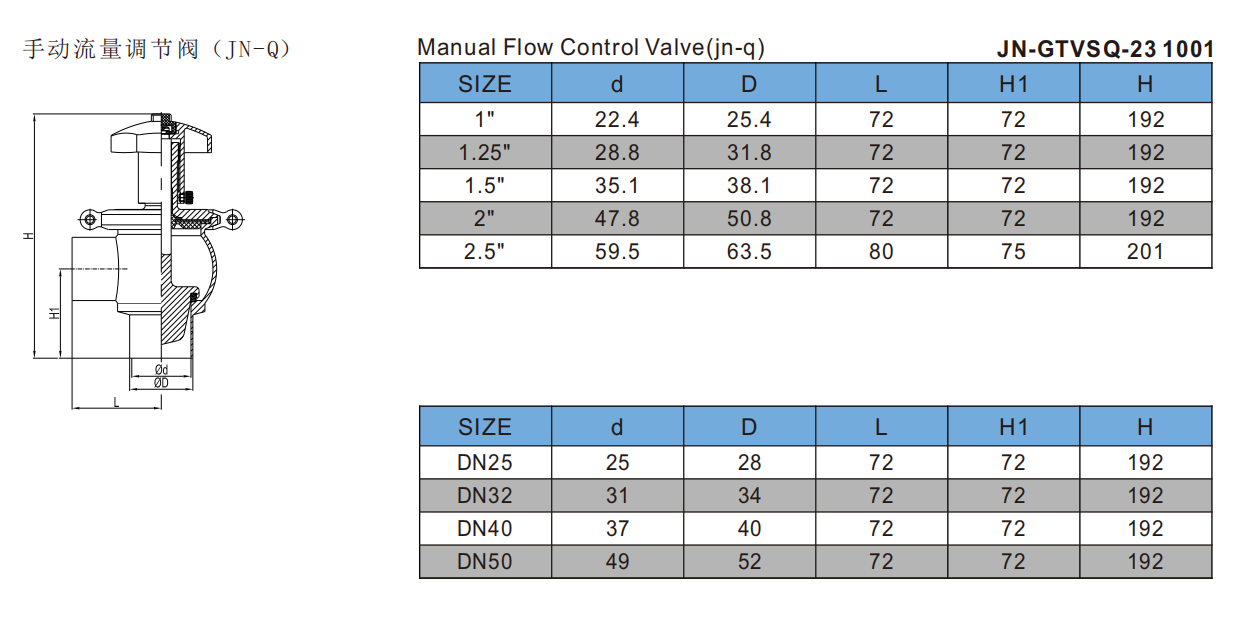

Stainless Steel Control Valve Specification Chart

1f681dd2-7196-4149-a055-fd73dd91d07b

未标题-1

Working Temperature	-10 ° to 120 °
Pressure	10bar
Work operate	Manual, pneumatic type
Gasket	EPDM, Silicone, Viton according to FDA 177.2600
Valve body type	LL, LT, TL and TT type
Connection mode	Clamped, welded, male threaded, female threaded, flange end, union connection
Specification	1/2"-4", DN15-DN100
Material quality	SUS304, SUS316L
Surface	Mirror polished,Matte polished or sand blasting type
inner surface	Ra 0.4um to meet the requirement of food industries
Standard	SMS,DIN,3A,ISO,RJT and so on
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose )
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator.
External position sensors is available if needed
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
C top control unit is available if needed.

Features

未标题-1

Rapid response performance for timely adjustment of fluid parameters.
Pressure-resistant design to adapt to high-pressure working environments.
Smooth internal flow channel to reduce fluid resistance and energy consumption.
Non-toxic and odorless seals, complying with food and pharmaceutical hygiene standards.
Anti-clogging structure to avoid blockage by impurities in the medium.
Strong adaptability to extreme temperatures, suitable for both high and low temperature conditions.

Application

Control valves are widely used in many key industrial fields to realize precise and reliable fluid management. They are mainly applied in food and beverage processing, pharmaceutical production, chemical engineering, water treatment, petrochemical engineering, and HVAC systems. By accurately adjusting the flow, pressure and circulation of liquids, gases and steam, these valves effectively improve production efficiency, ensure operational safety and meet strict industry standards. With stable performance and strong adaptability, they have become essential components in modern automated production and pipeline control systems.

Working Principles

未标题-1

The working principle of a control valve is to adjust the flow area inside the valve body by moving the valve plug or disc. Driven by an actuator or manual force, the internal component changes its position to increase or restrict fluid flow, so as to accurately control the flow rate, pressure and temperature of the medium in the pipeline. This stable and responsive adjustment ensures that the entire system operates under preset parameters, while the reliable sealing structure effectively prevents medium leakage during operation, providing safe and consistent fluid control.

Feature and Specification

未标题-1

772769a7-1ccd-47fb-9a2f-dfa9111a2961

Stainless Steel Control Valve Specification Chart

未标题-1

Working Temperature	-10 ° to 120 °
Pressure	10bar
Work operate	Manual, pneumatic type
Gasket	EPDM, Silicone, Viton according to FDA 177.2600
Valve body type	LL, LT, TL and TT type
Connection mode	Clamped, welded, male threaded, female threaded, flange end, union connection
Specification	1/2"-4", DN15-DN100
Material quality	SUS304, SUS316L
Surface	Mirror polished,Matte polished or sand blasting type
inner surface	Ra 0.4um to meet the requirement of food industries
Standard	SMS,DIN,3A,ISO,RJT and so on
Required compressed air	4-8Bar
Connection of compressed air	G 1/8’’
Limit switch	6-36V, DC 2nos of NPN or PNP( to be chose )
Normally closed valve is the standard version.The valve can be changed to normally open by simply reversing the position of the pneumatic actuator.
External position sensors is available if needed
Manual or pneumatic actuated or electric actuated are chosen as per the different applications.
C top control unit is available if needed.

Features

未标题-1

Rapid response performance for timely adjustment of fluid parameters.
Pressure-resistant design to adapt to high-pressure working environments.
Smooth internal flow channel to reduce fluid resistance and energy consumption.
Non-toxic and odorless seals, complying with food and pharmaceutical hygiene standards.
Anti-clogging structure to avoid blockage by impurities in the medium.
Strong adaptability to extreme temperatures, suitable for both high and low temperature conditions.

Application

Control valves are widely used in many key industrial fields to realize precise and reliable fluid management. They are mainly applied in food and beverage processing, pharmaceutical production, chemical engineering, water treatment, petrochemical engineering, and HVAC systems. By accurately adjusting the flow, pressure and circulation of liquids, gases and steam, these valves effectively improve production efficiency, ensure operational safety and meet strict industry standards. With stable performance and strong adaptability, they have become essential components in modern automated production and pipeline control systems.
